Aruba
JL665A#ARB
RFQ Only
The Aruba CX 6300F is a manageable 48-port Gigabit Ethernet switch with Class 4 PoE and 4 SFP56 slots for flexible wired connectivity. It supports Layer 3 switching and rack-mount installation, with a 740 W PoE budget for powering connected devices.
SKU: JL665A#ARB
Features
Key Features
- Effectively reduces downtime with improved network performance
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Increases the stack bandwidth of the stack port further than that of a single port
- Features 48 networking ports to meet the requirements of the most demanding workgroups
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Switch
CX 6300
Product Information
Features
Dimensions
Product Name:
CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
Product Series:
CX 6300
Product Line:
CX
Port Details:
48x 10/100/1000Base-T Gigabit Ethernet PoE+ RJ-45 Network Port
1x USB-C Console Port
1x USB Type A Host Port
1x OOBM Port
4x 1/10/25/50 Gigabit Ethernet SFP Expansion Slot
1x USB-C Console Port
1x USB Type A Host Port
1x OOBM Port
4x 1/10/25/50 Gigabit Ethernet SFP Expansion Slot
Rack Units:
-
Fanless:
No
Routing:
Yes
Stacking:
Yes
Redundant PSU:
No
PoE Budget (W):
740
Power Consumption (W):
86
Height:
1.73 in
Width:
17.4 in
Depth:
12.87 in
Weight:
11.24 lb
Description

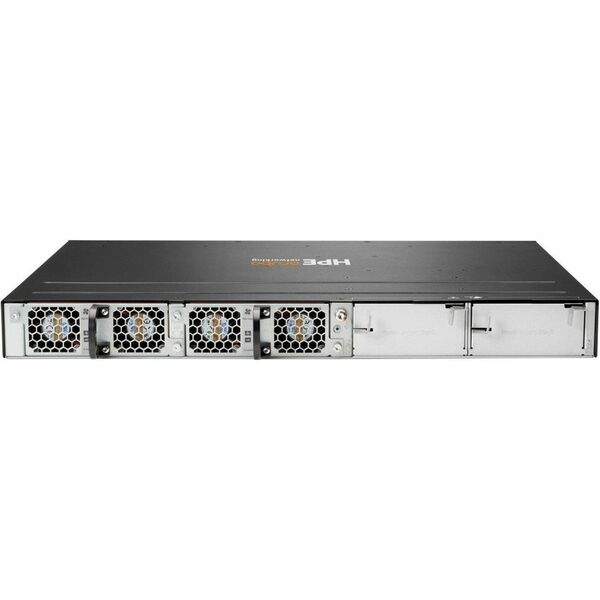

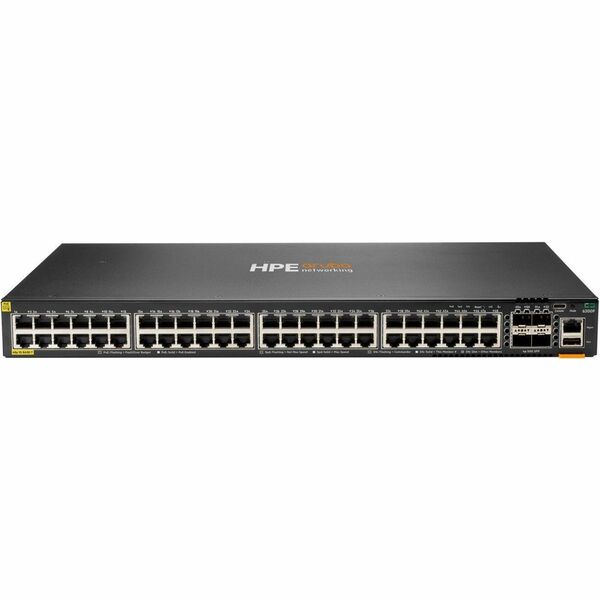

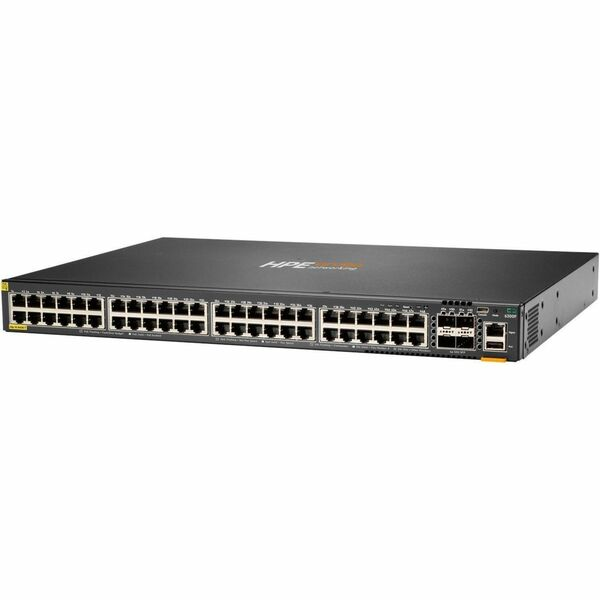

Aruba CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
This manageable switch provides 48 ports with Class 4 PoE and 4 SFP slots for flexible connectivity.
It supports Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, and 50 Gigabit Ethernet, with support for 10/100/1000Base-T, 10GBase-X, 25GBase-X, and 50GBase-X.
Key product details
- 3 Layer supported
- 86 W power consumption
- 740 W PoE budget
- Twisted Pair and Optical Fiber support
- PoE ports
- Rack-mountable design
