ArubaJL727B#B2B
Out of stock

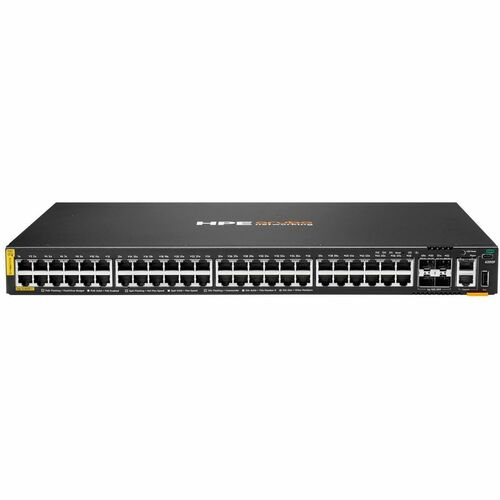

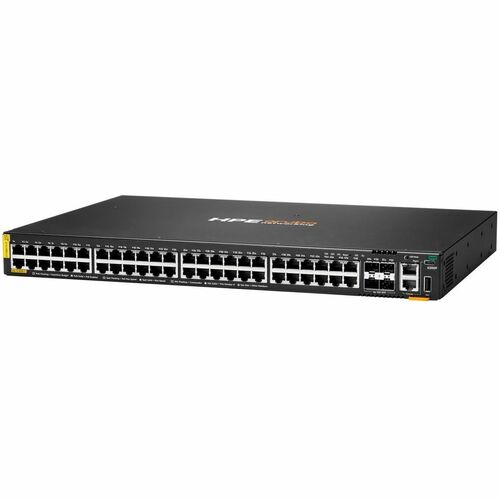

Aruba CX 6200 Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X, 1000Base-X - Modular - 76 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable
SKU: JL727B#B2B
Features
Key Features
- Effectively increases available bandwidth on your network
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 48 networking ports
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- Management capability allows maximum efficiency and with unrestricted control
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Switch
CX 6200
Product Information
Features
Dimensions
Product Name:
CX 6200 Ethernet Switch
Product Series:
CX 6200
Product Line:
CX
Port Details:
48x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
4x 1/10 Gigabit Ethernet SFP Expansion Slot
1x USB-C Console Port
1x USB Type-A Host Port
1x RJ-45 Console Port
1x OOBM Port
4x 1/10 Gigabit Ethernet SFP Expansion Slot
1x USB-C Console Port
1x USB Type-A Host Port
1x RJ-45 Console Port
1x OOBM Port
Rack Units:
1U
Fanless:
No
Routing:
No
Stacking:
Yes
Redundant PSU:
Yes
PoE Budget (W):
370
Power Consumption (W):
76
Height:
1.73 in
Width:
17.4 in
Depth:
12.87 in
Weight:
11.24 lb
Description
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
- Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
