Aruba
R9W93A#B2E
Out of stock

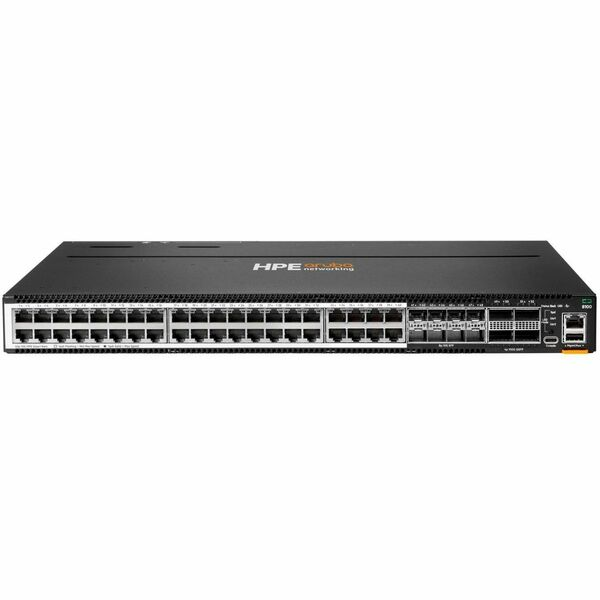

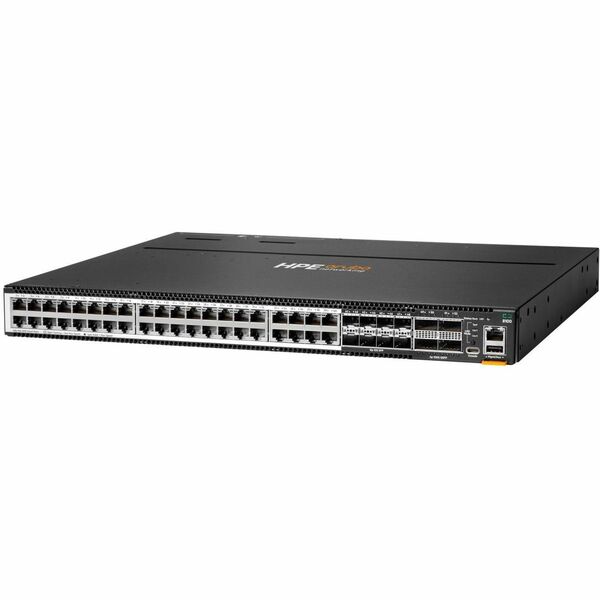

Aruba CX 8100 Ethernet Switch - 40 Ports - Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-X, 100GBase-X, 10GBase-T, 5GBase-T, 2.5GBase-T, 40GBase-X - 3 Layer Supported - 4 SFP Slots - 500 W Power Consumption - Optical Fiber - Black - 1U - Rack-mountable - Lifetime Limited Warranty
SKU: R9W93A#B2E
Features
Key Features
- Effectively increases available bandwidth on your network
- Features 40 networking ports to establish large network
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Comes in black color for a sophisticated and dazzling look
Switch
CX 8100
Product Information
Features
Dimensions
Product Name:
CX 8100 Ethernet Switch
Product Series:
CX 8100
Product Line:
CX
Port Details:
8x 10 Gigabit Ethernet SFP+ Expansion Slot
4x 40/100 Gigabit Ethernet QSFP28 Expansion Slot
1x USB Type A Port
1x USB-C Console Port
1x RJ-45 Serial Port
1x RJ-45 Ethernet Port
40x 10BASE-T Gigabit Ethernet RJ-45 Network Port
4x 40/100 Gigabit Ethernet QSFP28 Expansion Slot
1x USB Type A Port
1x USB-C Console Port
1x RJ-45 Serial Port
1x RJ-45 Ethernet Port
40x 10BASE-T Gigabit Ethernet RJ-45 Network Port
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
No
PoE Budget (W):
-
Power Consumption (W):
500
Height:
1.7 in
Width:
17.4 in
Depth:
16 in
Weight:
18.89 lb
Description
- High-performance 1.76Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
- Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.

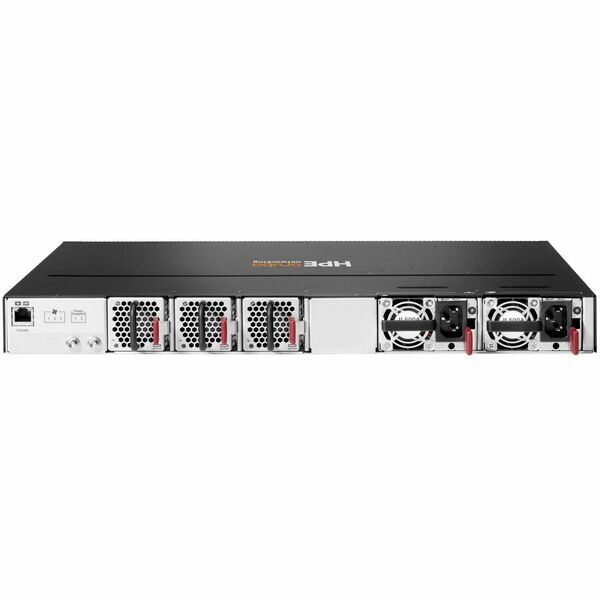

- High availability with industry-leading VSX redundancy and redundant power supplies and fans.
- Aruba AOS-CX automation and programmability using built-in REST APIs and Python scripts with intelligent monitoring and visibility delivered by the Aruba Network Analytics Engine.
