Aruba
S3L75A
Out of stock

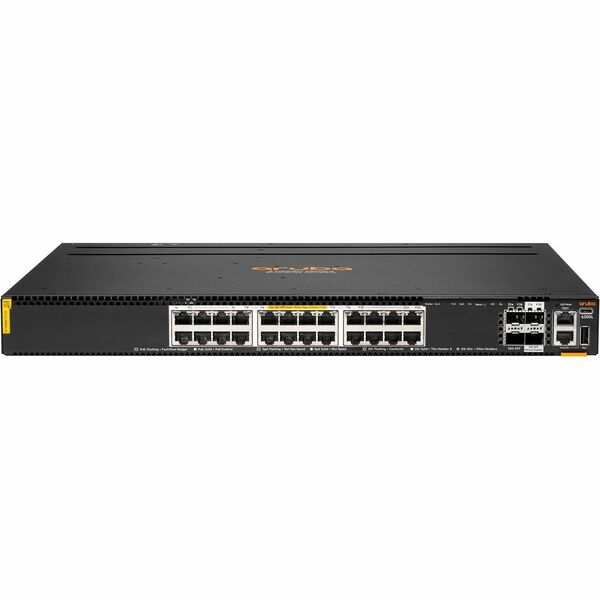

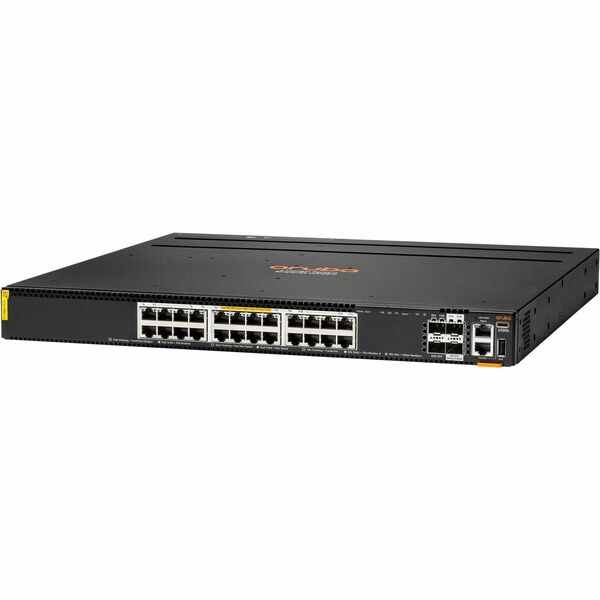

The Aruba 6300L 24-port managed switch supports Smart Rate connectivity from 1G through 10G on copper ports, plus 25G and 50G uplinks. It also offers a 2880 W PoE budget and 3-layer support in a rack-mountable 1U design.
SKU: S3L75A
Features
Key Features
- Layer 3 Switch provides dependable and powerful connectivity for maximum usability
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Features 24 networking ports to establish large network
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Comes in black color for better adaption to the space
Switch
CX 6300
Product Information
Features
Dimensions
Product Name:
6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 Switch
Product Series:
CX 6300
Product Line:
Smart
Port Details:
2x 10/25/50 Gigabit Ethernet SFP56 Expansion Slot
2x 10/25 Gigabit Ethernet SFP28 Expansion Slot
1x USB Type A Host Port
1x OOBM Port
1x RJ Console Port
1x USB-C Console Port
24x 1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 PoE Network Port
2x 10/25 Gigabit Ethernet SFP28 Expansion Slot
1x USB Type A Host Port
1x OOBM Port
1x RJ Console Port
1x USB-C Console Port
24x 1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 PoE Network Port
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
2880
Power Consumption (W):
-
Height:
1.73 in
Width:
17.4 in
Depth:
15.16 in
Weight:
13.27 lb
Description
Aruba 6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 Switch provides 24 ports with support for 1G, 2.5G, 5G, and 10G connectivity.
It also includes 2p SFP56 50G and 2p SFP28 25G ports for additional high-speed connections.
Managed networking with L2 switch functionality and 3 Layer support helps fit a range of deployment needs.
Additional details include:
- Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, and 50 Gigabit Ethernet
- 100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, 10GBase-X, 25GBase-X, and 50GBase-X
- PoE ports with a 2880 W PoE budget
- Twisted Pair and Optical Fiber support
- Black, 1U, rack-mountable design
