Aruba
S4R22A#B2B
RFQ Only

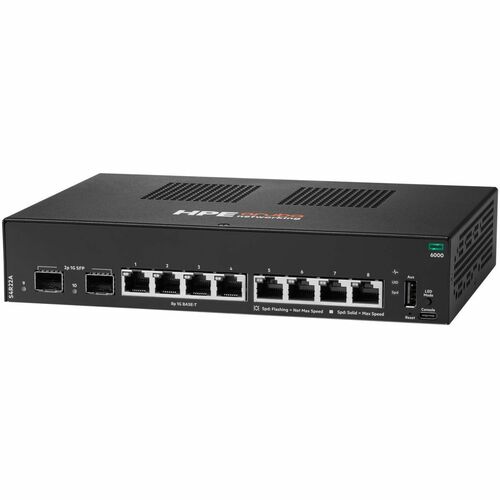

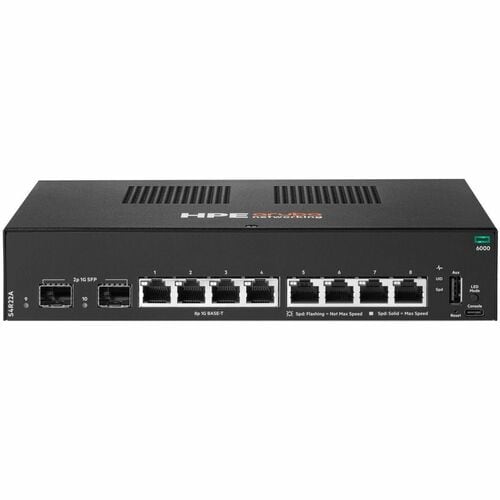

The HPE Aruba Networking CX 6000 8p 10M/100M/1G 2p SFP 1G Switch is a manageable Gigabit Ethernet switch with 8 twisted-pair ports and 2 SFP slots. Its compact design, Layer 2 support, and lifetime limited warranty make it a practical choice for wired access connectivity.
SKU: S4R22A#B2B
Features
Key Features
- Ethernet Switch supports increased network bandwidth availability through data switching
- Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
- Features 8 networking ports to establish a local wired network or extend connectivity within an existing layout
- AC power source supports continued device operation during power availability challenges
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- Compact form factor supports structural consistency based on defined hardware construction
- Managed capability enables configuration and monitoring functions that support structured network operation
- Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Switch
CX 6000
Product Information
Features
Dimensions
Product Name:
CX 6000 8p 10M/100M/1G 2p SFP 1G Switch
Product Series:
CX 6000
Product Line:
CX
Port Details:
8x Gigabit Ethernet Network Port
1x USB Type-A Host Port
1x USB-C Console Port
2x Gigabit Ethernet Expansion Slot
1x USB Type-A Host Port
1x USB-C Console Port
2x Gigabit Ethernet Expansion Slot
Rack Units:
-
Fanless:
Yes
Routing:
No
Stacking:
No
Redundant PSU:
No
PoE Budget (W):
-
Power Consumption (W):
13.8
Height:
0 in
Width:
0 in
Depth:
0 in
Weight:
0 lb
Description
HPE Aruba Networking CX 6000 8p 10M/100M/1G 2p SFP 1G Switch
The HPE Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises.
Features | Maximize your HPE Aruba Networking CX 6000 Switch Series | What's New
- It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
- The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points , client, and IoT devices
- It has compact and fanless 8-port and 12-port models for space-constrained deployments
- The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI |
Entry-level Layer 2 access switches
- The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
- The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System used across HPE Aruba Networking CX switching platforms.
- It has fully-managed enterprise-class switches switches deliver Layer 2 capabilities with support static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow®, and IPv6.
- The CX 6000 series provides right-size deployment with choice of 8, 12, 24, and 48-port 1U models with convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE.
- It simplifies ownership with no switch software licensing or subscriptions required.
AI-ready Performance and power
- The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and optimized power consumption ideal for AI, Wi-Fi 7, and IoT requirements.
- It supports up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port to enable full deployments of wireless access points and IoT devices.
- It has up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.
