Network SwitchesCisco IE-3100-8T2C-E Ethernet Switch
Gallery image number 0
Gallery image number 0
Cisco

IE-3100-8T2C-E

Out of stock

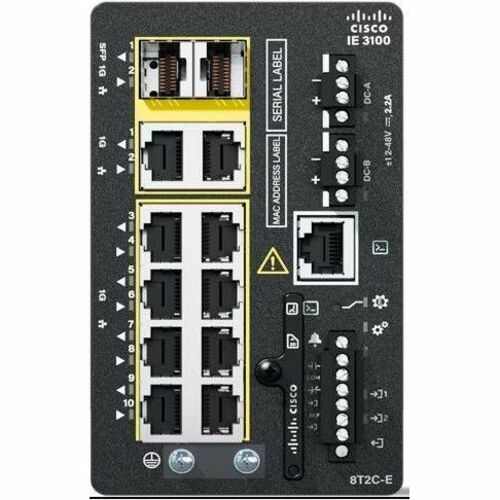

Cisco Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE - 10 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-TX - 3 Layer Supported - Modular - 2 SFP Slots - 17.70 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable
SKU: IE-3100-8T2C-E
Features

Key Features

  1. Effectively increases available bandwidth on your network
  2. Cascade to other network devices through the uplink port to expand your local area network
  3. Expand your network capacity with the help of 10 networking ports and transfer your data quickly and easily
  4. Supports layer 3 switching for enhanced performance and usability
  5. DIN Rail Mountable form factor for your convenience and simplicity of usage
  6. Managed switch provides a reliable foundation for your network
  7. Gigabit Ethernet port for ultra-fast network speeds
  8. Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  9. Comes in black color for better adaption to the space

Switch

IE3100 Rugged
Product Information
Features
Dimensions
Product Name:
Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE
Product Series:
IE3100 Rugged
Product Line:
Catalyst
Port Details:
2x Gigabit Ethernet Uplink
8x Gigabit Ethernet Network
Rack Units:
-
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
No
PoE Budget (W):
-
Power Consumption (W):
17.7
Height:
5 in
Width:
3 in
Depth:
4.3 in
Weight:
1.9 lb

Description

The Cisco Catalyst™IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.

Product overview

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

These switches run Cisco IOS®XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco®Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.

The IE3100 Rugged Series switches offer:

●Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports

●Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies

●Simplified software management with universal images

●Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET

●Support for Layer-2 Network Address Translation
