Name: Cisco IE-3505-8T3S-E Ethernet Switch
Brand: Cisco
SKU: IE-3505-8T3S-E
Availability: InStock

Key Features

Effectively increases available bandwidth on your network
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
Can work as layer 3 routing for scalable network design
DIN Rail Mountable form factor for added reliability and dependability
Management capability allows maximum efficiency and with unrestricted control
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Switch

IE3500

Product Information

Features

Dimensions

Product Name:

IE-3505-8T3S-E Ethernet Switch

Product Series:

IE3500

Product Line:

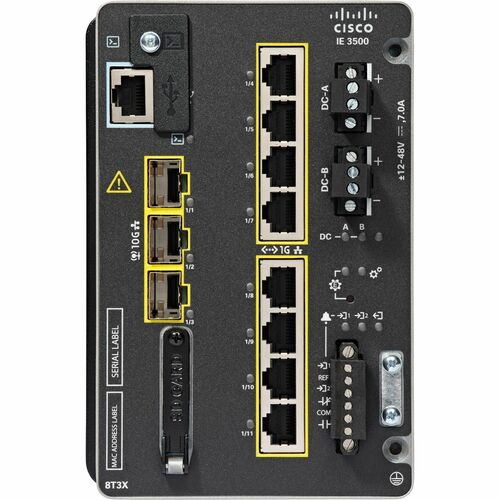

Port Details:

8x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
3x Gigabit Ethernet SFP Expansion Slot
2x Alarm Input
1x RS-232 Console Port
1x Alarm Output
1x USB Type-C Console Port

Rack Units:

Fanless:

Yes

Routing:

Yes

Stacking:

Redundant PSU:

PoE Budget (W):

Power Consumption (W):

Height:

6 in

Width:

3.5 in

Depth:

5.3 in

Weight:

4.34 lb

Description

The Cisco IE3500 Rugged Series switches deliver high bandwidth, higher power and feature rich switching performance in a rugged and modular form factor. The Cisco IE3500 Rugged Series are designed with features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, large scale networks, robust security, and edge-to-cloud connectivity.

Advanced Features for Operational Technology (OT) Networks

TSN Frame-Preemption : The IE3500 is the first Cisco IE switch to incorporate IEEE802.1Qbu and IEEE802.3br based frame-preemption technology, significantly reducing jitter and delay for time sensitive control packets.
Enhanced Resiliency: The IE3500 supports protocols such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and Device Level Ring (DLR) , providing redundancy and fast failover times.
Lossless Redundancy: For deployments requiring uninterrupted connectivity, the IE3505 includes High-Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP) , ensuring seamless failover and network continuity.

Network security and Observability

Secure Boot: The IE3500 features Secure Boot designed to ensure that only trusted and authenticated software is executed during the boot process, with its hardware-anchored root of trust in Cisco Trust Anchor Module.
Cyber visibility: Cisco Cyber Vision built-into the IE3500 identifies connected assets, their profiles, vulnerabilities, and communication patterns to assess your OT security posture and help drive cybersecurity best practices.
Secure remote access: Cisco Secure Equipment Access1 built-into the IE3500 enables zero-trust remote access to connected assets.
Segmentation: Cisco TrustSec technology enables policy-based segmentation that helps reduce attack surfaces and contains threats by automatically adapting access based on user and device identity.
Network Assurance: IE3500 can host Thousand Eyes Enterprise Agent1 that gains visibility into owned and third-party network to avoid network outages.

Flexible Management Options

The IE3500 offers multiple management choices to suit various deployment needs:

On-Device Management: Use the WebUI or command line tool for standalone devices, providing an intuitive on-device GUI and CLI options.
On-Premises Management: Manage the IE3500 via Catalyst Center for on-premises deployments.
Cloud Management: Leverage Meraki dashboard for cloud-based network management, enabling simplified and centralized control.
