R0P78A

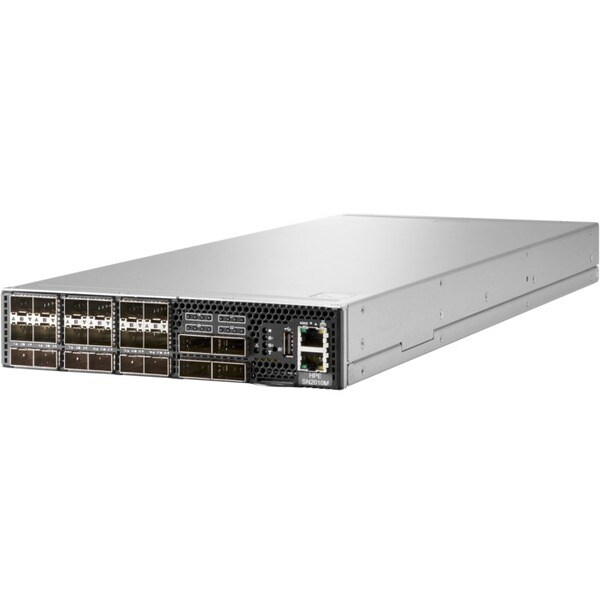

HPE StoreFabric SN2010M Switch helps provide fast, reliable, and cost-effective connectivity in the data center with predictable performance and investment protection. It is ideal for modern server and storage networks.

Supporting port speeds of 1, 10, 25, 40, 50, and 100GbE, it delivers predictable performance and zero packet loss at line-rate. Its unique port counts and half-width form factor allow for up to two HPE StoreFabric SN2010M Switch units to be deployed side-by-side for increased density and high-availability in a single rack unit, making it a strong top-of-rack switch.

Features

Unleash Storage Performance and Improve Flash ROI

The HPE StoreFabric SN2010M Switch is a half-width 10/25GbE and 40/100GbE Ethernet switch designed for primary, secondary storage, and hyper converged infrastructures. This top-of-rack (ToR) solution packs 18 ports of 10/25GbE and 4 ports of 40/100GbE that can be reconfigured with breakout cables.

It delivers low latency for 10/25GbE and 40/100GbE switching, featuring a robust implementation of data, control, and management planes, along with a compact form factor and low power consumption.

It provides ultra-low latency of under 300 ns port-to-port. This is advantageous for flash storage, which has moved latency bottlenecks from storage access to the network, as well as for the burst nature of today's software defined and cloud data center traffic.

The buffering architecture provides superior micro-burst absorption for applications that experience data surges across different parts of the network at random intervals.

Ideal for Demanding Enterprise Data Centers and Storage Environments

The HPE StoreFabric SN2010M Switch provides a flexible combination of ports, allowing for great flexibility, efficiency, and simplification of scale-out environments, saving on total cost of ownership.

Unique port configurations allow high-speed rack connectivity to the server at 1/10GbE or 25GbE speeds with 40/100GbE uplink ports that allow for a variety of blocking ratios that suit specific application requirements.

Enhanced for RDMA over Converged Ethernet (RoCE), full buffer utilization, and zero packet loss combined into a small form factor with low latency make it the ideal switch for the Ethernet storage fabric (ESF).

Enhanced for Storage and Hyper Converged Environments

The HPE StoreFabric SN2010M Switch provides high port density in a single rack unit, allowing for increased capacity and efficiency, simplifying scale-out environments, and saving on total cost of ownership.

With its unique half-width form factor and port counts, this Ethernet switch allows for two HPE StoreFabric SN2010M Switch units to be deployed side-by-side, allowing for increased density and high-availability in a single rack unit.

Designed to use less electric power than competing switches, the SN2010M provides one of the industry's lowest power draws, producing less heat than competing products and reducing operating expenses.
