HPE
S0F82A#ABA
Out of stock

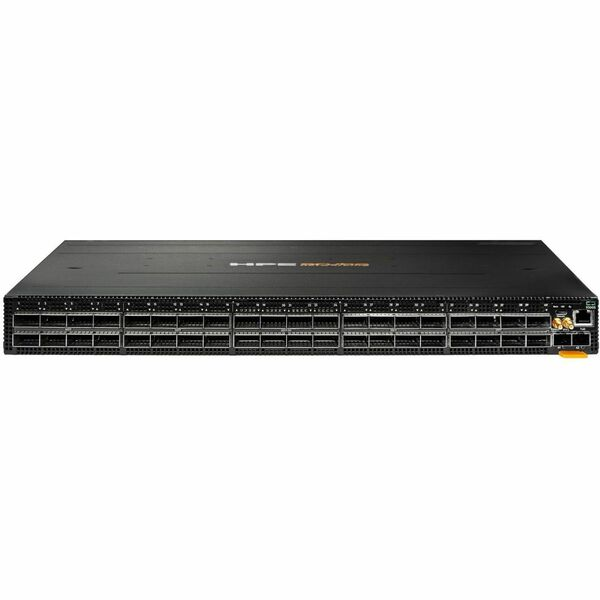

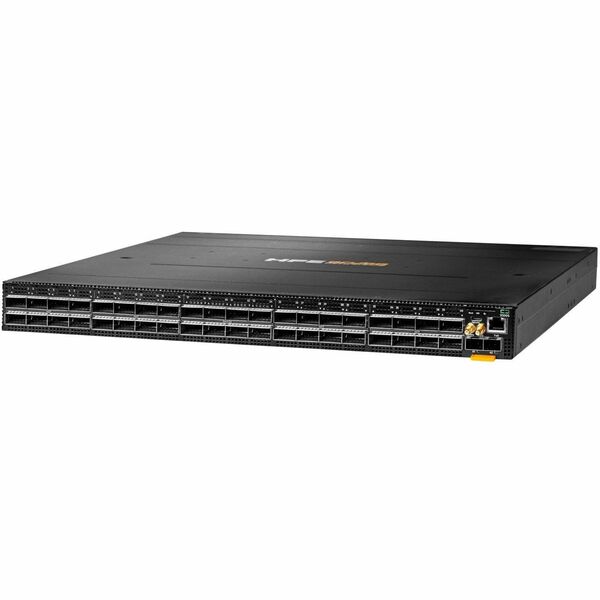

HPE CX 9300 Layer 3 Switch - Manageable - 100 Gigabit Ethernet, 400 Gigabit Ethernet - 100GBase-X, 40GBase-X, 10GBase-X, 20GBase-X - 3 Layer Supported - 600 W Power Consumption - Optical Fiber - Black - 1U - Rack-mountable - Lifetime Limited Warranty - TAA Compliant
SKU: S0F82A#ABA
Features
Key Features
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Comes in black color to better suit the theme of the area
Switch
CX 9300
Product Information
Features
Dimensions
Product Name:
CX 9300 Layer 3 Switch
Product Series:
CX 9300
Product Line:
CX
Port Details:
8x 400 Gigabit Ethernet QSFP-DD Expansion Slot
32x 10/25/100 Gigabit Ethernet QSFP28 Expansion Slot
1x RJ-45 Serial Port
1x RJ-45 Console Port
32x 10/25/100 Gigabit Ethernet QSFP28 Expansion Slot
1x RJ-45 Serial Port
1x RJ-45 Console Port
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
600
Height:
1.71 in
Width:
17.26 in
Depth:
23.23 in
Weight:
26.12 lb
Description
The HPE Aruba Networking CX 9300SwitchSeries provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.
The HPE Aruba Networking CX 9300SwitchSeries protects enterprises' investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.
