Network SwitchesHPE S2N59A Ethernet Switch
Gallery image number 0
Gallery image number 1
Gallery image number 0
Gallery image number 1
HPE

S2N59A

RFQ Only

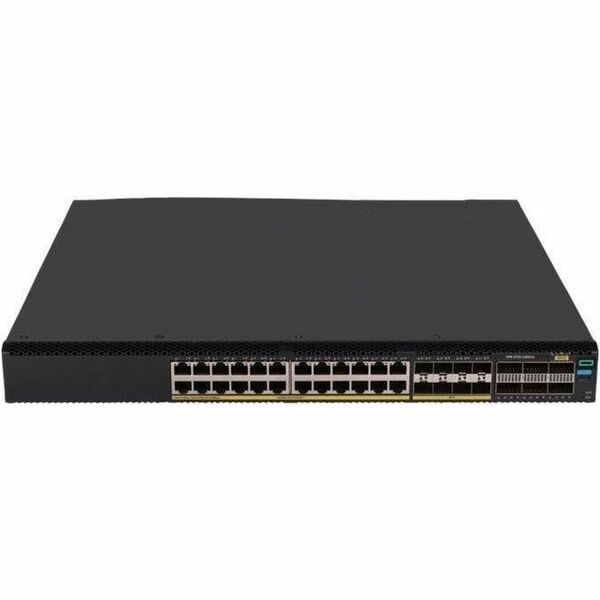

HPE Networking Comware Switch Series 5720 is a manageable 24-port data center switch with hybrid SFP+ and 10GBASE-T options. It supports multigigabit operation on 10GBASE-T ports and is designed for scalable access and leaf-layer use.
SKU: S2N59A
Features

Key Features

  1. Effectively increases available bandwidth on your network
  2. Stack port provides an easy and hassle-free way to extend your office network
  3. Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
  4. Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  5. Management capability provides control over setup and configuration of your network
  6. Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
  7. Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

Switch

5720
Product Information
Features
Dimensions
Product Name:
Comware Data Center Switch 24p 10GBASE-T 8p SFP+ 1G/10G 6p QSFP28100G 5720
Product Series:
5720
Product Line:
Comware
Port Details:
6x 100 Gigabit Ethernet QSFP28 Expansion Slot
8x 1/10 Gigabit Ethernet SFP+ Expansion Slot
24x 1/2.5/5/10GBASE-T Gigabit Ethernet RJ-45 Network Port
Rack Units:
-
Fanless:
No
Routing:
No
Stacking:
Yes
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
94
Height:
0 in
Width:
0 in
Depth:
0 in
Weight:
0 lb

Description

HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28.

These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network.

Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.

Features | Maximize your HPE Networking Comware Switch Series 5720 | What's New

  • Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port-5G, 2.5G, 1G.
  • DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
  • Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability.
  • Hardware-based MACsec enable end-to-end encrypted security.
  • The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
  • VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.
