S4J82A
Features
Key Features
- Effectively reduces downtime with improved network performance
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Switch
48x 100 Gigabit Ethernet QSFP28 Expansion Slot
Description
Overview

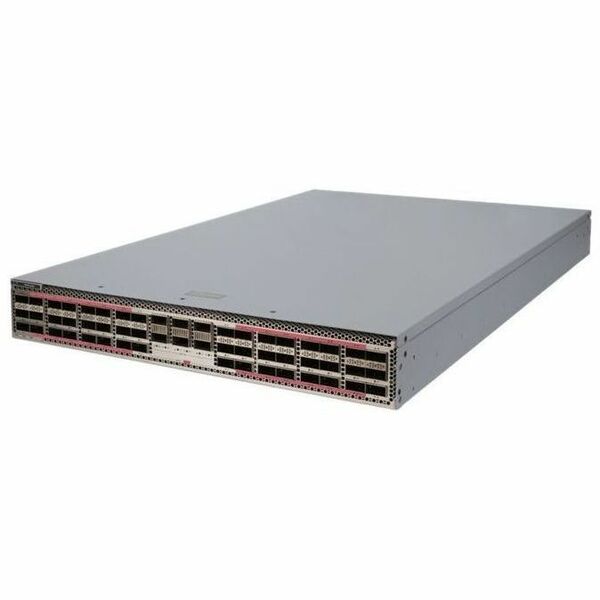

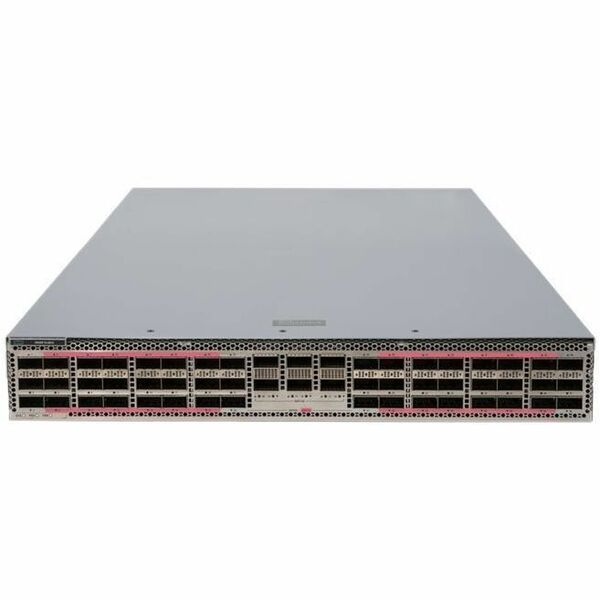

The HPE Networking Comware Switch Series 5960 is a high-performance, high-density top-of-rack (ToR) switch designed for enterprise data centers, cloud service providers, and telco environments. With multiple connectivity options including 400G and 100G QSFP28 ports, these switches offer exceptional performance and improved power savings. VXLAN/EVPN and DRNI improve scalability and resiliency, while modern software features enable a dynamic and highly available network. HPE Intelligent Management Center (IMC) support provides centralized configuration, compliance, policy management, monitoring, and troubleshooting. HPE IMC Orchestrator and Analyzer are also supported for data center fabric orchestration and application telemetry.
What's new
- High-performance, high-density, and backward-compatible switch with varied 400/200/100G connectivity options.
- OS Comware v9 offers enhanced software features such as Segment Routing MPLS, SR-V6, PTP/SyncE, egress ACL, egress rate limiting, and others for highly distributed environments.
- Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network.
- Supports HPE IMC for a consistent network manageability experience while integrating with HPE IMC Orchestrator and Analyzer for data center fabric orchestration, monitoring, and application telemetry|
Features
Consistent and Advanced Data Center Switches with Flexible Connectivity Options
The HPE Networking Comware Switch Series 5960 offers 25/40/100/200/400G connectivity with three SKUs
a) High-density 32x400G QSFP-DD switch
b) Highly flexible 24x100/200G + 4x400G QSFP-DD switch backward compatible with widely used 100G QSFP28 ports
c) High-density 48x100G 6QSFP-DD switch
The switch series supports new-generation OS Comware v9 offering enhanced features such as SR-MPLS, SR-V6, and others for highly distributed environments built on a modular and open architecture; supports containerized deployment; can run third-party software applications.
It has VXLAN/EVPN for network virtualization and overlay solutions for improved flexibility.
The switch series supports DRNI that combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, fast forwarding, resiliency, and high availability.
The 5960R model supports PTP, SR, VXLAN, EVPN. DRNI, HPE IMC Orchestrator
High-Performance Data Center Switching
The HPE Networking Comware Switch Series 5960 supports redundant, hotswappable power modules and varied fan speeds to meet the actual demands, thereby enabling a dynamic and highly available network.
Delivers up to 12.8 Tbps switching capacity for demanding data center applications.
Low latency, under 1 s delivering increased network throughput.
Uses programmable chips that improve flexibility and aid in network expansion by defining forwarding logic and developing new features as per user needs through simple software upgrades.
