Juniper

B-EX3400-48P-EDU

$0.01
01

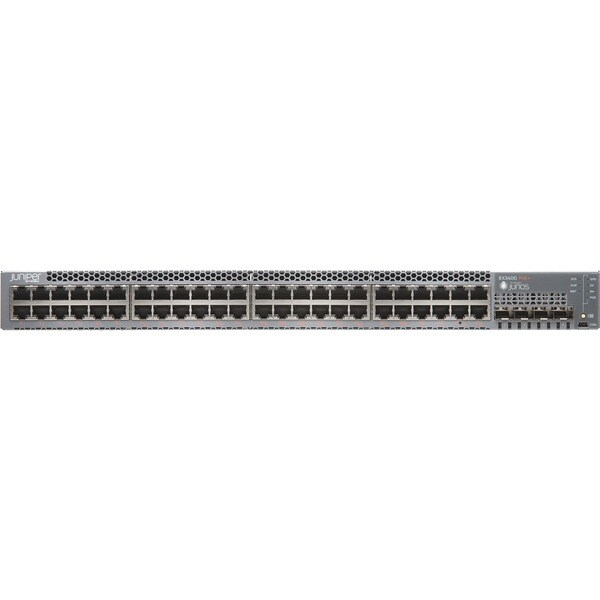

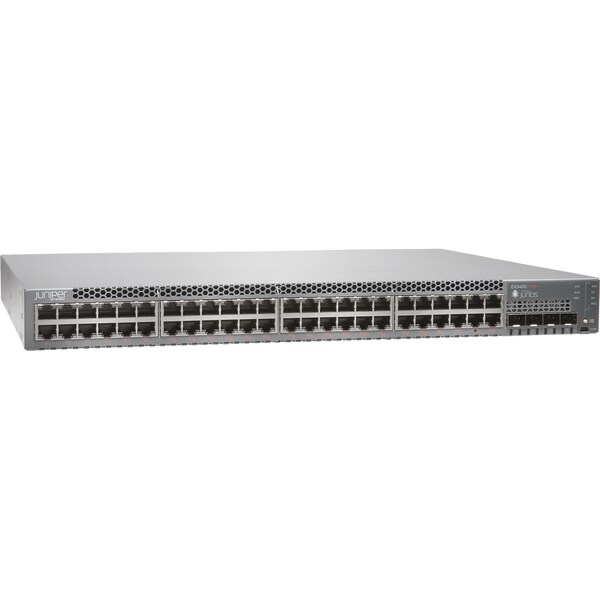

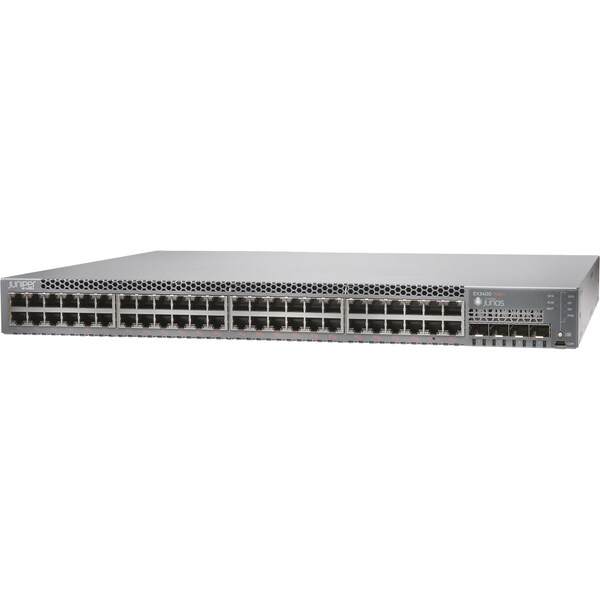

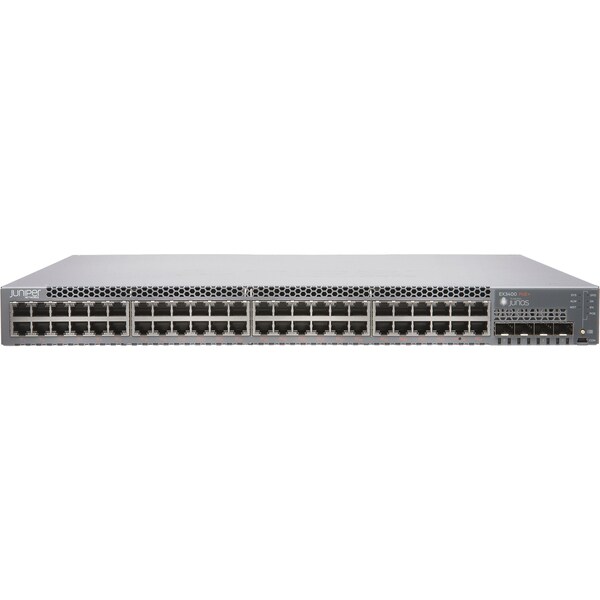

The Juniper EX3400-48P is a manageable 48-port Ethernet switch in a 1U rack-mountable or wall-mountable design. It offers Virtual Chassis support for managing up to 10 switches as a single device and is built for converged data, voice, and video enterprise access networks.
SKU: B-EX3400-48P-EDU
Features

Key Features

  1. Effectively increases available bandwidth on your network
  2. Cascade to other network devices through the uplink port to expand your local area network
  3. Quickly and easily set up a wired network with 48 networking ports
  4. Can work as layer 3 routing for scalable network design
  5. Rack-mountable form factor for your convenience and simplicity of usage
  6. Management capability allows maximum efficiency and with unrestricted control
  7. Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  8. Twisted Pair media support ensures maximum convenience and great usability

Switch

EX3400
Product Information
Features
Dimensions
Product Name:
EX3400-48P Ethernet Switch
Product Series:
EX3400
Product Line:
EX
Port Details:
48x Gigabit Ethernet PoE+
4x 10 Gigabit Ethernet Expansion Slot
2x 40 Gigabit Ethernet Expansion Slot
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
-
Height:
1.72 in
Width:
17.36 in
Depth:
13.78 in
Weight:
10.49 lb

Description

EX3400 Ethernet Switches are a cost-effective solution for today's most demanding converged data, voice, and video enterprise access networks. These compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.

Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices.

The EX3400 supports Juniper's unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.
