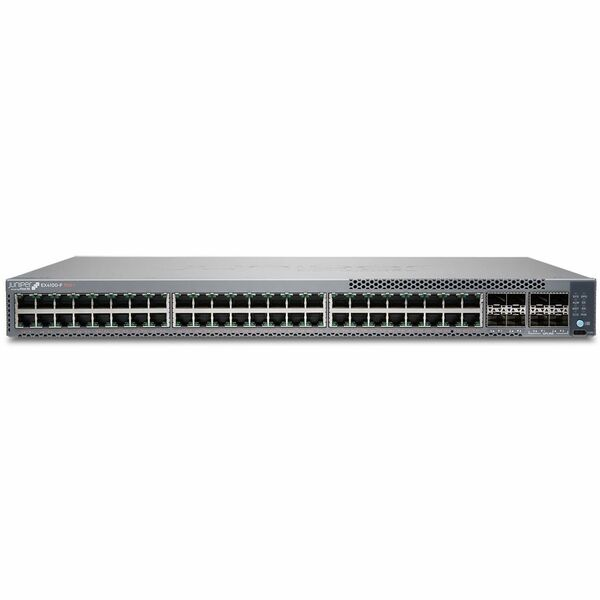

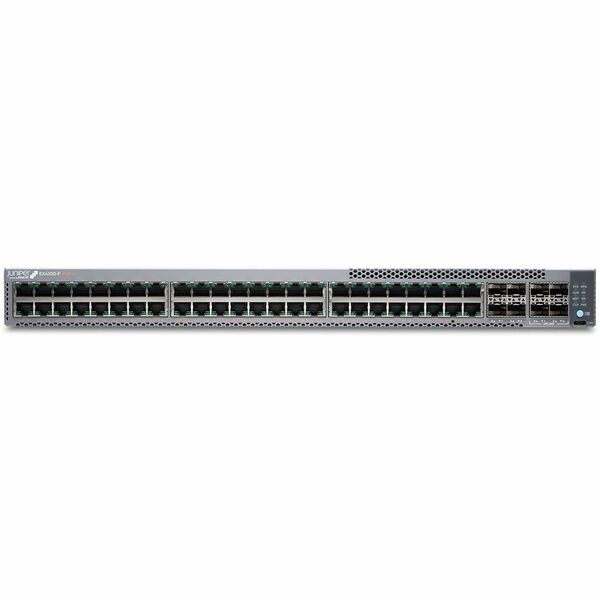

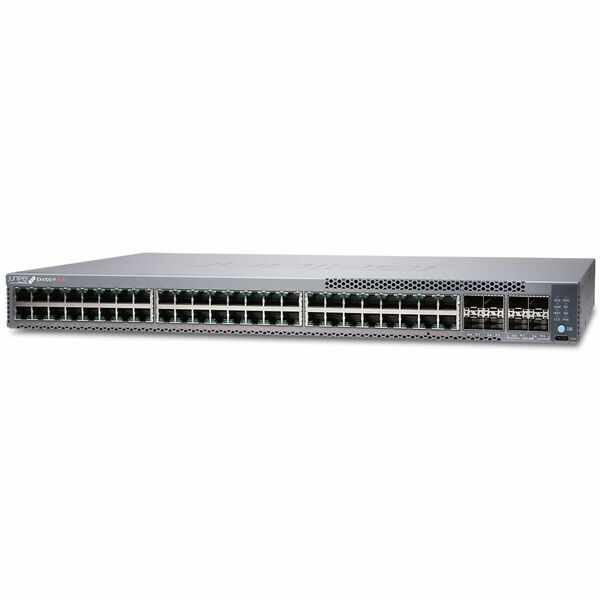

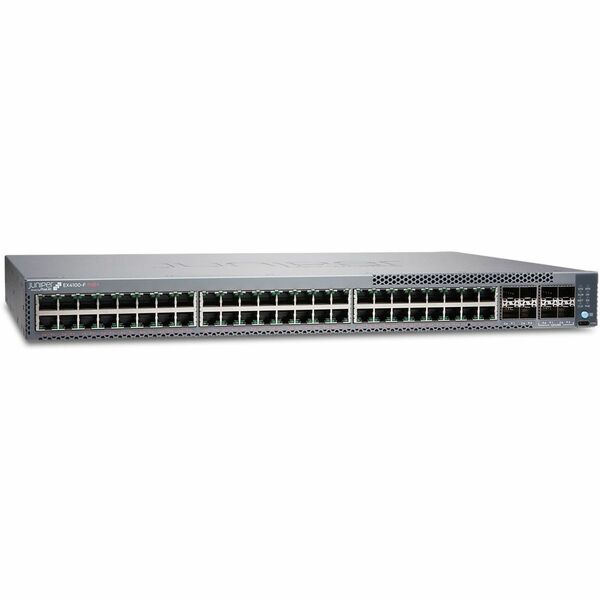

Name: Juniper B-EX4100-F-48P-EDU Ethernet Switch
Brand: Juniper
SKU: B-EX4100-F-48P-EDU
Availability: InStock

Key Features

Effectively increases available bandwidth on your network
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Stack port provides an easy and hassle-free way to extend your office network
Quickly and easily set up a wired network with 48 networking ports
Supports layer 3 switching for enhanced performance and usability
Rack mounting enables you to organize wires & secure cables for professional installation
Managed switch provides a reliable foundation for your network
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Twisted Pair media support for a dependable and productive connectivity

Switch

EX4100-F

Product Information

Features

Dimensions

Product Name:

EX4100-F-48P Ethernet Switch

Product Series:

EX4100-F

Product Line:

Port Details:

48x Gigabit Ethernet PoE+
4x 10 Gigabit Ethernet Expansion Slot
4x 10 Gigabit Ethernet Stack

Rack Units:

Fanless:

Yes

Routing:

Yes

Stacking:

Yes

Redundant PSU:

PoE Budget (W):

740

Power Consumption (W):

100

Height:

1.72 in

Width:

17.36 in

Depth:

12.26 in

Weight:

11.46 lb

Description

The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.
Key features of the EX4100-F include:

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
Standards-based microsegmentation using group-based policies (GBPs)
Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
The EX4100-F line consists of the following models:

The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
