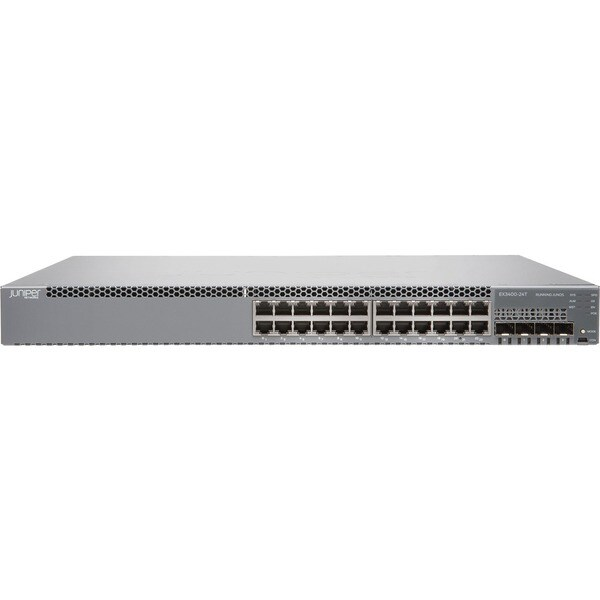

Name: Juniper EX3400-24T-TAA Ethernet Switch
Brand: Juniper
SKU: EX3400-24T-TAA
Availability: InStock

Key Features

Junos Fusion Enterprise allows large numbers of EX3400 switches to be configured as satellite devices that connect to an EX9200 core aggregation switch to create a single logical device
24-port and 48-port models with and without Power over Ethernet (PoE/PoE+) are for campus wiring closet deployments
Data center-optimized cooling options offer both front-to-back and back-to-front airflows, making the EX3400 suitable for GbE data center access deployments
Two redundant, field-replaceable power supplies each provide up to 920 watts of power
24-port data center models are included for metro deployments
Four dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE QSFP+ ports are available
Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE/40GbE optic interfaces (40GbE uplink ports are preconfigured by default as Virtual Chassis ports)
Comprehensive Layer 2 functionality with RIP and static routing is provided
A compact, 13.8-inch deep 1 U form factor supports flexible deployment options
An easy-to-manage solution includes centralized software upgrades and a single management interface
Support is available for the same consistent modular Juniper Networks Junos operating system control plane feature implementation used by all other Juniper fixed-configuration Juniper Networks EX Series Ethernet Switches.
Support Is provided for Layer 3 (OSPF v2, IGMP v1/v2/v3, PIM, VRRP, Q-in-Q, BFD, virtual router) via an enhanced feature license (optional license required)
Support is available for IPv6 management, including neighbor discovery, stateless auto configuration, telnet, SSH, DNS, system log, NTP, ping, traceroute, ACL, CoS static routing, and RIPng
IPv6 routing features (OSPFv3, virtual router support for unicast, VRRPv6, PIM, MLDv1/v2) are supported via an enhanced feature license
Energy Efficient Ethernet (EEE) capability is provided

Switch

EX3400

Product Information

Features

Dimensions

Product Name:

EX3400-24T-TAA Ethernet Switch

Product Series:

EX3400

Product Line:

Port Details:

4x 10 Gigabit Ethernet Expansion Slot
24x Gigabit Ethernet Network
2x 40 Gigabit Ethernet Uplink

Rack Units:

Fanless:

Routing:

Yes

Stacking:

Redundant PSU:

PoE Budget (W):

Power Consumption (W):

Height:

1.72 in

Width:

17.36 in

Depth:

13.78 in

Description

Juniper Networks EX3400 Ethernet Switch delivers a high-performance, flexible, and cost-effective solution for today's most demanding converged data, voice, and video enterprise access environments.

To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
