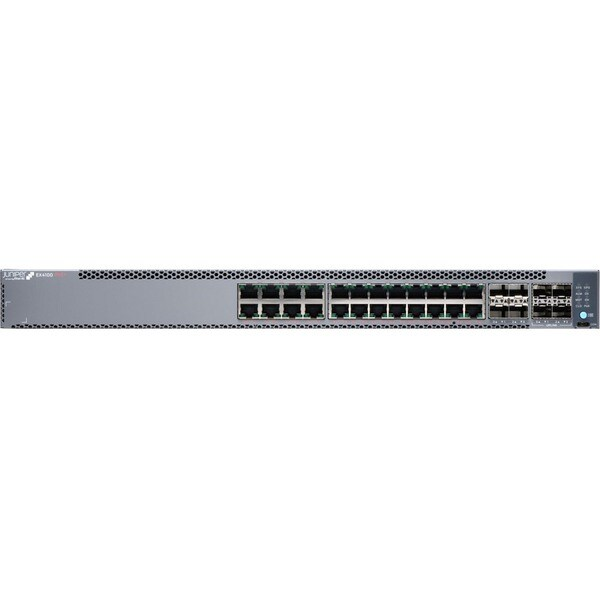

Name: Juniper EX4100-24P Ethernet Switch
Brand: Juniper
SKU: EX4100-24P
Price: 6431.09 USD
Availability: InStock

Key Features

Ethernet Switch provides reliable, efficient connectivity to ensure maximum feasibility
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
Quickly and easily set up a wired network with 24 networking ports
Can work as layer 3 routing for scalable network design
Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
Managed switch provides a reliable foundation for your network
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

Switch

EX4100

Product Information

Features

Dimensions

Product Name:

EX4100-24P Ethernet Switch

Product Series:

EX4100

Product Line:

Port Details:

4x 10 Gigabit Ethernet Uplink
4x 25 Gigabit Ethernet Stack
24x Gigabit Ethernet PoE+

Rack Units:

Fanless:

Routing:

Yes

Stacking:

Yes

Redundant PSU:

Yes

PoE Budget (W):

740

Power Consumption (W):

Height:

1.72 in

Width:

17.36 in

Depth:

13.78 in

Weight:

10.01 lb

Description

The Juniper Networks® EX4100 line of Ethernet Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4100 switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100 line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100 include:

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
Standards-based microsegmentation using group-based policies (GBPs)
Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
IEEE 802.3bt Power over Ethernet Plus (PoE++)
Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
Precision Timing Protocol-Transparent Clock
10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100 enables multiple deployments, including campus, branch, and data center top-of-rack deployments. As scale requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100 family of Ethernet switches consists of the following models:

The EX4100-48MP, which offers 16 x 100 MB/1GbE/2.5GbE and 32 x 10 MB/100MB/1GbE Power over Ethernet (PoE++) access ports, delivering up to 90 W per PoE port with an overall total 1620 W of PoE power budget (using two power supplies)
The EX4100-24MP, which offers 8 x 100 MB/1GbE/2.5GbE/5GbE/10GbE and 16 x 10 MB/100 MB/1GbE PoE++ access ports, delivering up to 90 W per port with an overall total 1620 W of PoE power budget (using two power supplies)
The EX4100-24T, which offers 24 x 1GbE non-PoE access ports
The EX4100-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
The EX4100-48T, which offers 48 x 1GbE non PoE-access ports
The EX4100-48P, which offers 48 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
