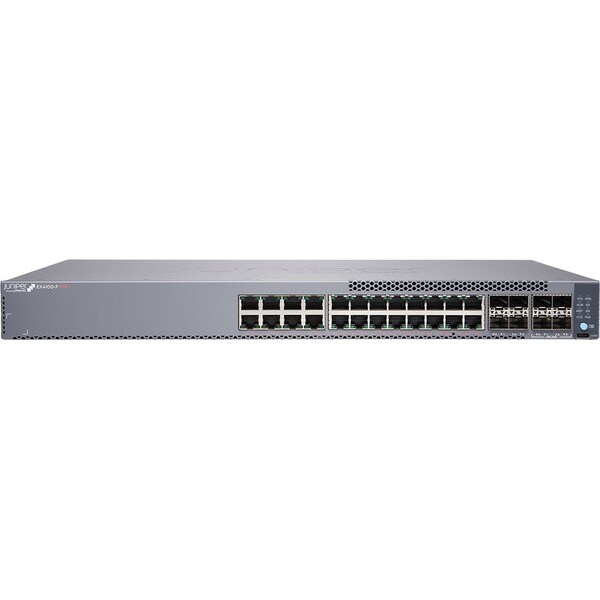

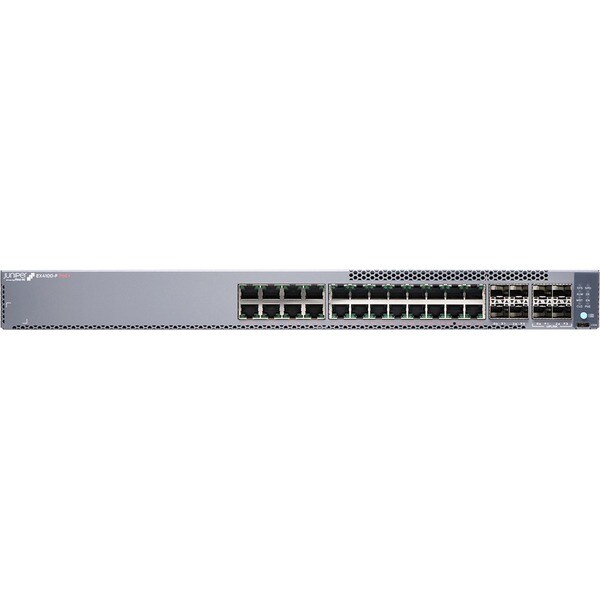

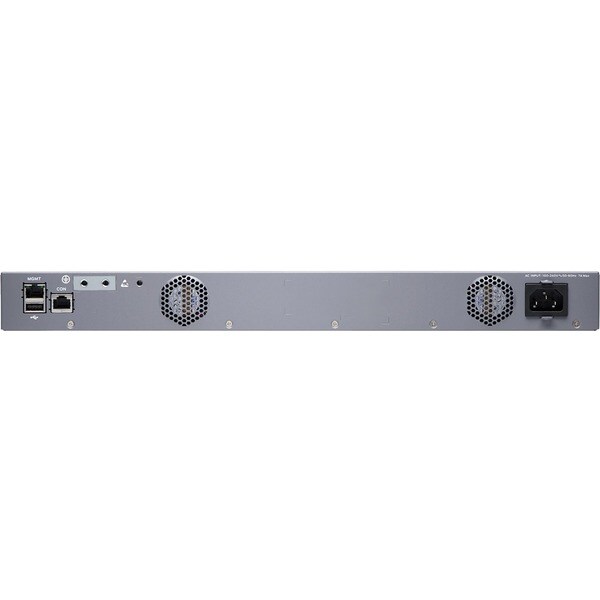

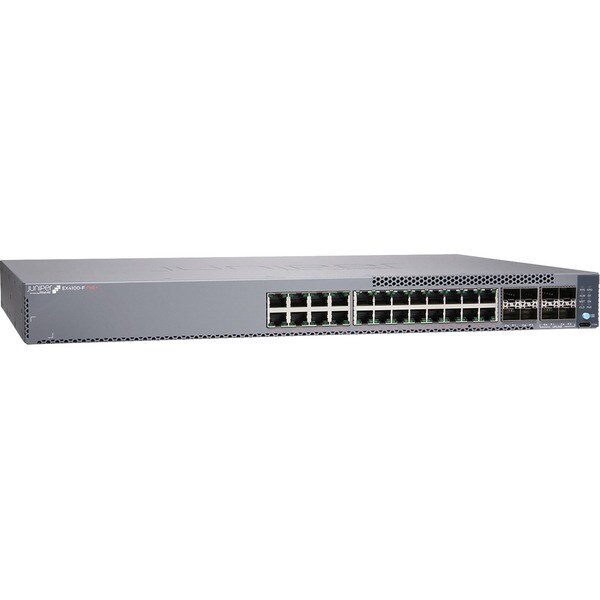

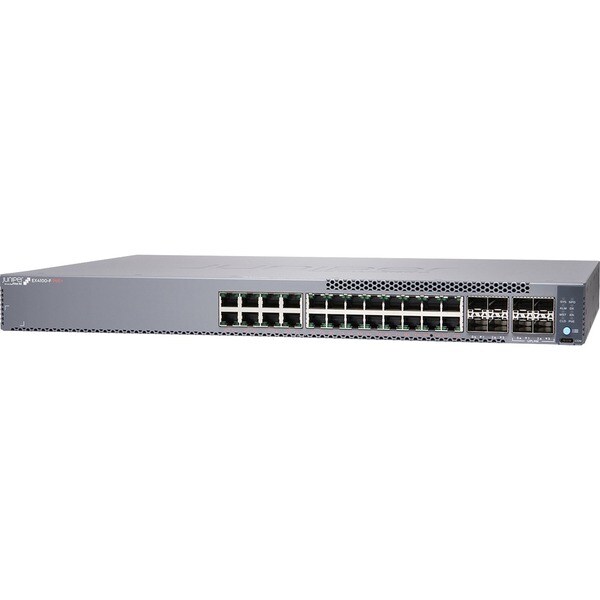

Name: Juniper EX4100-F-24P Ethernet Switch
Brand: Juniper
SKU: EX4100-F-24P
Price: 5754.24 USD
Availability: InStock

Key Features

Effectively reduces downtime with improved network performance
Cascade to other network devices through the uplink port to expand your local area network
Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
Quickly and easily set up a wired network with 24 networking ports
Can work as layer 3 routing for scalable network design
With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Management capability allows maximum efficiency and with unrestricted control
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Twisted Pair media support for a dependable and productive connectivity

Switch

EX4100-F

Product Information

Features

Dimensions

Product Name:

EX4100-F-24P Ethernet Switch

Product Series:

EX4100-F

Product Line:

Port Details:

4x 10 Gigabit Ethernet Stack
4x 10 Gigabit Ethernet Expansion Slot
24x Gigabit Ethernet PoE+

Rack Units:

Fanless:

Yes

Routing:

Yes

Stacking:

Yes

Redundant PSU:

PoE Budget (W):

370

Power Consumption (W):

Height:

1.72 in

Width:

17.36 in

Depth:

12.26 in

Weight:

10.45 lb

Description

The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
Standards-based microsegmentation using group-based policies (GBPs)
Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-F line consists of the following models:

The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
