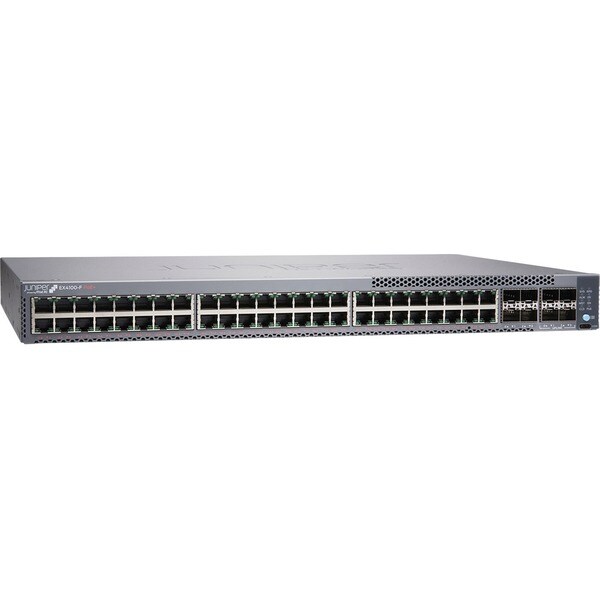

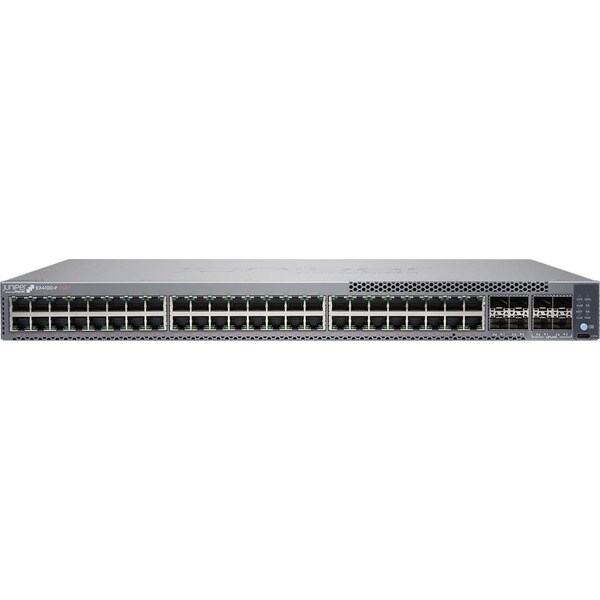

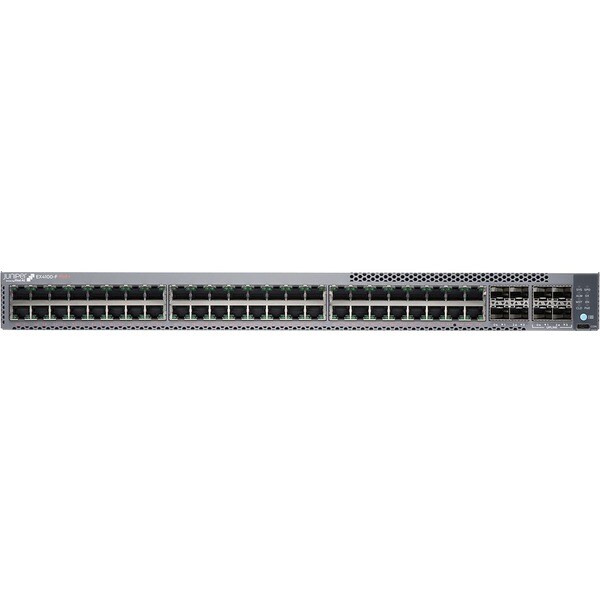

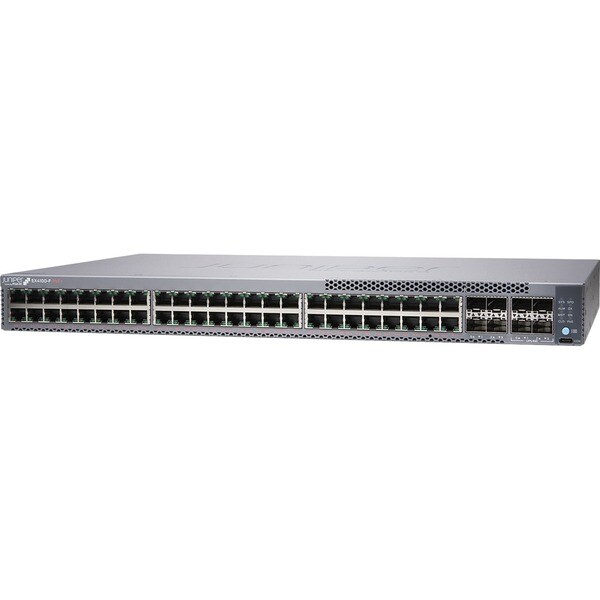

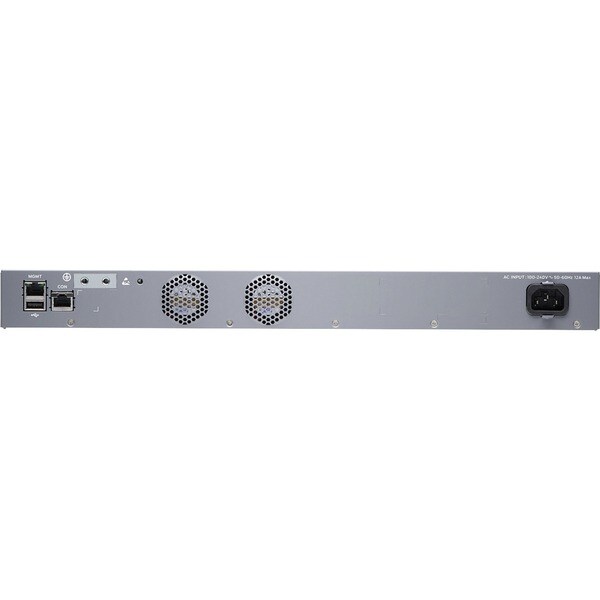

Name: Juniper EX4100-F-48P Ethernet Switch
Brand: Juniper
SKU: EX4100-F-48P
Price: 9200.75 USD
Availability: InStock

Key Features

Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
Increases the stack bandwidth of the stack port further than that of a single port
Quickly and easily set up a wired network with 48 networking ports
Can work as layer 3 routing for scalable network design
Rack-mountable form factor for added reliability and dependability
Management capability allows maximum efficiency and with unrestricted control
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

Switch

EX4100-F

Product Information

Features

Dimensions

Product Name:

EX4100-F-48P Ethernet Switch

Product Series:

EX4100-F

Product Line:

Port Details:

48x Gigabit Ethernet PoE+
4x 10 Gigabit Ethernet Expansion Slot
4x 10 Gigabit Ethernet Stack

Rack Units:

Fanless:

Yes

Routing:

Yes

Stacking:

Yes

Redundant PSU:

PoE Budget (W):

740

Power Consumption (W):

100

Height:

1.72 in

Width:

17.36 in

Depth:

12.26 in

Weight:

11.46 lb

Description

The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
Standards-based microsegmentation using group-based policies (GBPs)
Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-F line consists of the following models:

The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.
