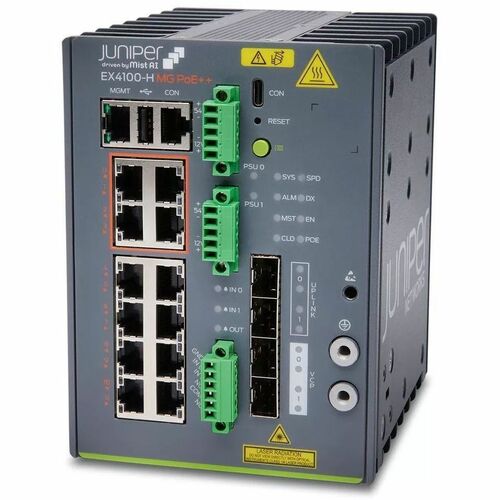

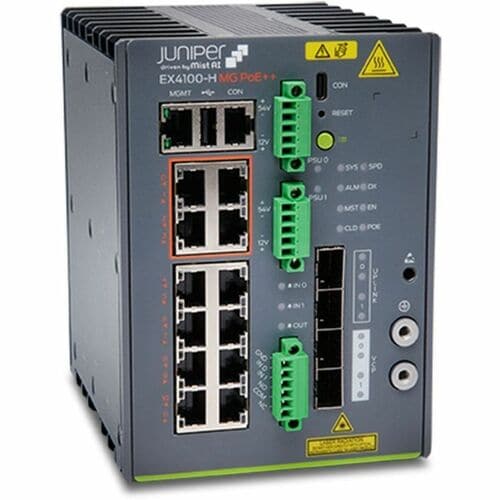

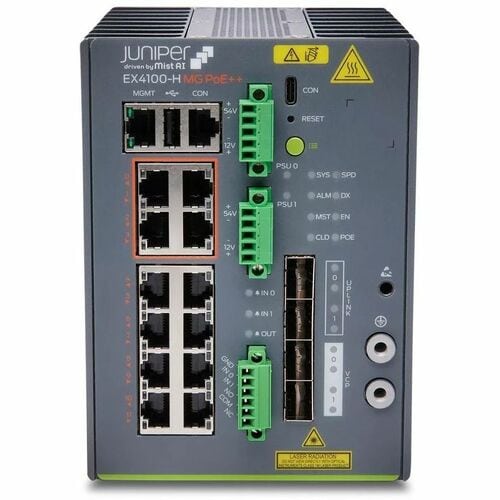

EX4100-H-12MP-T

The Juniper Networks® EX4100-H ruggedized line of Ethernet switches offers a fanless, secure, reliable, cloud-native portfolio delivering high-quality network services in extreme conditions, including freezing and scorching temperatures, with an extended operating temperature range for extreme indoor and outdoor applications. EX4100-H switches are ideal for use cases where extreme temperatures, potential physical impact, and vibrations are common.

EX4100-H switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust, high-performance hardware foundation to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, you can effortlessly onboard, configure, and manage EX4100-H switches from the cloud. This simplifies operations and improves visibility and troubleshooting, ensuring optimal experiences for connected devices.

Key features of EX4100-H Line include:

• Cloud-native, AI-Native switches with Wired Assurance and Marvis VNA
• Fanless with an extended operating temperature range of -40°C to +75°C for harsh environments
• Ruggedized, compact form factor for easy installation in tight spaces
• Compliant to IP30 and supports a relative humidity range of 5% to 95%, ensuring noncondensing operation
• Meets many industrial certifications, making it suitable for use in a wide range of applications that need high tolerances for constant vibrations, shocks, and electromagnetic immunity
• Dry contact alarm: two alarms in and one alarm out to signal external sensors
• Dual redundant PSUs: two AC PSUs or two DC PSUs or one AC and one DC PSU
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
• IEEE 802.3bz Multigigabit
• IEEE 802.3bt Power over Ethernet Plus (PoE++)
• Flow-based telemetry to monitor traffic flows for anomaly detection and the ability to measure packet delays and report drop reasons
• Precision Time Protocol-Transparent Clock
• 10-member Virtual Chassis support

The EX4100-H Family consists of the following models:

• The EX4100-H-12MP, offering 4 x 100MB/1GbE/2.5GbE and 8 x 10 MB/100 MB/1GbE PoE++ access ports, delivers up to 90 W per port with a total PoE budget of 360 W using two power supplies.
