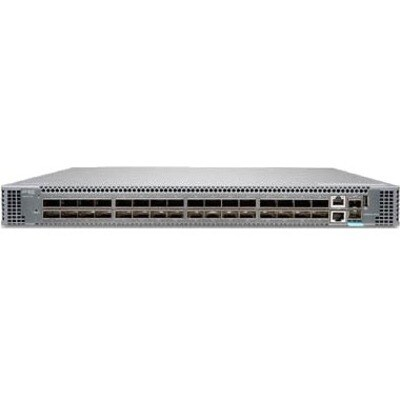

QFX5120-32C-AFO

Featuring Layer 3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y, combined with 100GbE on the QFX5120-32C, make the QFX5120 family ideal for leaf-and-spine network deployments.

The high-performance Juniper Networks QFX5120 Switch provides the foundation for dynamic data centers. Native 25GbE ports on the QFX5120-48Y satisfy the growing demand for server access speeds, while high-density 100GbE ports on the QFX5120-32C satisfy the need for compact, lower power devices in the spine. The QFX5120 is packed with software features that support traditional fabric designs with multichassis link aggregation (MC-LAG) or evolving SDN architectures with Ethernet VPN (EVPN)/Virtual Extensible LAN (VXLAN) on IP fabric underlays.

Architecture and Key Components

The QFX5120 includes native 25GbE (fiber only) and 100GbE fixed-configuration options with rich L2, L3, EVPN, and MPLS features. The QFX5120 runs the same reliable, high performance Juniper Networks Junos® operating system used by all Juniper Networks QFX Series and EX Series Ethernet Switches, SRX Series Services Gateways, and Juniper Networks routers, ensuring a consistent control plane feature implementation and user experience across the entire Juniper infrastructure.

Product Options

The QFX5120 switch family includes two compact, 1 U platforms that provide wire-speed packet performance, very low latency, and a rich set of Junos OS features.

• The QFX5120-48Y is a 25GbE/100GbE data center access switch offering transceiver ports and uplink ports for flexible deployment, with breakout cable support that increases the number of supported 25GbE and 10GbE ports per switch.
• The QFX5120-32C is a compact 100GbE data center spine switch offering 100GbE ports. The 100GbE ports can also be configured as 4x25GbE ports using breakout cables, enabling the QFX5120-32C to be used as a high-density 25GbE top-of-rack switch.

In addition to a high-throughput Packet Forwarding Engine (PFE), the performance of the QFX5120 control plane is enhanced by a powerful control platform for demanding data center environments.
