Juniper

QFX5120-48T-AFO

$16,640.42
01

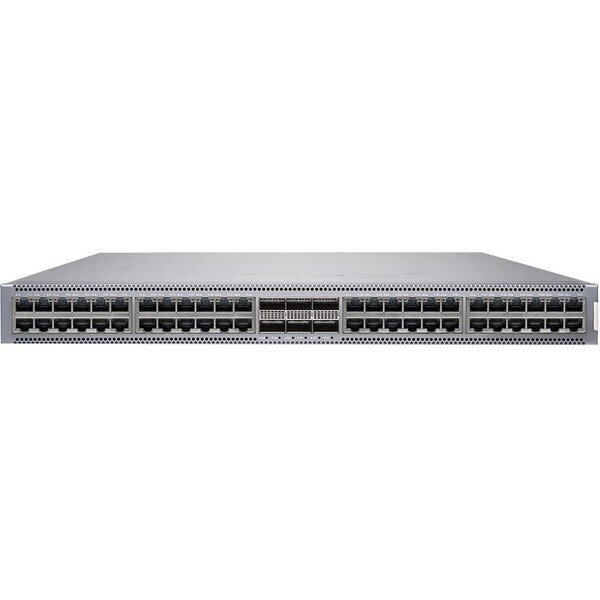

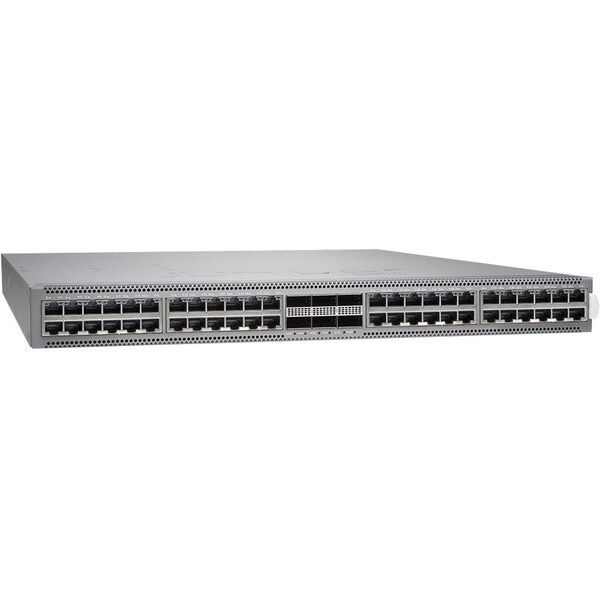

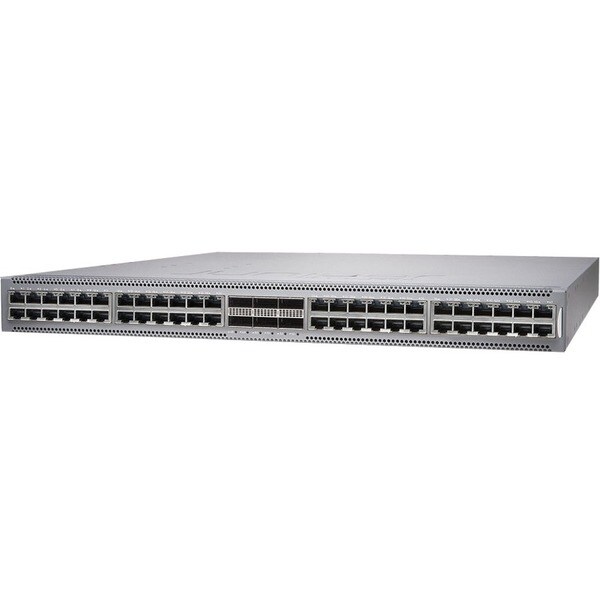

Juniper QFX5120-48T is a manageable 1U Ethernet switch with 48 dual-speed RJ-45 copper downlink ports and six dual-speed 100GbE/40GbE uplink ports. It supports Layer 2/Layer 3 networking for data center leaf and campus distribution deployments, with low latency and a modular design.
SKU: QFX5120-48T-AFO
Features

Key Features

  1. Effectively increases available bandwidth on your network
  2. Cascade to other network devices through the uplink port to expand your local area network
  3. Quickly and easily set up a wired network with 48 networking ports
  4. Can work as layer 3 routing for scalable network design
  5. Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
  6. Management capability provides control over setup and configuration of your network
  7. Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  8. Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Switch

QFX
Product Information
Features
Dimensions
Product Name:
QFX5120-48T Ethernet Switch
Product Series:
QFX
Product Line:
QFX
Port Details:
6x 100 Gigabit Ethernet Expansion Slot
48x 10 Gigabit Ethernet Network
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
450
Height:
1.72 in
Width:
17.36 in
Depth:
20.48 in
Weight:
24.25 lb

Description

Juniper QFX5120-48T delivers rich, low-latency Layer 2/Layer 3 features and advanced EVPN-VXLAN capabilities, making it an ideal data center top-of-rack and aggregation switch for campus enterprise deployments.

Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures.

The QFX5120-48T is a 10GbE/100GbE data center leaf and campus distribution switch featuring:

  • 48 dual-speed 1GbE/10GbE RJ-45 copper downlink ports
  • Six dual-speed 100GbE (QSFP28)/40GbE (QSFP+) uplink ports
  • Up to 2.16 Tbps L2 and L3 performance (bidirectional), with latency as low as 550 nanoseconds
  • A 2.2 GHz quad-core Intel CPU with 16 GB memory and 100 GB SSD storage

The QFX5120 Switch delivers high scale, high availability, and high performance for data center and campus deployments. It is a versatile routing and switching platform addressing higher server access speed and campus distribution use cases while offering high-density 1GbE/10GbE/25GbE and 100GbE uplinks for collapsed spine data center or campus core deployments.
