Juniper
QFX5120-48Y-D-AFO2
Out of stock

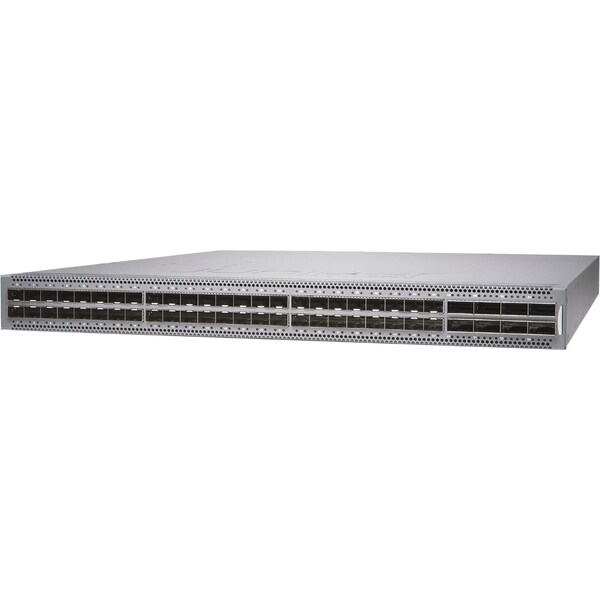

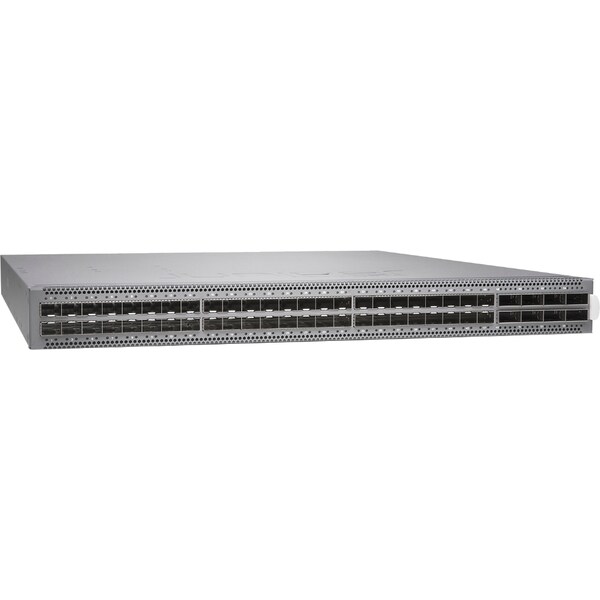

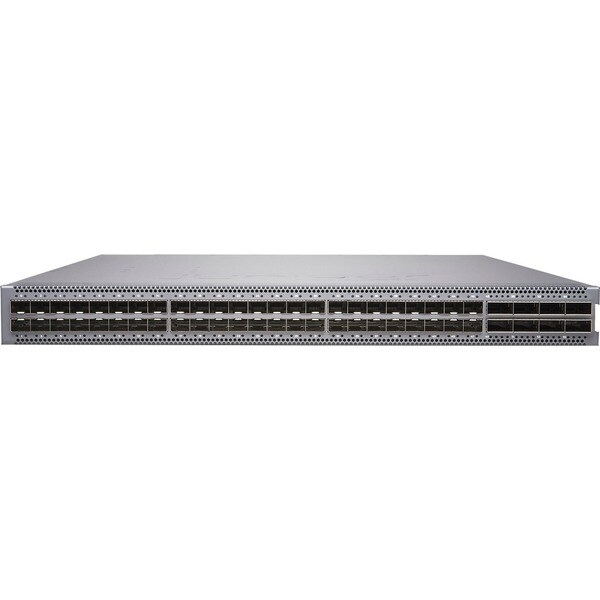

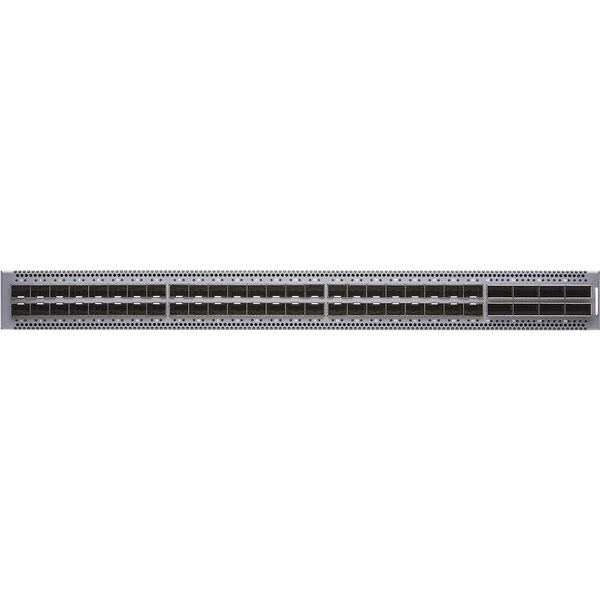

Juniper QFX5120 Ethernet Switch is a manageable, rack-mountable 1U switch with 3-layer support, modular design, and optical fiber connectivity. It highlights low latency, advanced EVPN-VXLAN capabilities, and Layer 3 gateway support for agile data center and multicloud deployments.
SKU: QFX5120-48Y-D-AFO2
Features
Key Features
- Up to 48 25GbE ports and eight 100GbE uplink ports in a 1 U platform
- Up to 2 Tbps L2 and L3 performance, with latency as low as 550 nanoseconds
Switch
QFX5100
Product Information
Features
Dimensions
Product Name:
QFX5120 Ethernet Switch
Product Series:
QFX5100
Product Line:
QFX
Port Details:
8x 100 Gigabit Ethernet Expansion Slot
48x 25 Gigabit Ethernet Expansion Slot
48x 25 Gigabit Ethernet Expansion Slot
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
272
Height:
1.72 in
Width:
17.36 in
Depth:
20.48 in
Weight:
23.7 lb
Description
Juniper QFX5120 Switch delivers low latency and is positioned for data center top-of-rack and aggregation use in enterprise multicloud deployments.
It features rich Layer 2 and Layer 3 features and advanced EVPN- VXLAN capabilities, helping support demanding data center environments.
The QFX5120 is designed for extremely agile data centers that require support for overlay/ underlay network architectures.
Featuring Layer 3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is built to support flexible deployment needs.
The QFX5120 family includes:
- QFX5120-48Y with native 25GbE and 100GbE uplink ports
- QFX5120-32C with 32 ports of 100GbE
These options make the QFX5120 family ideal for leaf-and-spine network deployments.
