Juniper
QFX5120-48YM-AFO-T
Out of stock

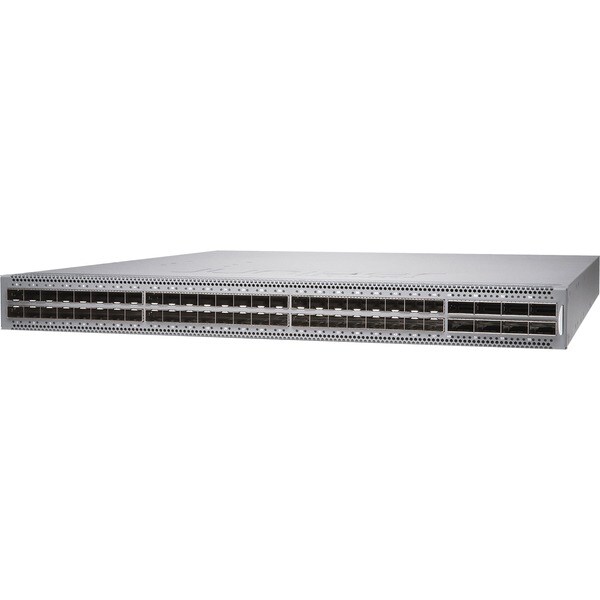

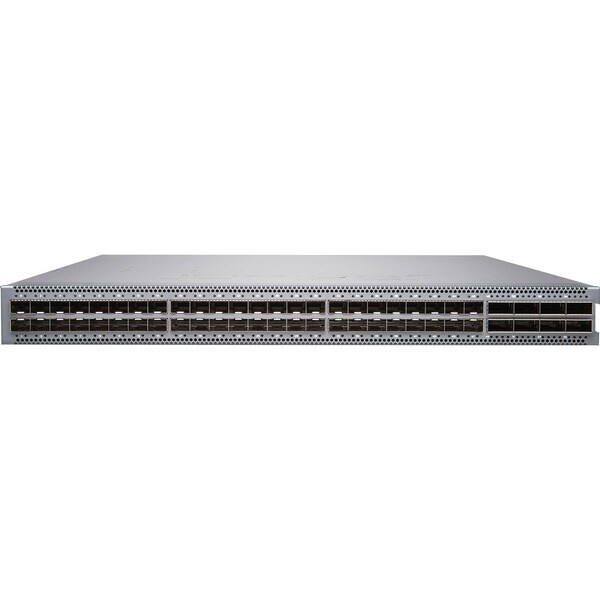

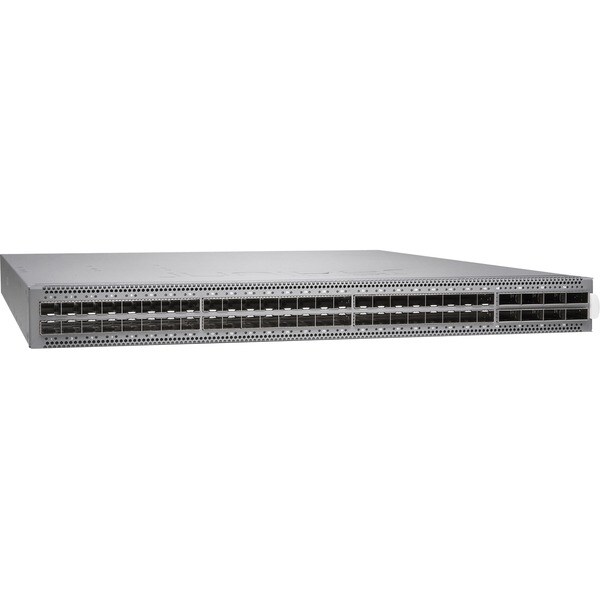

Juniper QFX5120-48YM Ethernet Switch - Manageable - 3 Layer Supported - Modular - 650 W Power Consumption - Optical Fiber - 1U - Rack-mountable - TAA Compliant
SKU: QFX5120-48YM-AFO-T
Features
Key Features
- Effectively increases available bandwidth on your network
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Can work as layer 3 routing for scalable network design
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- Managed switch provides a reliable foundation for your network
- 25 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Switch
QFX
Product Information
Features
Dimensions
Product Name:
QFX5120-48YM Ethernet Switch
Product Series:
QFX
Product Line:
QFX
Port Details:
8x 100 Gigabit Ethernet Expansion Slot
48x 25 Gigabit Ethernet Expansion Slot
48x 25 Gigabit Ethernet Expansion Slot
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
650
Height:
1.72 in
Width:
17.36 in
Depth:
20.48 in
Weight:
24.8 lb
Description
The QFX5120 Switch delivers rich, low latency Layer 2/Layer 3 features and advanced EVPNVXLAN capabilities, making it an ideal data center top-of-rack and aggregation switch for campus enterprise deployments.
Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y and QFX5120- 48YM, 10GbE/1GbE copper with 100GbE uplink ports on the QFX5120-48T, and 32 100GbE ports on the QFX5120- 32C make the QFX5120 family ideal for spine-and-leaf network deployments.
Product Description
The Juniper Networks® QFX5120 Switch delivers high scale, high availability, and high performance for data center and campus deployments. The QFX5120 switch is a versatile routing and switching platform addressing higher server access speed and campus distribution use cases while offering high-density 1GbE/10GbE/25GbE and 100GbE uplinks for collapsed spine data center or campus core deployments.
Product Options
The QFX5120 Switch includes four compact 1 U platforms-the QFX5120-48Y, the QFX5120-48YM, the QFX5120-48T, and the QFX5120-32C-that provide wire-speed packet performance, very low latency, and a rich set of Junos® operating system features.
QFX5120-48Y
The QFX5120-48Y is a 25GbE/100GbE data center leaf and campus distribution switch featuring:
QFX5120-48YM
The QFX5120-48YM is a 10GbE/25GbE/100GbE data center leaf and campus distribution switch featuring:
Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y and QFX5120- 48YM, 10GbE/1GbE copper with 100GbE uplink ports on the QFX5120-48T, and 32 100GbE ports on the QFX5120- 32C make the QFX5120 family ideal for spine-and-leaf network deployments.
Product Description
The Juniper Networks® QFX5120 Switch delivers high scale, high availability, and high performance for data center and campus deployments. The QFX5120 switch is a versatile routing and switching platform addressing higher server access speed and campus distribution use cases while offering high-density 1GbE/10GbE/25GbE and 100GbE uplinks for collapsed spine data center or campus core deployments.
Product Options
The QFX5120 Switch includes four compact 1 U platforms-the QFX5120-48Y, the QFX5120-48YM, the QFX5120-48T, and the QFX5120-32C-that provide wire-speed packet performance, very low latency, and a rich set of Junos® operating system features.
QFX5120-48Y
The QFX5120-48Y is a 25GbE/100GbE data center leaf and campus distribution switch featuring:
- 48 25GbE (SFP28)/10GbE (SFP+)/1GbE (SFP) downlink ports
- Eight 100GbE (QSFP28)/40GbE (QSFP+) uplink ports
- Up to 4 Tbps L2 and L3 performance (bidirectional), with latency as low as 550 nanoseconds
- A 2.2 GHz quad-core Intel CPU with 16 GB memory and 50 GB SSD storage
QFX5120-48YM
The QFX5120-48YM is a 10GbE/25GbE/100GbE data center leaf and campus distribution switch featuring:
- 48 25GbE (SFP28)/10GbE (SFP+)/1GbE (SFP) downlink ports
- Eight 100GbE (QSFP28)/40GbE (QSFP+) uplink ports
- Up to 4 Tbps L2 and L3 performance (bidirectional), with latency as low as 550 nanoseconds
- Media Access Control Security (MACsec) AES-256 support across all ports
- A 2.9 GHz quad-core Intel CPU with 16 GB memory and 100 GB SSD storage
