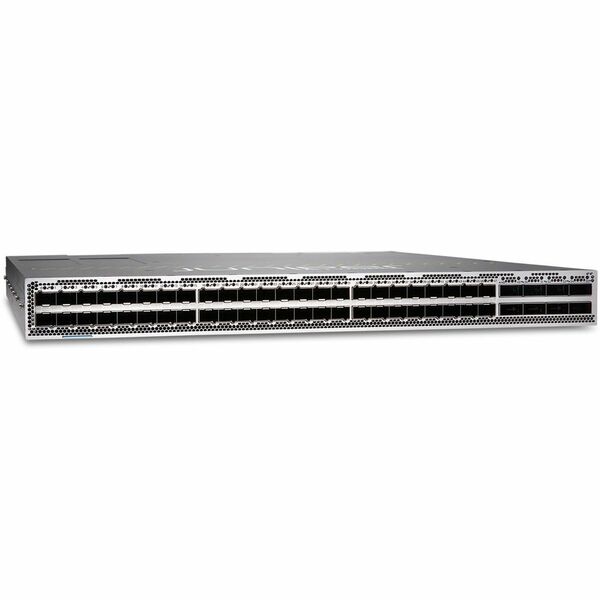

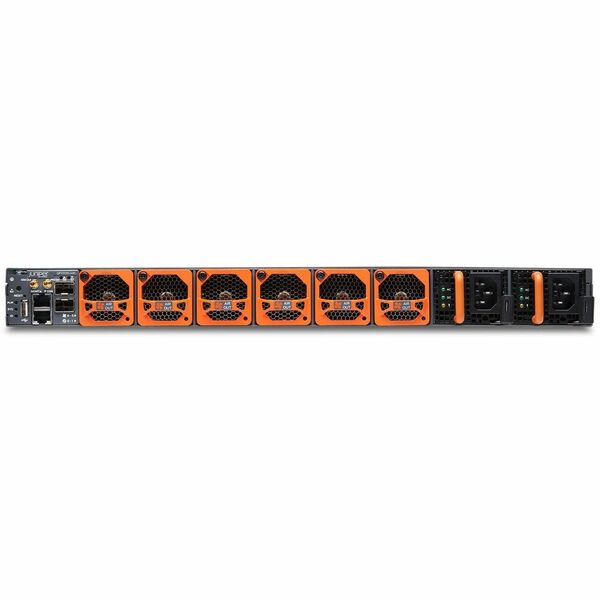

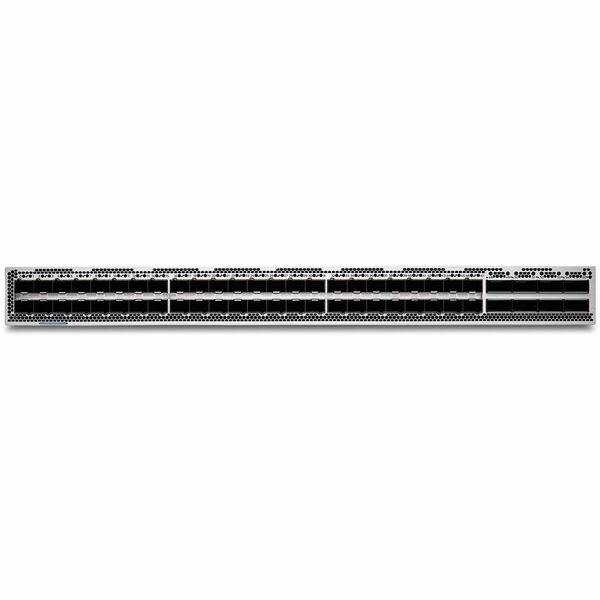

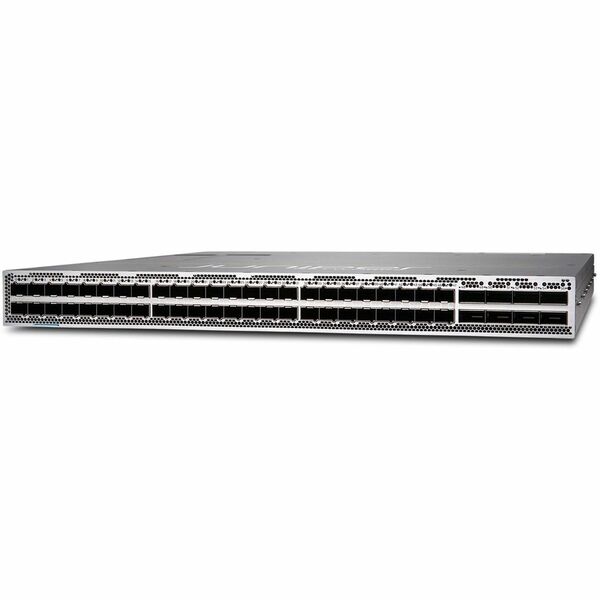

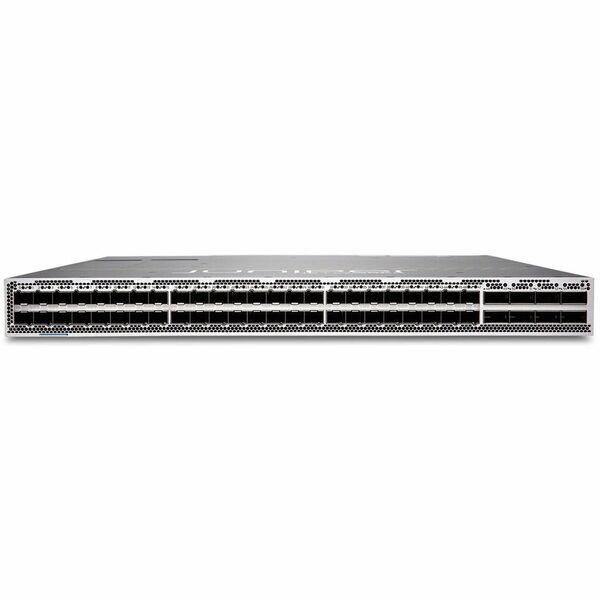

QFX5130-48C-AFO

QFX5130 Switches

The QFX5130 line comprises high-density, cost-optimized, 400GbE 1 U switches. They're ideal for environments where cloud services are being added, and they accommodate diverse data center, campus fabric, data center interconnect (DCI), and firewall cluster-to-fabric connection use cases.

QFX5130 switches are an optimal choice for spine-and-leaf deployments in enterprise, service provider, and cloud provider environments. They're particularly suited to scale-out networks with applications dependent on sophisticated traffic-handling, offering in-band telemetry and dynamic traffic steering. With deployment versatility-from custom services delivery in provider networks to AI applications and scientific research-the platform brings future-proof flexibility to your data center network investment.

Key Features

• Use Cases: Data Center Fabric Spine
• Campus Distribution/Core

Port Density:

• QFX5130-32CD: 32 x 400GbE QSFP-DD/QSFP+/QSFP28 and 2 x 10GbE SFP+
• Throughput: Up to 25.6 Tbps (bidirectional)
• QFX5130-48C: 48 x 100GbE SFP56-DD and 8 x 400GbE QSFP-DD
• Throughput: Up to 16 Tbps (bidirectional)

Features + Benefits | High Throughput

Up to 25.6 Tbps bidirectional or 16 Tbps bidirectional wire-speed switching, depending on model, with low latency and jitter combine with full Layer 2 and Layer 3 performance to deliver high-performance experiences.

Junos OS Capabilities

Support for advanced networking features such as BGP, congestion management, multicast, and Junos Telemetry Interface (JTI) optimize networking efficiencies and provide operational metrics for monitoring network health.

400G

Choice of eight or 32 400G ports and a wide range of QSFP56-DD transceivers provide data center and campus network scalability, flexibility, and simplicity.

Programmability

The QFX5130 series uses the power of a fully programmable chipset to support diverse use cases.

Network Automation

Support for intent-based automation, Terraform, Python, Puppet, Ansible, and zero-touch provisioning (ZTP) addresses growing network complexity in Day 0 to Day 2+ operations.

Fabric Management

Intent-based Juniper Apstra network automation software provides full Day 0 through Day 2+ capabilities for IP-EVPN fabrics with closed-loop assurance in the data center.

Campus Deployments

The Juniper Mist Wired Assurance service simplifies the deployment and management of campus fabrics while also providing valuable insights and wired network service-level experience (SLE) metrics and visibility.
