Juniper
QFX5220-32CD-AFO
RFQ Only

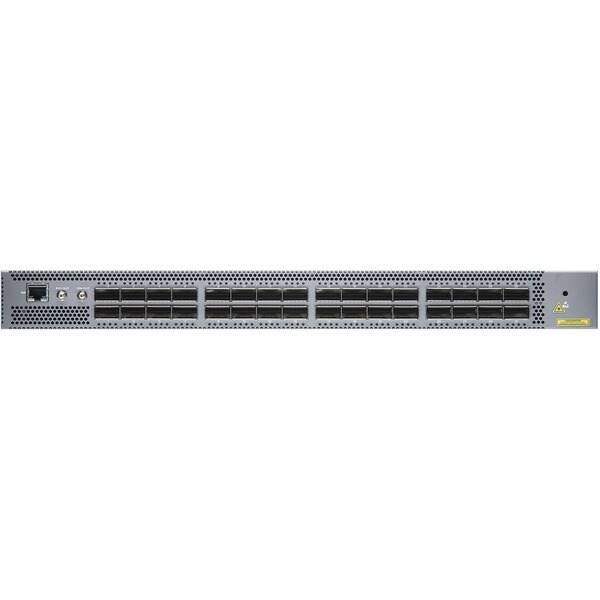

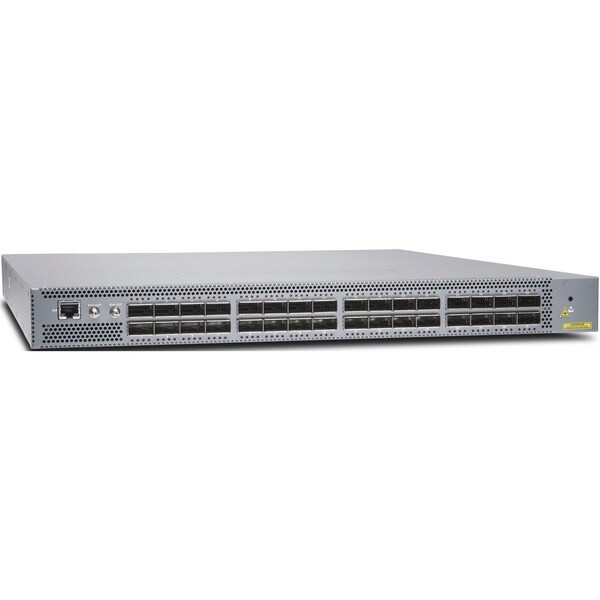

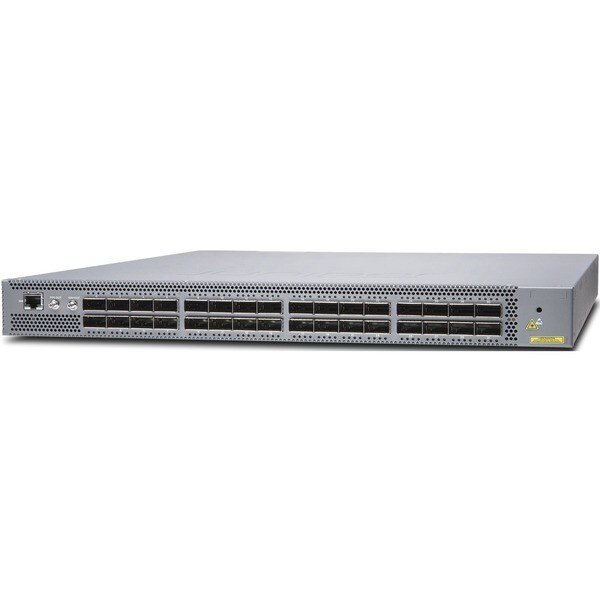

Juniper QFX5220-32CD is a manageable, 3-layer supported Ethernet switch in a low-profile 1U rack-mountable design. It offers 32 ports of 400-Gigabit Ethernet for spine-and-leaf deployments in enterprise, service provider, and cloud data centers.
SKU: QFX5220-32CD-AFO
Features
Key Features
- Effectively increases available bandwidth on your network
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- 400 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Switch
QFX5200
Product Information
Features
Dimensions
Product Name:
QFX5220-32CD Ethernet Switch
Product Series:
QFX5200
Product Line:
QFX
Port Details:
32x 400 Gigabit Ethernet Expansion Slot
2x 10 Gigabit Ethernet Expansion Slot
2x 10 Gigabit Ethernet Expansion Slot
Rack Units:
1U
Fanless:
No
Routing:
Yes
Stacking:
No
Redundant PSU:
Yes
PoE Budget (W):
-
Power Consumption (W):
958
Height:
1.69 in
Width:
17.24 in
Depth:
21.1 in
Weight:
24.49 lb
Description
QFX5220-32CD offers 32 ports of 400-Gigabit Ethernet in a low-profile 1-U form factor. The QFX5220-32CD is optimally designed for spine-and-leaf deployments in enterprise, service provider, and cloud data centers.
The high-speed ports support a wide variety of port configurations that include speeds of 400 Gbps, 100 Gbps, 25 Gbps, 40 Gbps, and 10 Gbps.
An Intel Xeon D-1500 processor drives the QFX5220 control plane, which runs the Junos OS Evolved software. The Junos OS Evolved software image is stored on two internal 50-GB solid-state drives (SSDs).
