Supermicro
$2,647.72ARS-E103-JONX-H2-01-G2
Upgrade your infrastructure with the Supermicro SYS-111AD-HN2, a versatile 1U server designed for reliability in demanding environments. Whether you are running video surveillance, an office server, or an embedded IoT system, this configuration delivers the reliability Supermicro is known for. By utilizing the Intel i7-12700E and 64GB of DDR5 memory, this system handles complex workloads with ease. The compact footprint allows for deployment in shallow racks or remote edge locations without sacrificing connectivity, thanks to integrated dual 2.5GbE ports and a wide array of video outputs including HDMI, DP, and DVI-D.
SKU: ARS-E103-JONX-H2-01-G2
Features
Key Features
- CPU - Single Arm ® Cortex ® -A78AE v8.2 64-bit 8-Core CPU
- Chassis - Fanless Embedded / 1 Node
- Drive - 256GB M.2 NVMe 80mm
- RAM - 1x 16GB DDR5 ECC Memory
- Network Ports - 3x 1GbE RJ45 Ports + 1x 10GbE RJ45 Port + 1x 1Gbe RJ45 LAN Port
Use Cases
Imaging and Computer Vision
Industrial Automation
Healthcare
Artificial Intelligence
Digital Signage / PoS
Motherboard

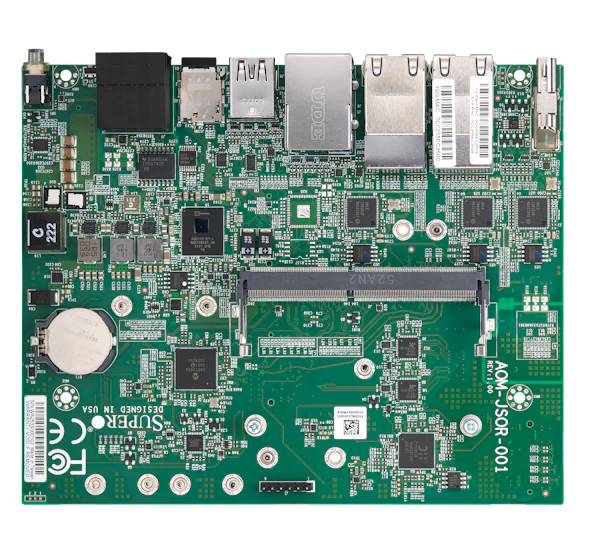

Super AOM-JSOR-001

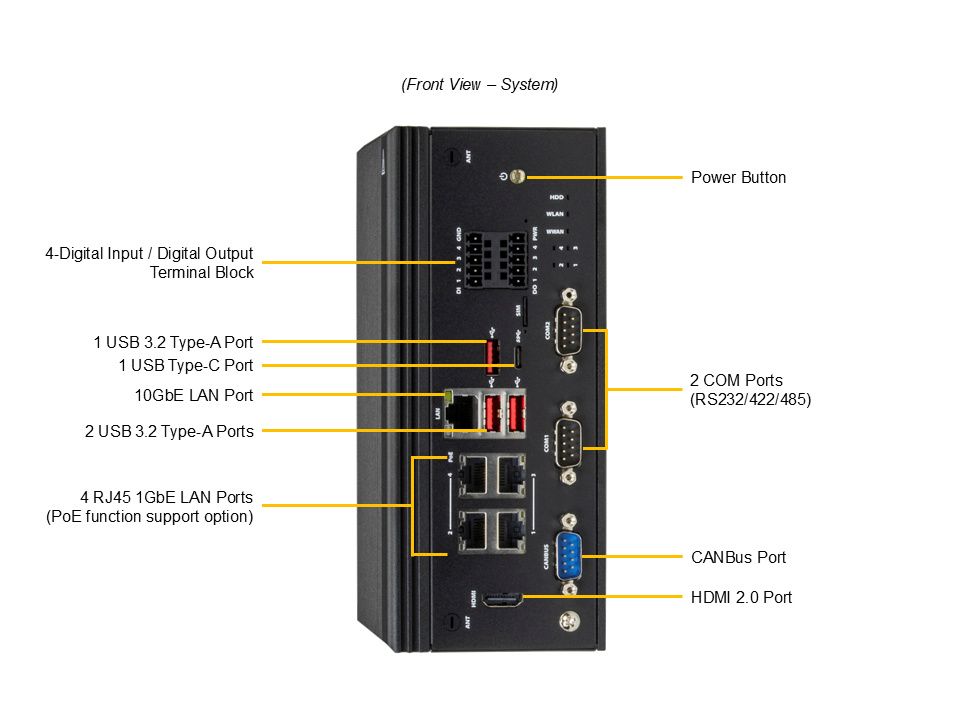

Input / Output
Management
On-Board Devices
Processor
System Memory

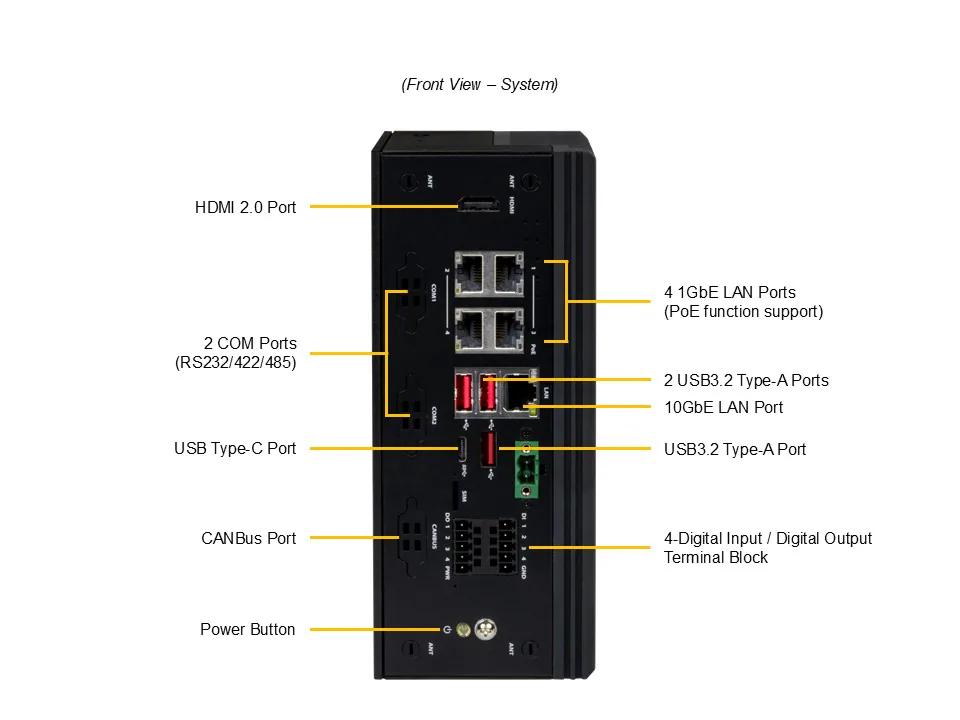

LAN:
3x RJ45 1 GbE LAN ports (Intel® I210-IT)
1x RJ45 10 GbE LAN port (Marvell® AQC113)
1x RJ45 1 GbE LAN port (SoC)
1x RJ45 10 GbE LAN port (Marvell® AQC113)
1x RJ45 1 GbE LAN port (SoC)
Others:
1x CANBus port
1x 4 DI/4 x DO (terminal block) port
1x 4 DI/4 x DO (terminal block) port
Serial:
2x COM RS232/RS422/RS485 ports(Front)
USB:
1x USB 3.2 Gen2 Type-C port(Front)
3x USB 3.2 Gen2 Type-A ports(Front)
3x USB 3.2 Gen2 Type-A ports(Front)
Video:
1x HDMI 2 port(Front)
Power Configurations:

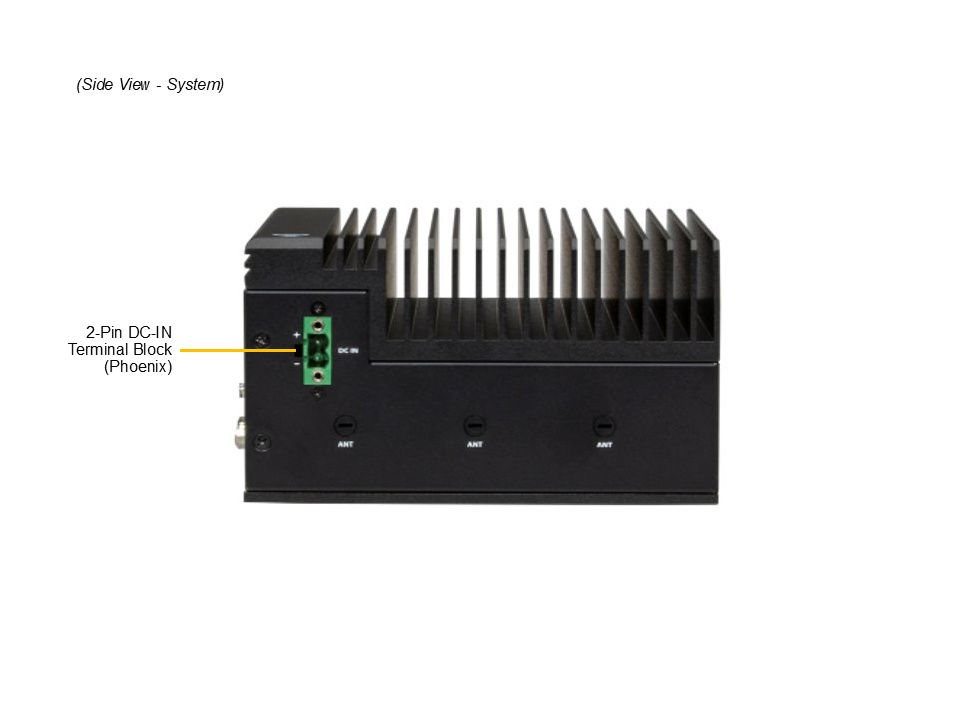

+9~36V DC Power Input
Chipset:
System on Chip
Network Connectivity:
4x RJ45 1GbE with Intel® I210-IT
1x RJ45 10GbE with Marvell® AQC113C
No NIC option supported
1x RJ45 10GbE with Marvell® AQC113C
No NIC option supported
Core Count:
Up to 8C/8T; Up to 6MB Cache
CPU:
Arm® Cortex®-A78AE v8.2 64-bit CPU
Note:
Supports up to 40W TDP CPUs (Air Cooled)
Memory:
Slot Count: Onboard Memory
Max Memory: Up to 16GB ECC LPDDR5X
Max Memory: Up to 16GB ECC LPDDR5X
Chassis
CSE-E102L

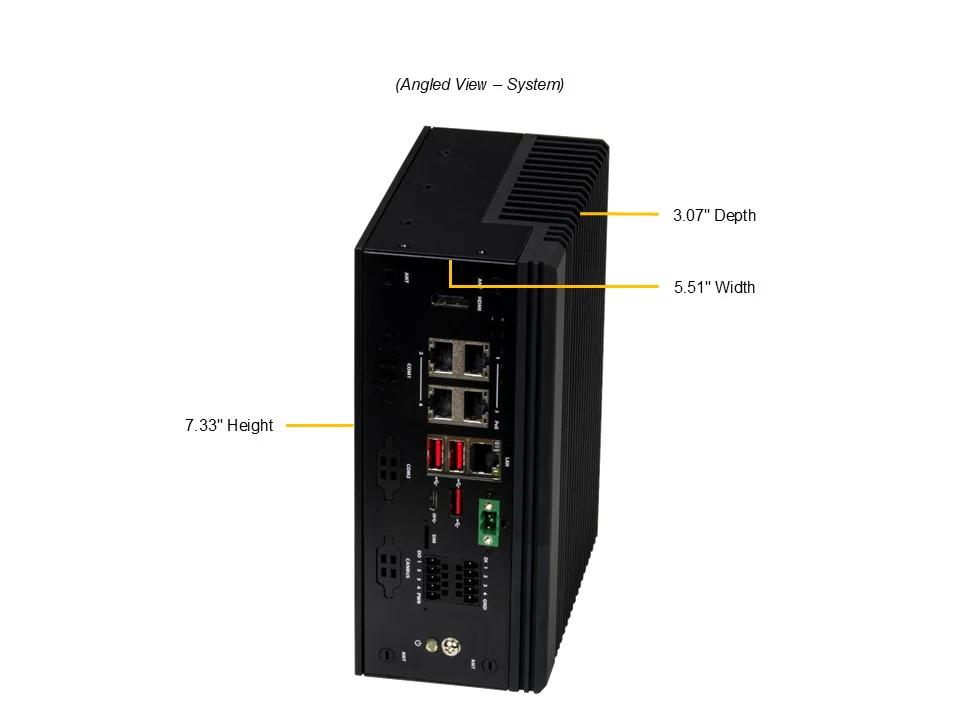

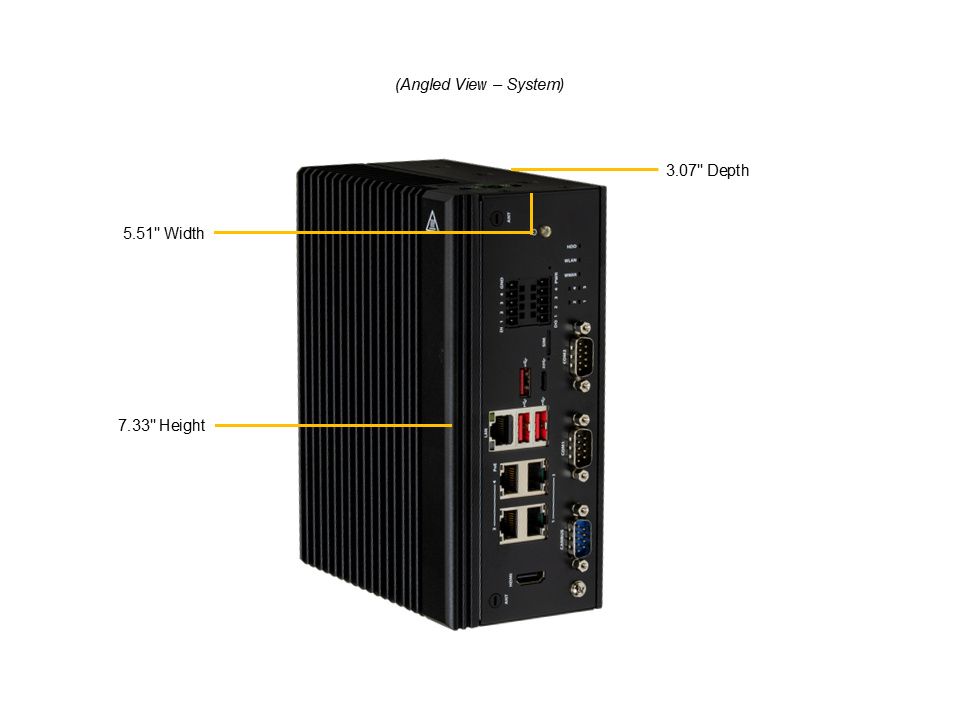

Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Storage
System Cooling
Environmental / Recycling
Available Color:
Black
Depth:
5.5 in
Gross Weight:
4.41 lb
Height:
3.15 in
Net Weight:
3.75 lb
Package Depth:
9.06 in
Package Height:
7.87 in
Package Width:
11.42 in
Width:
7.28 in
M.2:
1x M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default))
1x M.2 PCIe 4.0 x1 slot (E-key 2230(default); USB 2.0)
1x M.2 slot (B-key 3052(default)/3042; USB 3.0)
1x M.2 PCIe 4.0 x1 slot (E-key 2230(default); USB 2.0)
1x M.2 slot (B-key 3052(default)/3042; USB 3.0)
Form Factor:
Fanless Embedded
Buttons:
Power On/Off
LED:
Power status
Model:
CSE-E102L
Environmental Spec.:
Operating Temperature: -25°C to 60°C (-13°F to 140°F) with 0.7 m/s airflow
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Rohs:
RoHS Compliant
M.2
Count:
1
Generation:
PCIe 4.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Fans:
N/A
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription

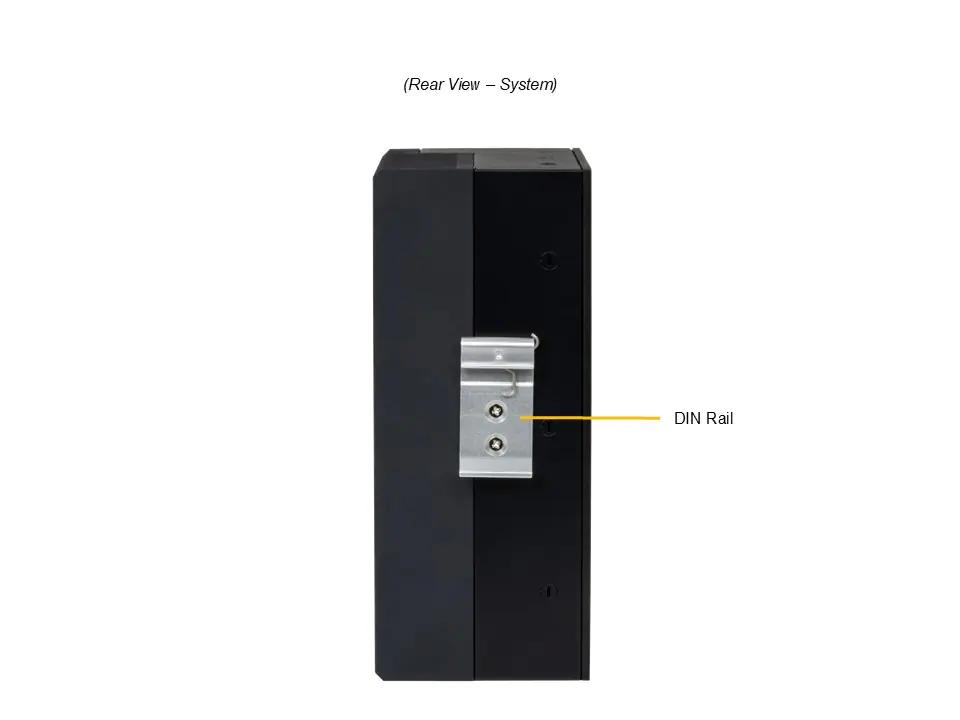

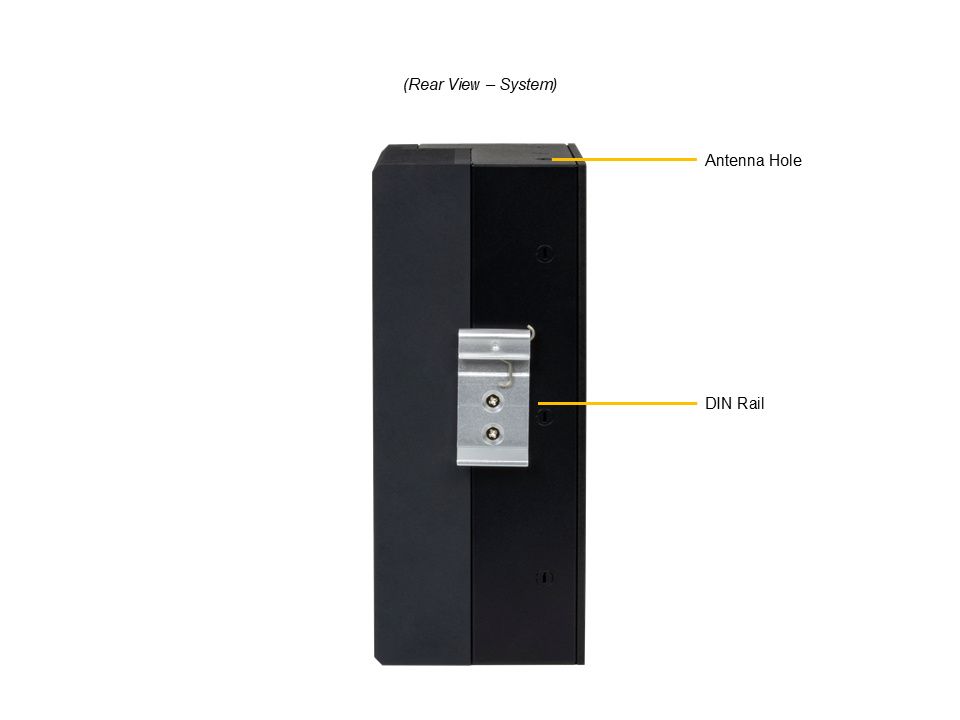

Din Rail Kit
MCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
