Supermicro
$4,768.85AS-1015A-MT-01-G2

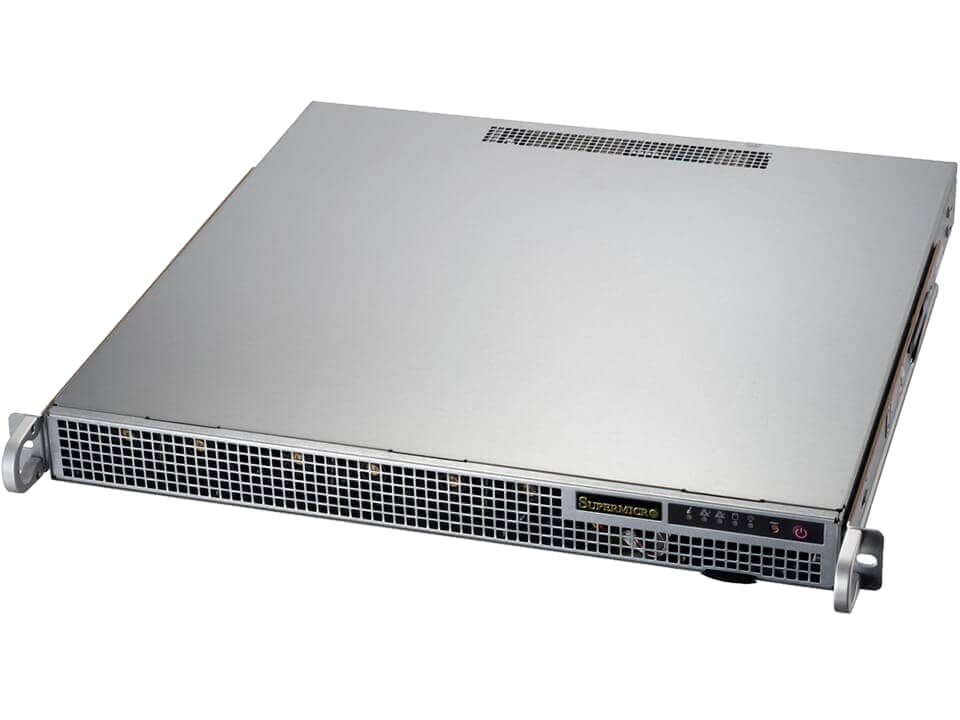

The Supermicro Gold Series Mainstream A+ Server AS -1015A-MT-01-G2 is a ready to ship high-performance 1U rackmount solution meticulously engineered for the evolving needs of small and medium businesses (SMBs). Powered by a single AMD EPYC™ 4564P processor featuring 16 cores, this server delivers the parallel processing power essential for demanding workloads such as web hosting, email management, and firewall applications. Its compact 1-node chassis is optimized for space-constrained environments without compromising on speed, utilizing 32GB of cutting-edge DDR5-5600 UDIMM memory to ensure fluid multitasking and rapid data throughput.
Designed for maximum reliability and modern data demands, the AS-1015A-MT features an ultra-fast 1.92TB M.2 NVMe drive that significantly reduces latency compared to traditional storage. This makes it an ideal application server for businesses requiring quick access to critical data and seamless software performance. Connectivity is handled by dual 1GbE RJ45 LAN ports, providing stable and secure networking for internal infrastructure or client-facing services. Whether you are scaling a dedicated hosting environment or securing your network with a robust firewall, this Supermicro A+ server offers the perfect balance of efficiency, value, and enterprise-grade performance.
SKU: AS-1015A-MT-01-G2
Features
Key Features
- CPU - Single AMD EPYC™ 4564P Processor (16-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 1.92TB M.2 NVMe
- RAM - 1x 32GB DDR5-5600 ECC UDIMM Memory
- Network Ports - 2x 1GbE RJ45 LAN Ports
Use Cases
Web/Hosting Application
Email/Firewall/Application Server
Designed for small and medium businesses

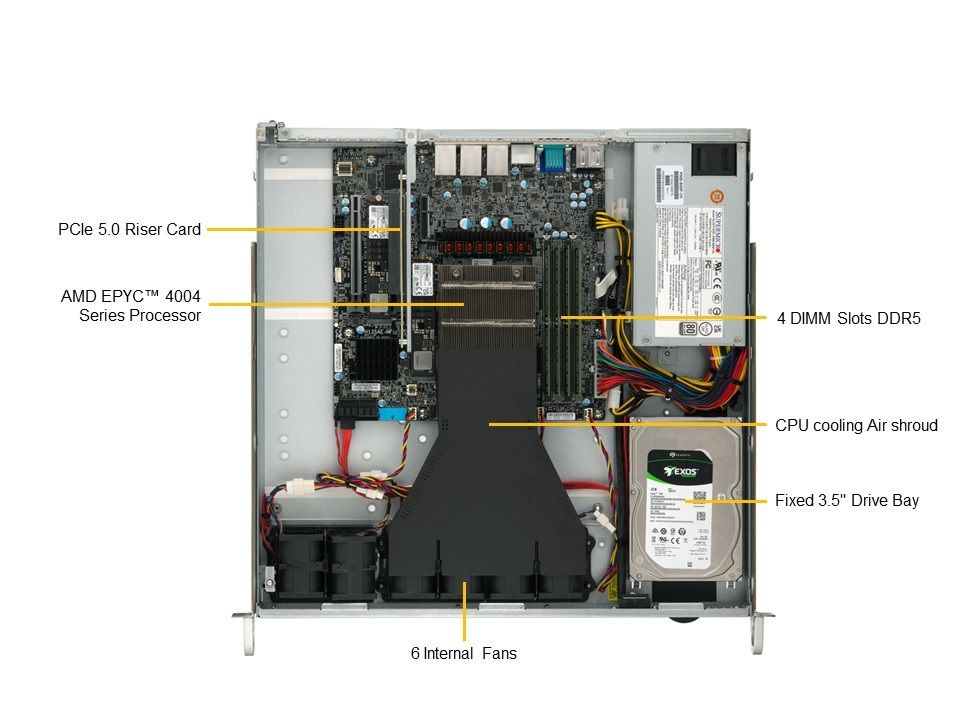

Motherboard
Super H13SAE-MF
GPU

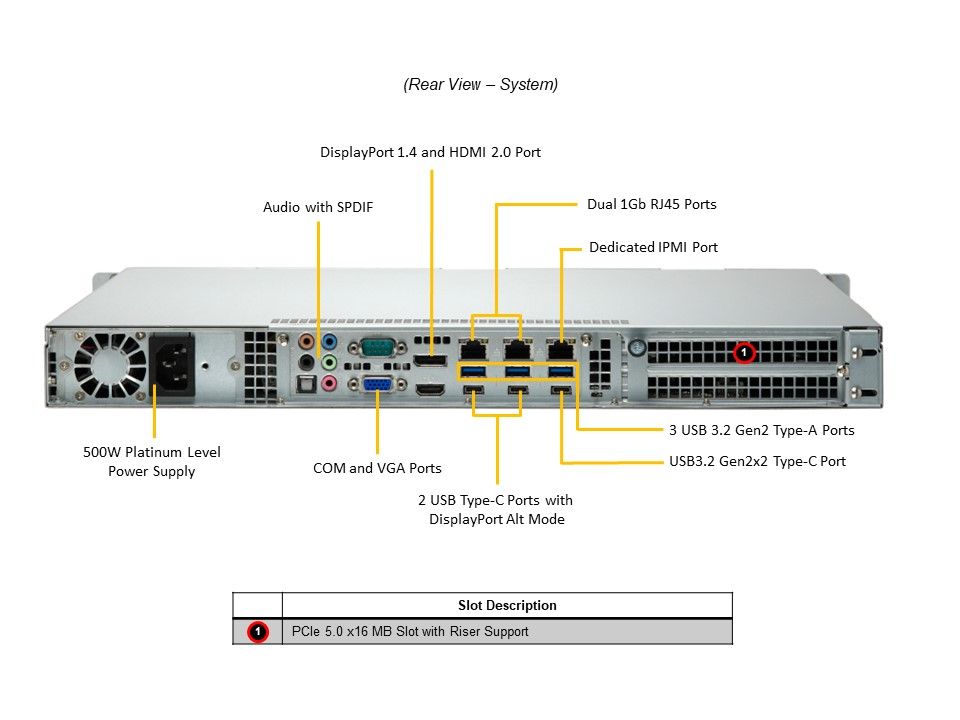

Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Max GPU Count:
Up to 1 single-width GPU
Supported GPU:
NVIDIA PCIe: A2, L4, RTX 4000 Ada Generation, RTX A4000
AMD PCIe: Radeon Pro W7500
AMD PCIe: Radeon Pro W7500
Audio:
Rear Audio
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
TPM:
1x TPM header
USB:
3x Type-A ports(Rear)
2x Type-C ports(Rear)
1x Type-C port(Rear)
2x Type-C ports(Rear)
1x Type-C port(Rear)
Video:
1x VGA port
1x DisplayPort 1.4 port
1x HDMI 2 port
1x DisplayPort 1.4 port
1x HDMI 2 port
Power Configurations:
ACPI 6.0 Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
AMD B650
Network Connectivity:
1x RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2x RJ45 1GbE with Intel® I210-AT
2x RJ45 1GbE with Intel® I210-AT
NVMe:
NVMe; RAID 0/1 support(Native)
SATA:
SATA (6Gbps) ; RAID 0/1 support
Fan:
Status monitor for speed control
Other Features:
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature:
CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
Core Count:
Up to 16C/32T
CPU:
Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Note:
Supports 60W - 170W TDP CPUs (Air Cooled)
Features:
Supply Chain Security: Remote Attestation
Runtime BMC Protections
Runtime BMC Protections
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 32MB SPI Flash
Memory:
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage:
1.1V
Chassis
CSE-514-505
Dimensions
Expansion Slots

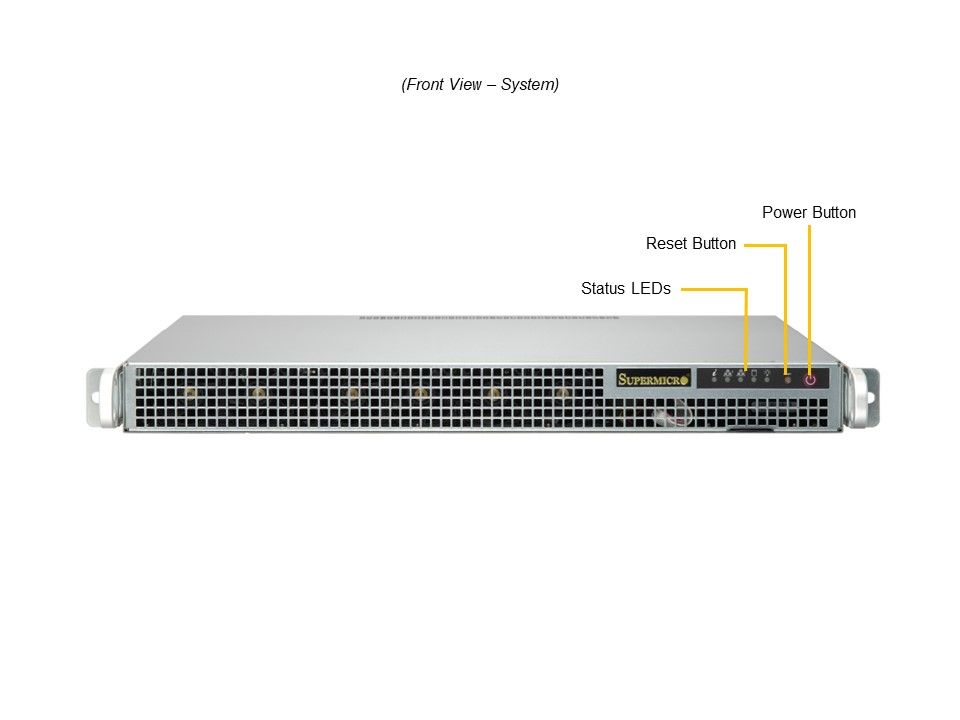

Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver

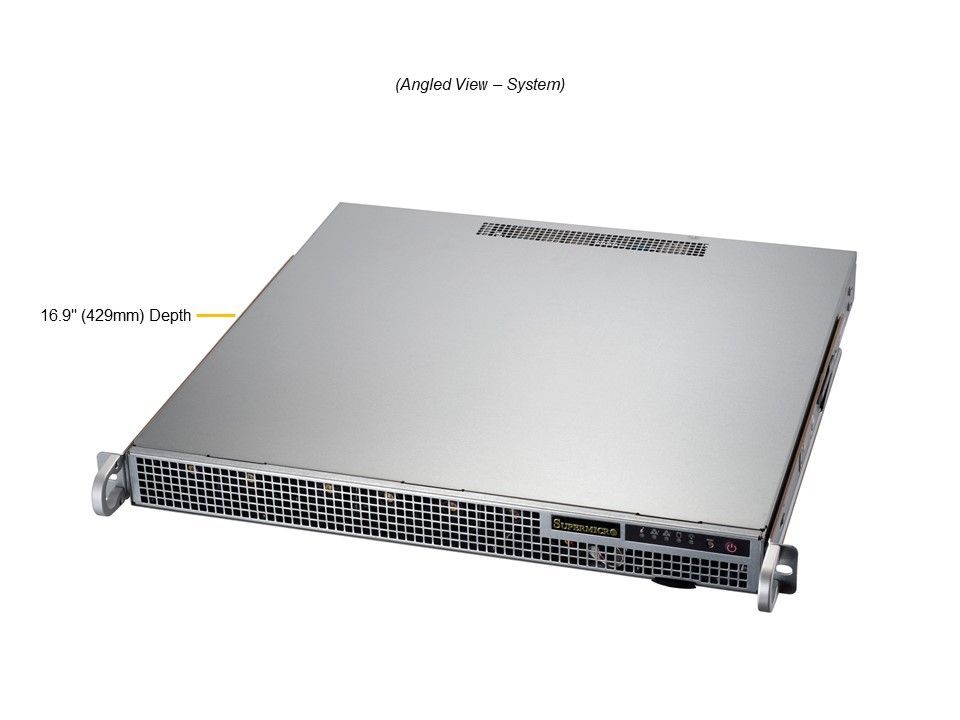

Depth:
16.9 in
Gross Weight:
16.09 lb
Height:
1.7 in
Package Depth:
24 in
Package Height:
8 in
Package Width:
27 in
Width:
17.2 in
PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x16 FHHL slot
1x PCIe 5.0 x16 FHHL slot
Buttons:
Power On/Off button
System Reset button
System Reset button
LED:
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
HDD activity LED
Network Activity LEDs
Power status LED
Model:
CSE-514-505
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Rohs:
RoHS Compliant
1x 500W Platinum
+12V:
Max: 41A / Min: 0.5A
Max: 41A / Min: 0.5A (100Vac-240Vac)
Max: 41A / Min: 0.5A (100Vac-240Vac)
5V SB:
Max: 3A / Min: 0A
Certification:
Platinum Level
Dimension (W x H x L):
100x x 40 x 180 mm
Input:
500W: 100-240Vac
500W: 100-240Vac / 50-60Hz
500W: 100-240Vac / 50-60Hz
Output Type:
24pin ATX
Drive Bays
Configuration 1
Count:
1
Form Factor:
3.5"
Location:
internal
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 2
Count:
4
Form Factor:
2.5"
Location:
internal
Option:
option_a
Interface
Configuration 1
Interface:
SATA
M.2
Count:
2
Generation:
PCIe 5.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 6x 40mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-H13SAE-MF1Super H13SAE-MF MotherboardCSE-514-50511U Chassis
*Rail Set
MCP-290-00102-0N1setOuter rail, quick-release type, 25.6MCP-290-00108-0N1setInner rail, front, short, quick-release type
3.5in fixed HDD tray
MCP-220-51402-0N13.5in fixed HDD tray for SC513,514,515,812L,812U,523,HF,RoHS/REACH
Dual 2.5 HDD bracket
MCP-220-51401-0N2Dual 2.5 HDD bracket (bracket base not follow std 2.5" HDD screw holes)
GPU power extender cable
CBL-PWEX-10401PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
Slimline x8 (STR) to 4x SATA
CBL-SAST-1251-1001Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH
TPM
AOM-TPM-9670V1SPI TPM 2.0
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
Resources
Manuals
