Supermicro
$25,940.41AS-1115CS-TNR-01-G2

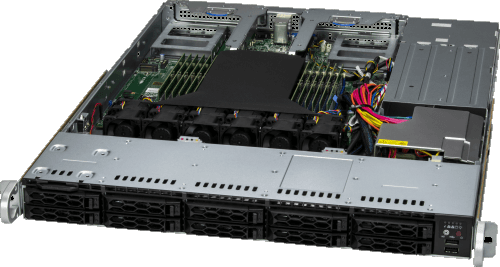

This powerful 1U rack server, equipped with a 64-core AMD EPYC™ 9555P processor, 384GB of DDR5-6400 RAM, and a 960GB NVMe drive, is ready to tackle demanding workloads. Perfect for web hosting, firewall applications, cloud computing, and edge deployments, this server offers exceptional performance in a compact form factor. Equipped with 4 200-Gigabit CX7 ethernet network adapter and 4 1GbE RJ45 ports ensure high-speed network connectivity, while its data center-optimized design and value-oriented IaaS capabilities make it an ideal choice for businesses of all sizes. Ready to ship within 24 hours, this server is perfect for those needing a quick and reliable solution for their DNS, gateway, or CDN needs.
SKU: AS-1115CS-TNR-01-G2
Features
Key Features
- CPU - Single AMD EPYC™ 9555P Processor (64-Core)
- Chassis - 1U / 1 Node
- Drive - 1x 960GB U.2 NVMe
- RAM - 12x 32GB DDR5-6400 RDIMM Memory
- Network Ports - 4x 200-Gigabit CX7 Ethernet Network Adapter + 4x 1GbE RJ45 Ports
Use Cases
Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes

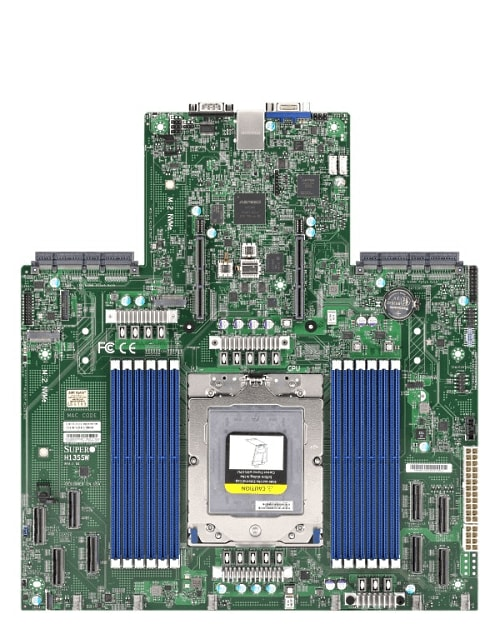

Motherboard
Super H13SSW
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
PCIe
Max GPU Count:
Up to 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: A2, L4

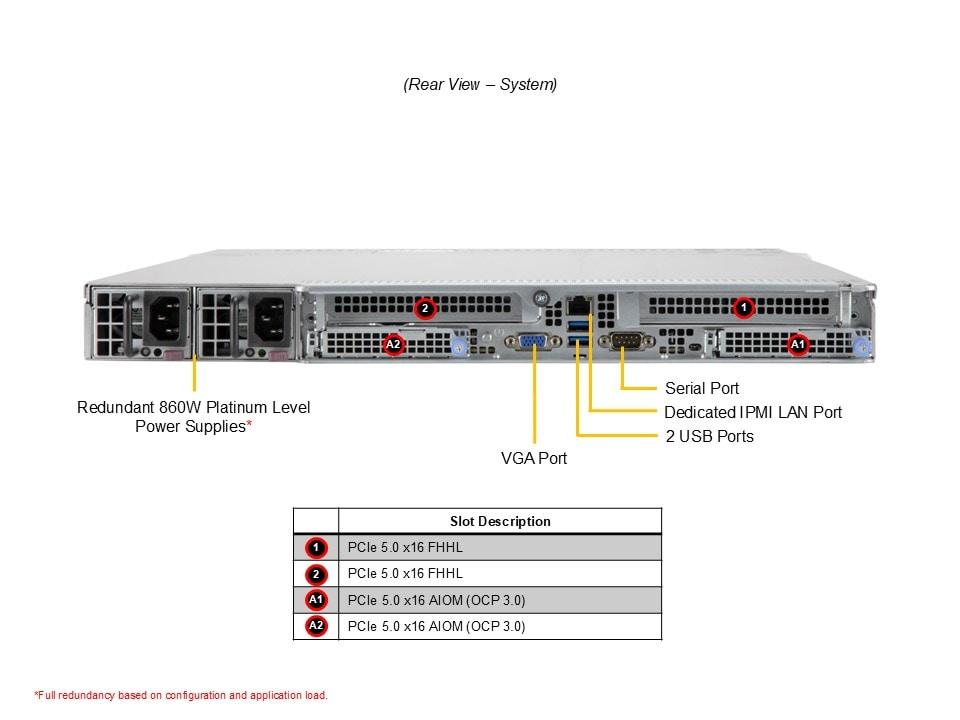

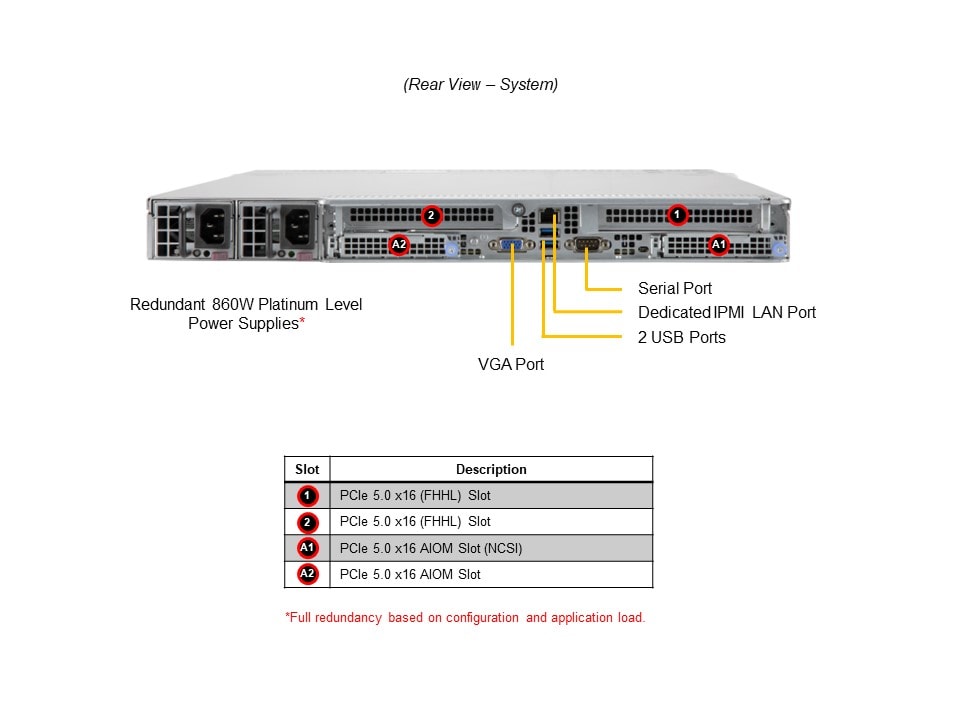

LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
Serial:
1x COM port(rear)
TPM:
1x TPM header
USB:
2x USB 3.0 ports(rear)
2x USB 2.0 ports(front)
2x USB 2.0 ports(front)
Video:
1x VGA port
Power Configurations:
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Power-on mode control for AC power loss recovery
Power button override mechanism,
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Chipset:
System on Chip
Network Connectivity:
Via AIOM
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Core Count:
Up to 160C/320T
CPU:
Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
AMD EPYC™ 9004/9005 Series Processors
Note:
Supports up to 400W TDP CPUs *
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
BIOS Type:
AMI 32MB SPI Flash ROM

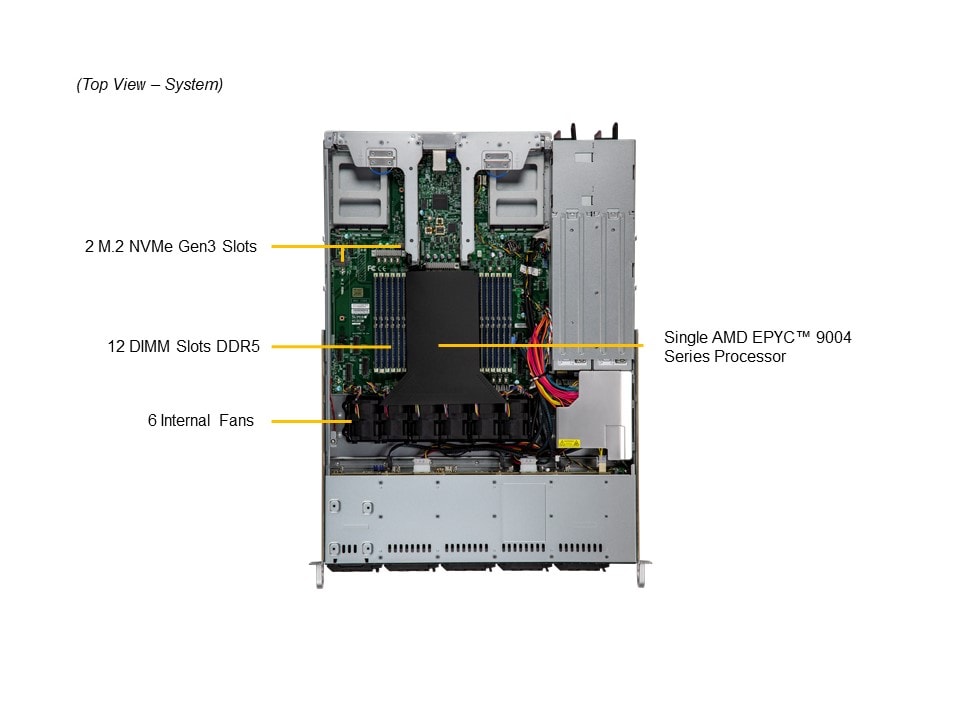

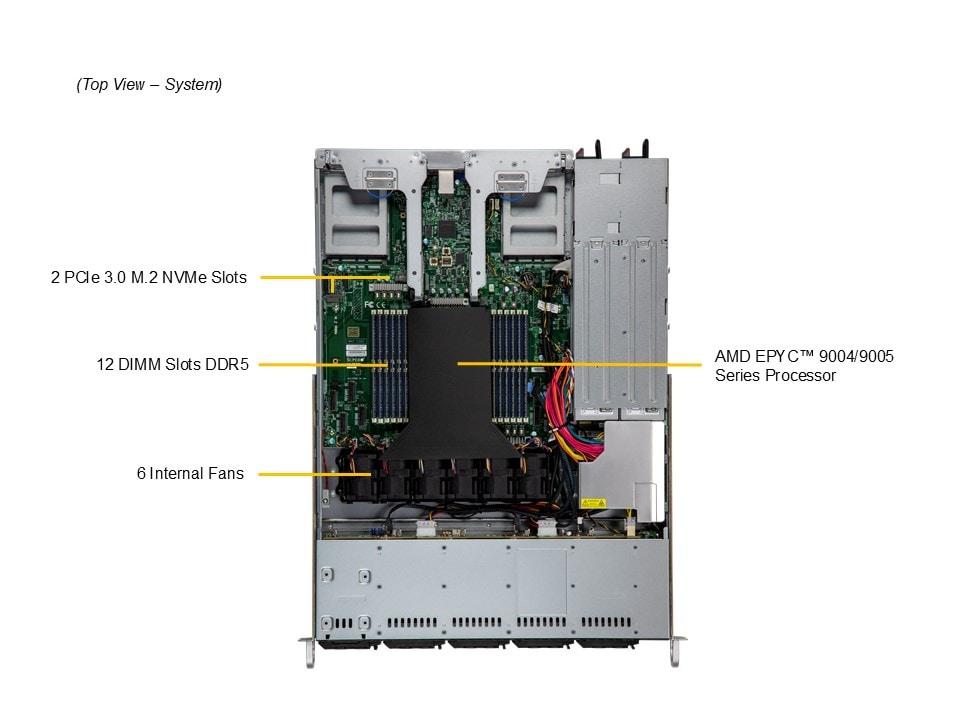

Memory:
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage:
1.1V
Chassis
CSE-LB16TS-R860AWP-A
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black front & sliver body

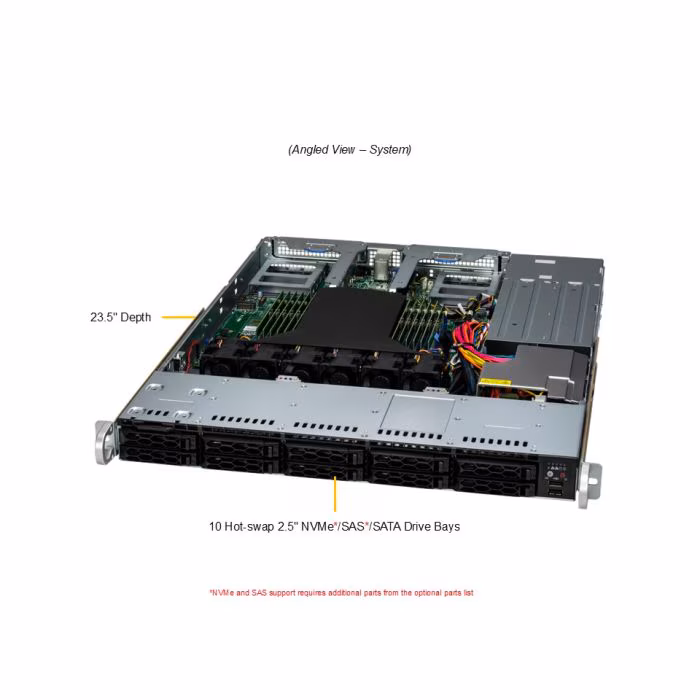

Depth:
23.5 in
Gross Weight:
46.08 lb
Height:
1.7 in
Net Weight:
24.91 lb
Package Depth:
32.4 in
Package Height:
7.8 in
Package Width:
23.8 in
Width:
17.2 in

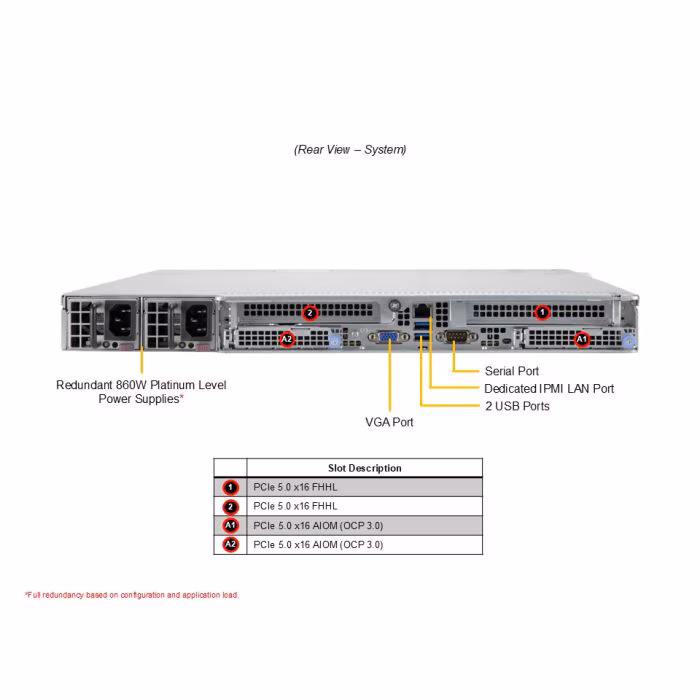

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Form Factor:
Rackmount

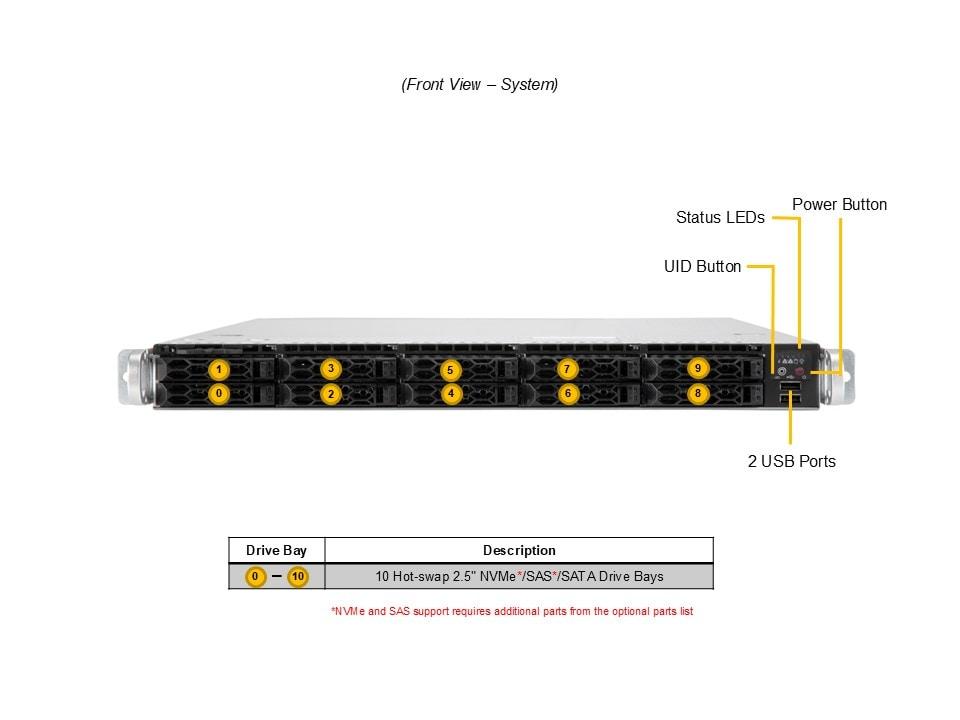

Buttons:
Power On/Off
Universal Information (UID)
Universal Information (UID)
LED:
Drive activity
Network activity
Power status
Universal Information (UID)
Network activity
Power status
Universal Information (UID)
Model:
CSE-LB16TS-R860AWP-A
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 860W Platinum
+12V:
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vac-240Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
5V SB:
Max: 4A / Min: 0A
Description:
2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (W x H x L):
54.5 x 40.25 x 322 mm
Input:
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vac / 50-60Hz
860W: 200-240Vdc / 50-60Hz
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vac / 50-60Hz
860W: 200-240Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
2x 860W Titanium
+12V:
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SB:
Max: 4A / Min: 0A
Description:
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
54.5 x 40.25 x 322 mm
Input:
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)

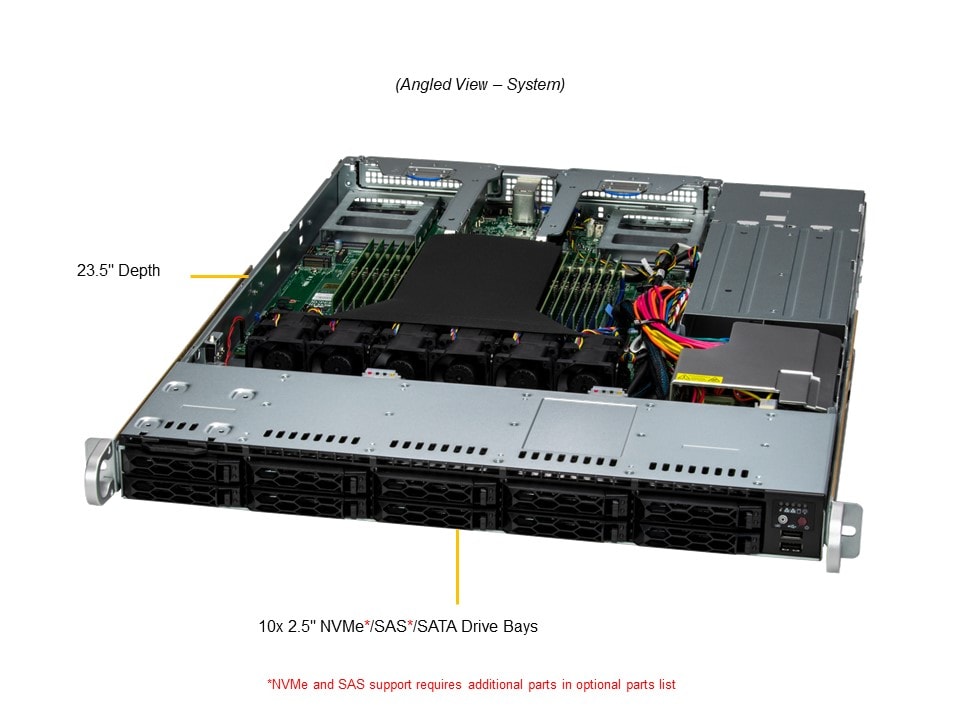

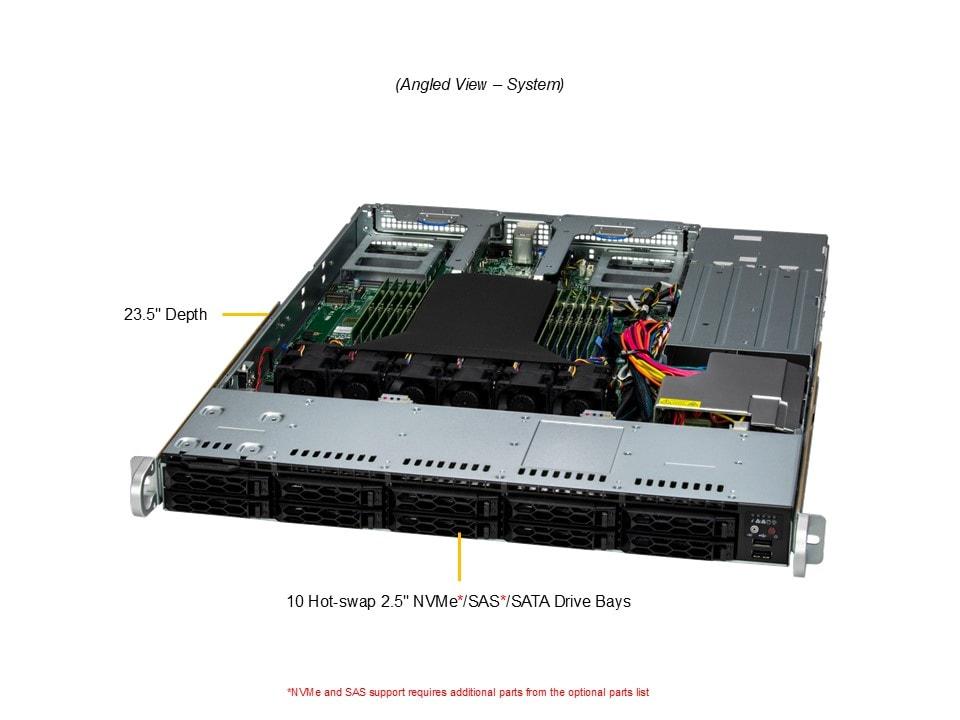

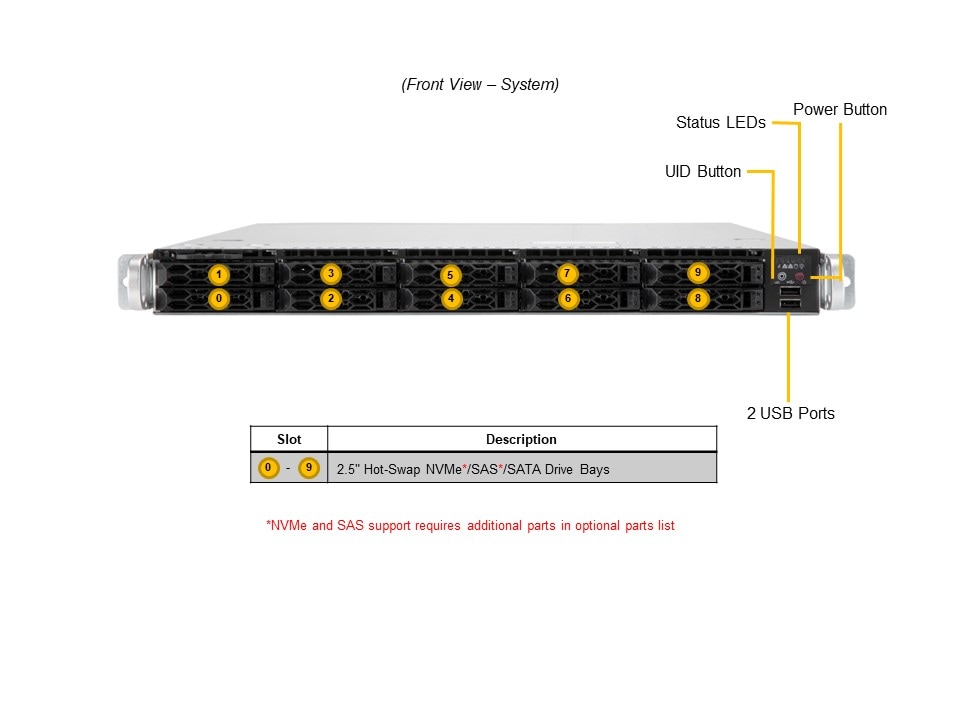

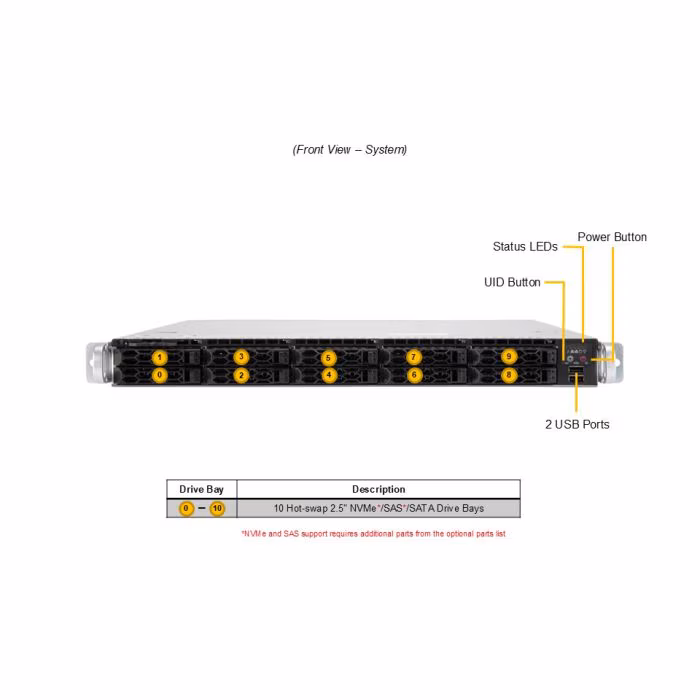

Drive Bays
Configuration 1
Count:
10
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 2
Count:
10
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
PCIe 5.0 NVMe
Configuration 3
Count:
10
Form Factor:
2.5"
Location:
front
Option:
option_b
Interface
Configuration 1
Interface:
SAS
M.2
Count:
2
Generation:
PCIe 3.0
Lanes:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 6x 4cm heavy duty fans with optimal fan speed control
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
10 NVMe Optional Cables
CBL-MCIO-1218M5RE-J4MCIO x8 (STR to RE), 18cm,G5,32AWGCBL-MCIO-1228M5RE1MCIO x8 (STR to RE), 28cm, 30#, Gen5, 85Ohm
3908/3916 CacheVault
BTR-CVPM051CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
3908/3916 SuperCap Mount
MCP-240-00127-0N1SuperCap mounting tray for 2.5" drive locationMCP-240-00203-0N1SuperCap mounting bracket for PCIe locationMCP-240-21747-0N1SuperCap mounting card for AIOM location
Cable Management Arm
MCP-290-00152-0N11U Supermicro Cable Management Arm 2nd Gen
Global Services & Support
OS4HR3/2/13/2/1-year onsite 24x7x4 serviceOSNBD3/2/13/2/1-year onsite NBD service
M.2 by AOC
AOC-SLG4-2H8M212x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP
Rail Set
MCP-290-00016-0N (included in the system )11U open rack bracket setMCP-290-00063-0N (included in the system )1 SetRail set, quick/quick, default for 1U 17.2"W
Software
SFT-DCMS-Single1DataCenter Management Package (per node license)
Storage Control Card and Cable(s)
AOC-S3808L-L8iT OR18 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDDAOC-S3816L-L16iT116 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDDAOC-S3908L-H8iR(-16DD/-32DD)18 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDAOC-S3916L-H16iR116 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDCBL-SAST-1265F-1001Slimline x8 (STR) to Slimline x4 (STR),64CMCBL-SAST-1276F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMOR
TPM security module
AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
