Supermicro
AS-1115HS-TNR-G1
RFQ Only

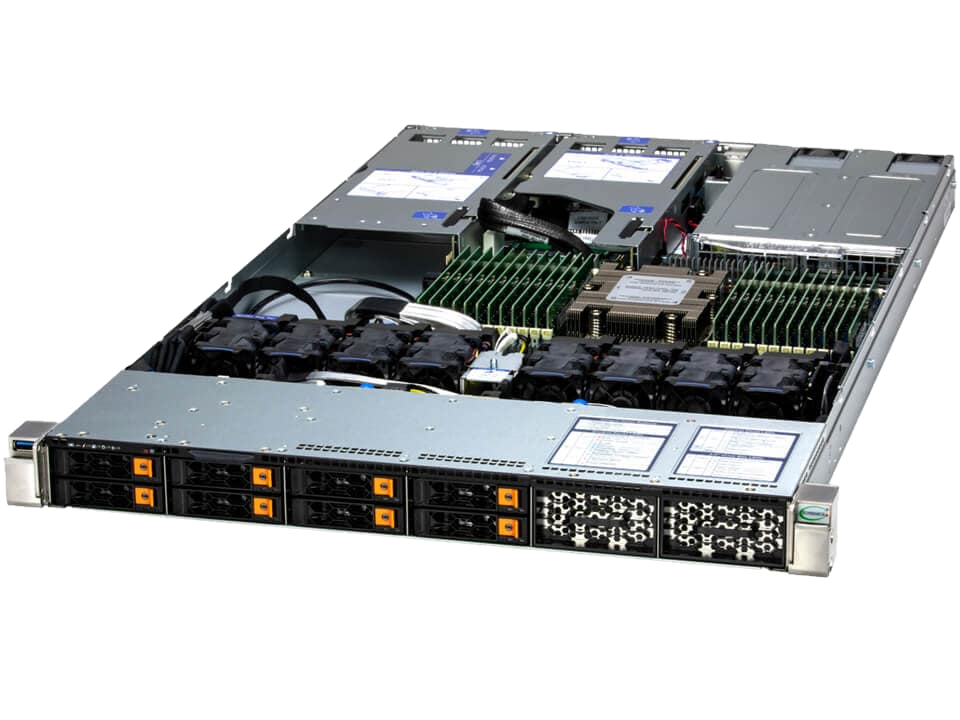

Hyper SuperServer is a high-performance, highly configurable system designed for enterprise and telco applications, making it an optimal choice for workloads requiring powerful computing capabilities. With its flexible rear I/O configurations, you can easily integrate this system into their existing infrastructure.
AS -1115HS-TNR-G1 supports a single 4th Gen AMD EPYC™ 9454 Processor and 384GB DDR5-5600 memory in 12 DIMM slots. In addition, this system offers flexible networking options with an AIOM slot, enabling 2 10GBase-T RJ45 ports.
HyperSuperServer features lightning-fast storage, powered by the latest generation PCIe 5.0 NVMe SSDs. With 1 960GB U.2 7mm NVMe, this system is capable of handling your storage needs. Hyper SuperServer also features a tool-less design that simplifies serviceability and lowers maintenance time, resulting in lower TCO.
The Hyper SuperServer product family is optimized for your 5G Core, edge, hyperconverged storage, cloud computing, and AI inferencing/machine learning needs.
SKU: AS-1115HS-TNR-G1
Features
Key Features
- CPU - Single AMD EPYC™ 9454P Processor (48-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 960GB U.2 7mm NVMe
- RAM - 12x 32GB DDR5-5600 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 LAN Ports via AIOM
Use Cases
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
Motherboard
Super H13SSH
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
PCIe
Max GPU Count:
Up to 1 double-width or 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100, L4, L40S, RTX 4000 Ada Generation; View GPU Options
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
1x USB 3.0 port(front)
1x USB 3.0 port(front)
Video:
1x VGA port
Power Configurations:
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Power-on mode control for AC power loss recovery
Power button override mechanism,
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Chipset:
System on Chip
Network Connectivity:
Via AIOM
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Cores:
Up to 192C/320T
CPU:
Single processor(s), AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Note:
Supports up to 500W TDP CPUs *; *Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
BIOS Type:
AMI 32MB SPI Flash EEPROM

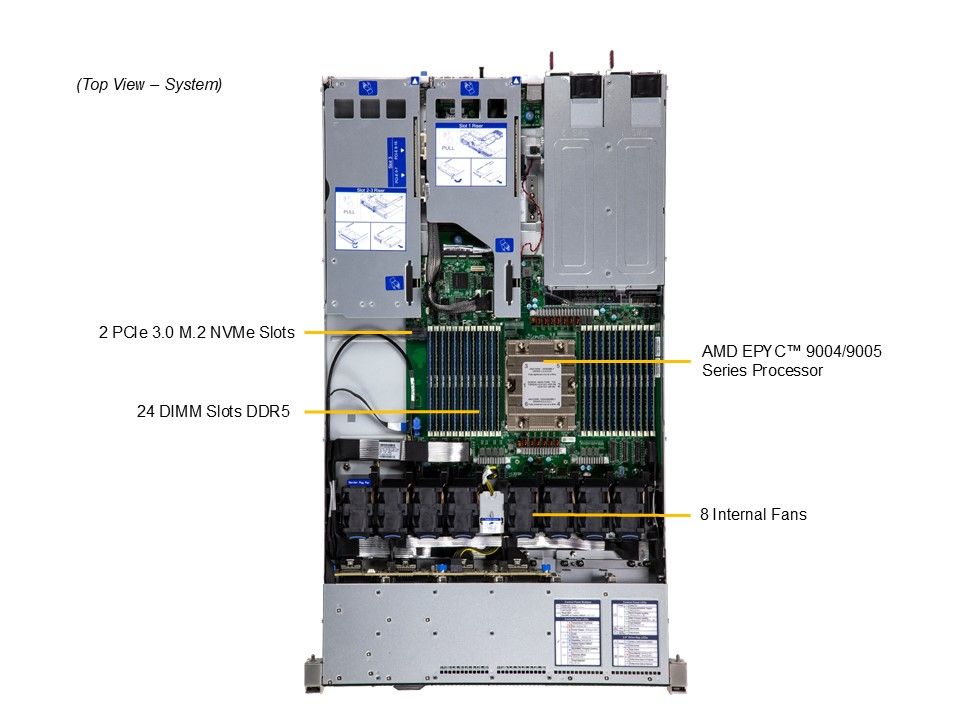

Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage:
1.1V
Chassis
CSE-HS119-R1K24P2-A
Dimensions
Expansion Slots
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black front & silver body

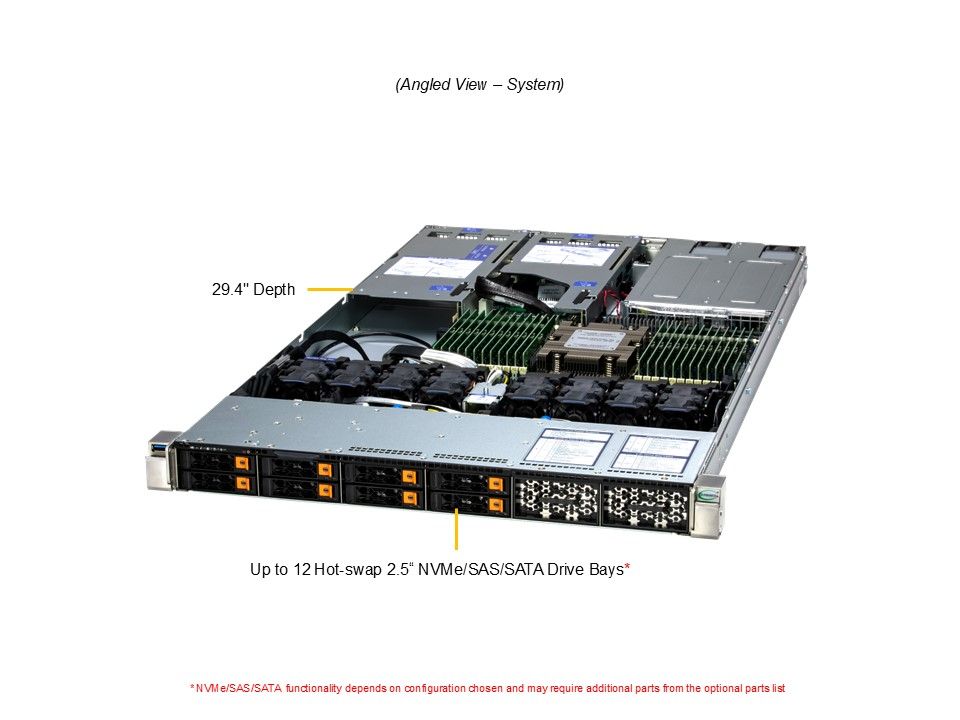

Depth:
29.4 in
Gross Weight:
50.93 lb
Height:
1.7 in
Net Weight:
31.97 lb
Package Depth:
40.6 in
Package Height:
8.1 in
Package Width:
23.8 in
Width:
17.2 in

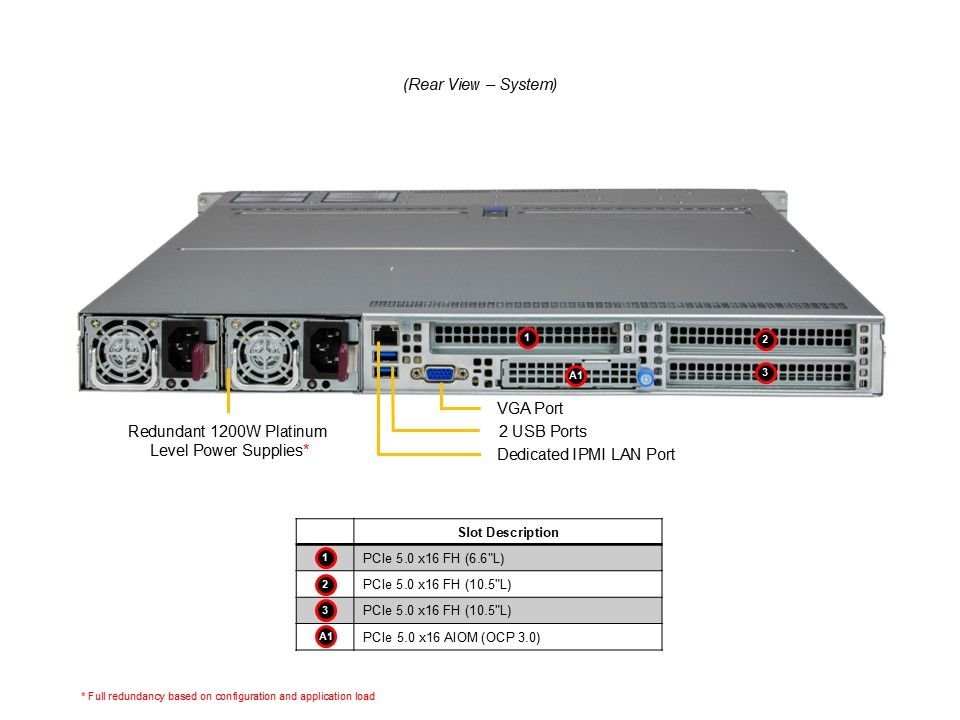

PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x16 FHHL slot
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
1x PCIe 5.0 x16 FHHL slot
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Buttons:
Power On/Off
UID button
UID button
LED:
HDD activity
LAN1 activity
Power status
System information
LAN1 activity
Power status
System information
Model:
CSE-HS119-R1K24P2-A
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1200W Titanium
+12V:
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB:
Max: 2.1A / Min: 0A
Description:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
Output Type:
Backplanes (gold finger)
2x 1300W Gold
+12V:
Max: 108.3A / Min: 0A
12V SB:
Max: 2.1A
Description:
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1300W: -44--65Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
2x 1600W Titanium
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Max: 3.5A
Description:
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)
2x 2000W
+12V:
Max: 166A / Min: 0A (200Vac-277Vac)
12V SB:
Max: 3.5A / Min: 0A
Description:
2x 2000W Redundant (1 + 1) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
2000W: 200-277Vac / 50-60Hz
Output Type:
Backplanes (gold finger)

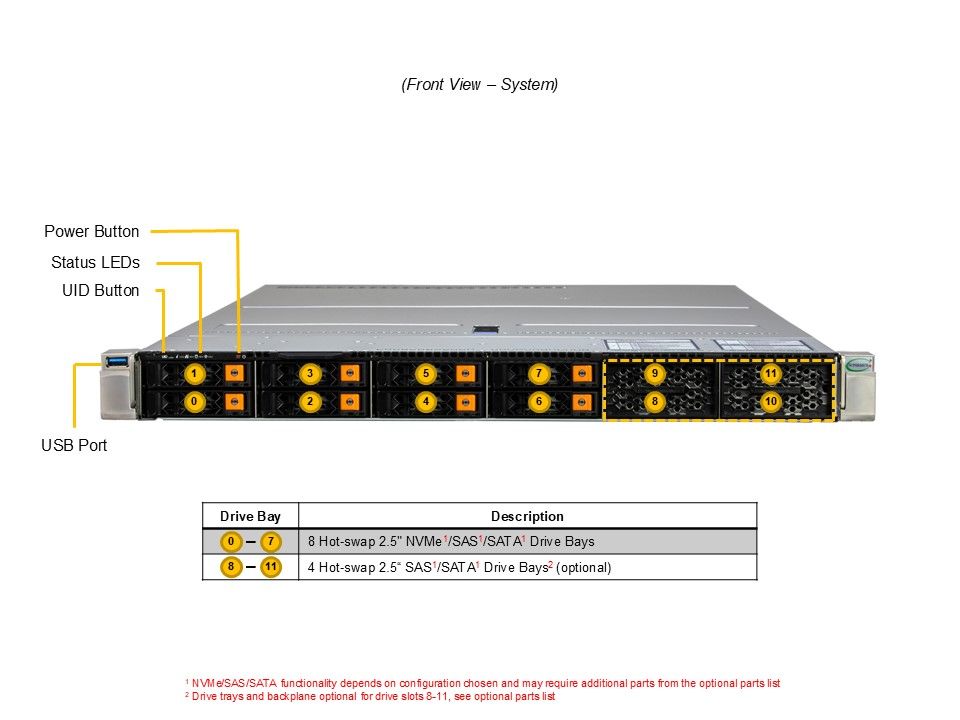

Drive Bays
Configuration 1
Count:
8
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
Configuration 2
Count:
12
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
M.2
Configuration 1
Count:
1
Generation:
PCIe 3.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Configuration 2
Count:
1
Generation:
PCIe 3.0
Lanes:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 8 counter-rotating 40x40x56mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
12 NVMe
BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS/SATA/NVMECBL-KIT-1115HS-TNR-8N18 NVME cable kitCBL-MCIO-1342M5FRFB1MCIO x8 (STR to STR), FFC, Bundled 34+42cm, 30AWGCBL-PWEX-1136-401power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWGMCP-220-00178-0B42.5 thin profile drive tray
12 SAS
AOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID KeyBPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS/SATA/NVMECBL-CDAT-1062Y-451i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-PWEX-1136-401power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWGCBL-SAST-1262LP-1001Slimline x8 (STR) to SlimLineLP x4 STR,98CM,100OhmCBL-SAST-1273LP-1001Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100OhmMCP-220-00178-0B42.5 thin profile drive tray
12 SATA
BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS/SATA/NVMECBL-CDAT-1062Y-451i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-MCIO-1326EQL4F1MCIO x8/STR to SlimSAS LP x4/STR, FFC,F26cm, 31AWGCBL-MCIO-1360L4FY1MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cmCBL-PWEX-1136-401power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWGMCP-220-00178-0B42.5 thin profile drive tray
8 NVMe
CBL-KIT-1115HS-TNR-8N18 NVME cable kit
8 NVMe + 4 SAS
AOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID KeyBPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS/SATA/NVMECBL-CDAT-1062Y-451i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-KIT-1115HS-TNR-8N18 NVME cable kitCBL-PWEX-1136-401power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWGMCP-220-00178-0B42.5 thin profile drive tray
8 NVME + 4 SAS
CBL-SAST-1262LP-1001Slimline x8 (STR) to SlimLineLP x4 STR,98CM,100Ohm
8 NVMe + 4 SATA
BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS/SATA/NVMECBL-CDAT-1062Y-451i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-KIT-1115HS-TNR-8N18 NVME cable kitCBL-MCIO-1326EQL4F1MCIO x8/STR to SlimSAS LP x4/STR, FFC,F26cm, 31AWGCBL-PWEX-1136-401power cable, (2X2 to 2X4) P3.0,40CM,10A/pin,16AWGMCP-220-00178-0B42.5 thin profile drive tray
8 NVMe/SAS Hybrid
AOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID KeyCBL-KIT-1115HS-TNR-8N18 NVME cable kitCBL-SAST-1273LP-1001Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm
8 NVMe/SATA Hybrid
CBL-KIT-1115HS-TNR-8N18 NVME cable kitCBL-MCIO-1360L4FY1MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm
8 SAS
AOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID KeyCBL-CDAT-1062Y-451i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-SAST-1273LP-1001Slimline x8 (STR) to 2x SlimLLP x4 STR,69/83CM,100Ohm
8 SATA
CBL-CDAT-1062Y-451i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-MCIO-1360L4FY1MCIO x8/STR to 2 SlimSASLP x4/STR,FFC,F46/60cm
Cable Arm
MCP-290-00168-0N1Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N ***MCP-290-11901-0N141" ball-bearing rail set for Hyper servers
Chassis Rear Handle Kit
MCP-290-11905-0N1Hyper 1U rear handle kit for immersion cooling
Drive Bay Dummy Cover
MCP-220-11902-0BDummy cover for two 2.5" drive bays (top & bottom drive bays)
Rail Set
MCP-290-11901-0N141" ball-bearing rail set for Hyper serversMCP-290-11902-0N135.25" ball-bearing rail set for Hyper serversMCP-290-11903-0N130.5" ball-bearing rail set for Hyper serversMCP-290-21103-0N121.65" ball-bearing rail set for Hyper servers
Serial Port DTK Cable with PCIe Bracket
CBL-0010L19-Pin 26CM Serial Port DTK Cable with PCIe Bracket
TPM security module
AOM-TPM-9670H-FIPS1AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHSAOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factorAOM-TPM-9672V1AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHSAOM-TPM-9672V-FIPS1AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
