SupermicroAS-1115S-FWTRT-02-G1
Out of stock

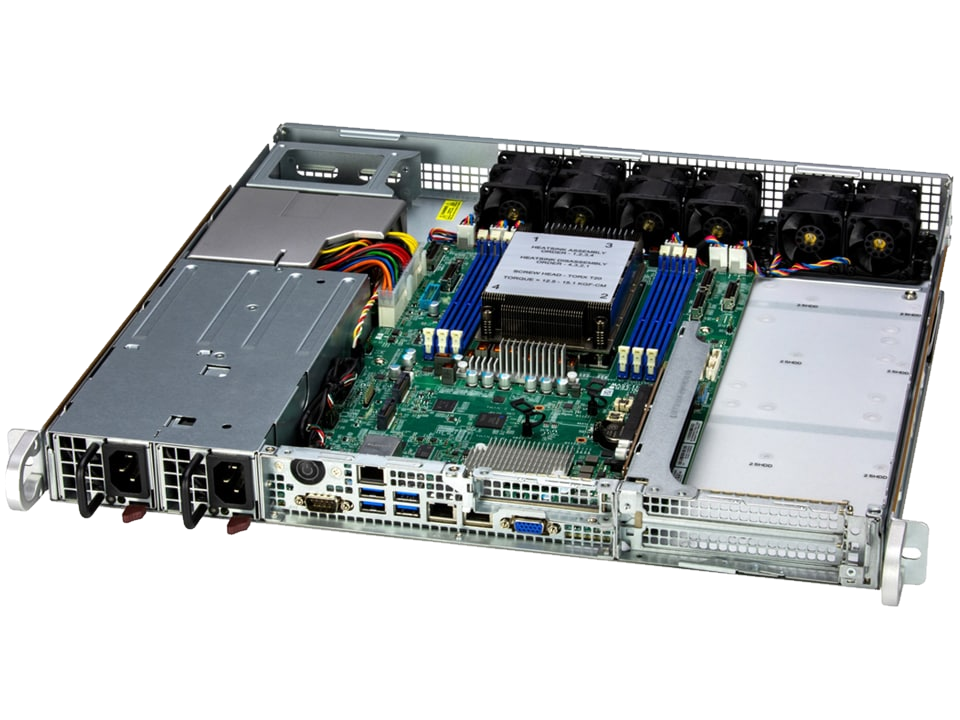

This high-performance 1U server, powered by a single 16-core AMD EPYC™ 8124P processor and equipped with 128GB of DDR5-5600 RDIMM memory, is designed for demanding applications such as virtualization, edge and cloud computing, and 5G/Telco/NEBS environments. Storage is efficiently handled by a combination of a fast 480GB M.2 NVMe drive for rapid OS and application loading, and a spacious 1.92TB SATA SSD for data storage. Network connectivity is robust, featuring dual 10GbE RJ45 LAN ports, making it ideal for firewall applications, CDN/vCDN/Cloud CDN, and vRAN/o-RAN deployments. Notably, this server is available for immediate deployment, shipping within 24 hours to minimize downtime.
SKU: AS-1115S-FWTRT-02-G1
Features
Key Features
- CPU - Single AMD EPYC™ 8124P Processor (16 Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 480GB M.2 NVMe + 1x 1.92TB SATA SSD
- RAM - 4x 32GB DDR5-5600 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 LAN Ports
Use Cases
Virtualization
Firewall Applications
Edge/Cloud Computing Services
CDN/vCDN/Cloud CDN
5G/Telco/NEBS environment
vRAN/o-RAN
Motherboard
Super H13SVW-NT
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Max GPU Count:
Up to 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: L4, A2
Memory:
Slot Count: 6 DIMM slots
Max Memory (2DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
NVMe:
NVMe; (Optional)
Chipset:
System on Chip
Network Connectivity:
2x RJ45 10GBASE-T with Broadcom® BCM57416
SATA:
SATA (6Gbps)
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x RJ45 10 GbE LAN ports
2x RJ45 10 GbE LAN ports
USB:
4x ports
Video:
1x VGA port
TPM:
1x TPM header
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
1U 800W Redundant 100-240Vac Platinum AC power supply
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU thermal trip, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
CPU:
Single processor(s)
AMD EPYC™ 8004 Series Processor
AMD EPYC™ 8004 Series Processor
Cores:
Up to 64C/128T
Note:
Supports up to 200W TDP CPUs (Air Cooled)
Chassis
CSE-515B-R000WNP
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
LED:
LAN1 activity
LAN2 activity
Power status
LAN2 activity
Power status

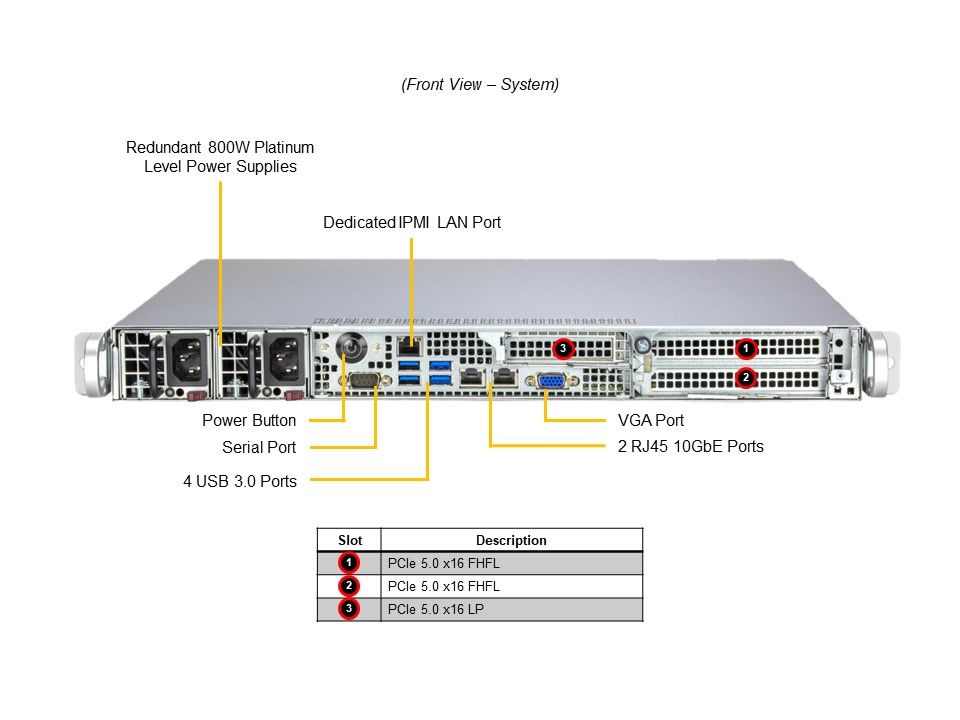

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x16 LP slot
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x16 LP slot

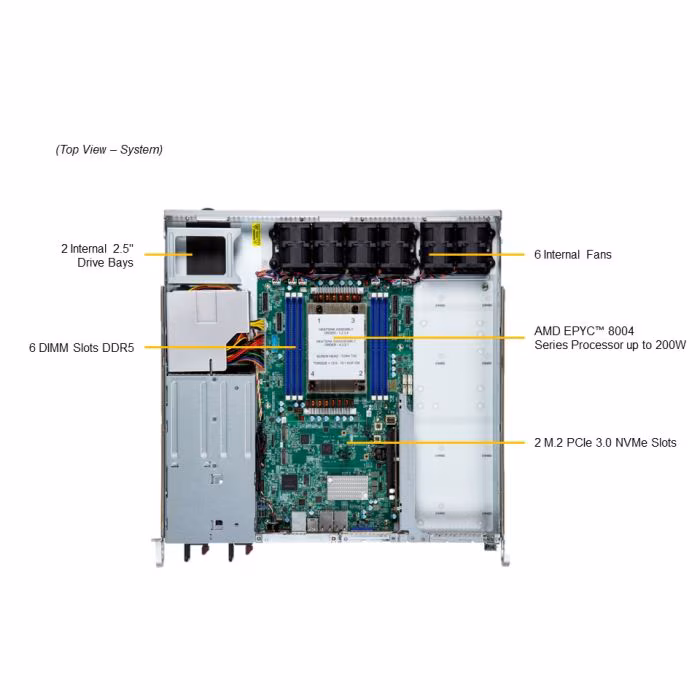

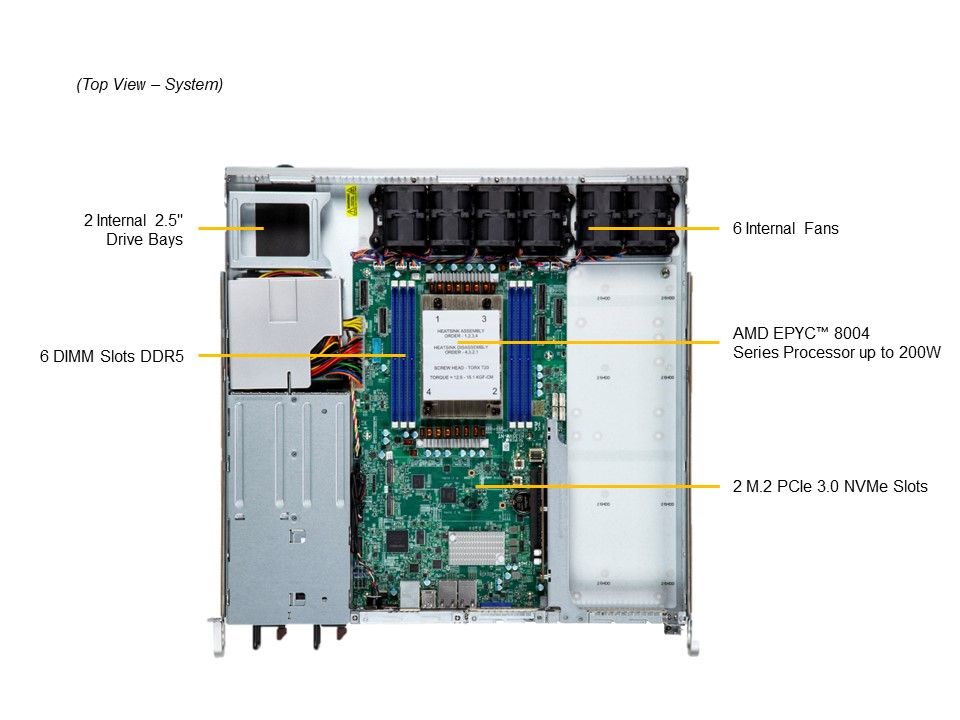

Drive Bays Configuration:
Default: Total 2 bays
2x internal fixed 2.5" NVMe/SAS/SATA drive bays
2x internal fixed 2.5" NVMe/SAS/SATA drive bays
M.2:
2x M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Fans:
6x Heavy duty counter-rotating 4cm Fan(s)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Configuration:
2x 800W Redundant Platinum Level (94%) power supplies
Dimension (W x H x L):
54.5 x 40.25 x 220 mm
Input:
750W: 100-127Vac / 50-60Hz 800W: 200-240Vac / 50-60Hz 800W: 230-240Vdc / 50-60Hz
+12V:
Max: 62.5A / Min: 0.5A (100Vac-127Vac)Max: 66.6A / Min: 0.5A (200Vac-240Vac)Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
Output Type:
Backplanes (gold finger)
5V SB:
Max: 4A / Min: 0A
Height:
1.7 in
Width:
17.2 in

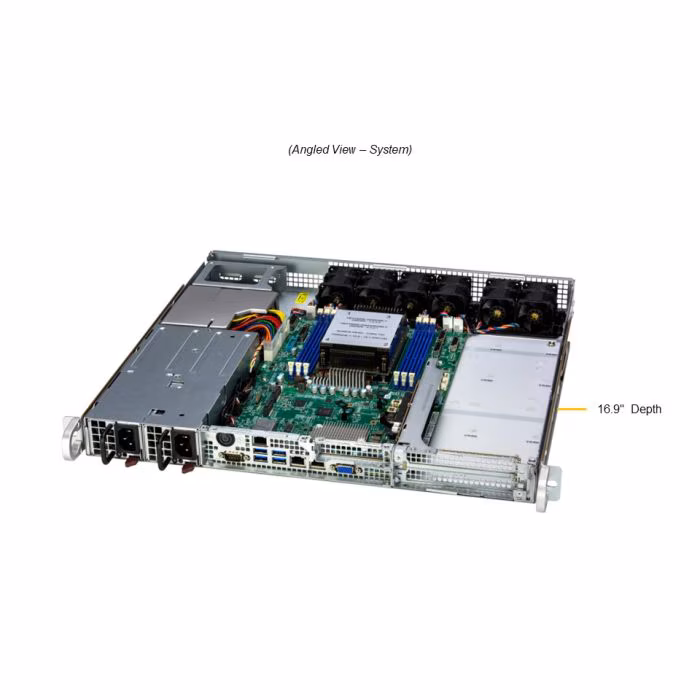

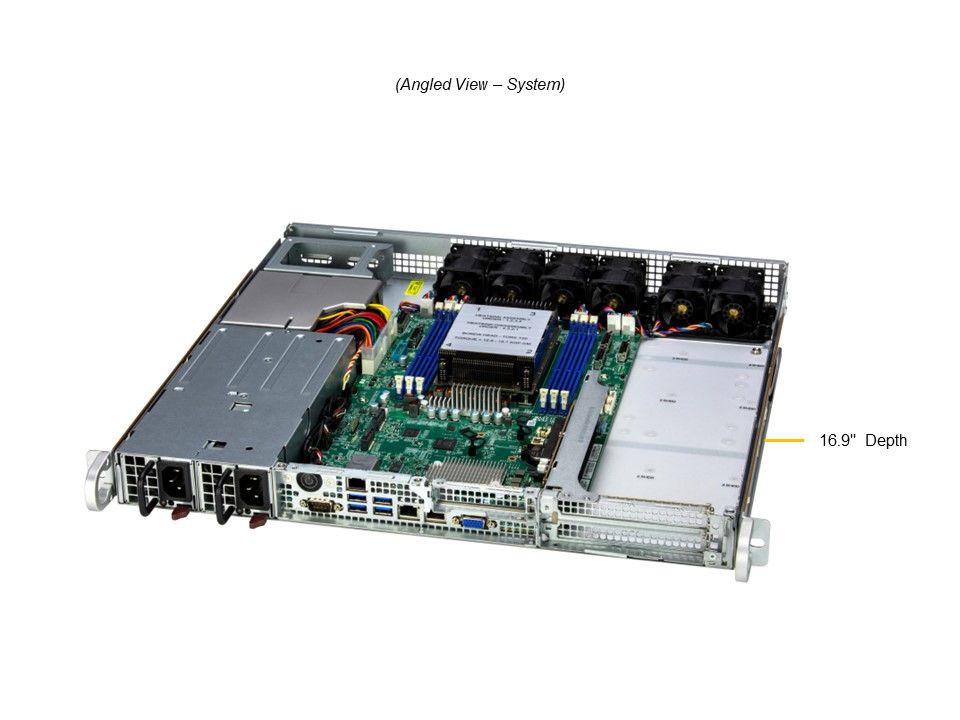

Depth:
16.9 in
Package Height:
8 in
Package Width:
27 in
Package Depth:
24 in
Gross Weight:
14.99 lb
Net Weight:
9.92 lb
Available Color:
Silver
Form Factor:
1U Rackmount
Model:
CSE-515B-R000WNP
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-H13SVW-NT1Super H13SVW-NT MotherboardCSE-515B-R000WNP11U Chassis
Cable
CBL-0082L1Y SPLIT SATA POWER ADAPTER, PB FREE
Fan
FAN-0167L4240x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
Riser Card
RSC-W-66G511U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,RRSC-WR-6G5H11U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software
SFT-OOB-LIC1License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0062P-111U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Supply
PWS-804S-1R2800W 100-240Vac input, Platinum, base module PWS-804P-1R
*Power Distributor
PDB-PT514-282411U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
