Supermicro

AS-1126HS-TN-01-G2

$63,532.84

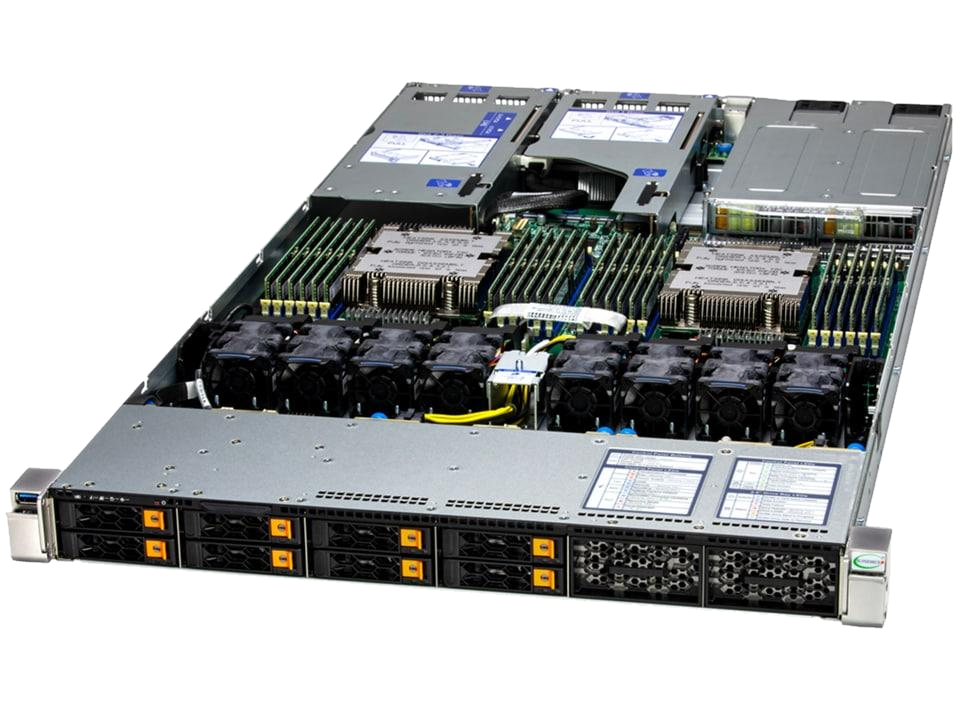

Discover the Supermicro Hyper SuperServer AS-1126HS-TN-01-G2, a high-density 1U rackmount server engineered for performance-driven enterprise and cloud environments. Powered by dual AMD EPYC™ 9355 32-core processors, this powerful 1U/1-node system delivers exceptional multi-threaded performance and efficiency. It comes standard with an 8 NVMe configuration and supports flexible drive options of up to 12 hot-swap 2.5" NVMe/SAS/SATA bays, along with 3 PCIe 5.0 x 16 slots + 1 PCIe 5.0 x 16 AIOM slot. Equipped with redundant 1600W Titanium Level power supplies, the AS-1126HS-TN-01-G2 ensures reliable, energy-efficient operation for mission-critical deployments. Maximize memory and storage performance with the Supermicro AS-1126HS-TN-01-G2 Gold configuration. It features 1.5TB DDR5-6400 RDIMM memory (24 x 64GB modules) and 2x 960GB M.2 NVMe SSDs, providing lightning-fast data access and high-speed storage. The integrated dual 25GbE SFP28 networking delivers excellent throughput, while advanced expansion options support CXL 2.0 devices and future GPU acceleration. This configuration is ideal for high-performance computing, software-defined storage, and AI inferencing workloads. Optimized for modern enterprise and cloud demands, the Supermicro Hyper SuperServer AS-1126HS-TN-01-G2 excels in virtualization, AI inferencing & machine learning, enterprise server deployments, software-defined storage, cloud computing, and high performance computing (HPC). Its compact 1U design combines powerful dual AMD EPYC processing, high-bandwidth DDR5 memory, ultra-fast NVMe storage, and efficient networking to deliver outstanding performance per rack unit. Perfect for organizations seeking a scalable, future-proof server platform for consolidated and data-intensive workloads.
SKU: AS-1126HS-TN-01-G2
Features

Key Features

  1. CPU - Dual AMD EPYC™ 9355 Processors (32-Core)
  2. Chassis - 1U / 1 Node

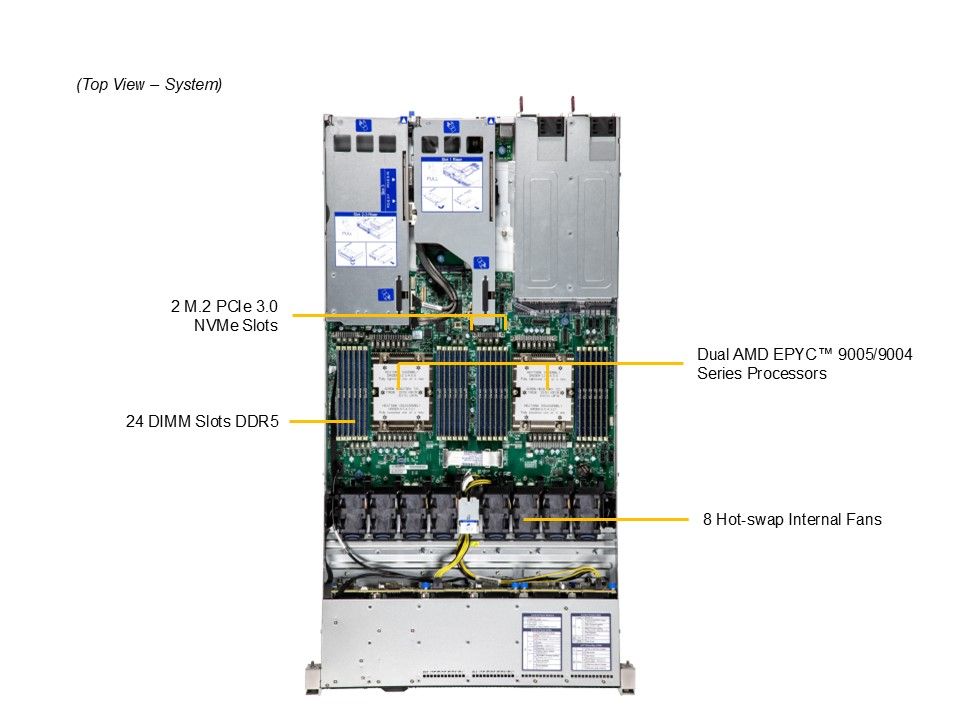

  3. Drive - 2x 960GB M.2 NVMe SSD
  4. RAM - 24x 64GB DDR5-6400 RDIMM Memory
  5. Network Ports - 2x 25GbE SFP28 Ports

Use Cases

Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
High Performance Computing (HPC)

Motherboard

Super H14DSH
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
TPM:
1x TPM Onboard/port 80
USB:
2x USB 3.0 ports(rear)
1x USB 3.0 port(front)
Video:
1x VGA port
Power Configurations:
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
KVM with dedicated LAN
IPMI 2.0
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
IPMIView
Chipset:
System on Chip
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity:
Via AIOM
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Cores:
Up to 384C/768T
CPU:
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
Note:
Supports up to 500W TDP CPUs *
*Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Features:
Plug and Play (PnP)
UEFI 2.8
USB Keyboard support
ACPI 6.5
SMBIOS 3.7 or later
BIOS Type:
AMI 64MB SPI Flash EEPROM
Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage:
1.1V

Chassis

CSE-HS101-R000NFP
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver

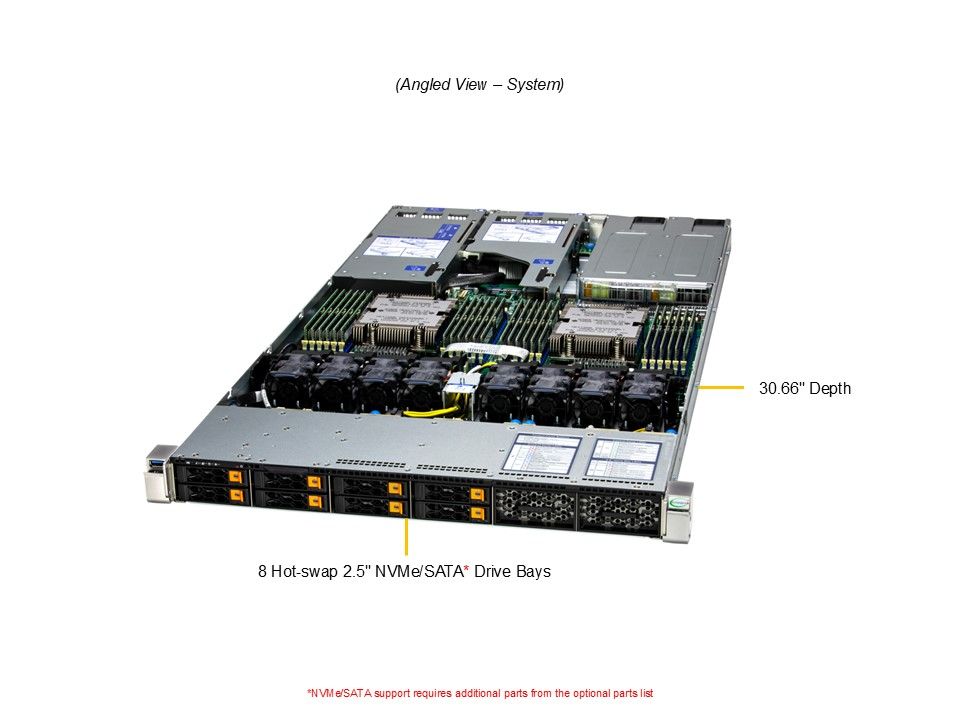

Depth:
30.66 in
Gross Weight:
41.45 lb
Height:
1.7 in
Net Weight:
19.18 lb
Package Depth:
43.31 in
Package Height:
8.82 in
Package Width:
26.46 in
Width:
17.2 in
CXL Support:
Up to 4 CXL 2.0 x16 devices

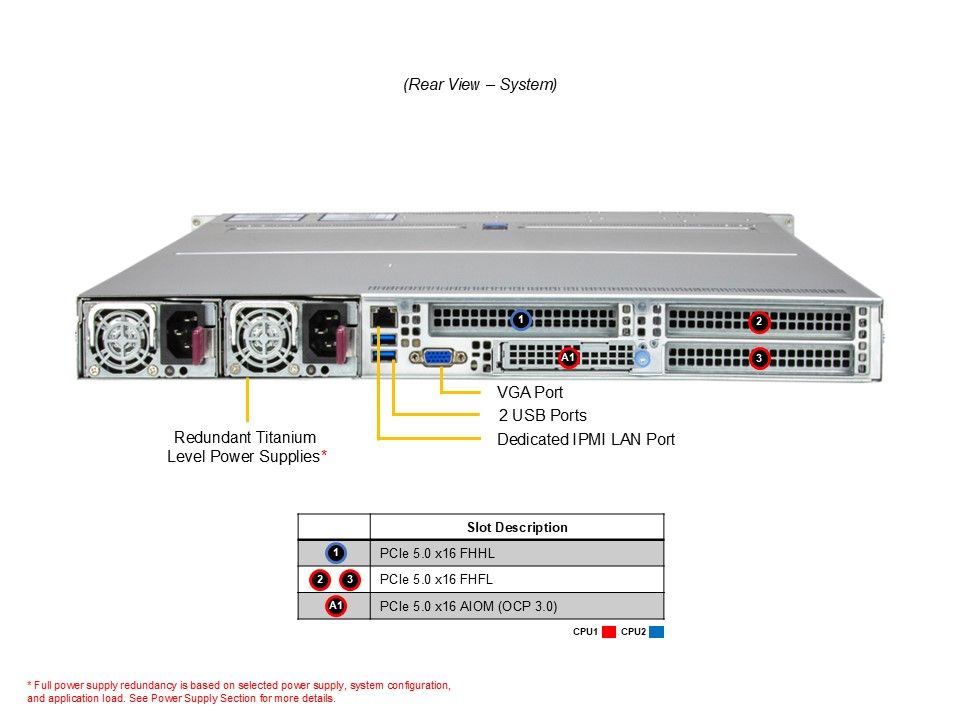

PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x16 FHHL slot
2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Form Factor:
Rackmount

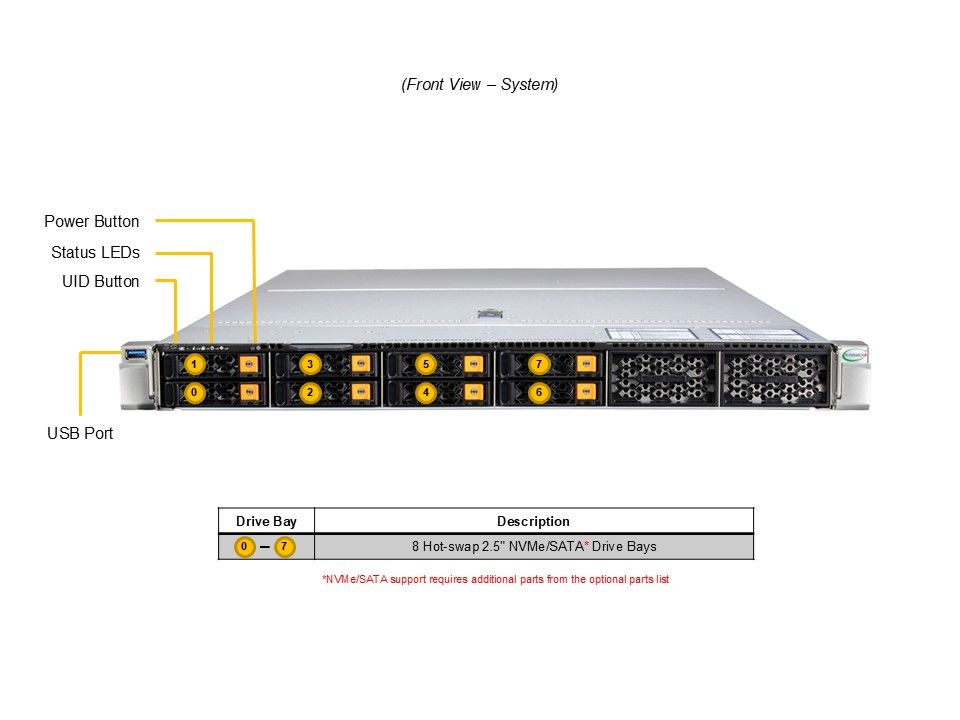

Buttons:
Power On/Off
UID button
LED:
HDD activity
LAN1 activity
Power status
System information
Model:
CSE-HS101-R000NFP
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1200W Titanium
+12V:
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB:
Max: 2.1A / Min: 0A
Description:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
Output Type:
Backplanes (gold finger)
2x 1300W Gold
+12V:
Max: 108.3A / Min: 0A
12V SB:
Max: 2.1A
Description:
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1300W: -44--65Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
2x 1600W Titanium
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Description:
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)
2x 2000W Titanium
+12V:
Max: 166.6A / Min: 0A
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 4A / Min: 0A
Description:
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
2000W: -48--60Vdc / 50-60Hz
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac
Output Type:
Backplanes (gold finger)
2x 2600W Titanium
+12V:
Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A
Description:
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)
Drive Bays
Configuration 1
Count:
8
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SATA
Configuration 2
Count:
12
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SATA
M.2
Count:
2
Generation:
PCIe 3.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Air Shroud:
2x Air Shrouds
Fans:
Up to 8 counter-rotating 40x40x56mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
12 NVMe
BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,RoHSCBL-MCIO-1347M5REL1MCIO x8 (RE to LE),47cm,32AWG,RoHSCBL-MCIO-1462M5FRFB212 MCIOx8 (STR to RF),FFC,FOLD,62/52cm,30AWG,RoHSCBL-MCIO-1463M5FLFB1-J12 MCIOx8 (STR to LF),FFC,FOLD,63/53cm,30AWG,RoHSCBL-MCIO-1473M5FRF1MCIOx8 (STR to RF),FFC,FOLD,73cm,30AWG,RoHSCBL-PWEX-1136-401MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHSMCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
12 SATA
BPN-NVME5-HS119N-S4R11U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,RoHSCBL-CDAT-1062Y-451Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHSCBL-MCIO-1255L4Y2(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHSCBL-PWEX-1136-401MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHSMCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
8 NVMe
CBL-MCIO-1347M5REL1MCIO x8 (RE to LE),47cm,32AWG,RoHSCBL-MCIO-1463M5FLFB1-J12 MCIOx8 (STR to LF),FFC,FOLD,63/53cm,30AWG,RoHSCBL-MCIO-1473M5FRF1MCIOx8 (STR to RF),FFC,FOLD,73cm,30AWG,RoHS
8 SATA
CBL-CDAT-1062Y-451Picoblade 1.25 (1x4 to 2x 1x4),45cm,26AWG,RoHSCBL-MCIO-1255L4Y1(MCIO x8 to 2 SlimSAS LP x4),STR,55cm,85OHM,RoHS
Cable Management Arm
MCP-290-00168-0N ( ***Requires MCP-290-11901-0N ***)1Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N ***MCP-290-11901-0N141" ball-bearing rail set for Hyper servers
Power Supply Options & Accessories
CBL-PWEX-0710-JP148VDC input power cable for PWS-1K30D-1RCBL-PWEX-1058148VDC input power cable for PWS-2K04D-1RPWS-1K24A-1R21U 800W/1200W Redundant Titanium power supplyPWS-1K31D-1R21U 1300W -48Vdc single output power supplyPWS-1K63A-1R21U 1000W/1600W Redundant Titanium power supplyPWS-2K04D-1R21U 2000W -48Vdc single output power supplyPWS-2K07A-1R21U 2000W Redundant Titanium power supplyPWS-2K63A-1R21U 2600W Redundant Titanium power supply
Rail Set
MCP-290-11901-0N141" Long ball-bearing rail set, without auto latchMCP-290-11902-0N (included in the system )135.25" ball-bearing rail set,without auto latch
TPM security module (optional, not included)
AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factorAOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
