Supermicro
$46,827.30AS-2015CS-TNR-01-G2

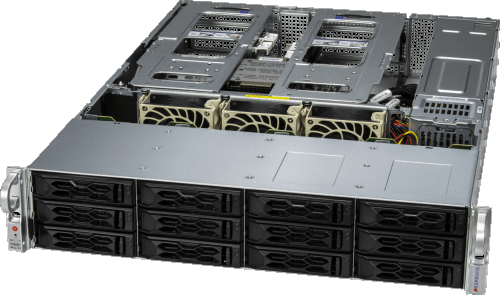

2U CloudDC with 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 AIOM slots
SKU: AS-2015CS-TNR-01-G2
Features
Key Features
- CPU - Single AMD EPYC 9455P (48-Cores, 3.15GHz)
- Chassis - 2U
- Drive - 8TB flash (2x 3.8TB U.2 NVMe + 2x 240GB 2.5" SATA); 192TB (8x 24TB HDD)
- RAM - 768GB 12x DDR5-4800
- Network Ports - 2-port 25GbE
Use Cases
Web Server
Firewall Application
Data Center Optimized
Value IaaS
Cloud Computing
Compact Server
DNS & Gateway Servers
Firewall Application
CDN
Edge Nodes
Motherboard
Super H13SSW
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash ROM
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Max GPU Count:
Up to 2 double-width or 4 single-width GPUs
Supported GPU:
NVIDIA PCIe: L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A40, A30, A16, A2, A100
GPU-GPU Interconnect:
PCIe
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory:
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
Via AIOM
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
TPM:
1x TPM header
Serial:
1x COM port(rear)
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Power Configurations:
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Power-on mode control for AC power loss recovery
Power button override mechanism,
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
CPU:
Single processor(s)
AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Cores:
Up to 160C/320T
Note:
Supports up to 400W TDP CPUs *
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
* This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
* This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP
Chassis
CSE-LA26TS-R1K23AWP1
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
LED:
Drive activity
Network activity
Power status
Universal Information (UID)
Network activity
Power status
Universal Information (UID)
Buttons:
Power On/Off
Universal Information (UID)
Universal Information (UID)

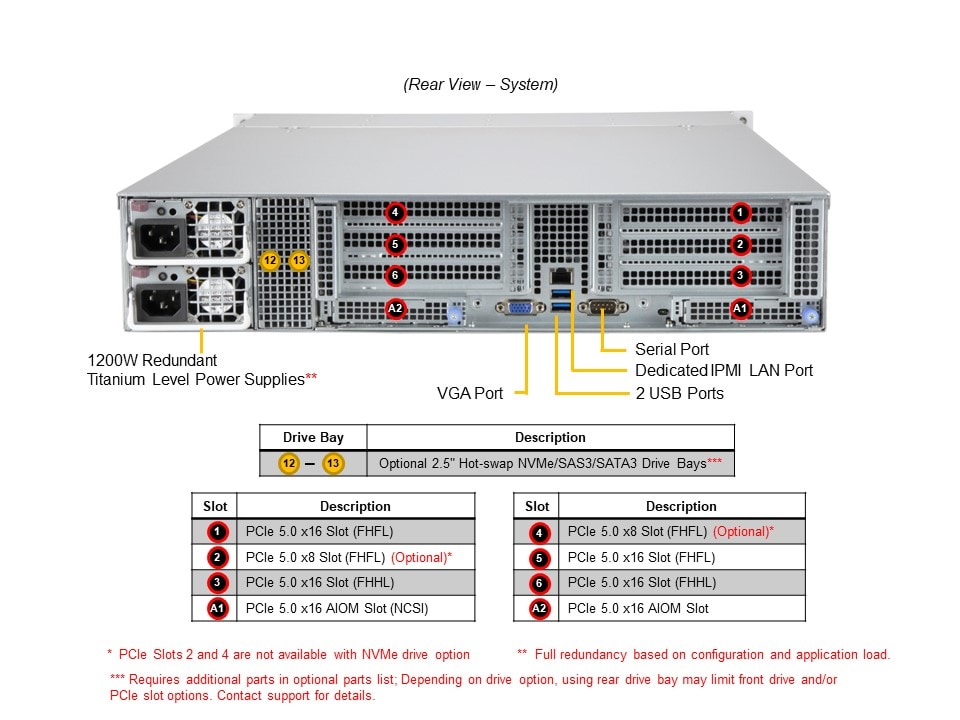

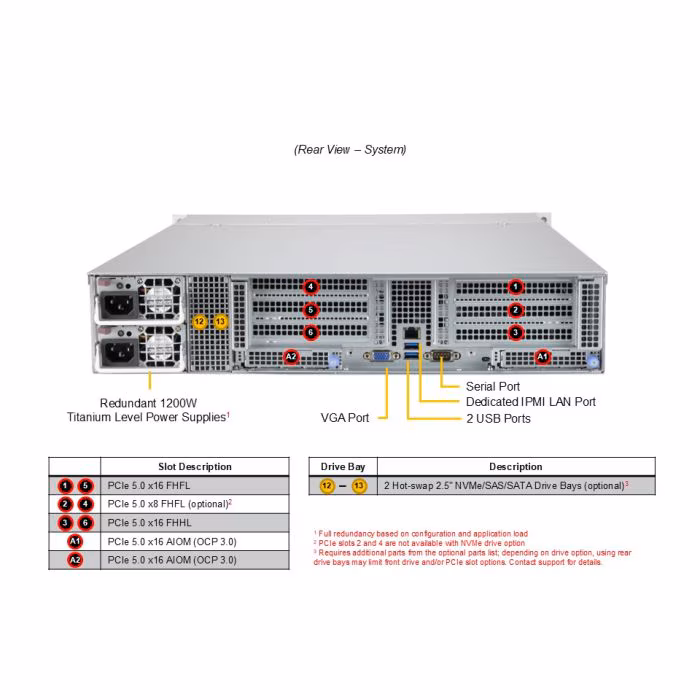

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHFL slots
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*
2x PCIe 5.0 x8 FHFL slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
2x PCIe 5.0 x16 FHFL slots
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*
2x PCIe 5.0 x8 FHFL slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

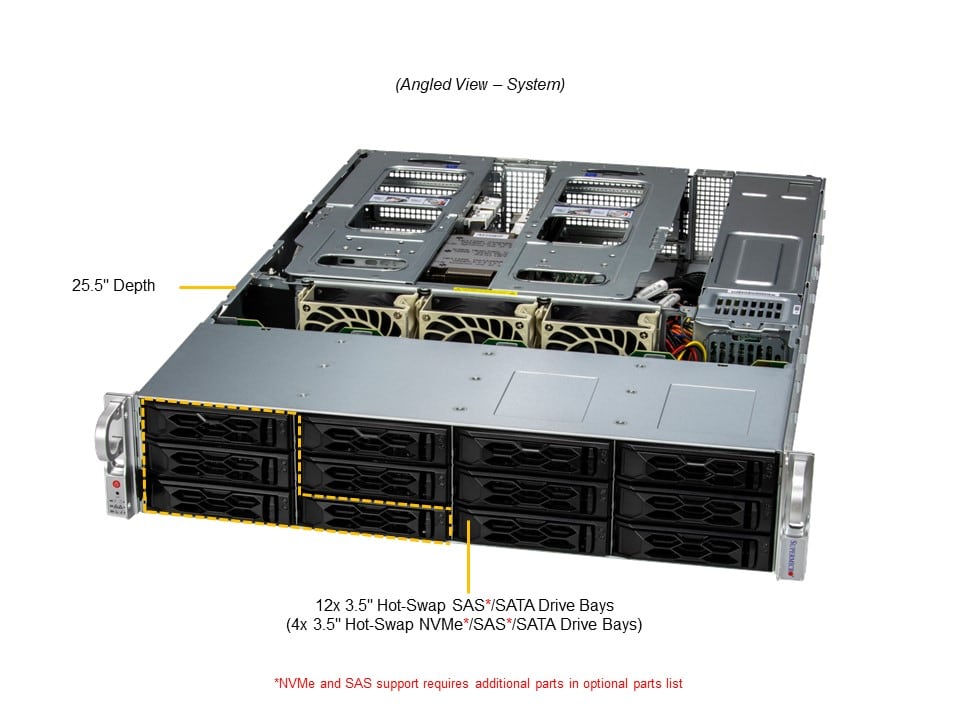

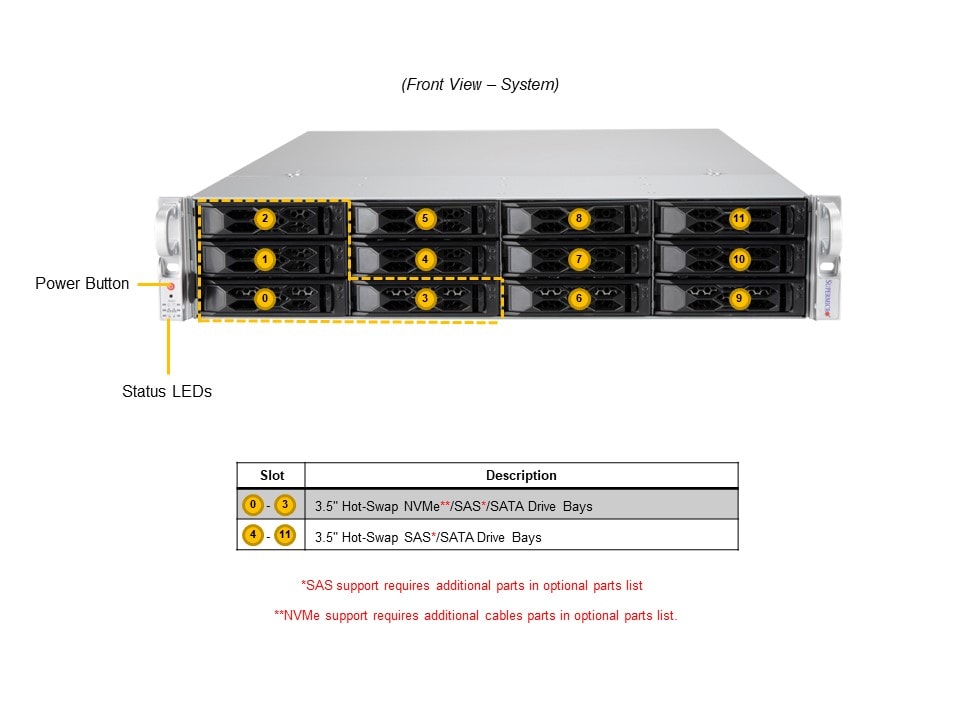

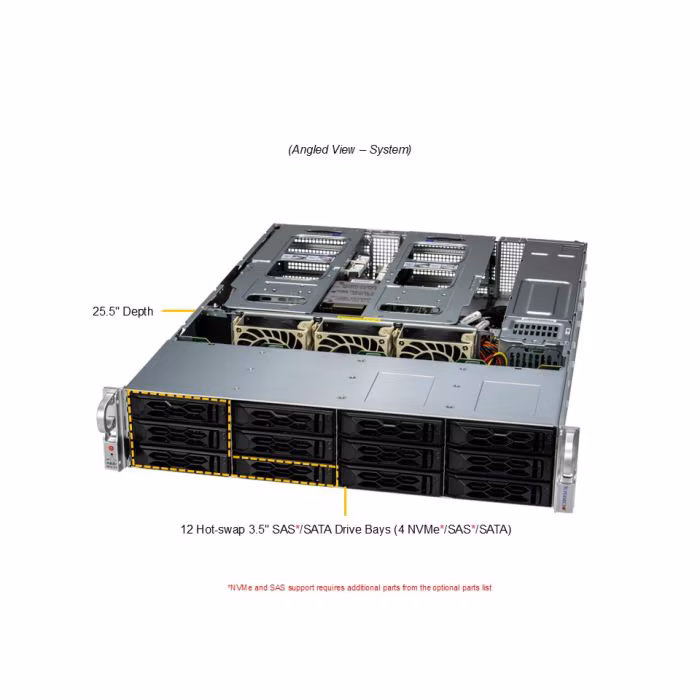

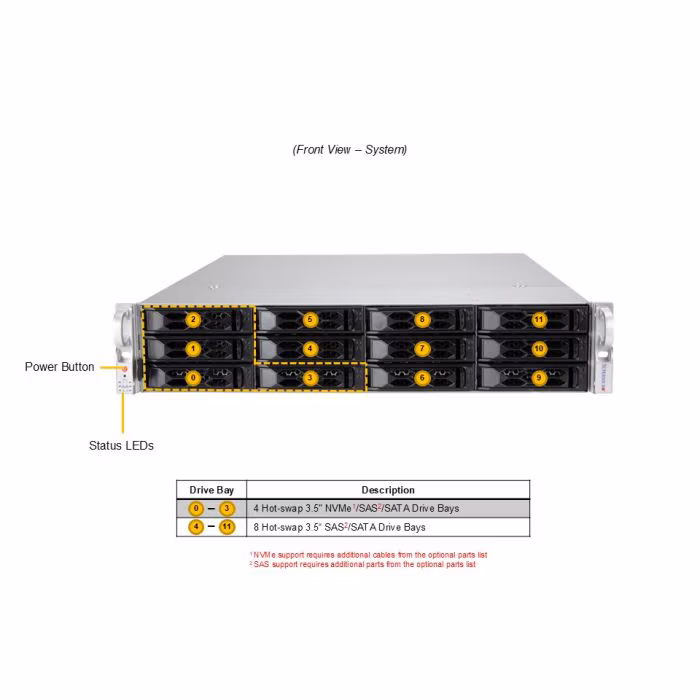

Drive Bays Configuration:
Default: Total 12 bays
12x front hot-swap 3.5"/2.5" SATA drive bays
Option A: Total 4 bays
4x front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
Option B: Total 12 bays
12x front hot-swap 3.5"/2.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
12x front hot-swap 3.5"/2.5" SATA drive bays
Option A: Total 4 bays
4x front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
Option B: Total 12 bays
12x front hot-swap 3.5"/2.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

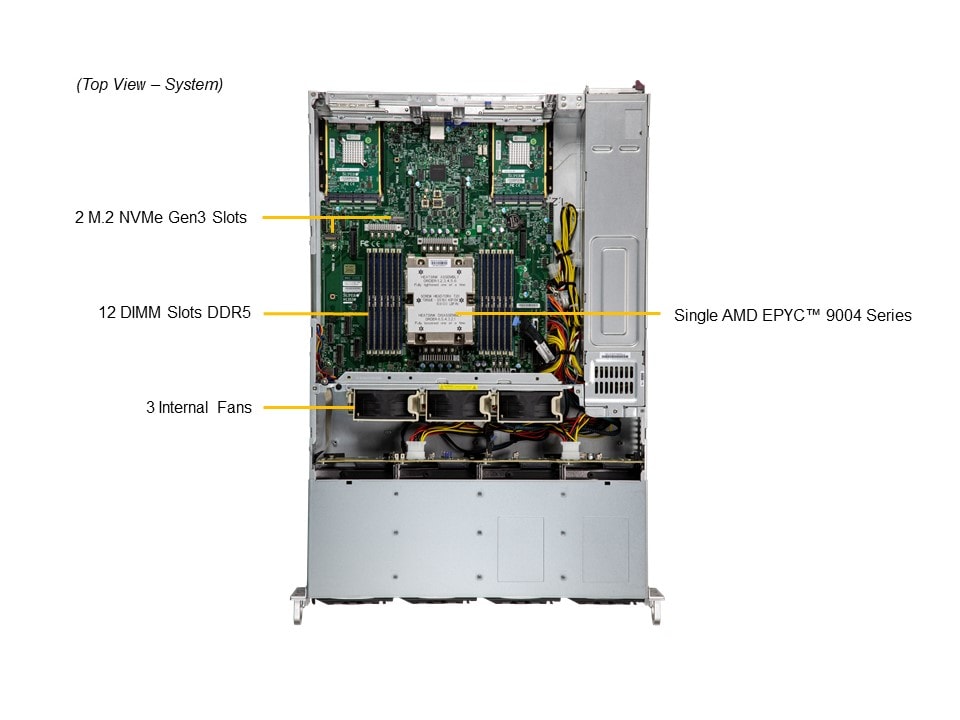

M.2:
2x M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
Fans:
3x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
76x x 40 x 336 mm
Input:
1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V:
Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
Output Type:
Backplanes (gold finger)
Configuration:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
5V SB:
Max: 4A / Min: 0A
Height:
3.5 in
Width:
17.2 in
Depth:
25.5 in
Package Height:
11.4 in
Package Width:
26.7 in
Package Depth:
34.5 in
Gross Weight:
59.08 lb
Net Weight:
33.07 lb
Available Color:
Black front & sliver body
Form Factor:
2U Rackmount
Model:
CSE-LA26TS-R1K23AWP1
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
12 NVMe Optional Cables
CBL-MCIO-1232M55MCIO x8 (STR to STR),32cm,85OHMCBL-MCIO-1339M5R1MCIO x8 (STR to RA),39CM,32AWG
3908/3916 CacheVault
BTR-CVPM051CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
3908/3916 SuperCap Mount
MCP-240-21747-0N1SuperCap mounting card for AIOM locationMCP-240-00127-0N1SuperCap mounting tray for 2.5" drive locationMCP-240-00203-0N1SuperCap mounting bracket for PCIe location
4 NVMe Optional Cables (Slot 0~3)
CBL-MCIO-1232M52MCIO x8 (STR to STR),32cm,85OHM
Cable Management Arm
MCP-290-00073-0N1Supermicro Cable Management Arm for 2U, 3U and 4U chassisMCP-120-82601-0N1Cable arm adapter for SCLA26-AW
Global Services & Support
OS4HR3/2/1-3/2/1-year onsite 24x7x4 serviceOSNBD3/2/1-3/2/1-year onsite NBD service
M.2 by AOC
AOC-SLG4-2H8M212x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP
Optional PCIe 5.0 x8 (PCIe slot 2 & 4)(For 12 SATA Configuration Only)
CBL-MCIO-1339M5R2MCIO x8 (STR to RA),39CM,32AWG
Rail Set
MCP-290-00053-0N (included in the system )1 SetRail set, quick/quick, default for 2,3U 17.2"W
Rear Window NVMe Drive Kit
MCP-220-82623-0N1Dual 2.5 NVMe5 Drive Kit for 216B/826B/218H2,RoHSCBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG,RoHSCBL-PWEX-1123-301McHi,2x2F,P3.0 to 1x4M,P5.08,30cm,9A/p,16AWG,RoHSCBL-MCIO-1339M5R1MCIO x8 (STR to RA),39CM,32AWG,RoHS
Rear Window SATA Drive Kit
MCP-220-82616-0N112G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)CBL-MCIO-1270OT4S2-851MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS
Software
SFT-DCMS-Single1DataCenter Management Package (per node license)
Storage Control Card and Cable(s)
AOC-S3816L-L16iT OR AOC-S3916L-H16iR(-32DD)1x CBL-SAST-1276F-1001x CBL-SAST-1265F-100-16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMSlimline x8 (STR) to Slimline x4 (STR),64CMAOC-S3808L-L8iT ORAOC-S3908L-H8iR(-16DD/-32DD) 1x CBL-SAST-1276F-100-8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
TPM security module
AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
