Supermicro
AS-2015CS-TNR-G1
RFQ Only
This compact 1U rackmount server, fueled by a powerful AMD EPYC™ 9454P 48-core processor, is purpose-built for web serving, firewall applications, cloud computing, and edge deployments. Optimized for data centers and ideal as a value IaaS solution, it excels as a DNS and gateway server. Equipped with 2 960GB M.2 NVMe drive for rapid data access and 12 64GB DDR5-5600 RDIMM RAM, this server ensures exceptional performance. Dual 10GbE LAN ports provide reliable connectivity, while the 24-hour shipping gets your infrastructure online quickly.
SKU: AS-2015CS-TNR-G1
Features
Key Features
- CPU - Single AMD EPYC™ 9454P Processor (48-Cores)
- Chassis - 2U / 1 Node
- Drive - 2x 960GB M.2 NVMe
- RAM - 12x 64GB DDR5-5600 RDIMM Memory Slots
- Network Ports - 2x 10GbE RJ45 LAN Ports via AIOM
Use Cases
Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes

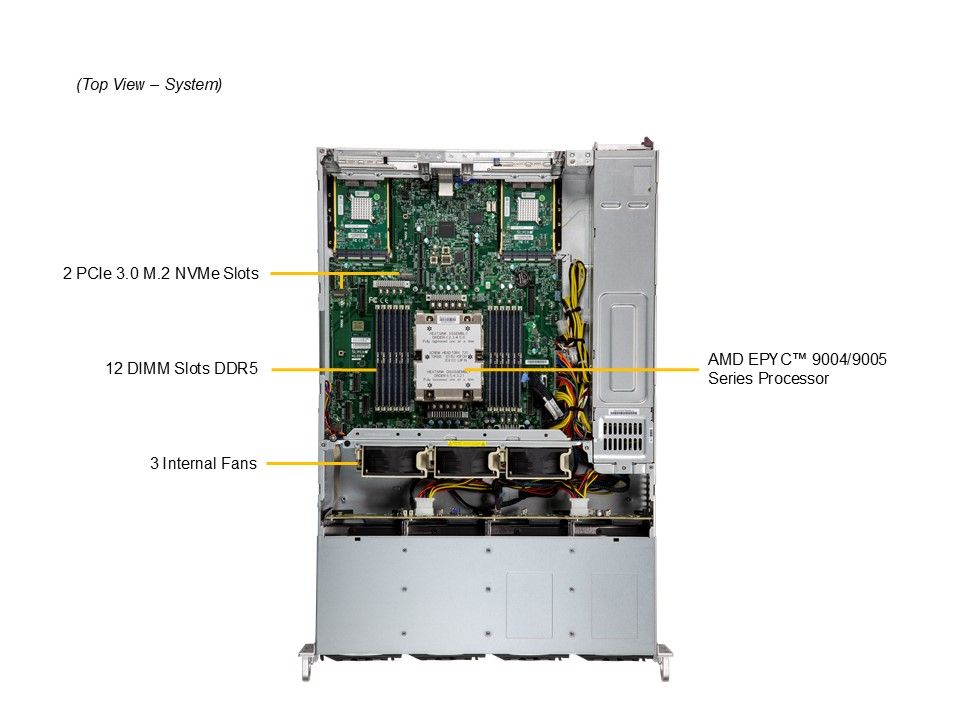

Motherboard
Super H13SSW
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
PCIe
Max GPU Count:
Up to 2 double-width or 4 single-width GPUs
Supported GPU:
NVIDIA PCIe: A100, A16, A2, A30, A40, L4, L40, L40S, RTX 6000 Ada Generation, RTX A4000
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
Serial:
1x COM port(rear)
TPM:
1x TPM header
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Power Configurations:
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Power-on mode control for AC power loss recovery
Power button override mechanism,
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Chipset:
System on Chip
Network Connectivity:
Via AIOM
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Core Count:
Up to 160C/320T
CPU:
Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
AMD EPYC™ 9004/9005 Series Processors
Note:
Supports up to 400W TDP CPUs *
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
BIOS Type:
AMI 32MB SPI Flash ROM
Memory:
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage:
1.1V
Chassis
CSE-LA26TS-R1K23AWP1
Dimensions
Expansion Slots
Form Factor

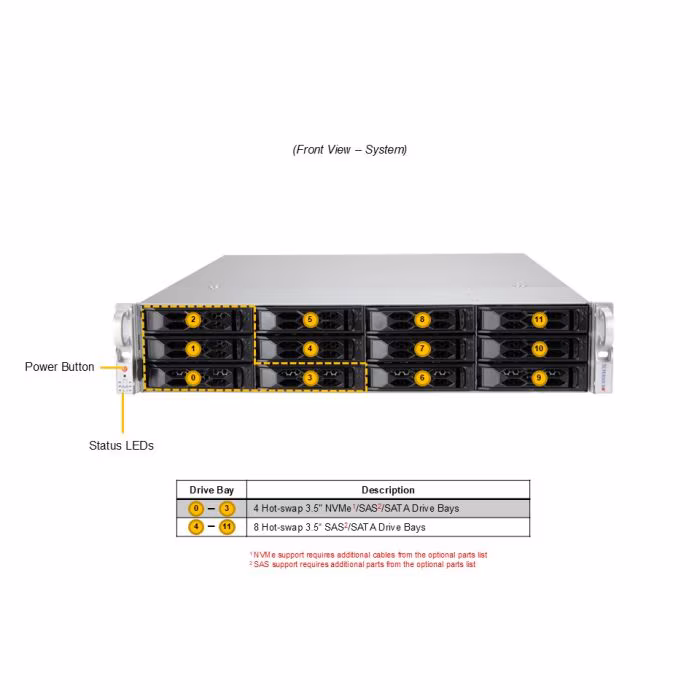

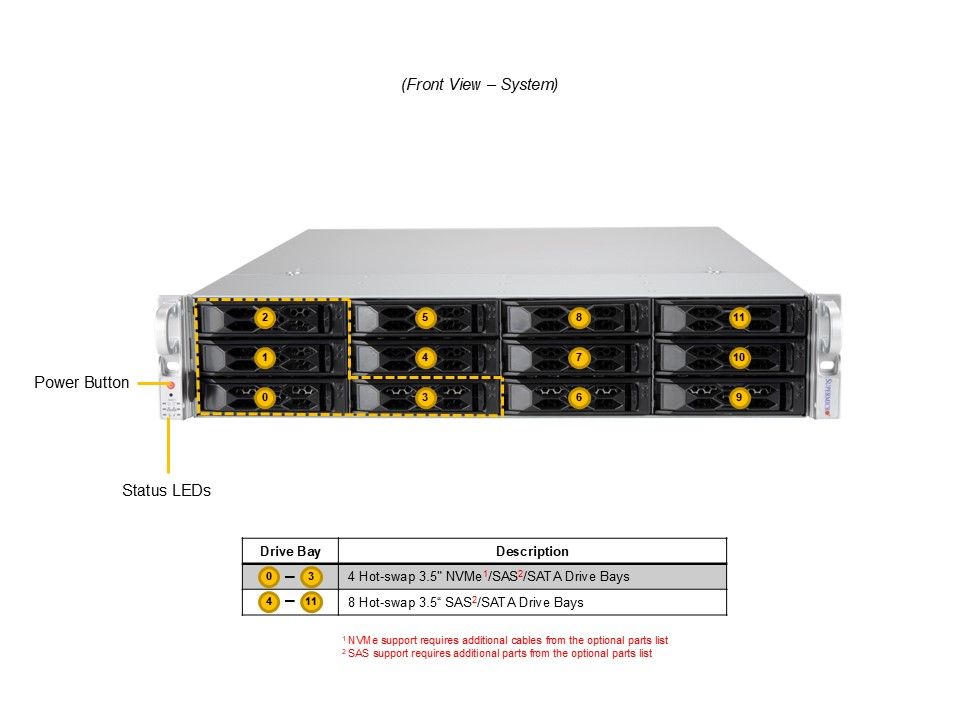

Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black front & sliver body
Depth:
25.5 in
Gross Weight:
59.08 lb
Height:
3.5 in
Net Weight:
33.07 lb
Package Depth:
34.5 in
Package Height:
11.4 in
Package Width:
26.7 in
Width:
17.2 in

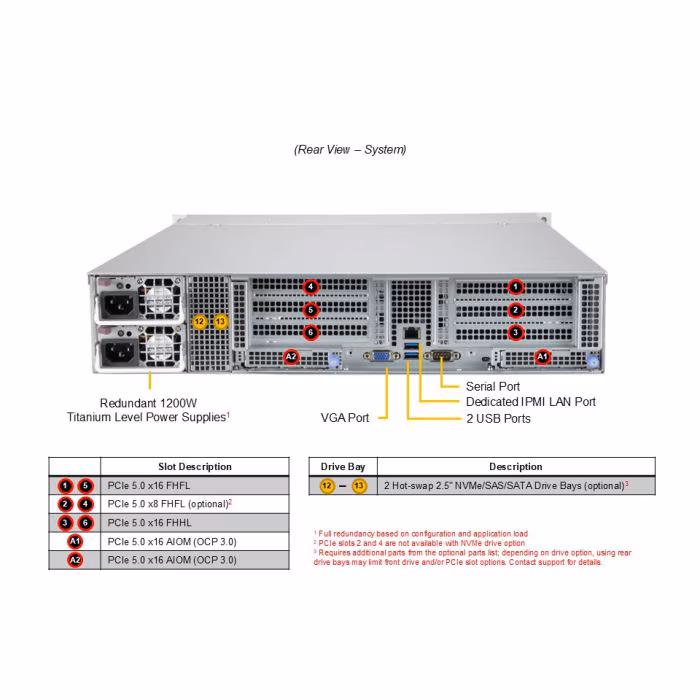

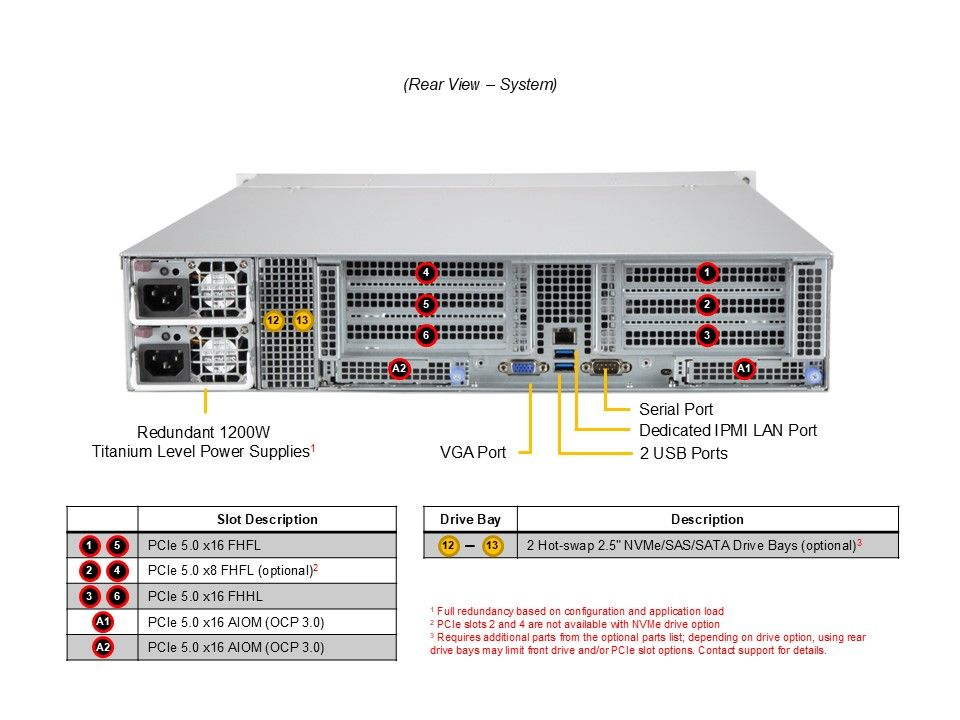

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHFL slots
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*
2x PCIe 5.0 x8 FHFL slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
2x PCIe 5.0 x16 FHFL slots
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*
2x PCIe 5.0 x8 FHFL slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Form Factor:
Rackmount
Buttons:
Power On/Off
Universal Information (UID)
Universal Information (UID)
LED:
Drive activity
Network activity
Power status
Universal Information (UID)
Network activity
Power status
Universal Information (UID)
Model:
CSE-LA26TS-R1K23AWP1
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1200W Titanium
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB:
Max: 4A / Min: 0A
Description:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
76x x 40 x 336 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
Output Type:
Backplanes (gold finger)

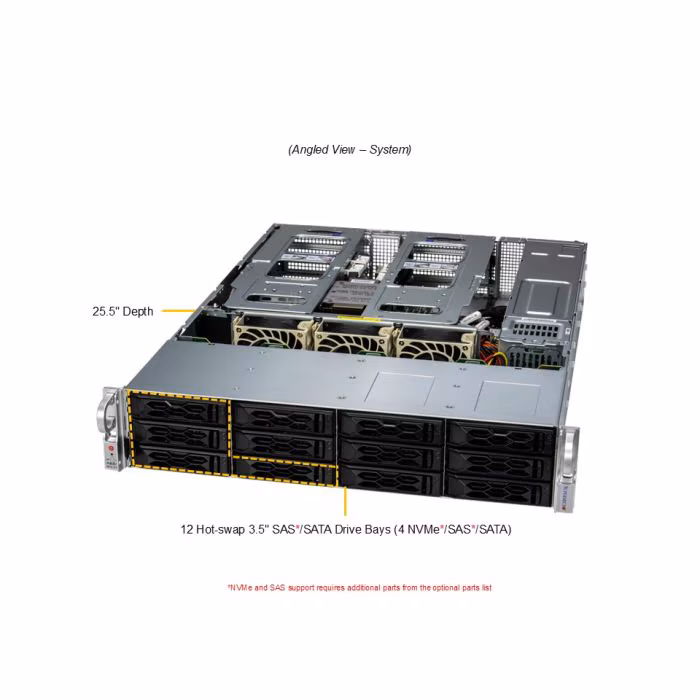

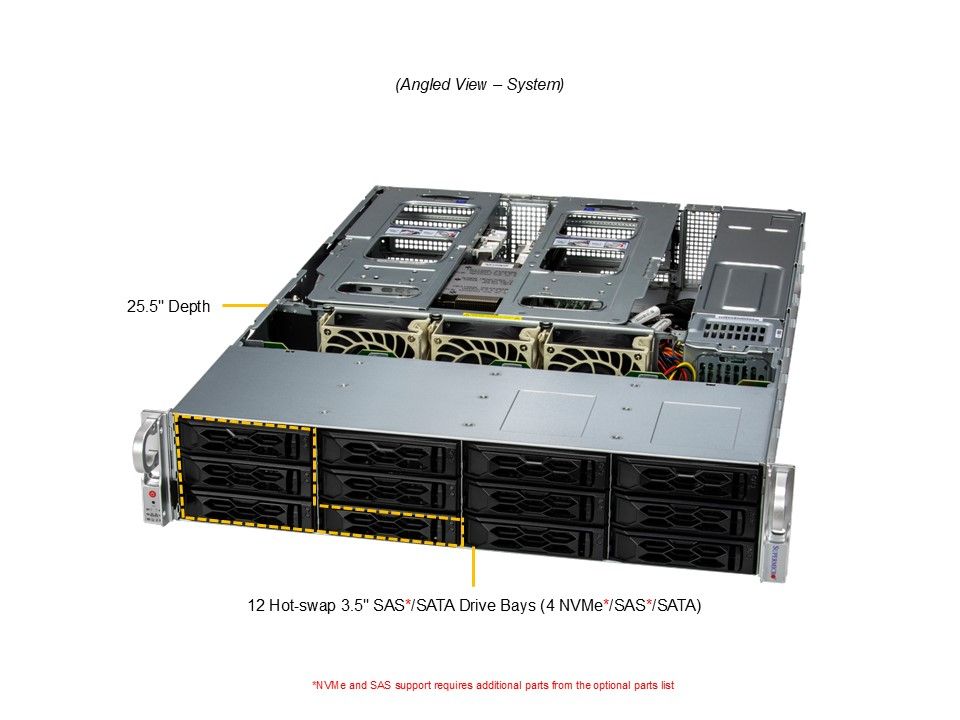

Drive Bays
Configuration 1
Count:
12
Form Factor:
3.5"/2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 2
Count:
4
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
PCIe 5.0 NVMe
Configuration 3
Count:
12
Form Factor:
3.5"/2.5"
Location:
front
Option:
option_b
Interface
Configuration 1
Interface:
SAS
M.2
Count:
2
Generation:
PCIe 3.0
Lanes:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 3x 8cm heavy duty fans with optimal fan speed control
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
12 NVMe Optional Cables
CBL-MCIO-1232M55MCIO x8 (STR to STR),32cm,85OHMCBL-MCIO-1339M5R1MCIO x8 (STR to RA),39CM,32AWG
3908/3916 CacheVault
BTR-CVPM051CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
3908/3916 SuperCap Mount
MCP-240-00127-0N1SuperCap mounting tray for 2.5" drive locationMCP-240-00203-0N1SuperCap mounting bracket for PCIe locationMCP-240-21747-0N1SuperCap mounting card for AIOM location
4 NVMe Optional Cables (Slot 0~3)
CBL-MCIO-1232M52MCIO x8 (STR to STR),32cm,85OHM
Cable Management Arm
MCP-120-82601-0N1Cable arm adapter for SCLA26-AWMCP-290-00073-0N1Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Global Services & Support
OS4HR3/2/13/2/1-year onsite 24x7x4 serviceOSNBD3/2/13/2/1-year onsite NBD service
M.2 by AOC
AOC-SLG4-2H8M212x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard LP
Optional PCIe 5.0 x8 (PCIe slot 2 & 4)(For 12 SATA Configuration Only)
CBL-MCIO-1339M5R2MCIO x8 (STR to RA),39CM,32AWG
Rail Set
MCP-290-00053-0N (included in the system )1 SetRail set, quick/quick, default for 2,3U 17.2"W
Rear Window NVMe Drive Kit
CBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG,RoHSCBL-MCIO-1339M5R1MCIO x8 (STR to RA),39CM,32AWG,RoHSCBL-PWEX-1123-301McHi,2x2F,P3.0 to 1x4M,P5.08,30cm,9A/p,16AWG,RoHSMCP-220-82623-0N1Dual 2.5 NVMe5 Drive Kit for 216B/826B/218H2,RoHS
Rear Window SATA Drive Kit
CBL-MCIO-1270OT4S2-851MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHSMCP-220-82616-0N112G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Software
SFT-DCMS-Single1DataCenter Management Package (per node license)
Storage Control Card and Cable(s)
AOC-S3808L-L8iT ORAOC-S3908L-H8iR(-16DD/-32DD) 1x CBL-SAST-1276F-1008 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMAOC-S3816L-L16iT OR AOC-S3916L-H16iR(-32DD)1x CBL-SAST-1276F-1001x CBL-SAST-1265F-10016 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDDSlimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMSlimline x8 (STR) to Slimline x4 (STR),64CM
TPM security module
AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
