Supermicro
AS-2115GT-HNTR-01-G2
RFQ Only

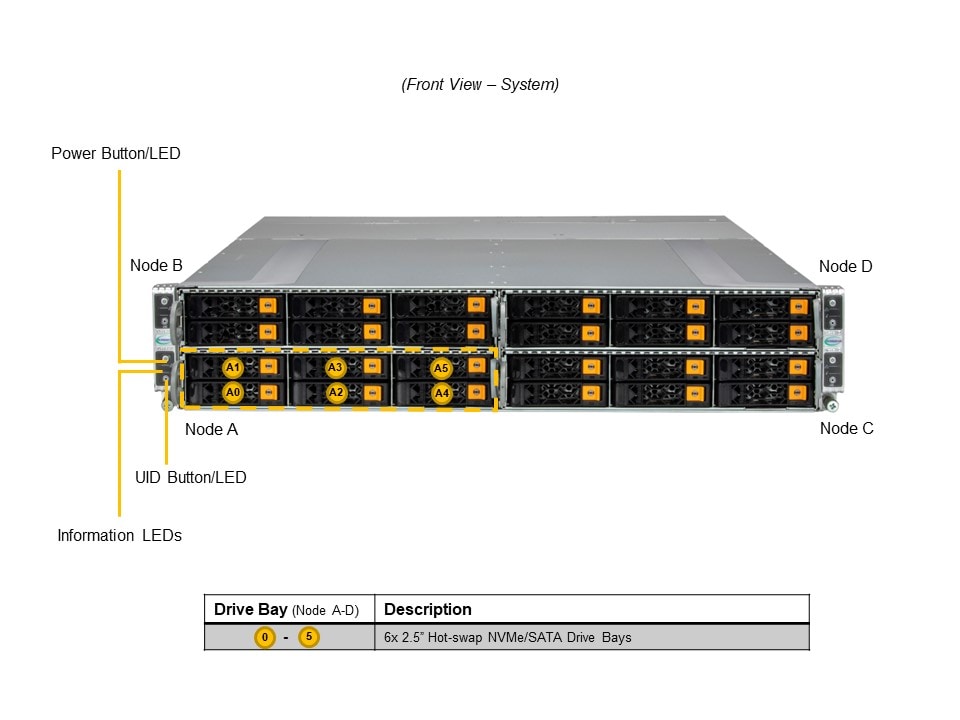

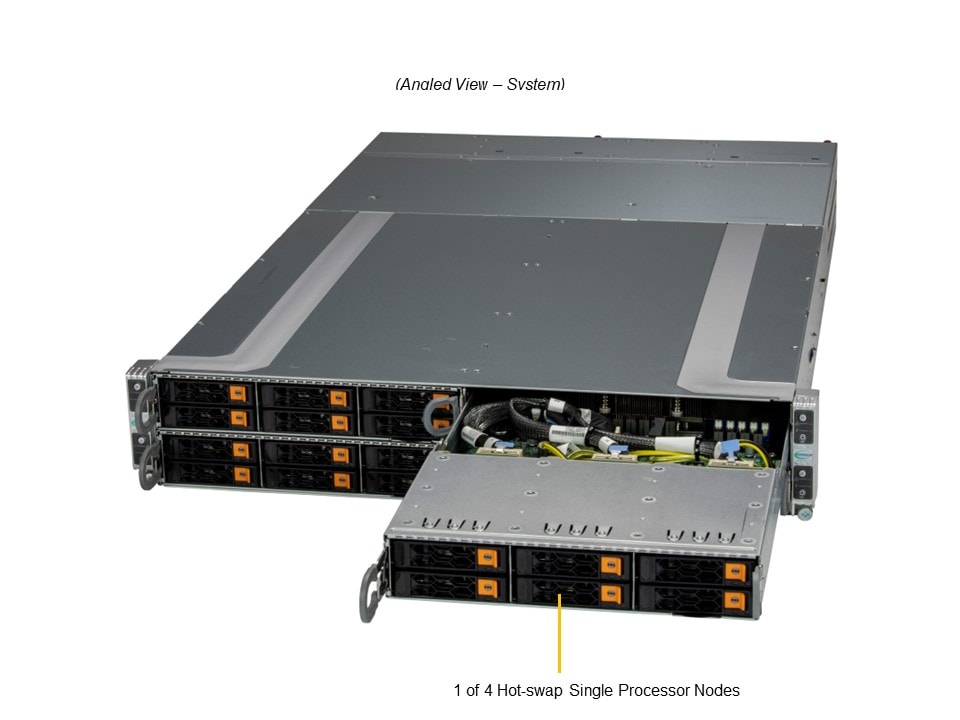

2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe/SATA drives per node and rear I/O
SKU: AS-2115GT-HNTR-01-G2
Features
Key Features
- CPU - Single AMD EPYC 9534 (per node) (64 (per node)-Cores, 2.45GHz)
- Chassis - 2U4N
- Drive - 960GB (1x 960GB 2.5" SATA) per node
- RAM - 8x 64GB DDR5-4800 (per node)
- Network Ports - 2-port 100GbE per node
Use Cases
HPC
Cloud Gaming
Telco Edge
MEC (Multi-Access Edge Computing)
Multi-Purpose CDN
High-availability Cache Cluster
EDA (Electric Design Automation)
Mission Critical Web Applications

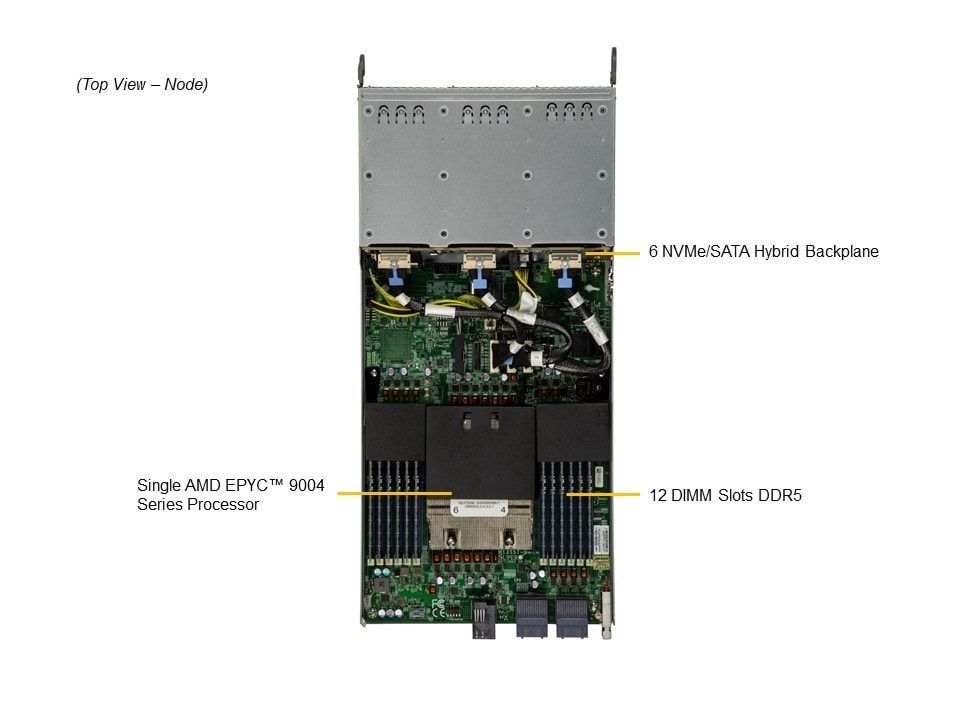

Motherboard
Super H13SST-G
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory

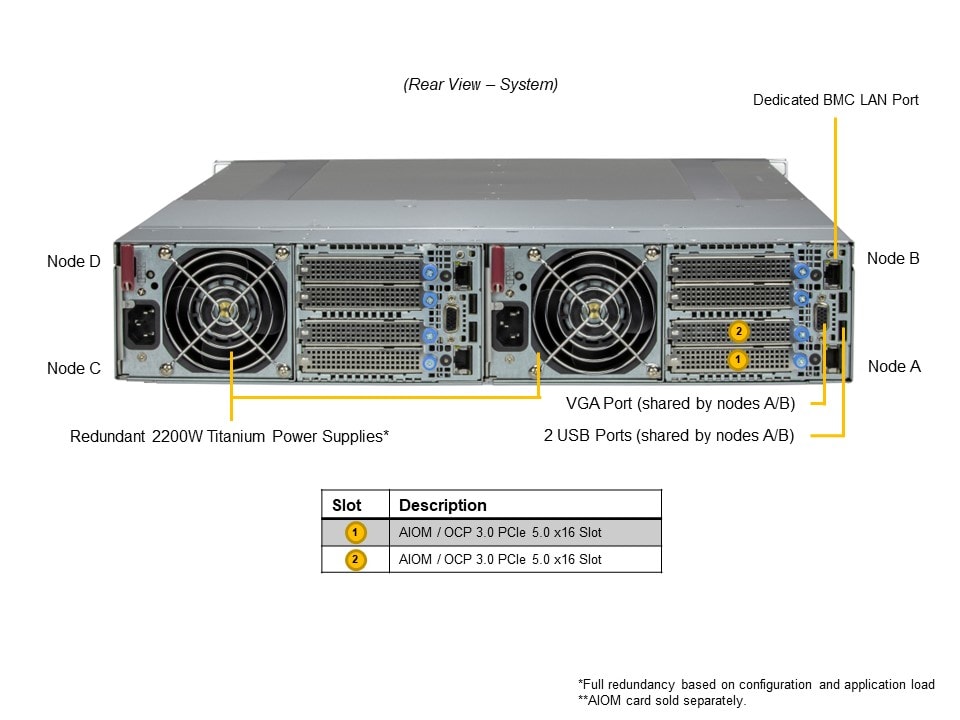

Input / Output (Per Node)
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
On-Board Devices (Per Node)
Chipset:
AMD SP5
Network Connectivity:
Via IO Module
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Voltage:
Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
Processor (Per Node)
Core Count:
Up to 160C/320T
CPU:
Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Note:
Supports up to 400W TDP CPUs *
*Air Cooled CPUs with TDP over 300W only supported under specific conditions. Contact a Supermicro representative for details.
*Air Cooled CPUs with TDP over 300W only supported under specific conditions. Contact a Supermicro representative for details.
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 32MB Flash ROM
System Memory (Per Node)
Memory:
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage:
1.1V
Chassis
CSE-GT214BC-R2K21BP
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver
Depth:
28 in
Gross Weight:
87.96 lb
Height:
3.46 in
Net Weight:
67.9 lb
Package Depth:
45.28 in
Package Height:
9.76 in
Package Width:
24.65 in
Width:
17.67 in
Expansion Slots (Per Node)
PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Form Factor:
Rackmount
Buttons:
Power On/Off button
UID button
UID button
LED:
HDD activity LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Model:
CSE-GT214BC-R2K21BP
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Rohs:
RoHS Compliant
2x 2200W Titanium
+12V:
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
Max: 174.17A (230Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
Max: 174.17A (230Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB:
Max: 2A / Min: 0A
Description:
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
106.5 x 84 x 245.3 mm
Input:
200-220Vdc (2090W for North America - UL & cUL)
230-240Vdc (2090W for the Rest of the World)
220-230Vdc (1980W for the Rest of the World)
200-220Vdc (1800W for the Rest of the World)
100-127Vdc (1200W for the Rest of the World)
220-240Vdc (2200W for North America - UL & cUL)
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
230-240Vdc (2090W for the Rest of the World)
220-230Vdc (1980W for the Rest of the World)
200-220Vdc (1800W for the Rest of the World)
100-127Vdc (1200W for the Rest of the World)
220-240Vdc (2200W for North America - UL & cUL)
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
Output Type:
Backplanes (gold finger)
Drive Bays
Configuration 1
Count:
6
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SATA
M.2
Count:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x per node Air Shroud
Fans:
Up to 2x 17.6K RPM Heavy Duty 8cm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
NVMe Cable
CBL-MCIO-1218M5-1MCIO x8 (STR to STR),18CM (1 cable supports up to 2 NVMe drives)
SATA Cable
CBL-MCIO-1212REL4YMCIO X8 (RE) to 2 SlimSASLP x4 (STR),12CM (1 cable supports up to 6 SATA drives)
