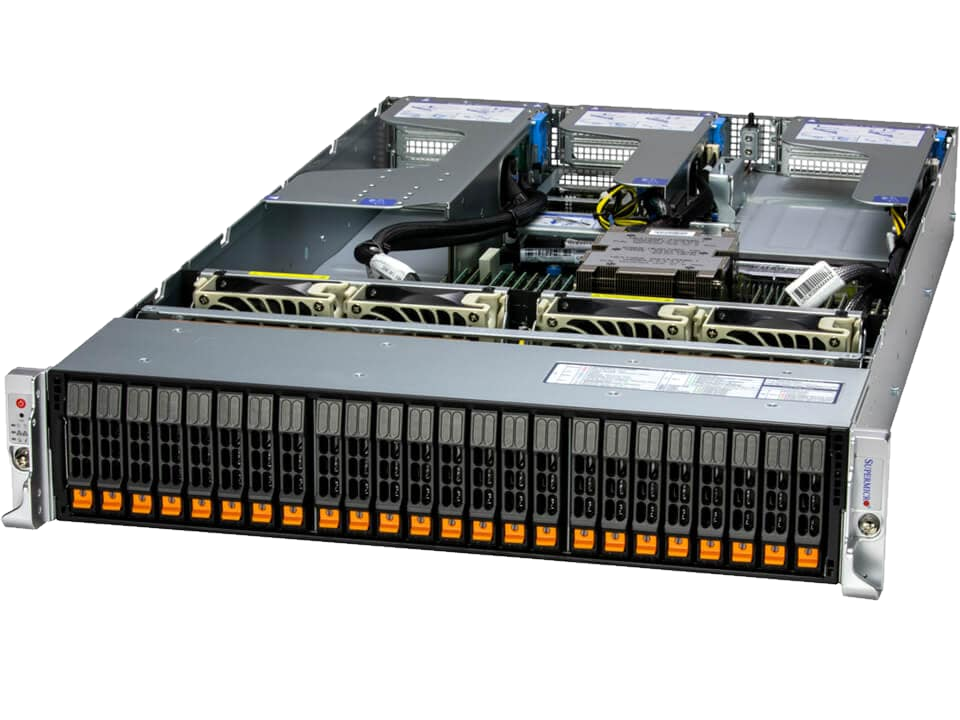

SupermicroAS-2115HS-TNR-01-G2
$73,606.002U UP Hyper with 24 hot-swap 2.5" drive bays and 1 PCIe 5.0 slot
SKU: AS-2115HS-TNR-01-G2
Features
Key Features
- CPU - Single AMD EPYC 9655P (96-Cores, 2.6GHz)
- Chassis - 2U
- Drive - 15.2TB (2x 7.6TB U.2 NVMe)
- RAM - 24x 64GB DDR5-4000
- Network Ports - 2-port 200GbE/NDR200 (NVIDIA BF3220 DPU)
Use Cases
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
Motherboard
Super H13SSH
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Max GPU Count:
Up to 2 double-width GPUs
Supported GPU:
NVIDIA PCIe: RTX 6000 Ada Generation, RTX A6000
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
PCIe

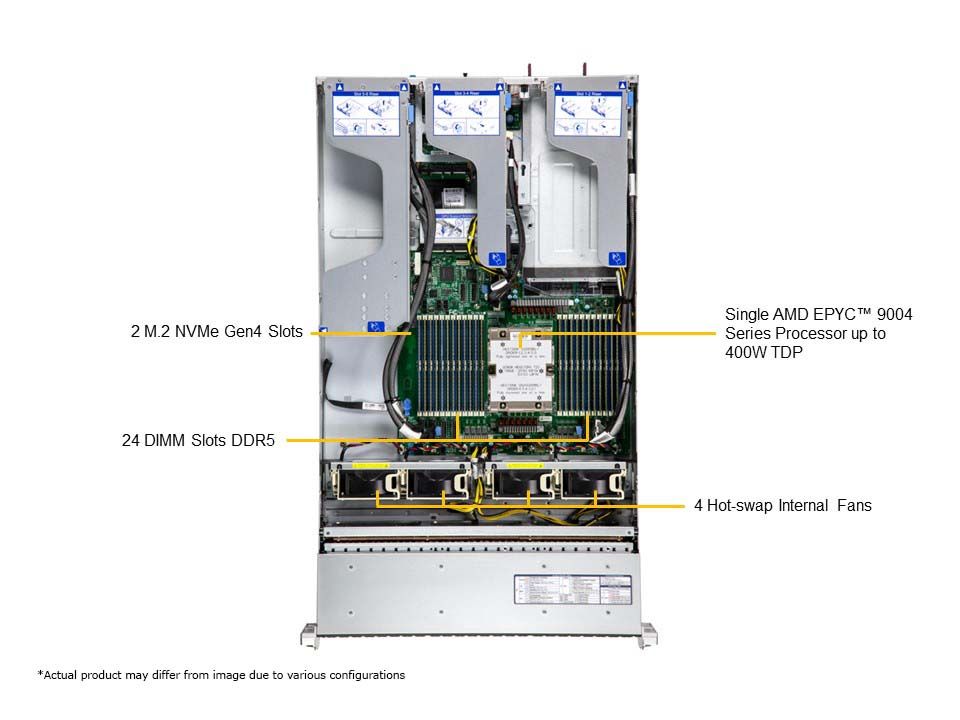

Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
Via AIOM
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
OOB Management Package (SFT-OOB-LIC )
SuperServer Automation Assistant (SAA) New!
Power Configurations:
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Power-on mode control for AC power loss recovery
Power button override mechanism,
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
CPU:
Single processor(s); AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Cores:
Up to 160C/320T
Note:
Supports up to 500W TDP CPUs *; *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
Chassis
CSE-HS219-R1K63P-A
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
UID button
UID button
LED:
HDD activity
LAN1 activity
Power status
System information
LAN1 activity
Power status
System information

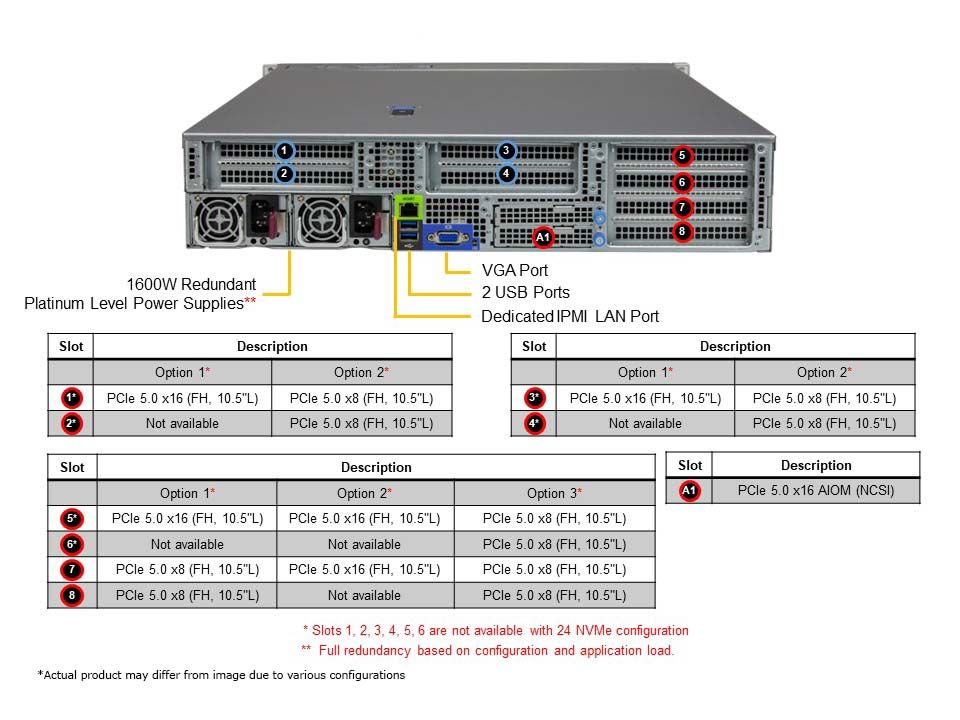

PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A*
1x PCIe 5.0 x16 FHFL double-width slot
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B*
2x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option C*
2x PCIe 5.0 x16 FHFL double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option D*
1x PCIe 5.0 x16 FHFL double-width slot
2x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option E*
4x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option F*
4x PCIe 5.0 x16 FHFL double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option G*
3x PCIe 5.0 x16 FHFL double-width slots
2x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option H*
2x PCIe 5.0 x16 FHFL double-width slots
4x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option I*
1x PCIe 5.0 x16 FHFL double-width slot
6x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A*
1x PCIe 5.0 x16 FHFL double-width slot
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B*
2x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option C*
2x PCIe 5.0 x16 FHFL double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option D*
1x PCIe 5.0 x16 FHFL double-width slot
2x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option E*
4x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option F*
4x PCIe 5.0 x16 FHFL double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option G*
3x PCIe 5.0 x16 FHFL double-width slots
2x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option H*
2x PCIe 5.0 x16 FHFL double-width slots
4x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option I*
1x PCIe 5.0 x16 FHFL double-width slot
6x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

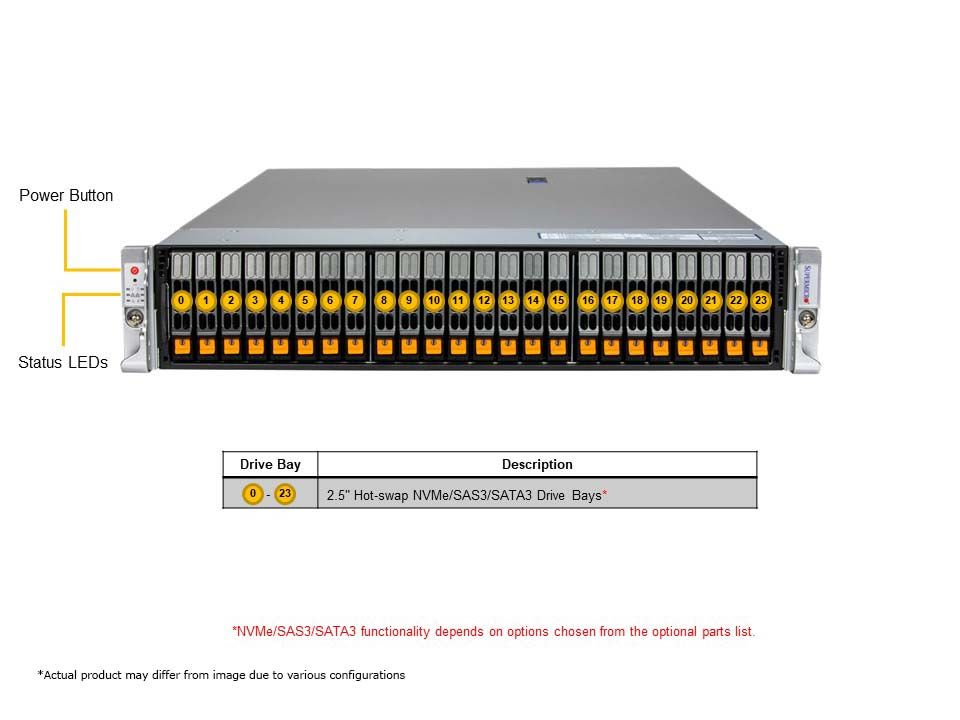

Drive Bays Configuration:

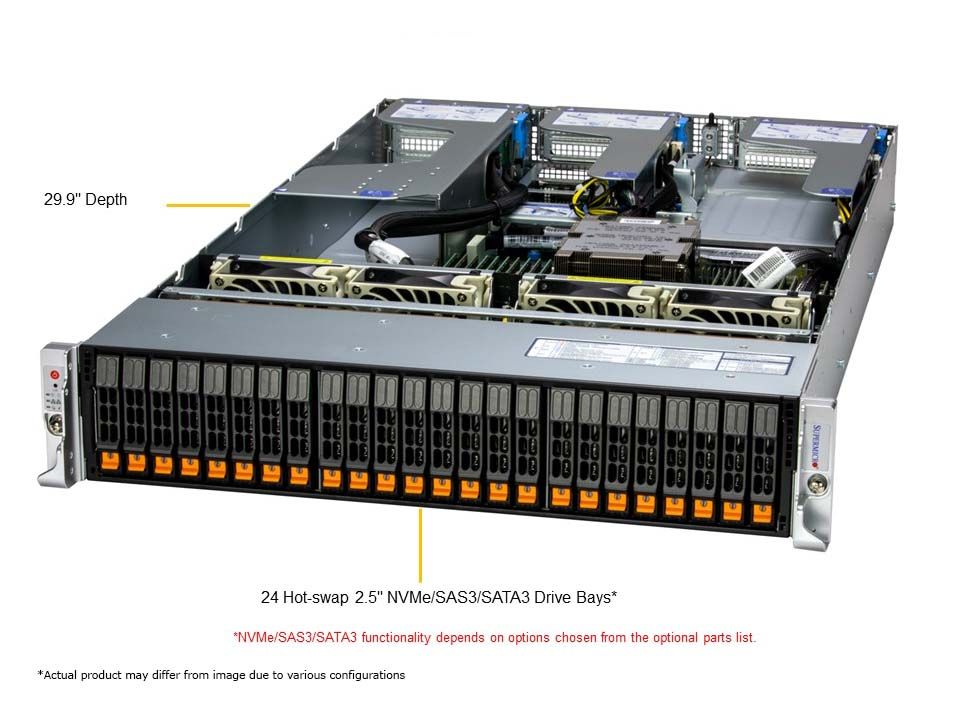

Default: Total 24 bays
24x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
24x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2:
1x M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280)
1x M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280)
1x M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280)
Fans:
Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Description:
2x 1600W
Details:
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL): 73.5 x 40 x 265 mm
Input: 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V: Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB: Max: 3.5A / Min: 0A Max: 3.5A
Output Type: Backplanes (gold finger)
Dimension (WxHxL): 73.5 x 40 x 265 mm
Input: 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V: Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB: Max: 3.5A / Min: 0A Max: 3.5A
Output Type: Backplanes (gold finger)
Height:
3.5 in
Width:
17.2 in
Depth:
29.9 in
Package Height:
10.4 in
Package Width:
23.8 in
Package Depth:
43.6 in
Available Color:
Black front & silver body
Form Factor:
2U
Model:
CSE-HS219-R1K63P-A
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
16 SAS
AOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID KeyCBL-CDAT-10621i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-SAST-1264F-1001Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CMCBL-SAST-1276F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMMCP-220-21602-0B1Black 2.5" HDD dummy cover for 8 HDD, Hex hole
20 NVMe
CBL-GNZ4-1265M5Y-X1GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWGCBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWGCBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWGCBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWGCBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHMCBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWGCBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWGCBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWGMCP-220-00185-0N2Dummy cover for two 2.5" drive bays
20 NVMe + 4 SAS
AOC-S3808L-L8iT OR AOC-S3908L-H8iR18 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/expCBL-GNZ4-1265M5Y-X1GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWGCBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWGCBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWGCBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWGCBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHMCBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWGCBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWGCBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWGCBL-SAST-1296F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM
24 NVMe
CBL-GNZ4-1265M5Y-X1GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWGCBL-MCIO-1218M5-11MCIO x8 (STR to STR),18CM,85OHMCBL-MCIO-1221M51MCIO x8 (STR to STR),21cmCBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWGCBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWGCBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHMCBL-MCIO-1326M51MCIO (x8 to x8), STR, 26cm,G5,32AWGCBL-MCIO-1330M51MCIO (x8 to x8), STR, 30cm,G5,32AWGCBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG
24 NVME
CBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG
24 SAS(16 SAS + 8 SAS)
AOC-S3808L-L8iT OR AOC-S3908L-H8iR18 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/expAOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID KeyCBL-CDAT-10621i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-SAST-1264F-1001Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CMCBL-SAST-1276F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CMCBL-SAST-1296F-1001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM
24 SATA
CBL-CDAT-10621i2C Y cable (1x4 to 2x 1x4),45cm,26AWGCBL-MCIO-1223S4Y1MCIO x8 to 2 SlimSAS x4, STR, 23cm, 85OhmCBL-MCIO-1255S4Y1MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWGCBL-MCIO-1275S4Y1MCIO x8 to 2 SlimSAS x4, STR, 75cm, 85OhmMCP-220-21602-0B1Black 2.5" HDD dummy cover for 8 HDD, Hex hole
Cable Arm
MCP-290-00168-0N ( ***Requires MCP-290-11901-0N ***)1Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N ***MCP-290-11901-0N141" ball-bearing rail set for Hyper servers
Chassis Rear Handle Kit
MCP-290-21907-0N1Hyper 2U rear handle kit for immersion cooling
Drive Bay Dummy Cover
MCP-220-21602-0BORMCP-220-00185-0NDummy cover for eight 2.5" drive bays Dummy cover for two 2.5" drive bays
PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)
CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWGCBL-MCIO-1335M5R1MCIO x8 (RA to STR),35CM,32AWGCBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWGLBL-40001Cabled PCIe Slot 2 Warning LabelMCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
PCIe slot 1+2 (2x8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)
CBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWGCBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWGCBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWGMCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)
CBL-GNZ4-1227M5YRR161GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cmCBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWGLBL-40001Cabled PCIe Slot 4 Warning LabelMCP-120-82927-0N1Middle riser support bracketMCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
PCIe slot 3+4 (2x8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)
CBL-GNZ4-1227M5YR211GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cmCBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWGMCP-120-82927-0N1Middle riser support bracketMCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slots
PCIe slot 5 (1x16) + slot 7+8 (2x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)
CBL-MCIO-1245M5-Z2MCIO x8 (STR to STR),45cm,30AWGLBL-40001Cabled PCIe Slot 6 Warning LabelMCP-240-21908-0N1Riser Bracket(4-slot)RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)
CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWGCBL-MCIO-1335M5R1MCIO x8 (RA to STR),35CM,32AWGCBL-PWEX-1136YB-251MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWGLBL-40001Cabled PCIe Slot 6 Warning LabelMCP-240-21908-0N1Riser Bracket(4-slot)RSC-H-68G511U LHS Hyper Riser card with two PCIe 5.0 slotsRSC-H-6G5L11U LHS Hyper riser card with one PCIe 5.0 X16 slot
PCIe slot 5-8 (4x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)
CBL-MCIO-1245M5-Z2MCIO x8 (STR to STR),45cm,30AWGMCP-240-21908-0N1Riser Bracket(4-slot)RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
PCIe slot 7 (1x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)
MCP-240-21908-0N1Riser Bracket(4-slot)RSC-H-6G5L11U LHS Hyper riser card with one PCIe 5.0 X16 slot
PCIe slot 7+8 (2x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)
LBL-40002Cabled PCIe Slot 5/6 Warning LabelMCP-240-21908-0N1Riser Bracket(4-slot)RSC-H2-6888G5L12U LHS Hyper Riser card with 4 PCIe 5.0 slots
Rail Set
MCP-290-11901-0N141" ball-bearing rail set for Hyper serversMCP-290-11902-0N135.25" ball-bearing rail set for Hyper serversMCP-290-11903-0N (included in the system )130.5" ball-bearing rail set for Hyper serversMCP-290-21103-0N121.65" ball-bearing rail set for Hyper servers
Serial Port DTK Cable with PCIe Bracket
CBL-0010L19-Pin 26CM Serial Port DTK Cable with PCIe Bracket
TPM security module
AOM-TPM-9670H-FIPS1AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHSAOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factorAOM-TPM-9672V1AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHSAOM-TPM-9672V-FIPS1AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
Resources
ManualsClick the button to download the latest manuals for this product.
How's your experience?Subscribe to Rackables updates and get notified about new catalog products, promotions, partnership announcements, company news, and more.
Your feedback is incredibly important to us as we are committed to providing the best possible user experience.
Please don't hesitate to share your thoughts and suggestions with us. Together, we can make your future interactions even more rewarding.Submit Feedback
Please don't hesitate to share your thoughts and suggestions with us. Together, we can make your future interactions even more rewarding.Submit Feedback
$73,606.00
Hi There!
Can we help you with anything?
Can we help you with anything?
