Supermicro
$70,462.54AS-2126HS-TN-01-G2

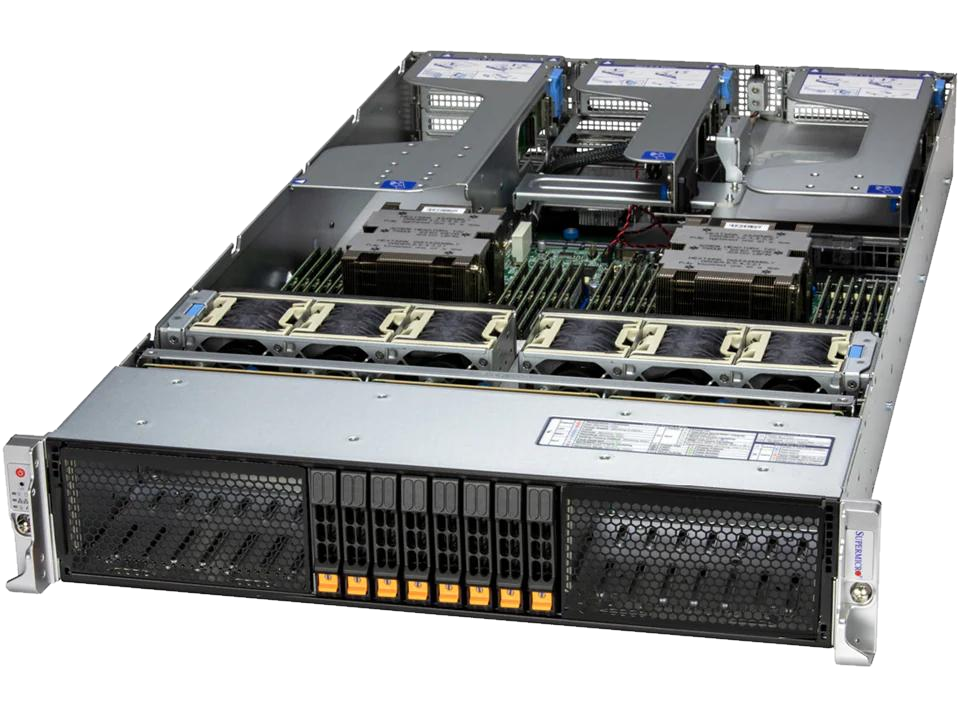

Discover the Supermicro Hyper SuperServer AS-2126HS-TN-01-G2, a high-density 2U rackmount server built for demanding enterprise and cloud workloads. Powered by dual AMD EPYC™ 9965 192-core processors, this powerful 2U/1-node system delivers industry-leading core density and multi-threaded performance. It comes standard with an 8 NVMe configuration with 3 PCIe 5.0 x 16 + 2 PCIe 5.0 x 8 slots + 1 PCIe 5.0 x 16 AIOM slot, providing excellent balance of storage performance and expansion flexibility. Equipped with redundant 2000W Titanium Level power supplies, the AS-2126HS-TN-01-G2 ensures reliable, energy-efficient operation for mission-critical environments.
Experience superior memory and storage performance with the Supermicro AS-2126HS-TN-01-G2 Gold configuration. It features 1.5TB DDR5-6400 RDIMM memory (24 x 64GB modules) and 2x 960GB M.2 NVMe SSDs, providing lightning-fast data access and high-speed storage. The integrated dual 25GbE SFP28 networking delivers excellent throughput, while the PCIe configuration supports strong I/O expansion and CXL 2.0 devices. This setup is ideal for high-performance computing, software-defined storage, and large-scale virtualization workloads.
Optimized for modern enterprise and cloud demands, the Supermicro Hyper SuperServer AS-2126HS-TN-01-G2 excels in virtualization, AI inferencing & machine learning, enterprise server deployments, software-defined storage, cloud computing, and high performance computing (HPC). Its dense 2U design combines massive AMD EPYC core counts, high-bandwidth DDR5 memory, ultra-fast NVMe storage, and flexible expansion to deliver outstanding performance and efficiency. Perfect for organizations seeking a scalable, future-proof server platform for consolidated and data-intensive workloads.
SKU: AS-2126HS-TN-01-G2
Features
Key Features
- CPU - Dual AMD EPYC™ 9965 Processors (192-Core)
- Chassis - 2U / 1 Node
- Drive - 2x 960GB M.2 NVMe SSD
- RAM - 24x 64GB DDR5-6400 RDIMM Memory
- Network Ports - 2x 25GbE SFP28 Ports
Use Cases
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
High Performance Computing (HPC)
Motherboard
Super H14DSH
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
GPU-GPU Interconnect:
PCIe
Max GPU Count:
Up to 3 double-width GPUs
Supported GPU:
NVIDIA PCIe: H100 NVL, A16, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation
AMD PCIe: Instinct™ MI210
AMD PCIe: Instinct™ MI210
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
TPM:
1x TPM Onboard/port 80
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Power Configurations:
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Power-on mode control for AC power loss recovery
Power button override mechanism,
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
KVM with dedicated LAN
IPMI 2.0
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
IPMIView
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
KVM with dedicated LAN
IPMI 2.0
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
IPMIView
Chipset:
System on Chip
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity:
Via AIOM
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Core Count:
Up to 384C/768T
CPU:
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
AMD EPYC™ 9005/9004 Series Processors
Note:
Supports up to 500W TDP CPUs *
*Air Cooled CPUs with TDP over 400W only supported under specific conditions. Contact a Supermicro representative for details.
*Air Cooled CPUs with TDP over 400W only supported under specific conditions. Contact a Supermicro representative for details.
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Features:
Plug and Play (PnP)
UEFI 2.8
USB Keyboard support
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.8
USB Keyboard support
ACPI 6.5
SMBIOS 3.7 or later
BIOS Type:
AMI 64MB SPI Flash EEPROM
Memory:

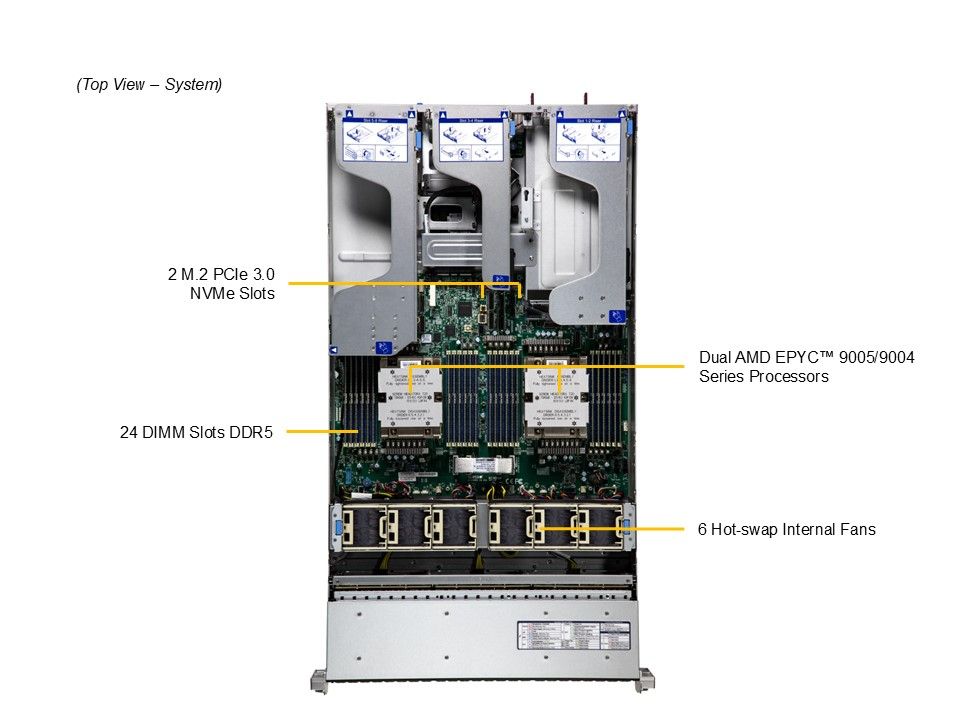

Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage:
1.1V
Chassis
CSE-HS201-R000NFP
Dimensions
Expansion Slots
Form Factor

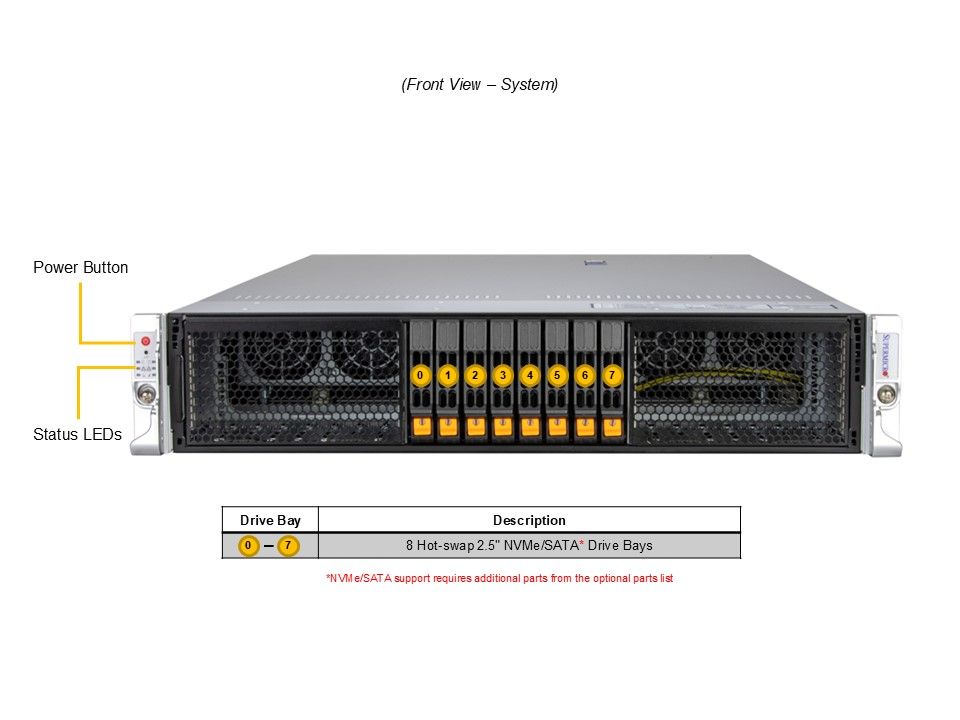

Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver
Depth:
31.74 in
Gross Weight:
74.96 lb
Height:
3.5 in
Net Weight:
44.97 lb
Package Depth:
43.31 in
Package Height:
9.96 in
Package Width:
26.46 in
Width:
17.2 in
CXL Support:
Up to 4 CXL 2.0 x16 devices

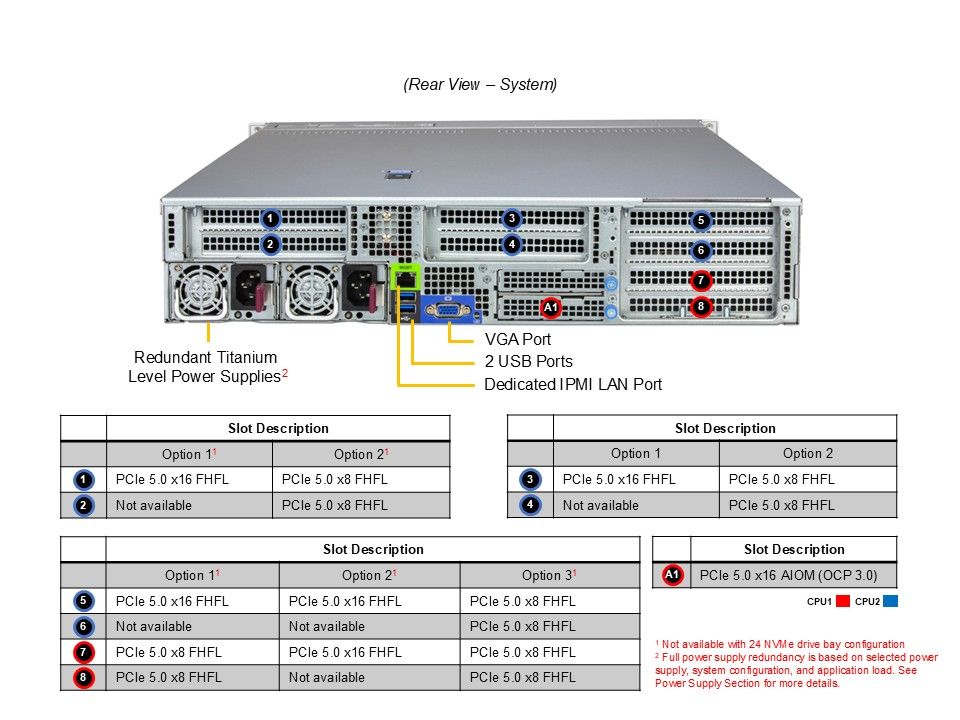

PCI-Express (PCIe) Configuration:
Option A*
4x PCIe 5.0 x16 FHFL double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B*
8x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
4x PCIe 5.0 x16 FHFL double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B*
8x PCIe 5.0 x8 (in x16) FHFL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Form Factor:
Rackmount
Buttons:
Power On/Off
UID button
UID button
LED:
HDD activity
LAN1 activity
Power status
System information
LAN1 activity
Power status
System information
Model:
CSE-HS201-R000NFP
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 1200W Titanium
+12V:
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB:
Max: 2.1A / Min: 0A
Description:
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
Output Type:
Backplanes (gold finger)
2x 1300W Gold
+12V:
Max: 108.3A / Min: 0A
12V SB:
Max: 2.1A
Description:
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1300W: -44--65Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
2x 1600W Titanium
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Max: 3.5A
Description:
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)
2x 2000W (2)
+12V:
Max: 166.6A / Min: 0A
12V SB:
Max: 4A / Min: 0A
Description:
2x 2000W Redundant (1 + 1) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
2000W: -48--60Vdc / 50-60Hz
Output Type:
Backplanes (gold finger)
2x 2000W Titanium
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Description:
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac
Output Type:
Backplanes (gold finger)
2x 2600W Titanium
+12V:
Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A
Description:
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)

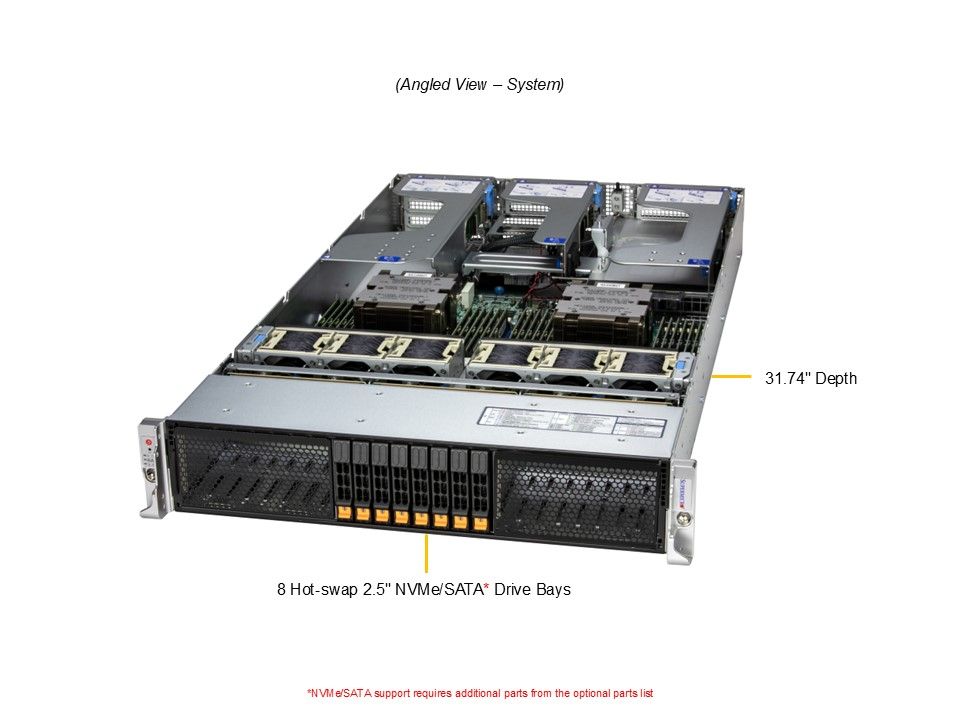

Drive Bays
Configuration 1
Count:
8
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SATA
Configuration 2
Count:
24
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SATA
M.2
Count:
2
Generation:
PCIe 3.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Air Shroud:
2x Air Shrouds
Fans:
Up to 6 counter-rotating 60x60x56mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
24 NVMe
BPN-NVME5-HS219N-S822U 8-port Hybrid backplane support up to 8x SAS3/SATA2/NVMe5CBL-GNZ4-1255M5Y1GENZ 4C to 2 MCIO x8,STR,55/55cm,30AWG,RoHSCBL-MCIO-1240M51MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHSCBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWG,RoHSCBL-MCIO-1245M5L2MCIO x8 (STR to LE),45cm,30#,85OHM,RoHSCBL-MCIO-1250M5-Z4MCIO x8 (STR to STR),50cm,30AWG,RoHSCBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG,RoHSCBL-MCIO-1260M51MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHSCBL-PWEX-1142B-202MicroHi (2x4F to 2x4F), PH3.0, 20cm, 8.5A/p,18#,RoHSMCP-220-00196-0B16Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray
24 SATA
BPN-NVME5-HS219N-S822U 8-port Hybrid backplane support up to 8x SAS3/SATA2/NVMe5CBL-CDAT-1062T-621PicoBlade (1 to 3) 1x4,PH1.25,48/62cm,26AWG,RoHSCBL-MCIO-1255S4Y1MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG, RoHSCBL-MCIO-1265AS4Y2MCIO x8 to 2 SlimSAS x4),STR,65cm,LNRV,30#,RoHSCBL-PWEX-1142B-202MicroHi (2x4F to 2x4F), PH3.0, 20cm, 8.5A/p,18#,RoHSMCP-220-00196-0B16Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray
8 NVMe
CBL-MCIO-1240M51MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHSCBL-MCIO-1250M5-Z2MCIO x8 (STR to STR),50cm,30AWG,RoHSCBL-MCIO-1255M51MCIO x8 (STR to STR),55CM,30AWG,RoHSMCP-220-21602-0B2Black 2.5" HDD dummy cover
8 SATA
CBL-CDAT-1062T-621PicoBlade (1 to 3) 1x4,PH1.25,48/62cm,26AWG,RoHSCBL-MCIO-1265AS4Y1MCIO x8 to 2 SlimSAS x4),STR,65cm,LNRV,30#,RoHSMCP-220-21602-0B2Black 2.5" HDD dummy cover
Cable Management Arm
MCP-290-00168-0N ( ***Requires MCP-290-11901-0N ***)1Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N ***MCP-290-11901-0N141" ball-bearing rail set for Hyper servers
PCIe Slot 1 (1x16)
CBL-MCIO-1226M5R1MCIO x8 (STR to RA),26CM,85OHM,RoHSCBL-MCIO-1233M5R1MCIO x8 (STR to RA),33cm,85OHM,RoHSMCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 1+2 (2x8)
CBL-MCIO-1232M51MCIO x8 (STR to STR),32cm,85OHM,RoHSCBL-MCIO-1233M5R1MCIO x8 (STR to RA),33cm,85OHM,RoHSMCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe Slot 3 (1x16)
CBL-GNZ4-1227M5YRR161GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm,30#,RoHSMCP-120-20118-0N1Middle riser support bracket for 2U Intel/AMD in CSE-HS201MCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 3+4 (2x8)
CBL-GNZ4-1227M5YR211GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm,30#,RoHSMCP-120-20118-0N1Middle riser support bracket for 2U Intel/AMD in CSE-HS201MCP-240-21108-0N1Riser Bracket(2-slot) for RSC-H-68G5 for HE211/HS829/HS219RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 5 (1x16)
CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWGCBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG,HF,RoHSMCP-240-21908-0N1Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 5 (1x16) + slot 7+8 (2x8)
CBL-MCIO-1240M52MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHSMCP-240-21908-0N1Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829RSC-H2-6888G5L12U LHS Hyper Riser card with one PCIe 5.0 X16 and three
PCIe slot 5+6 (2x8)
CBL-MCIO-1240M51MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHSCBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG,HF,RoHSMCP-240-21908-0N1Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16
PCIe slot 5+7 (2x16)
CBL-MCIO-1245M5R1MCIO x8 (RA to STR),45cm,30AWGCBL-MCIO-1340M5R1MCIO x8 (STR to RA),40CM,32AWG,HF,RoHSMCP-240-21908-0N1Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829RSC-H-68G511U LHS Hyper Riser card with one PCIe 5.0 X16RSC-H-A6G5H11U Active LHS Hyper riser card with one PCIe 5.0 X16 slo
PCIe slot 5-8 (4x8)
CBL-MCIO-1240M51MCIO (x8 to x8), STR+Ptab, 40cm,30AWG,RoHSCBL-MCIO-1245M5-Z1MCIO x8 (STR to STR),45cm,30AWG,RoHSMCP-240-21908-0N1Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829RSC-H2-6888G5L12U LHS Hyper Riser card with one PCIe 5.0 X16 and three
PCIe slot 7 (1x16)
MCP-240-21908-0N1Riser Bracket(4-slot) for RSC-H2-6888G5L in CSE-HS219/HS829RSC-H-A6G5H11U Active LHS Hyper riser card with one PCIe 5.0 X16 slo
Power Supply Options & Accessories
CBL-PWEX-0710-JP148VDC input power cable for PWS-1K30D-1RCBL-PWEX-1058148VDC input power cable for PWS-2K04D-1RPWS-1K24A-1R21U 800W/1200W Redundant Titanium power supplyPWS-1K31D-1R21U 1300W -48Vdc single output power supplyPWS-1K63A-1R21U 1000W/1600W Redundant Titanium power supplyPWS-2K04D-1R21U 2000W -48Vdc single output power supplyPWS-2K07A-1R21U 2000W Redundant Titanium power supplyPWS-2K63A-1R21U 2600W Redundant Titanium power supply
Rail Set
MCP-290-11901-0N141" Long ball-bearing rail set, without auto latchMCP-290-11902-0N (included in the system )135.25" ball-bearing rail set,without auto latch
TPM security module (optional, not included)
AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factorAOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
Resources
Manuals
Click the button to download the latest manuals for this product.How's your experience?
Your feedback is incredibly important to us as we are committed to providing the best possible user experience.
Please don't hesitate to share your thoughts and suggestions with us. Together, we can make your future interactions even more rewarding.Submit Feedback
Please don't hesitate to share your thoughts and suggestions with us. Together, we can make your future interactions even more rewarding.Submit Feedback
$70,462.54
Hi There!
Can we help you with anything?
Can we help you with anything?
