Supermicro
$58,223.77AS-3015MR-H8TNR-01-G2

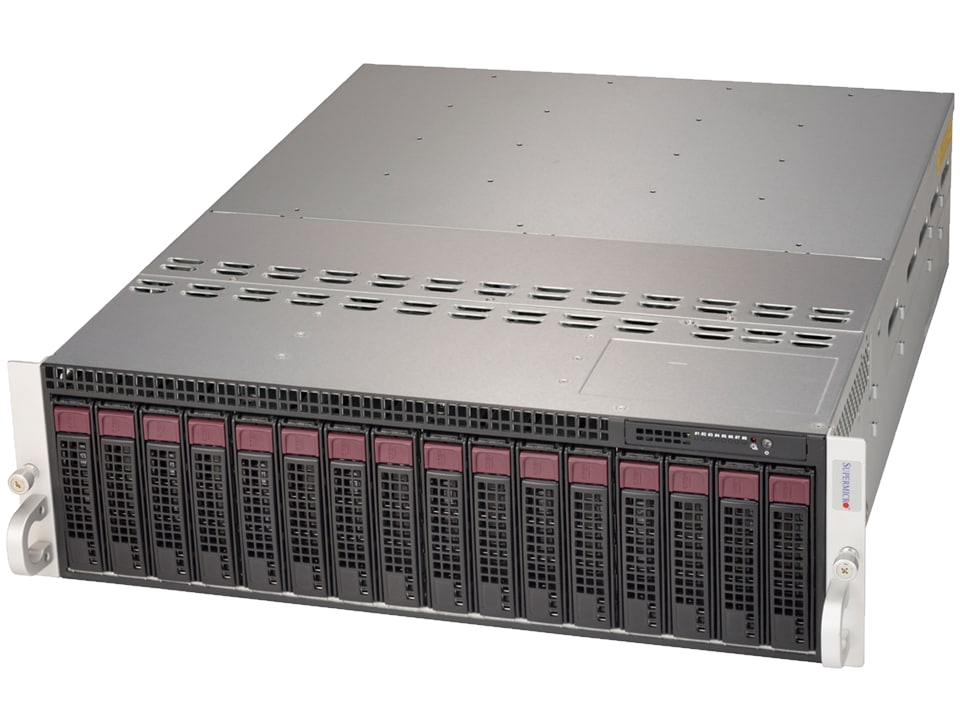

Maximize your data center density and efficiency with this powerful 3U 8-node MicroCloud system, specifically engineered for cloud computing, CDN, and edge node deployments. Each of the eight hot-swappable nodes is powered by a high-performance 16-core AMD EPYC™ 4565P processor and 64GB of lightning-fast DDR5-5600 memory, providing the massive throughput required for intensive web serving and firewall applications. This high-density architecture allows providers to scale their infrastructure rapidly while maintaining a compact footprint, making it the premier choice for Value IaaS and data center optimized environments.
Experience uncompromising speed and connectivity with a storage and networking configuration built for modern workloads. Each node features dual 1.92TB U.2 NVMe drives for low-latency data access and dual 25GbE SFP28 ports to handle high-bandwidth traffic for DNS, gateway servers, and content delivery. Whether you are upgrading your cloud infrastructure or deploying distributed edge nodes, this robust in-stock and ready-to-ship solution offers the reliability and performance needed to stay ahead in a competitive digital landscape.
SKU: AS-3015MR-H8TNR-01-G2
Features
Key Features
- CPU - Single AMD EPYC™ 4565P Processor (16-Core) - Per Node

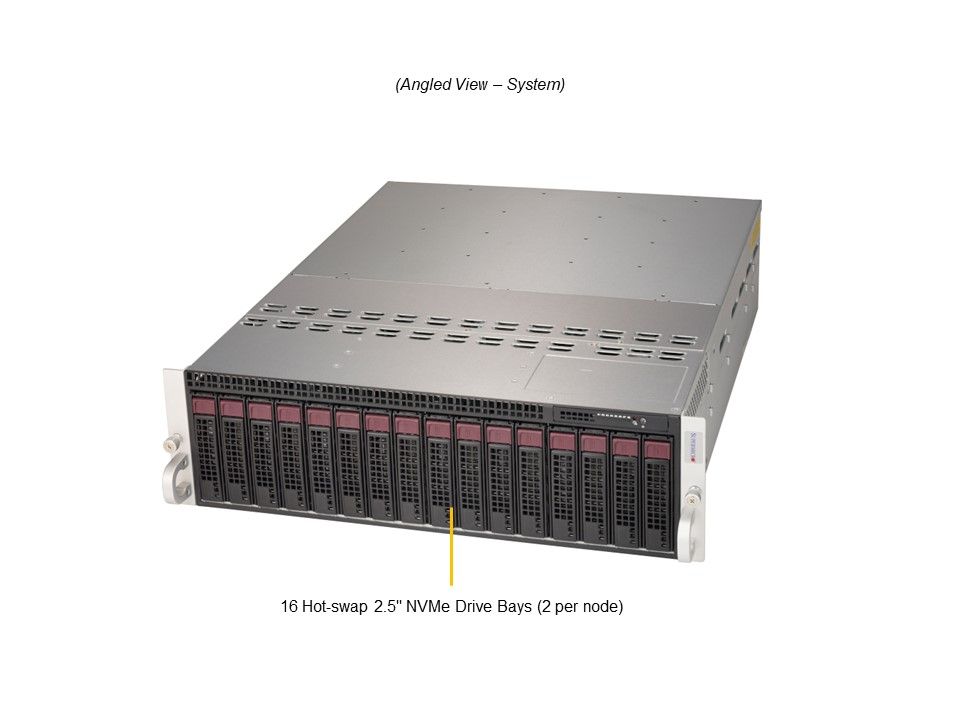

- Chassis - 3U / 8 Node
- Drive - 2x 1.92TB U.2 NVMe - Per Node
- RAM - 2x 32GB DDR5-5600 UDIMM Memory - Per Node
- Network Ports - 2x 10/25GbE SFP28 Ports - Per Node
Use Cases
Cloud Computing
Web/Collocation Services
Web Cache, CDN, Video Streaming
Social Networking, Downloads
Corporate - WINS, DNS, Print, Login

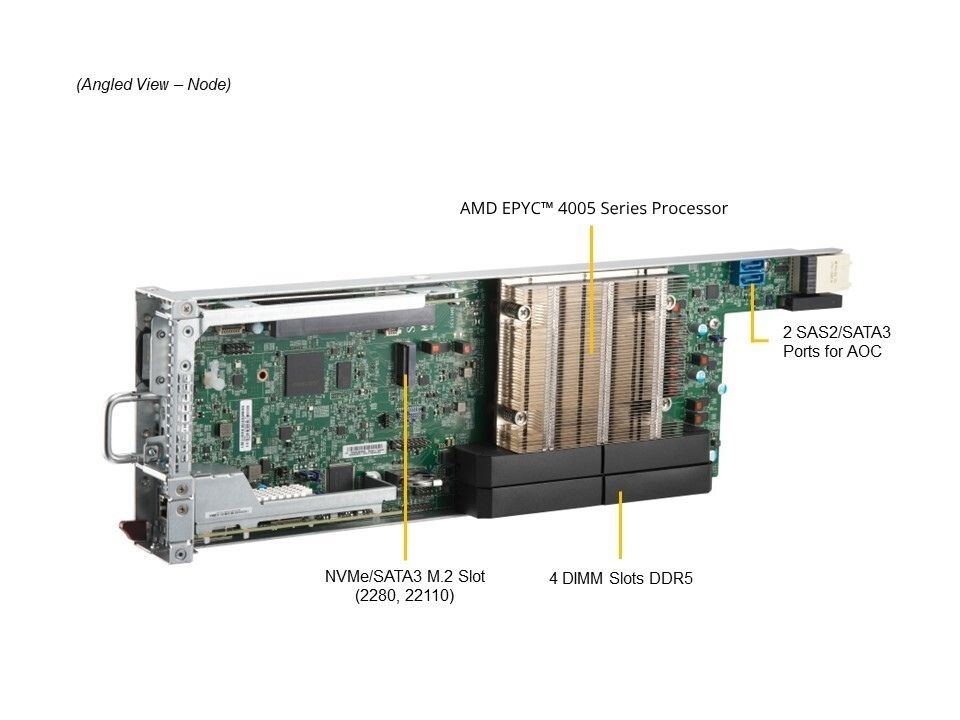

Motherboard
Super H13SRD-F
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
System BIOS
System Memory
GPU (Per Node)
Max GPU Count:
Up to 1 single-width GPU
Supported GPU:
NVIDIA PCIe: A2, L4, T4
Input / Output (Per Node)
TPM:
1x TPM Onboard/port 80
USB:
2x USB 2.0 ports
1x Type-C port(front)
1x Type-C port(front)
Video:
1x port
Power Configurations:
Power-on mode for AC power recovery
ACPI 6.0 Power Management
ACPI 6.0 Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
On-Board Devices (Per Node)
Chipset:
AMD Knoll - Integrated I/O Controller Hub
Network Connectivity:
No NIC option supported
NVMe:
NVMe; (Native)
CPU:
3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
Fan:
Fan speed control, Dual Cooling Zone
Temperature:
Monitoring for CPU and chassis environment
Core Count:
Up to 16C/32T; Up to 128MB Cache
CPU:
Single Socket AM5 (LGA-1718)
AMD EPYC™ 4005/4004 Series Processor
AMD EPYC™ 4005/4004 Series Processor
Note:
Supports 65W - 170W TDP CPUs (Air Cooled)*
*Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
*Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
BIOS Type:
AMI 32MB SPI Flash EEPROM
System Memory (Per Node)
Memory:
Slot Count: 4 DIMM slots
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage:
1.1V
Chassis
CSE-938NH-R2K20BP2
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
N/A
Depth:
23.2 in
Gross Weight:
87.96 lb
Height:
5.21 in
Net Weight:
62.17 lb
Package Depth:
34 in
Package Height:
11.65 in
Package Width:
26.26 in
Width:
17.26 in

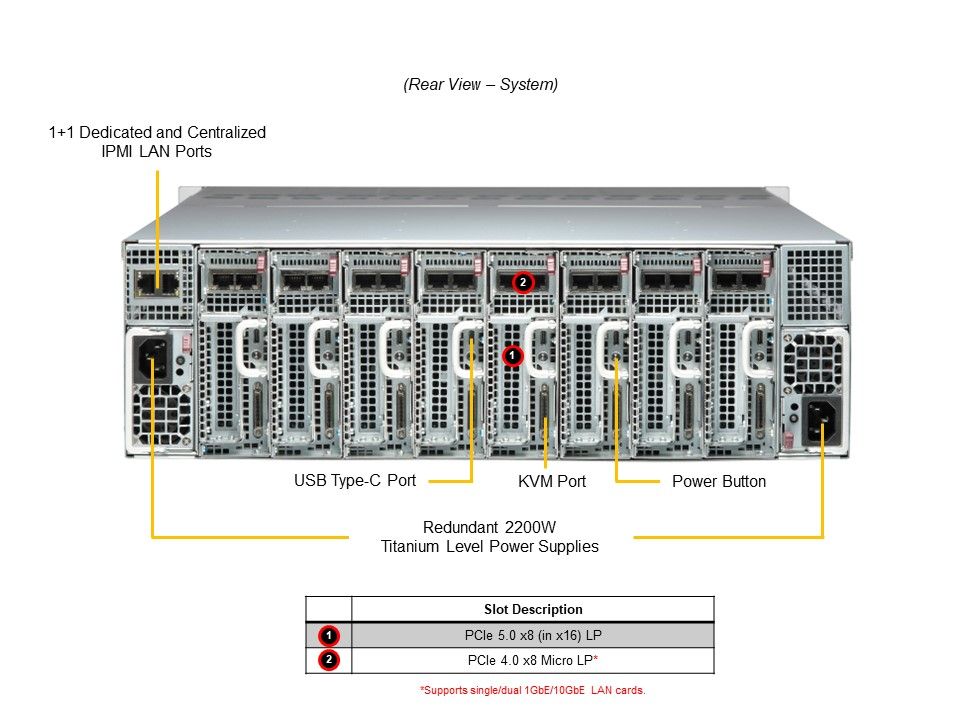

Expansion Slots (Per Node)
PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x8 (in x16) LP slot
1x PCIe 5.0 x8 MicroLP slot
1x PCIe 5.0 x8 (in x16) LP slot
1x PCIe 5.0 x8 MicroLP slot
Form Factor:
Rackmount

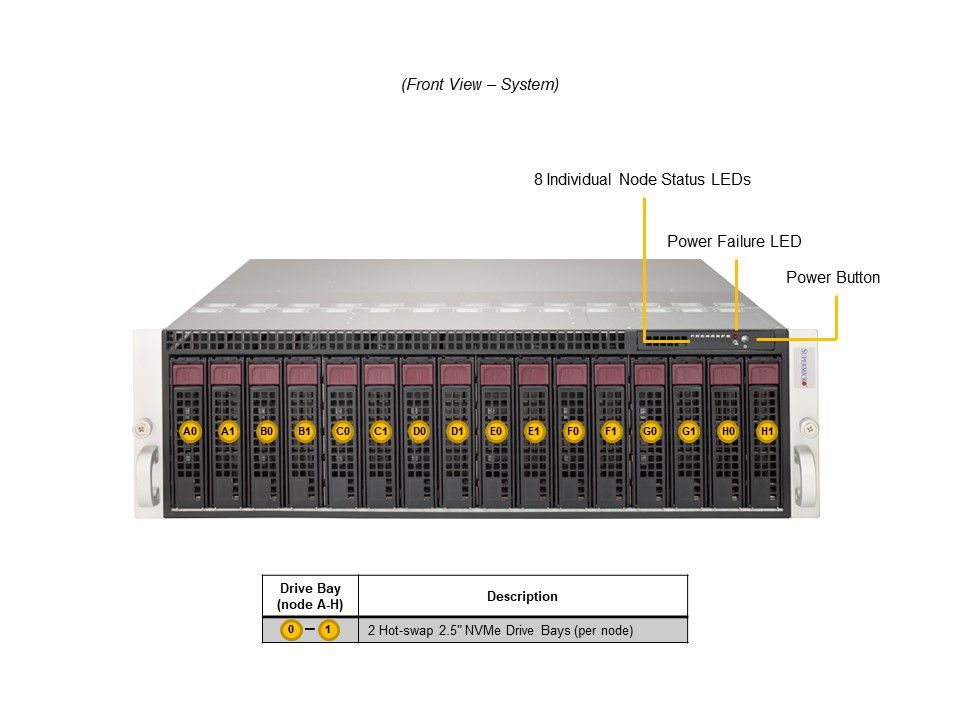

Buttons:
Power On/Off
LED:
8x Individual Node Status Indicators
Power Failure
Power Failure
Model:
CSE-938NH-R2K20BP2
2x 2200W Titanium
+12V:
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (100Vdc-127Vdc)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
Max: 100A / Min: 0A (100Vdc-127Vdc)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB:
Max: 1A / Min: 0A
Description:
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
76x x 40 x 336 mm
Input:
1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
Output Type:
Backplanes (gold finger)
Total Output Power:
(for UL/cUL use only)
(for CCC only)
(for CCC only)
Operating Environment
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Rohs:
RoHS Compliant
Drive Bays
Configuration 1
Count:
2
Form Factor:
3.5"/2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 2
Interface:
SAS
Configuration 3
Interface:
SATA
M.2
Count:
1
Keys
Configuration 1
Keys:
M
Air Shroud:
8x Air Shrouds
Fans:
Up to 4 Heavy Duty 8cm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-H13SRD-F8Super H13SRD-F MotherboardCSE-938NH-R2K20BP213U Chassis
*Rail Set
MCP-290-00057-0N1Rail set, quick/quick, default for 4U 17.2" W
Cable
CBL-SAST-1230T4S1-100For AOC-S3908L-H8iR-16DD
Drive Tray(s)
MCP-220-00158-0B1~16Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive trayMCP-220-93801-0B1~16Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Global Services & Support
OS4HR3/2/13/2/1-year onsite 24x7x4 serviceOSNBD3/2/13/2/1-year onsite NBD service
GPU
GPU-NFR-NVTT4NVIDIA TeslaT4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70wGPU-NVA2-NCNVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W ConfigurableGPU-NVL4NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
GPU Air Shroud
MCP-310-93807-0BMylar air shroud for GPU on MicroCloud 938NH,RoHS
Network Card(s)
AOC-CGP-i2Intel i350 2-port RJ45 1Gb Gen2 x4 Micro-LPAOC-CTG-i2S(EOL_7/31/25) Intel 82599ES 2-port SFP+ 10Gb 2-port USB Gen2 x8 Micro-LPAOC-CTGS-i2T-OMicroLP Dual-port 10GbE RJ45, Intel X550 (Retail Pack)
Software
SFT-DCMS-SingleDataCenter Management Package (per node license)
Storage Controller Card(s)
AOC-S3908L-H8IR-16DD8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
