Supermicro
$91,395.77AS-5126GS-TNRT-01-G2

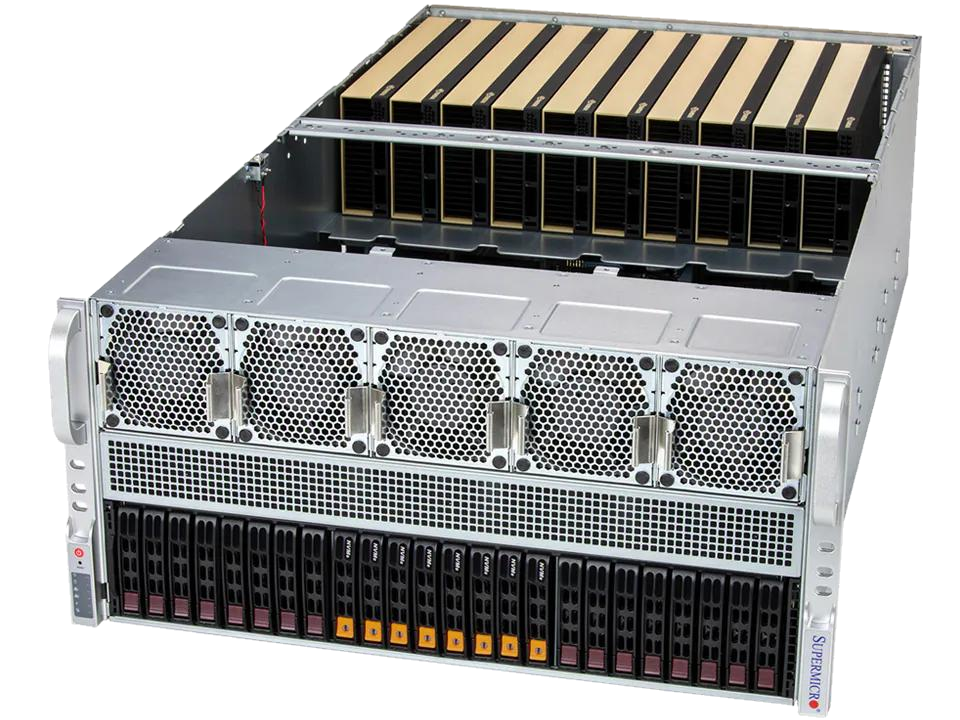

Discover exceptional performance for demanding artificial intelligence, deep learning, and high-performance computing applications with the Supermicro AS -5126GS-TNRT-01-G2 Gold Series server. This powerful pre-configured 5U rackmount system is ready to deploy quickly right out of the box. It features dual AMD EPYC 9355 processors, 2 game changing NVIDIA RTX 6000 PRO Server Edition GPUs, massive memory capacity, and redundant Titanium Level power supplies for immediate high-density acceleration in next-generation data centers.
Engineered for intensive workloads including large language model training, generative AI, 3D rendering, scientific simulations, visualization, financial modeling, and multimedia content creation, this Gold Series SuperServer delivers outstanding scalability. Dual-socket AMD EPYC processors (up to 500W TDP with air cooling) provide powerful CPU performance with up to 192 cores. The system supports up to 24 DIMM slots for up to 6TB of high-speed DDR5-6400 memory, ensuring fast data handling for memory-intensive AI and HPC tasks.
High-speed PCIe 5.0 connectivity offers 9 x16 FHFL slots (expandable to 10), optimized for up to 8 double-width GPU accelerators with optional NVLink bridging. storage includes 1 960GB M.2 NVMe solid state drive for fast boot up time. The redundant 6x 2700W Titanium Level power supplies deliver maximum reliability and energy efficiency for continuous 24/7 enterprise operation.
Optimized for air-cooled environments in standard data centers, the AS -5126GS-TNRT-01-G2 Gold Series provides superior density and performance in a compact 5U form factor. Its robust chassis and fully pre-configured enterprise-grade components minimize setup time while ensuring maximum uptime and thermal efficiency.
SKU: AS-5126GS-TNRT-01-G2
Features
Key Features
- CPU - Dual AMD EPYC™ 9355 Processors (32-Cores)
- GPU - 2x NVIDIA RTX PRO™ 6000 Blackwell Server Edition
- Chassis - 5U Rackmount
- Drive - 1x 960GB M.2 NVMe

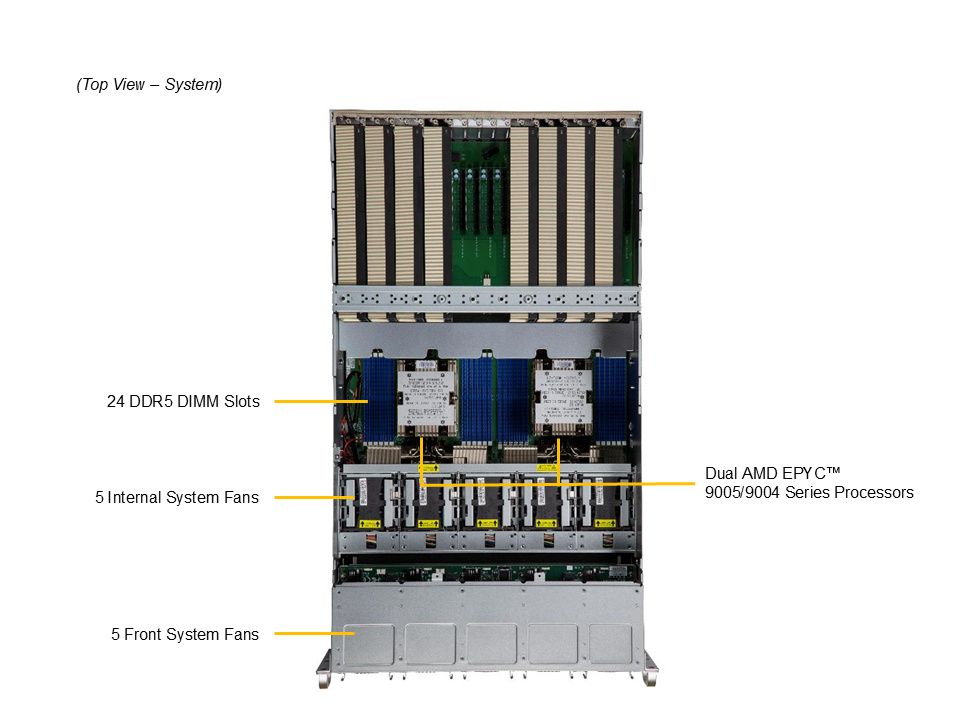

- RAM - 24x 64GB DDR5-6400 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 Ports
Use Cases
AI / Deep Learning
3D Rendering Farm
Visualization / Simulation
High Performance Computing
Multimedia/Digital Content creation
Motherboard
Super H14DSG-O-CPU
GPU
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
Certification:
Nvidia Certified
CPU-GPU Interconnect:
Direct Attached
GPU-GPU Interconnect:
NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric™ Link (optional)
Max GPU Count:
Up to 8 double-width GPUs
Supported GPU:
NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S, NVIDIA RTX PRO™ 6000 Blackwell Server Edition

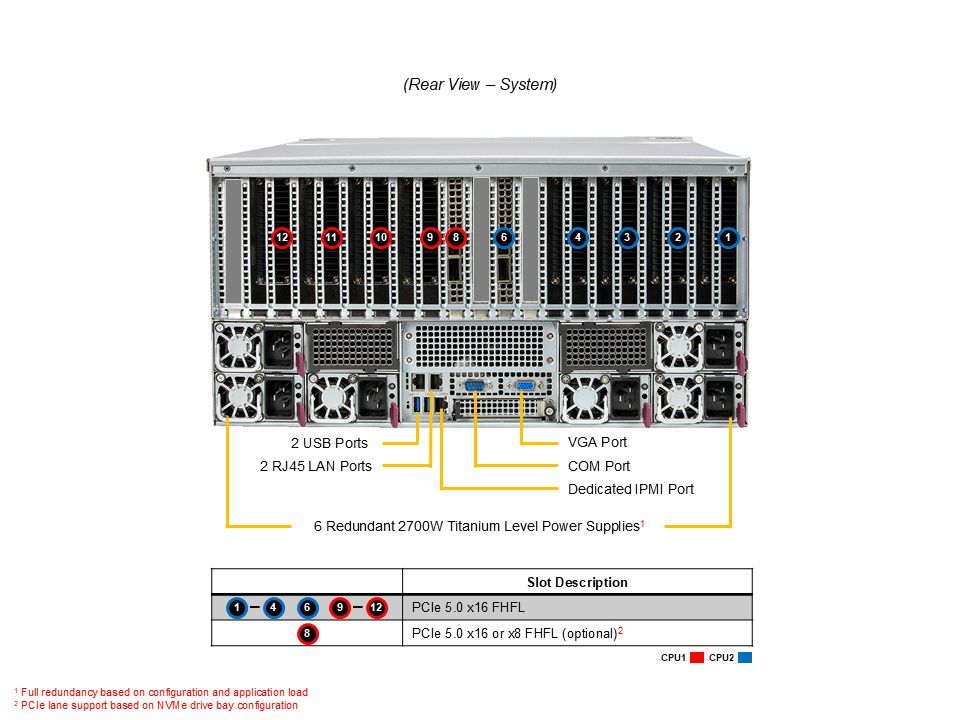

LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x RJ45 10 GBASE-T LAN ports
2x RJ45 10 GBASE-T LAN ports
USB:
2x ports(rear)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
System on Chip
Network Connectivity:
2x RJ45 10GbE
SATA:
SATA (6Gbps)
CPU:
7x +1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Cores:
Up to 192C/384T
CPU:
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
AMD EPYC™ 9005/9004 Series Processors
Note:
Supports up to 500W TDP CPUs
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 64MB SPI Flash EEPROM
Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage:
1.1V
Chassis
CSE-528G2TS-R000NDP
Dimensions
Expansion Slots
Form Factor
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black Front & Silver Body
Depth:
31 in
Gross Weight:
100.09 lb
Height:
8.75 in
Net Weight:
65.48 lb
Package Depth:
42.51 in
Package Height:
17.32 in
Package Width:
28.34 in
Width:
17.2 in
PCI-Express (PCIe) Configuration:
Default 9 PCIe 5.0 x16 FHFL double-width slots
Option A 10 PCIe 5.0 x16 FHFL double-width slots
Option A 10 PCIe 5.0 x16 FHFL double-width slots
Form Factor:
Rackmount
Model:
CSE-528G2TS-R000NDP
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
6x 2700W
6x 2700W
+12V:
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB:
Max: 3.5A / Min: 0A
Max: 4A / Min: 0A
Max: 4A / Min: 0A
Description:
6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)

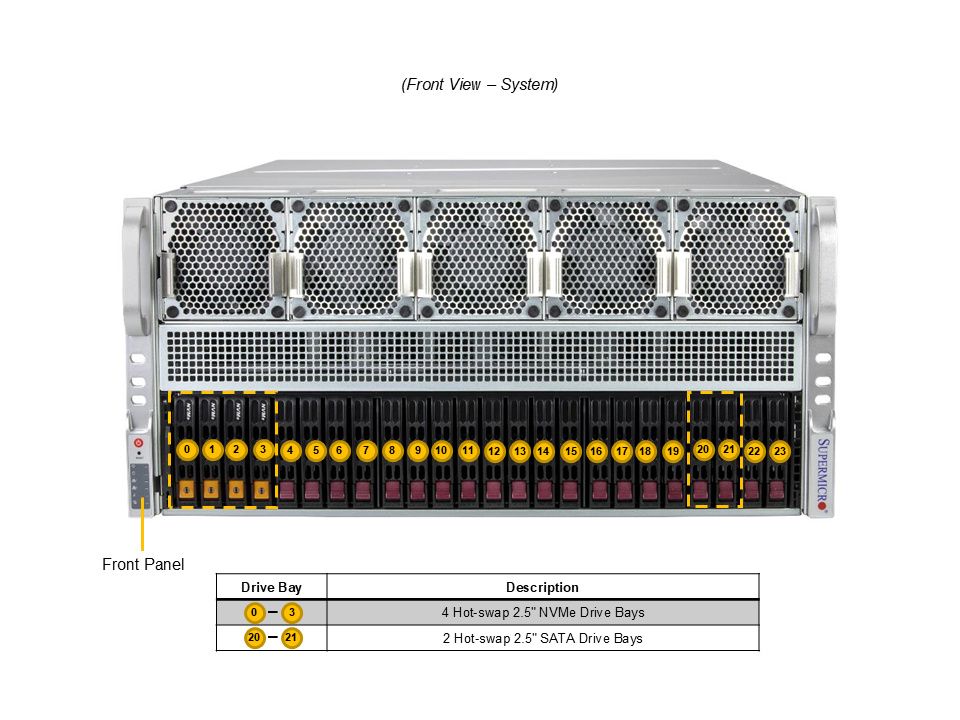

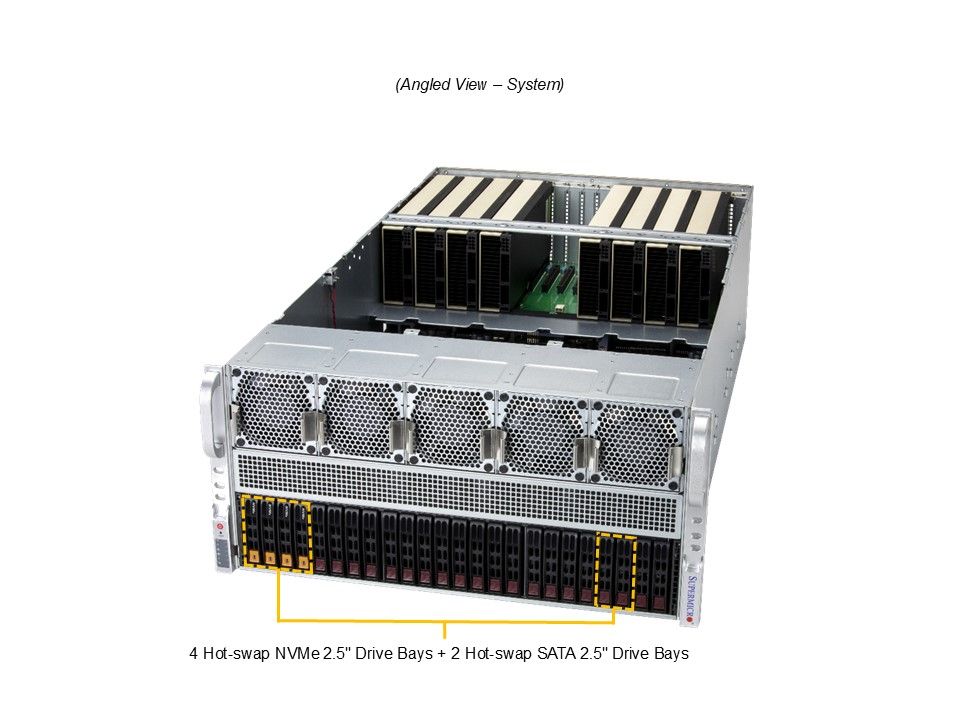

Drive Bays
Configuration 1
Count:
2
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 2
Count:
4
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
NVMe
Configuration 3
Count:
2
Form Factor:
2.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
SATA
M.2
Count:
1
Generation:
PCIe 3.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Fans:
Up to 10 heavy duty fans with optimal fan speed control
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
AIOM
AOM-528G2-AIOM-P1AIOM extension boardFAN-0257L41AIOM cooling fan
GPU Link
GPU-NVLINK-2WAYNVLINK Bridge Board for Hopper GPU, 2-way PassiveGPU-NVLINK-4WAYNVLINK Bridge Board for Hopper GPU, 4-way Passive
Heatsink
SNK-P2083P-222U Passive EVAC Heatsink for 500W TDP CPU
Power Cable
CBL-0223LPWS POWER CORD C-19 TO C-20,
Power supply
PWS-2K70A-1R2700W Redundant Titanium w/PMBus power supply, C20 inlet
