SupermicroAS-8125GS-TNMR2-G1
Out of stock

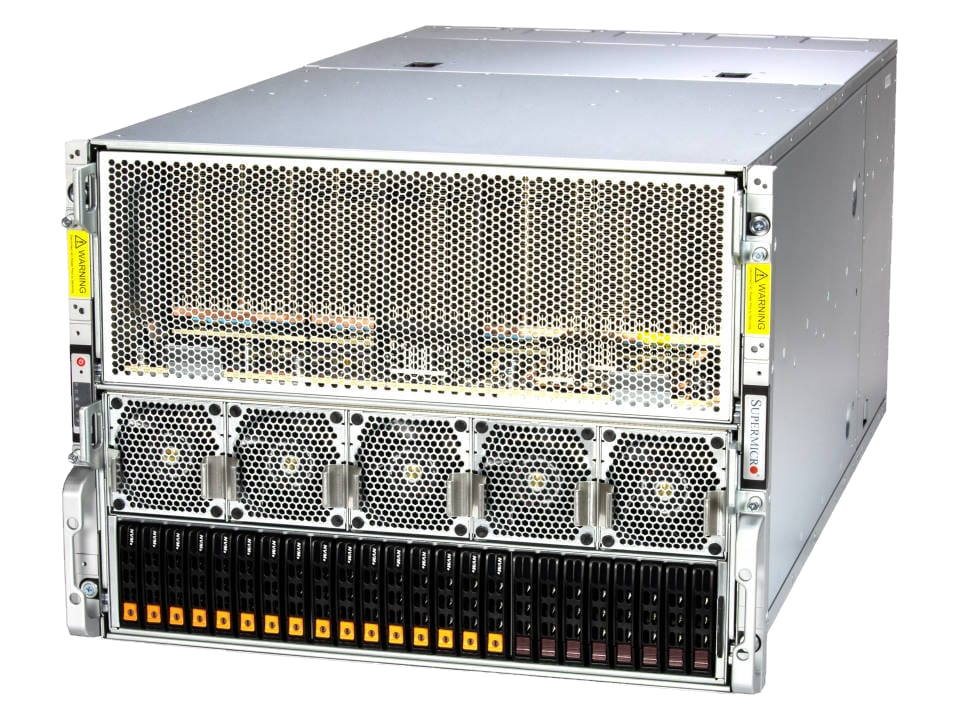

The Supermicro AS -8125GS-TNMR2 is a powerful 8U rackmount server specifically designed for demanding workloads like high-performance computing (HPC), AI/deep learning training, industrial automation, retail analytics, and climate and weather modeling. This system boasts dual AMD EPYC™ 9654 processors with 96 cores each, providing unparalleled processing power. With 24 DIMM slots supporting up to 2.3TB of DDR5-5600 RDIMM memory and an AMD Instinct™ MI300X OAM Accelerator with 192GB HBM3 memory, it can handle the most complex computational tasks. A 1.9TB U.2 NVMe drive ensures rapid data access, while four 400GbE QSFP112-DD and dual 10GbE RJ45 LAN ports deliver exceptional network bandwidth. This high-performance server ships within 24 hours, allowing for rapid deployment and integration into your infrastructure.
SKU: AS-8125GS-TNMR2-G1
Features
Key Features
- CPU - Dual AMD EPYC™ 9654 Processors (96-Cores)
- GPU - 1x AMD Instinct™ MI300X 192GB 8 OAM + UBB
- Chassis - 8U Rackmount
- Drive - 1x 1.9TB U.2 NVMe
- RAM - 24x 96GB DDR5-5600 RDIMM Memory
- Network Ports - 4x 400GbE QSFP112-DD + 2x 10GbE RJ45 LAN Ports
Use Cases
High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Climate and Weather Modeling
Motherboard
Super H13DSG-OM
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM

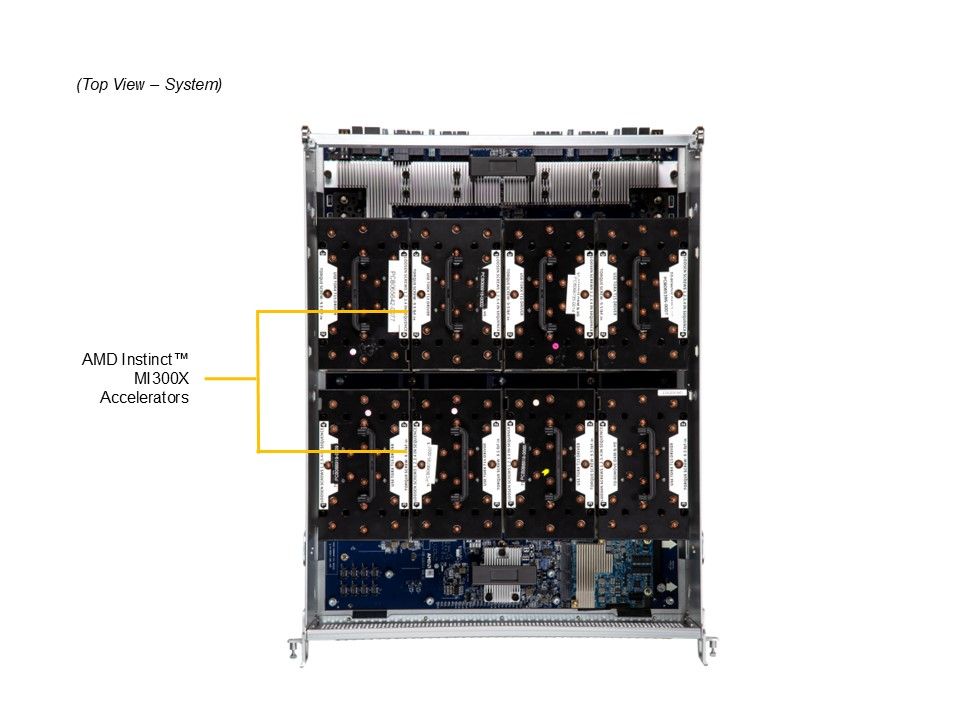

Max GPU Count:
8x onboard GPUs
Supported GPU:
AMD: Instinct™ MI300X Accelerators
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
AMD Infinity Fabric™ Link
Memory:

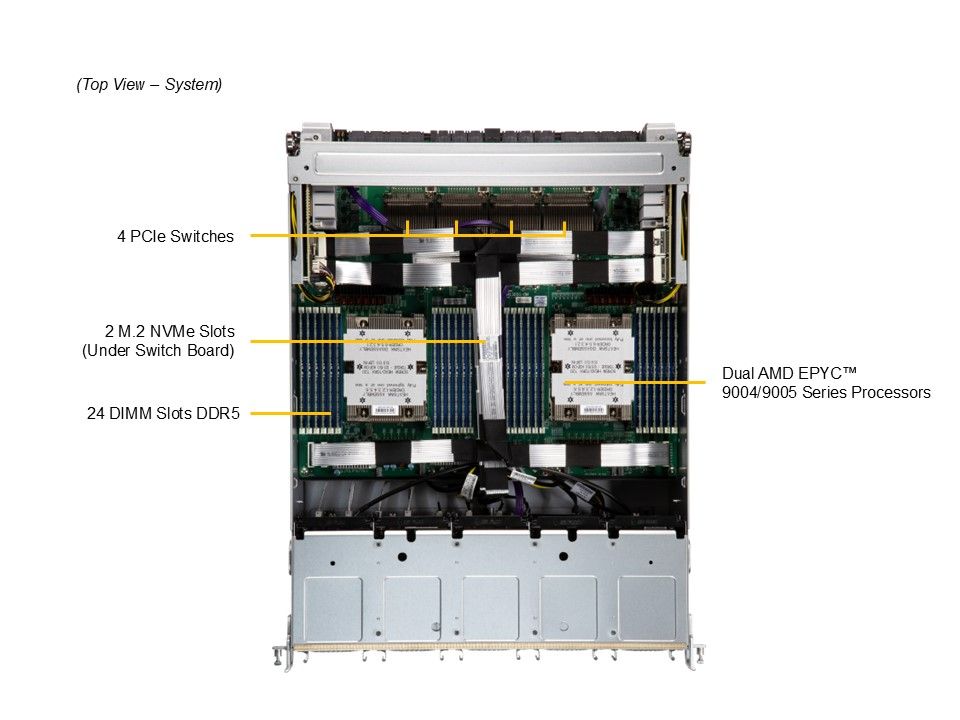

Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage:
1.1V
Chipset:
AMD SP5
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
7x +1 Phase-switching voltage regulator
7x +1 Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual processor(s)
AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Note:
Supports up to 400W TDP CPUs
* This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP
* This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP
Chassis
CSE-GP801TS
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off button
System Reset button
System Reset button
LED:
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED

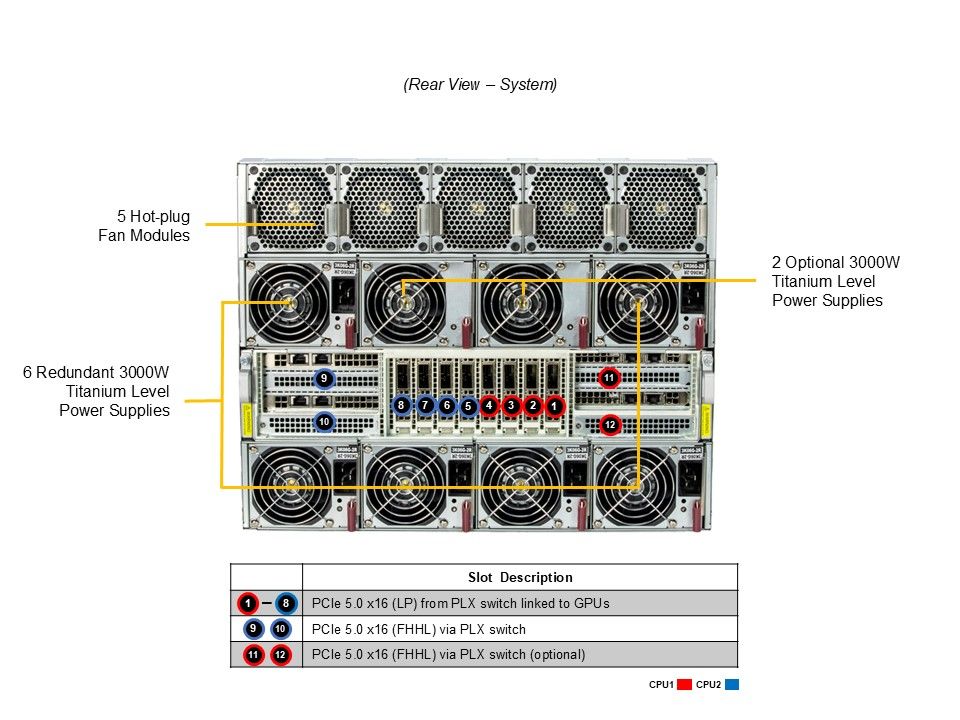

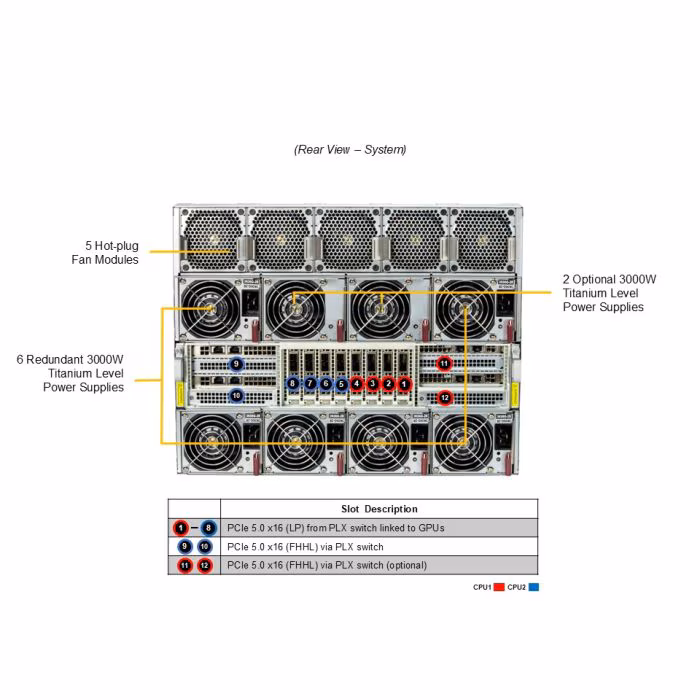

PCI-Express (PCIe) Configuration:
Default
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHFL slots
Option A
4x PCIe 5.0 x16 FHFL slots
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHFL slots
Option A
4x PCIe 5.0 x16 FHFL slots

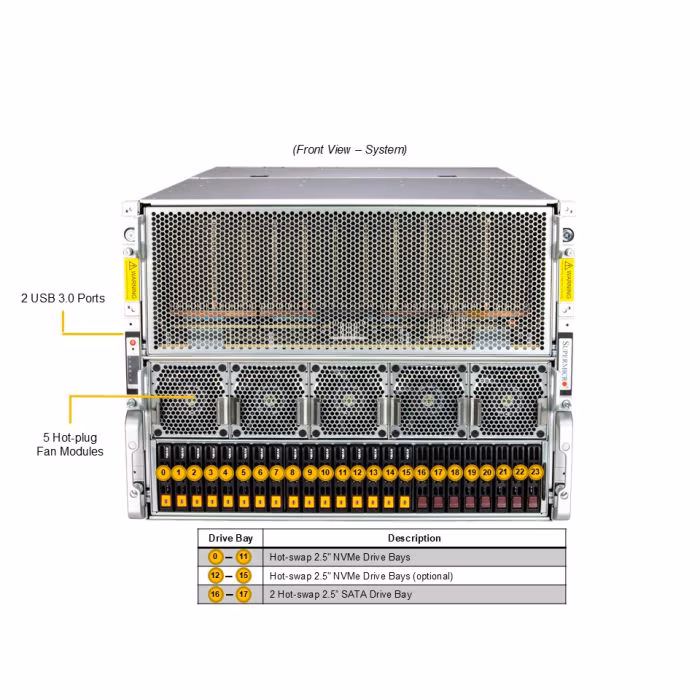

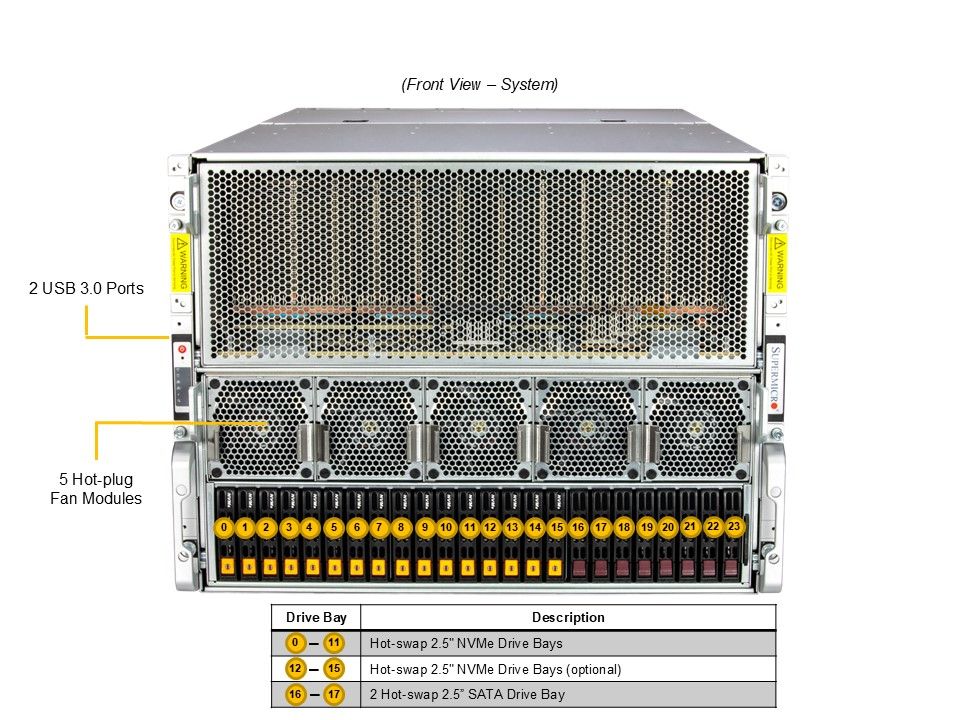

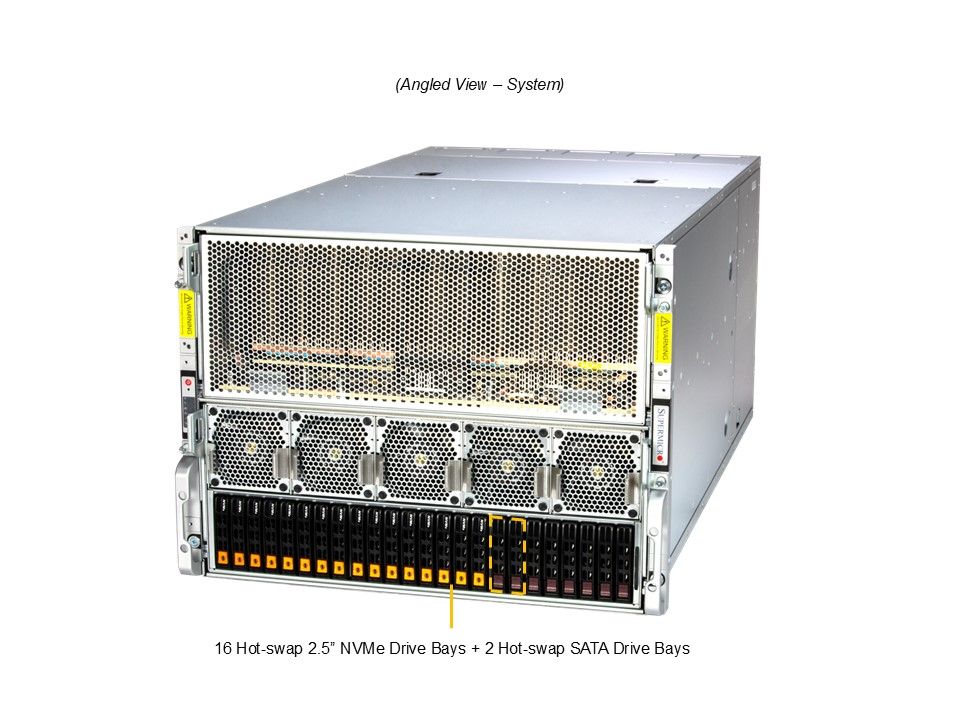

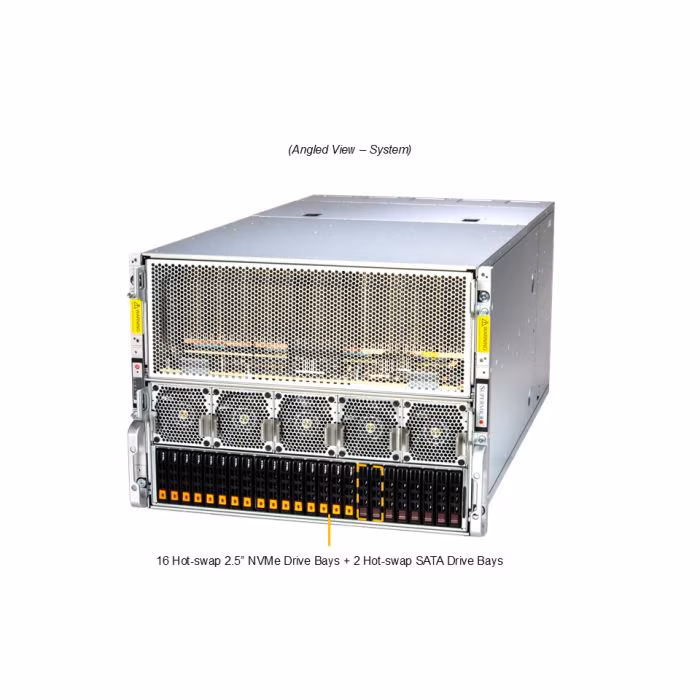

Drive Bays Configuration:
Default: Total 18 bays
12x front hot-swap 2.5" NVMe drive bays
2x front hot-swap 2.5" SATA drive bays
4x front hot-swap 2.5" NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables)
12x front hot-swap 2.5" NVMe drive bays
2x front hot-swap 2.5" SATA drive bays
4x front hot-swap 2.5" NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables)
M.2:
2x M.2 NVMe slots (M-key)
Fans:
N/A
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Configuration:
6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (W x H x L):
106.5 x 82.1 x 245.5 mm
Input:
3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W:
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W:
+12V:
Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3A / Min: 0A
Output Type:
Backplanes (gold finger)
Height:
14 in
Width:
17.2 in
Depth:
33.2 in
Package Height:
29.5 in
Package Width:
27.5 in
Package Depth:
51.2 in
Gross Weight:
225.09 lb
Net Weight:
166.01 lb
Available Color:
Black front & silver body
Form Factor:
8U Rackmount
Model:
CSE-GP801TS
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
