SupermicroAS-8126GS-TNMR-G1
Out of stock
This 8U powerhouse is engineered for the most demanding computational tasks, featuring dual AMD EPYC™ 9575F 64-core processors and an astounding 24 x 96GB DDR5-6400 RDIMM memory for unparalleled processing power. Equipped with 8 onboard AMD MI325X OAM GPUs, it excels in High-Performance Computing, AI/Deep Learning Training, Machine Learning, and Climate/Weather Modeling. Rapid data access is ensured with 1 x 960GB U.2 NVMe and 4 x 3.8TB U.3 NVMe drives, while 8 x 1-Port 400GbE QSFP112 network ports provide blistering connectivity for Data Centers, Database Processing, and High-Density Storage solutions. Ideal for Industrial Automation and Retail, this system is ready to ship within 24 hours (after approval) to accelerate your most critical applications.
SKU: AS-8126GS-TNMR-G1
Features
Key Features
- CPU - Dual AMD EPYC™ 9575F Processors (64-Cores)

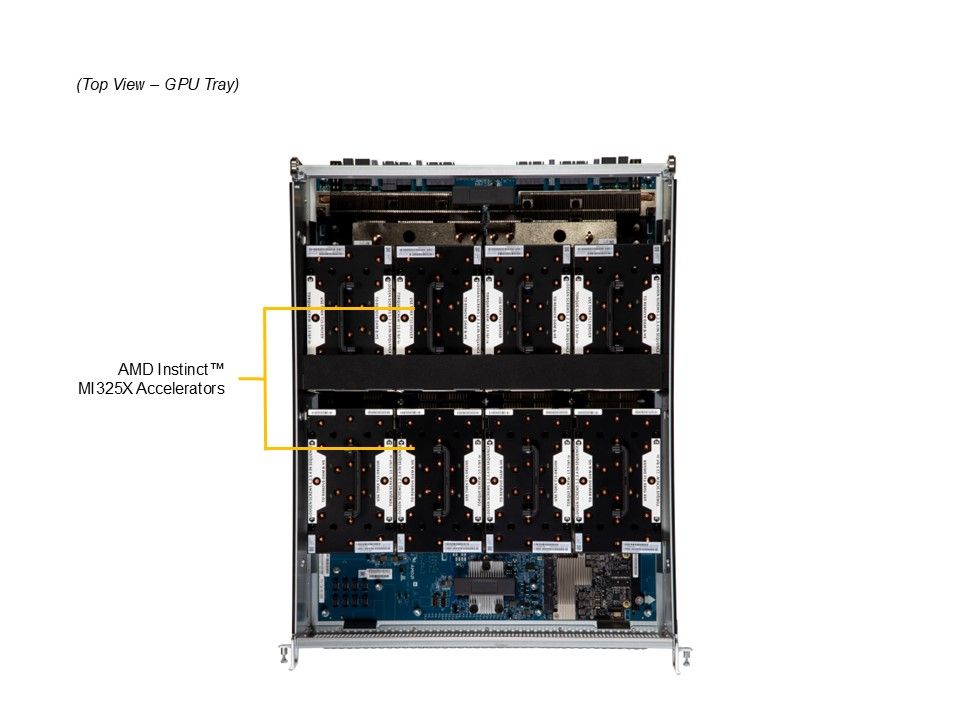

- GPU - 8x AMD MI325X Onboard OAM GPU
- Drive - 1x 960GB U.2 NVMe + 4x 3.8TB U.3 NVMe
- RAM - 24x 96GB DDR5-6400 RDIMM Memory
- Network Ports - 8x 1-Port 400GbE QSFP112
Use Cases
High Performance Computing
Database Processing and High Density Storage
AI/Deep Learning Training
Industrial Automation, Retail
Machine Learning (ML)
Data center
Climate and Weather Modeling
Motherboard
Super H14DSG-OD
System BIOS
GPU
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 64MB SPI Flash EEPROM
Max GPU Count:
8x onboard GPUs
Supported GPU:
AMD: Instinct™ MI350X Accelerators, Instinct™ MI325X Accelerators
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect:
AMD Infinity Fabric™ Link
Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
2x RJ45 10GbE with Intel® X710
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 Type-A ports(Rear)
Video:
1x VGA port
TPM:
1x TPM header
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
7x +1 Phase-switching voltage regulator
7x +1 Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
AMD EPYC™ 9005/9004 Series Processors
Cores:
Up to 384C/768T
Note:
Supports up to 500W TDP CPUs
Chassis
CSE-GP805TS-R000NPF
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
UID/ Reset button
UID/ Reset button
LED:
HDD activity
Network activity LEDs
System information (overheat/UID)
UID
Network activity LEDs
System information (overheat/UID)
UID
PCI-Express (PCIe) Configuration:
Default
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
M.2:
2x M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default))

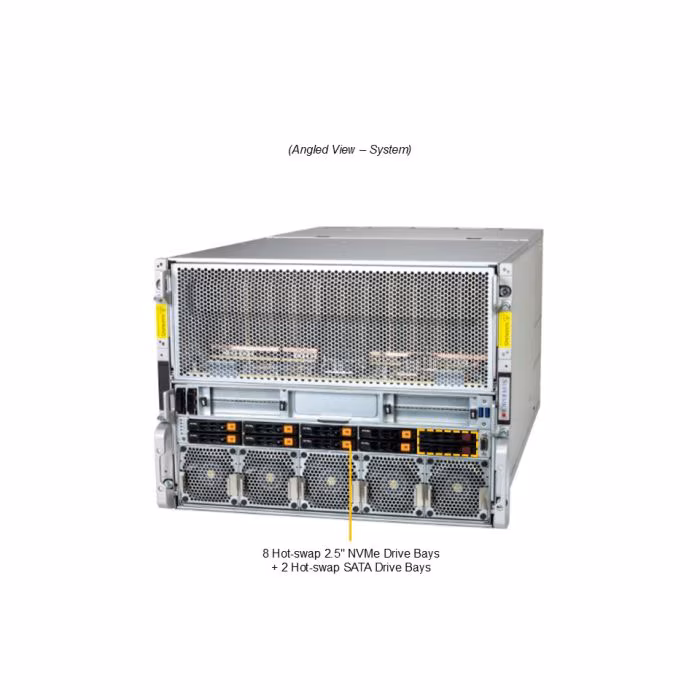

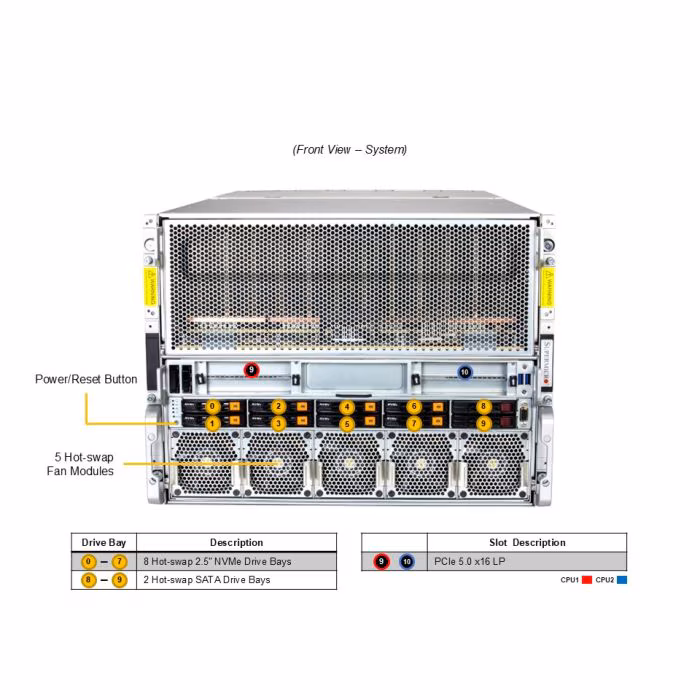

Drive Bays Configuration:
Default: Total 10 bays
2x front hot-swap 2.5" SATA drive bays
8x front hot-swap 2.5" NVMe drive bays
2x front hot-swap 2.5" SATA drive bays
8x front hot-swap 2.5" NVMe drive bays
M.2:
2x M.2 NVMe slots (M-key)
Fans:
10x heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

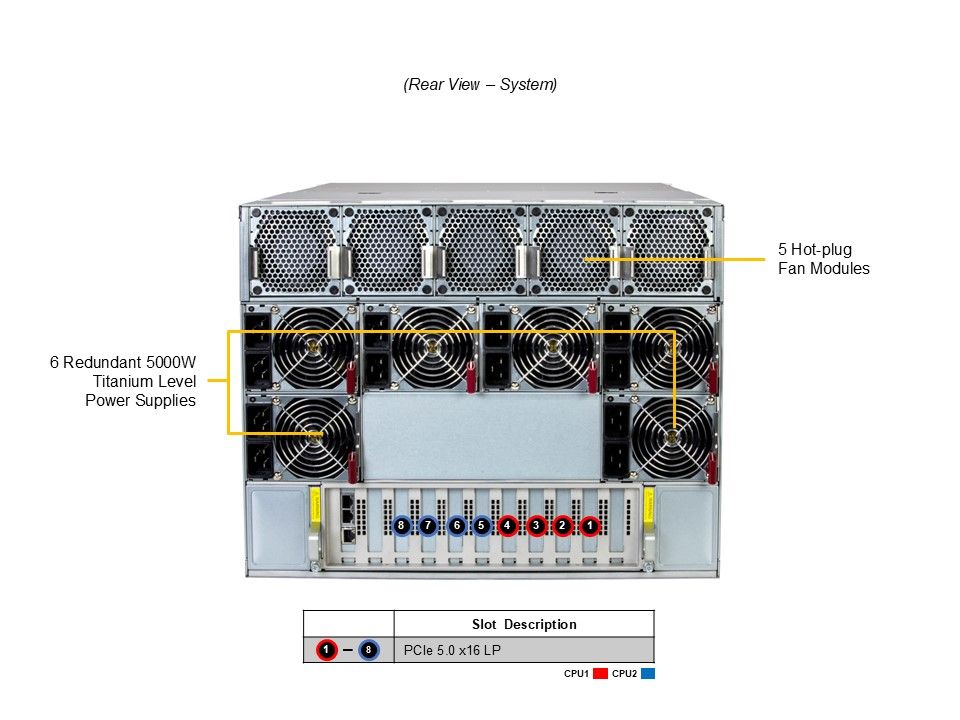

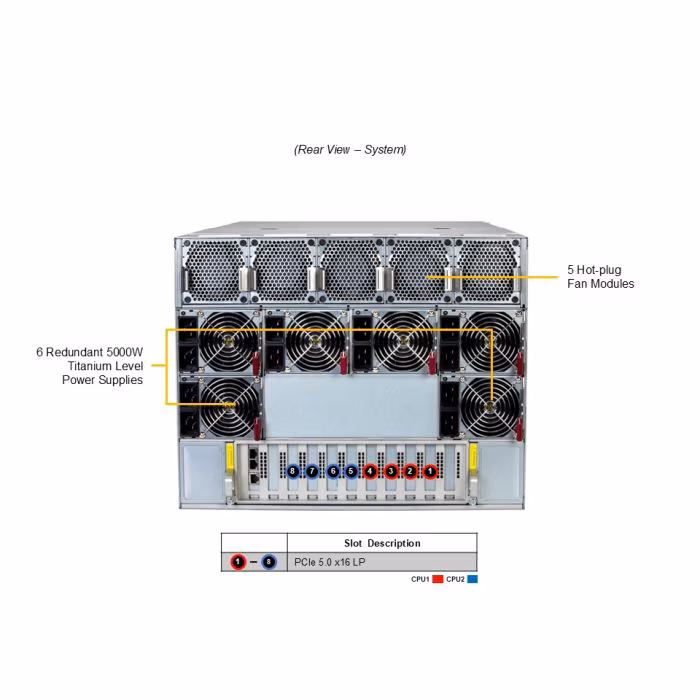

Configuration:
6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (W x H x L):
106.5 x 82.1 x 245.3 mm
Input:
5250W: 200-240Vac / 50-60Hz
+12V:
Max: 125A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 4A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Titanium Level
Height:
13.8 in
Width:
17.6 in
Depth:
33.2 in
Package Height:
27.6 in
Package Width:
51 in
Package Depth:
29.5 in
Gross Weight:
158.73 lb
Net Weight:
105.82 lb
Available Color:
Silver
Form Factor:
8U Rackmount
Model:
CSE-GP805TS-R000NPF
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
