Supermicro
$4,817.65AS-E300-14GR-01-G2
The Supermicro AS -E300-14GR is a powerhouse of edge computing, designed to bring enterprise-grade performance to a compact, fan-based embedded form factor. Built around the cutting-edge AMD EPYC™ 4545P 16-Core Processor, this system is tailor-made for high-stakes environments like Healthcare diagnostics, AI Inference, and Surveillance Security. By leveraging the latest Zen 4 architecture, it delivers the multithreaded muscle required to process complex datasets and high-definition video feeds locally, reducing latency and improving real-time decision-making.
Equipped with 32GB of ultra-fast DDR5-5600 UDIMM memory and a dedicated 960GB M.2 NVMe SSD, the AS-E300-14GR ensures rapid data throughput and seamless application responsiveness. Its versatile connectivity suite, featuring four 1GbE RJ45 network ports, makes it an ideal hub for Digital Signage and Point of Sale (PoS) networks. Whether you are deploying smart retail solutions or securing a facility with AI-driven monitoring, this Supermicro server provides the perfect balance of thermal efficiency, reliability, and high-density processing power.
SKU: AS-E300-14GR-01-G2
Features
Key Features
- CPU - Single AMD EPYC™ 4545P Processor (16-Core)
- Chassis - Fan-based Embedded
- Drive - 1x 960GB M.2 NVMe
- RAM - 1x 32GB DDR5-5600 UDIMM Memory
- Network Ports - 4x 1GbE RJ45 Ports
Use Cases
Healthcare
Surveillance Security Server
AI Inference
Digital Signage / PoS

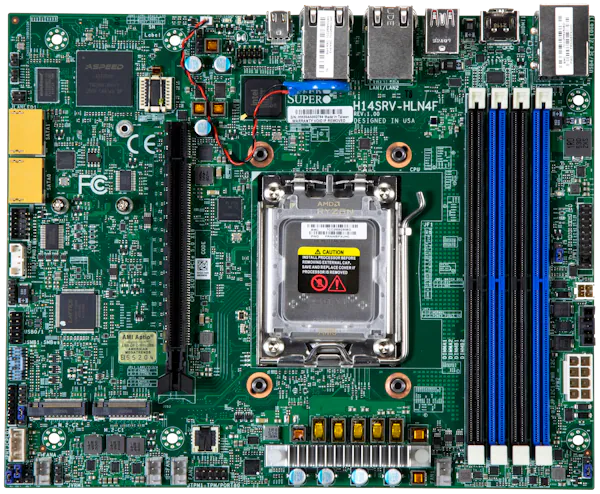

Motherboard
Super H14SRV-HLN4F

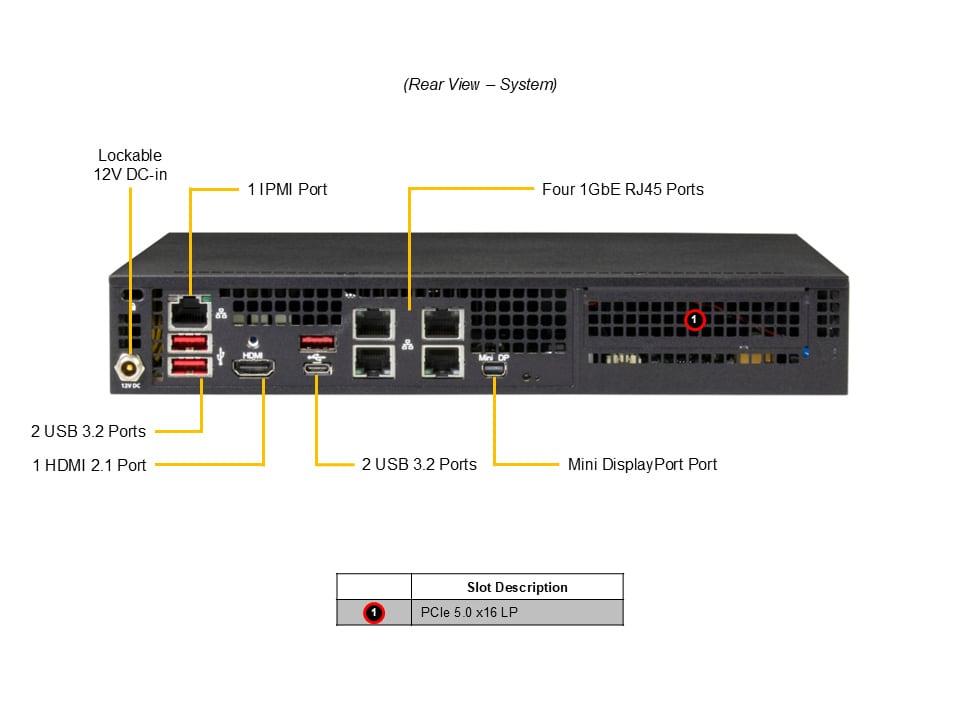

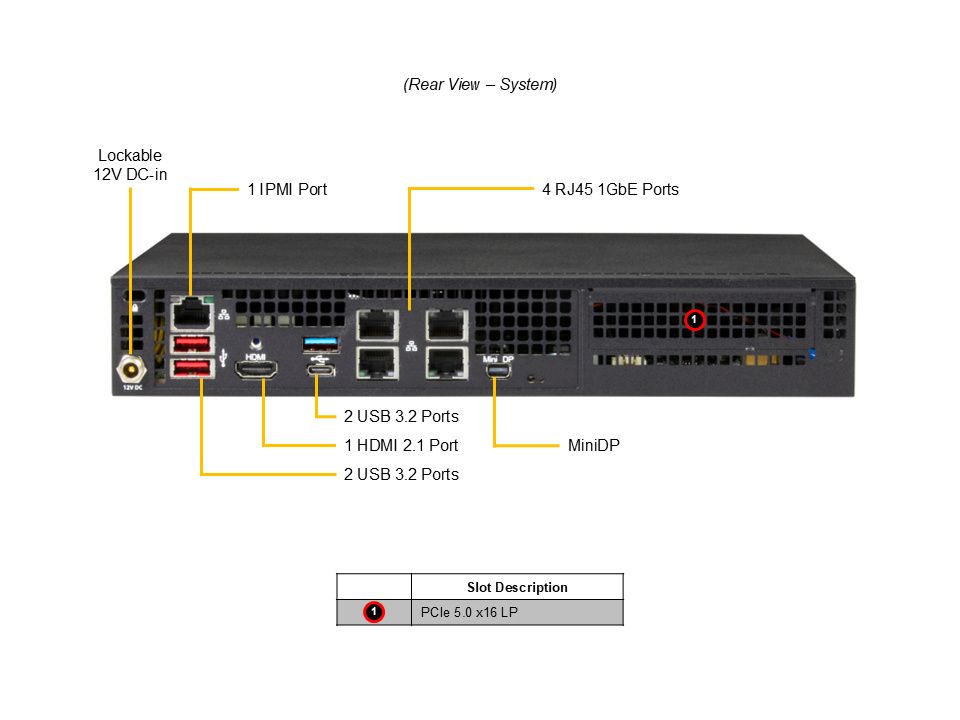

Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
LAN:
4x RJ45 1 GbE LAN ports (Intel® I350-AM4)
1x RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
1x RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
TPM:
1x TPM header
1x TPM Onboard/port 80
1x TPM Onboard/port 80
USB:
2x USB 3.2 Gen2 Type-A ports(Rear)
1x USB 3.2 Gen1 Type-A port(Rear)
1x USB 3.2 Gen1 Type-C port(Rear)
1x USB 3.2 Gen1 Type-A port(Rear)
1x USB 3.2 Gen1 Type-C port(Rear)
Video:
1x HDMI 2.1 port(Rear)
1x Mini-DP port(Rear)
1x Mini-DP port(Rear)
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Chipset:
AMD B650
Fan:
Status monitor for speed control
Core Count:
16C/32T; 64MB Cache
CPU:
Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Note:
Supports up to 65W TDP CPUs (Air Cooled)
Hardware:
Trusted Platform Module (TPM) 2.0
BIOS Features:
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
SMBIOS 3.7 or later
UEFI 2.9
BIOS Type:
AMI 32MB UEFI
Memory:
Slot Count: 4 DIMM slots
Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage:
1.1V
Chassis
CSE-E300
Dimensions
Expansion Slots
Form Factor

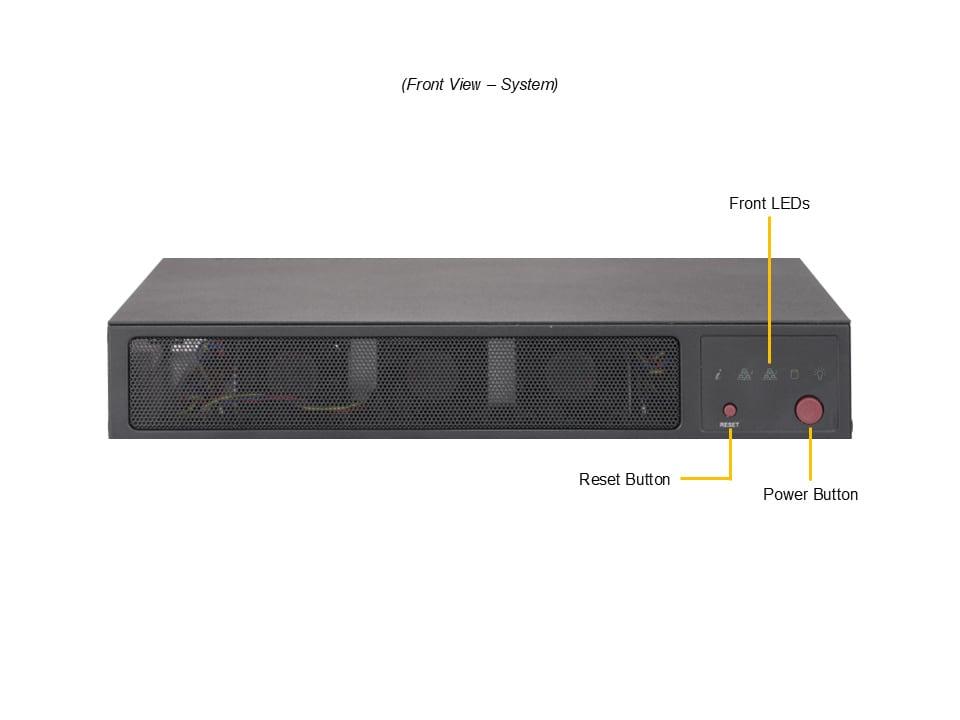

Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black
Depth:
8.89 in
Gross Weight:
7.5 lb
Height:
1.69 in
Net Weight:
3.75 lb
Package Depth:
5.59 in
Package Height:
10.87 in
Package Width:
15 in
Width:
10.43 in
PCI-Express (PCIe) Configuration:
Default* 1 PCIe 5.0 x16 (in x16) LP slot
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Form Factor:
Fan-based Embedded
Buttons:
Power On/Off
LED:
HDD Status
LAN1 activity
LAN2 activity
Power status
WIFI activity
LAN1 activity
LAN2 activity
Power status
WIFI activity
Model:
CSE-E300
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
1x 180W
Description:
1x 180W power supply
Dimension (W x H x L):
151.3 x 25.4 x 75.6 mm
Input:
180W: 100-240Vac / 47-63Hz
Drive Bays
Configuration 1
Count:
1
Form Factor:
2.5"
Location:
internal
Option:
default
Interface
Configuration 1
Interface:
SATA
M.2
Configuration 1
Count:
1
Generation:
PCIe 5.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Configuration 2
Count:
1
Generation:
PCIe 5.0
Lanes:
4
Keys
Configuration 1
Keys:
M
Fans:
Up to 1 CPU heatsink with 70x70x15mm Fan(s)
Up to 2x 4-PIN PWM 40x40x28mm Fan(s)
Up to 2x 4-PIN PWM 40x40x28mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
2.5" SATA Drive kits
CBL-MCIO-1250QT4Q-851MCIO to SATA cable, 50CMCBL-PWEX-10301SATA power cable, 20CM
Expansion slot kits
RSC-S-6G511U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
GPU air shroud
MCP-310-30001-0B1Air shroud for NVIDIA Low profile GPU card(T4/A2/L4)
Rackmount kits
MCP-290-30002-0B1CSE-E300 Rackmount kit with power adapter holder
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
