Supermicro
ASG-2015S-E1CR24H-G1
RFQ Only
This powerful 2U single-node server is purpose-built for demanding enterprise applications. Equipped with a single 16-core AMD EPYC™ 9124 processor, 256GB of DDR5-5600 RAM, and a lightning-fast 960GB M.2 NVMe drive, it delivers exceptional performance for tasks like database processing, virtualization, and HPC. With two 20TB SATA hard drives, you'll have ample storage capacity for your critical data. Dual 10GbE RJ45 ports ensure high-speed network connectivity, making it ideal for data centers and iSCSI SAN environments. Ready to ship within 24 hours, this server provides the foundation for a reliable and high-performance IT infrastructure.
SKU: ASG-2015S-E1CR24H-G1
Features
Key Features
- CPU - Single AMD EPYC™ 9124 Processor (16-Cores)
- Chassis - 2U / 1 Node
- Drive - 1x 960GB M.2 NVMe + 2x 20TB 3.5" SATA Hard Drive (Supports SAS Hardware RAID)
- RAM - 4x 64GB DDR5-5600 RDIMM Memory Slots
- Network Ports - 2x 10GbE RJ45 LAN Ports via AIOM
Use Cases
Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks
Motherboard
Super H13SSW
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
System on Chip
Network Connectivity:
Via AIOM
CPU:
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Cache:
Up to 384MB Cache
Cores:
Up to 84C/168T
CPU:
Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x
AMD EPYC™ 9004/9005 Series Processors
* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x
Note:
Supports 200W - 290W TDP CPUs
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 32MB SPI Flash EEPROM
Memory:
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage:
1.1V
Chassis
CSE-826S3TS-R1K62P1
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver
Depth:
34 in
Gross Weight:
74.52 lb
Height:
3.5 in
Net Weight:
52.03 lb
Package Depth:
52 in
Package Height:
12 in
Package Width:
29 in
Width:
17.2 in

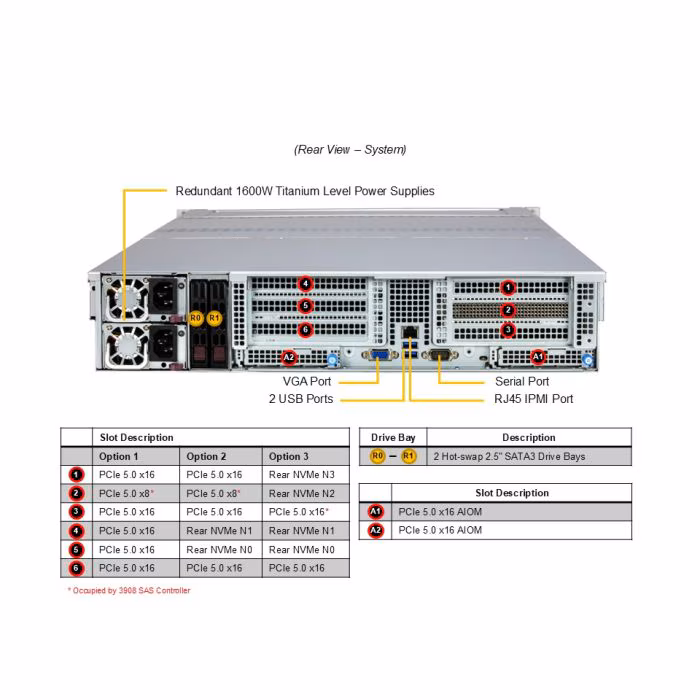

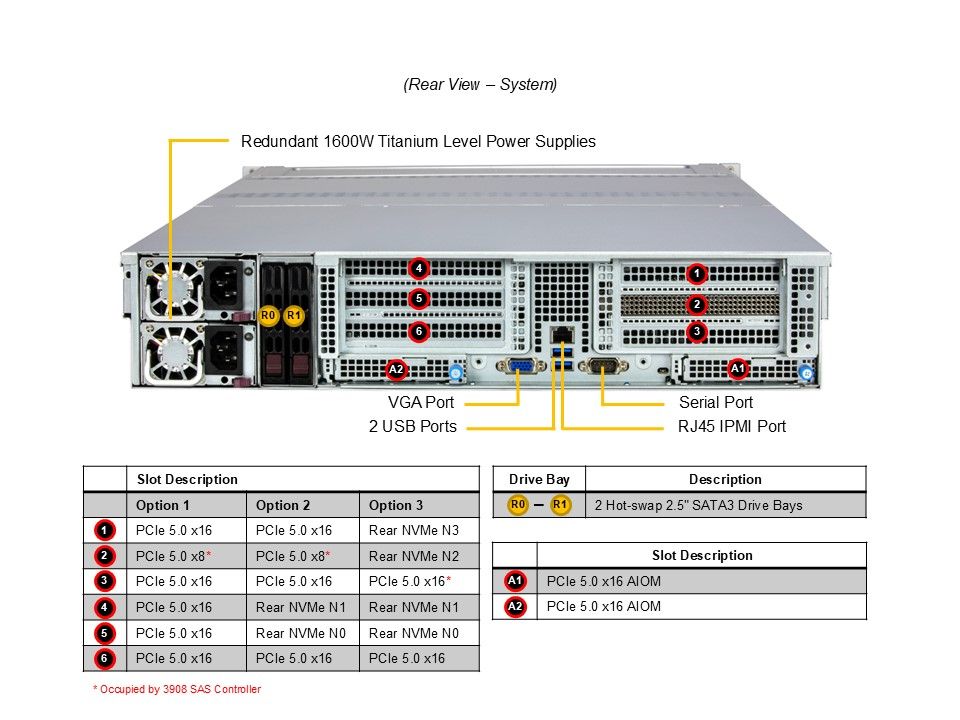

PCI-Express (PCIe) Configuration:
Default
4x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A
3x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x8 FHHL slot
Option B
2x PCIe 5.0 x16 FHHL slots
4x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A
3x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x8 FHHL slot
Option B
2x PCIe 5.0 x16 FHHL slots
Form Factor:
Rackmount
Buttons:
Power On/Off
LED:
Network activity
Power status
SSD activity
System information (overheat/UID)
Power status
SSD activity
System information (overheat/UID)
Model:
CSE-826S3TS-R1K62P1
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Rohs:
RoHS Compliant
2x 1600W Titanium
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 2.1A / Min: 0A
Certification:
Titanium Level
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
Output Type:
Backplanes (gold finger)

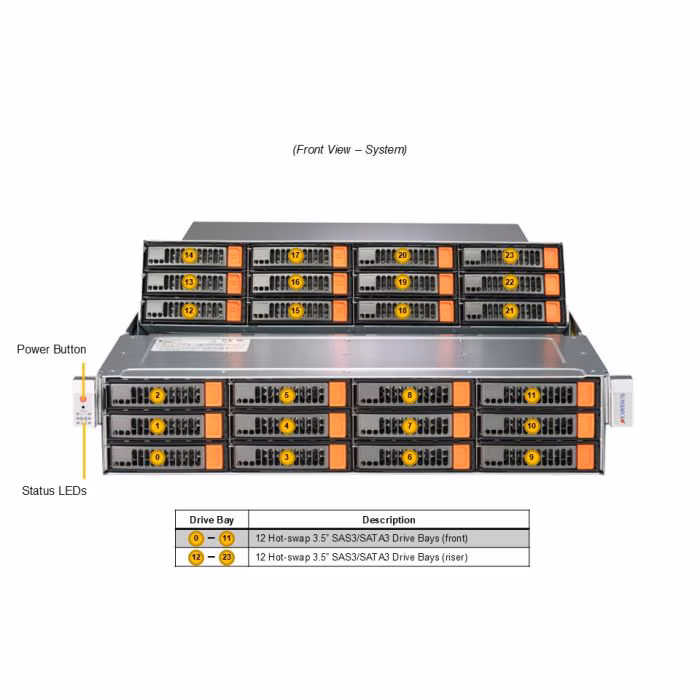

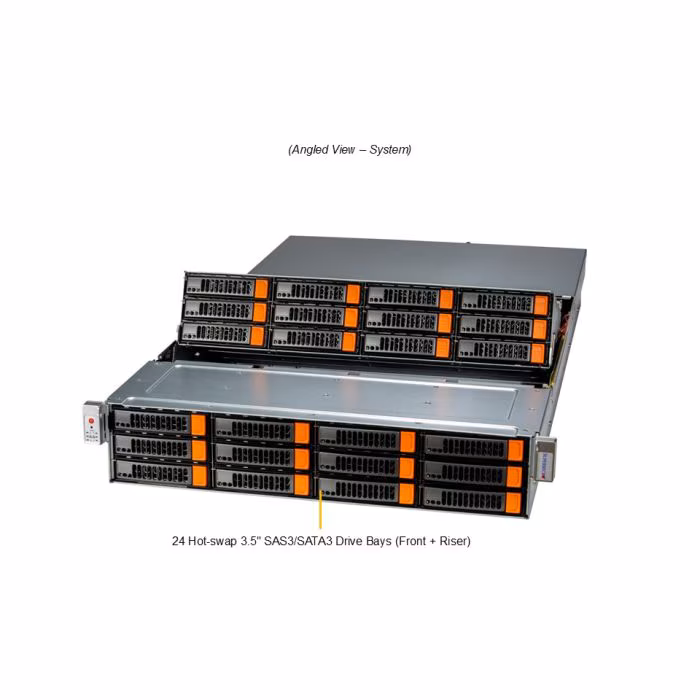

Drive Bays
Configuration 1
Count:
12
Form Factor:
3.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 2
Count:
12
Form Factor:
3.5"
Location:
top-loading
Option:
default
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 3
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 4
Count:
12
Form Factor:
3.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 5
Count:
12
Form Factor:
3.5"
Location:
top-loading
Option:
option_a
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 6
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
option_a
Interface
Configuration 1
Interface:
SATA
Configuration 7
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
option_a
Interface
Configuration 1
Interface:
NVMe
Configuration 8
Count:
12
Form Factor:
3.5"
Location:
front
Option:
option_b
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 9
Count:
12
Form Factor:
3.5"
Location:
top-loading
Option:
option_b
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 10
Count:
4
Form Factor:
2.5"
Location:
rear
Option:
option_b
Interface
Configuration 1
Interface:
NVMe
Configuration 11
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
option_b
Interface
Configuration 1
Interface:
SATA
M.2
Count:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 4 Heavy Duty 8cm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Network Cards
AOC-S25G-M2SStandard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX ENAOC-S40G-I2QStandard LP 2-port 40GbE controller, Intel Fortville XL710AOC-SGP-I2Standard LP 2-port GbE, Intel 82575MoreAOC Compatibility Matrix (Select Storage & Generation)
NVMe Kit (Up to 2 NVMe Drive Support)
CBL-0296L1Fan Cable (1 Per NVMe Kit)CBL-MCIO-1232M51MCIO x8 (STR to STR),32cm,85OHM,RoHSCBL-PWEX-1136-401Power CableMCP-240-00207-0N12U riser card bracket-R 1*PCIe and 2*2.5" Nvme for SC826S3 (left looking from rear)RSC-DR-6G511U LHS DCO Riser card with one PCIe 5.0 X16 slot (rear left)
NVMe Kit (Up to 4 NVMe Drive Support)
CBL-0296L2Fan Cable (1 Per NVMe Kit)CBL-MCIO-1232M52MCIO x8 (STR to STR),32cm,85OHM,RoHSCBL-PWEX-1136-401Power CableCBL-PWEX-1136-701Power CableMCP-240-00206-0N12U riser card bracket-L 1*PCIe and 2*2.5" Nvme for SC826S3 (right looking from rear)MCP-240-00207-0N1Gen 5 NVMe cage, includes BPN and drive traysRSC-D-6G511U LHS DCO Riser card with one PCIe 5.0 X16 slot (rear right)RSC-DR-6G511U LHS DCO Riser card with one PCIe 5.0 X16 slot (rear left)
Power Cord
CBL-PWCD-0300-ISPWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACHCBL-PWCD-0579Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250VCBL-PWCD-0579-1Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
TPM
AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for serverAOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
