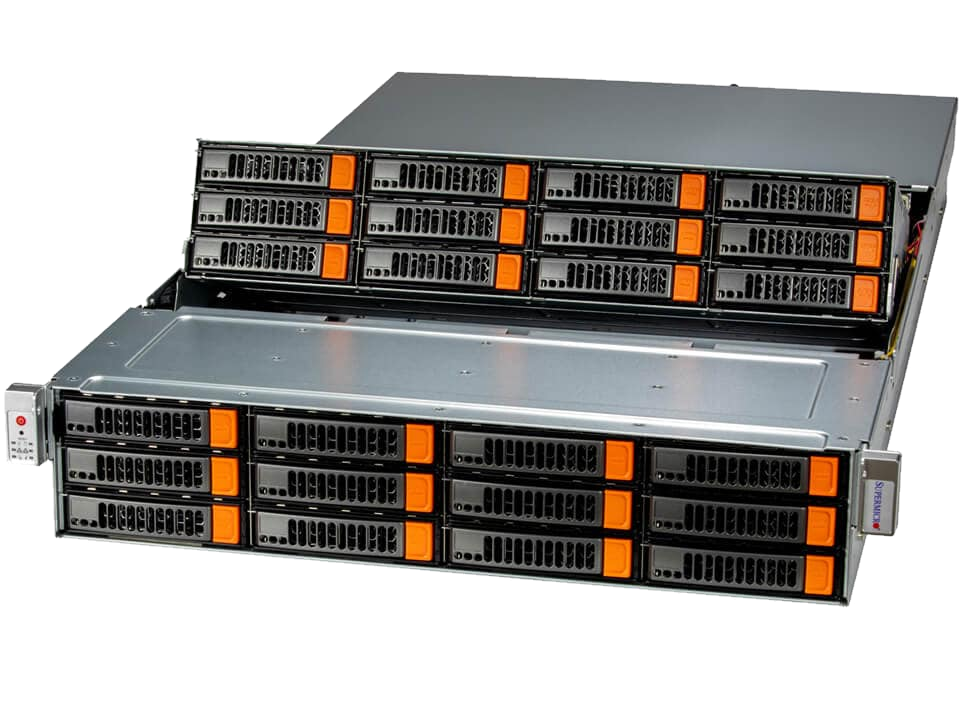

SupermicroASG-2015S-E1CR24L-01-G2
$41,594.802U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays and PCIe 5.0
SKU: ASG-2015S-E1CR24L-01-G2
Features
Key Features
- CPU - Single AMD EPYC 9334 (32-Cores, 2.7GHz)
- Chassis - 2U
- Drive - 960GB (1x 960GB 2.5" SATA); 528TB (24x 22TB HDD) via Broadcom 3808 HBA
- RAM - 8x 64GB DDR5-4800
- Network Ports - 2-port 100GbE
Use Cases
Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks
Motherboard
Super H13SSW
System BIOS
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Memory:
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Memory Voltage:
1.1V
Chipset:
System on Chip
Network Connectivity:
Via AIOM
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Single processor(s); AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Cores:
Up to 84C/168T
Cache:
Up to 384MB Cache
Note:
Supports 200W - 290W TDP CPUs
Chassis
CSE-826S3TS-R1K62P1
Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
LED:
Network activity
Power status
SSD activity
System information (overheat/UID)
Power status
SSD activity
System information (overheat/UID)

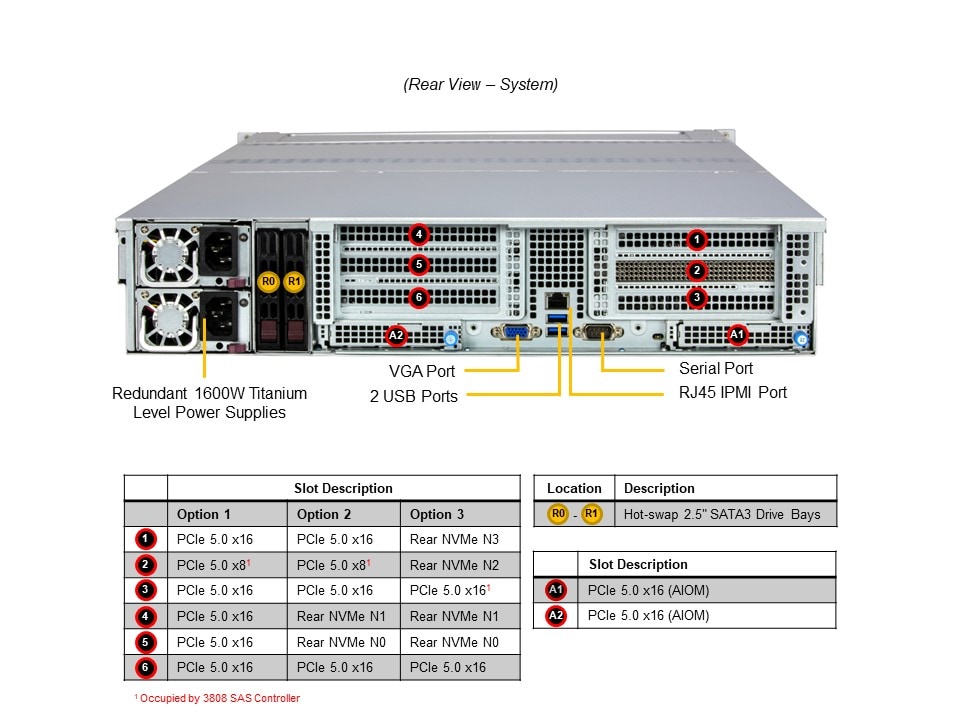

PCI-Express (PCIe) Configuration
Default:
4x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
2x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A:
3x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x8 FHHL slot
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
1x PCIe 5.0 x8 FHHL slot
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B:
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

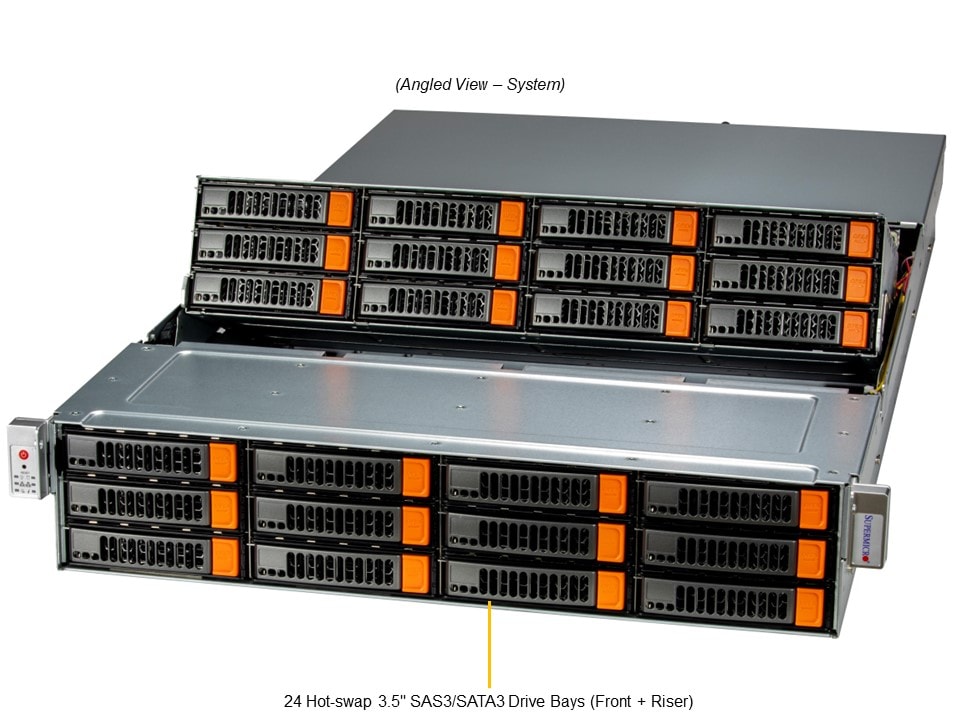

Drive Bays Configuration
Default:

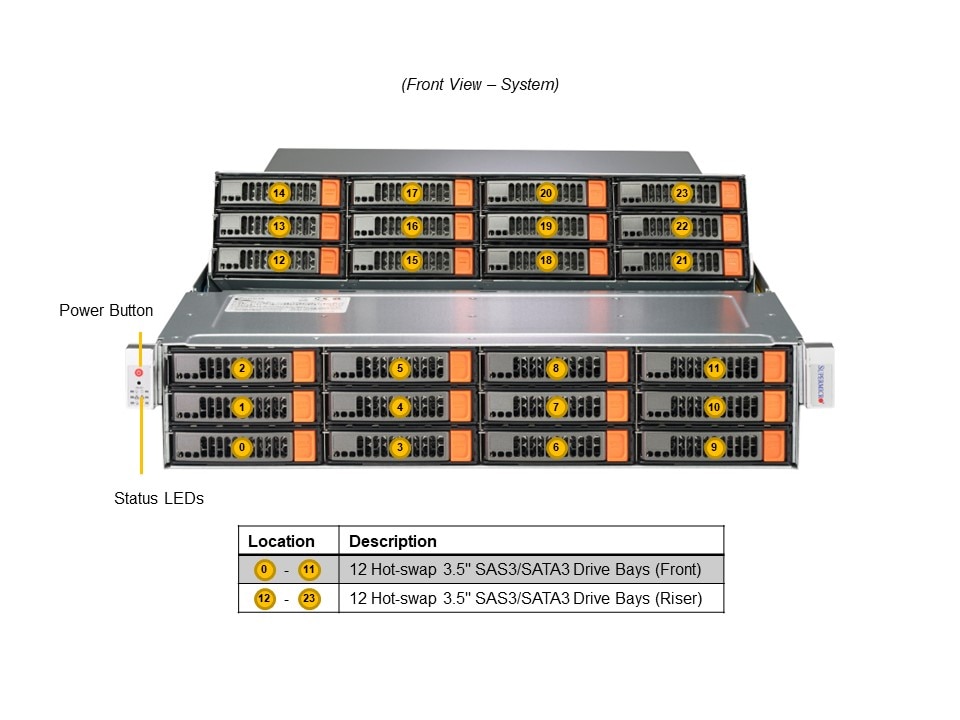

12x front hot-swap 3.5" SAS/SATA drive bays
12x top-loading hot-swap 3.5" SAS/SATA drive bays
2x rear hot-swap 2.5" SATA drive bays
12x top-loading hot-swap 3.5" SAS/SATA drive bays
2x rear hot-swap 2.5" SATA drive bays
Option A:
12x front hot-swap 3.5" SAS/SATA drive bays
12x top-loading hot-swap 3.5" SAS/SATA drive bays
2x rear hot-swap 2.5" SATA drive bays
2x rear hot-swap 2.5" NVMe drive bays
12x top-loading hot-swap 3.5" SAS/SATA drive bays
2x rear hot-swap 2.5" SATA drive bays
2x rear hot-swap 2.5" NVMe drive bays
Option B:
12x front hot-swap 3.5" SAS/SATA drive bays
12x top-loading hot-swap 3.5" SAS/SATA drive bays
4x rear hot-swap 2.5" NVMe drive bays
2x rear hot-swap 2.5" SATA drive bays
12x top-loading hot-swap 3.5" SAS/SATA drive bays
4x rear hot-swap 2.5" NVMe drive bays
2x rear hot-swap 2.5" SATA drive bays

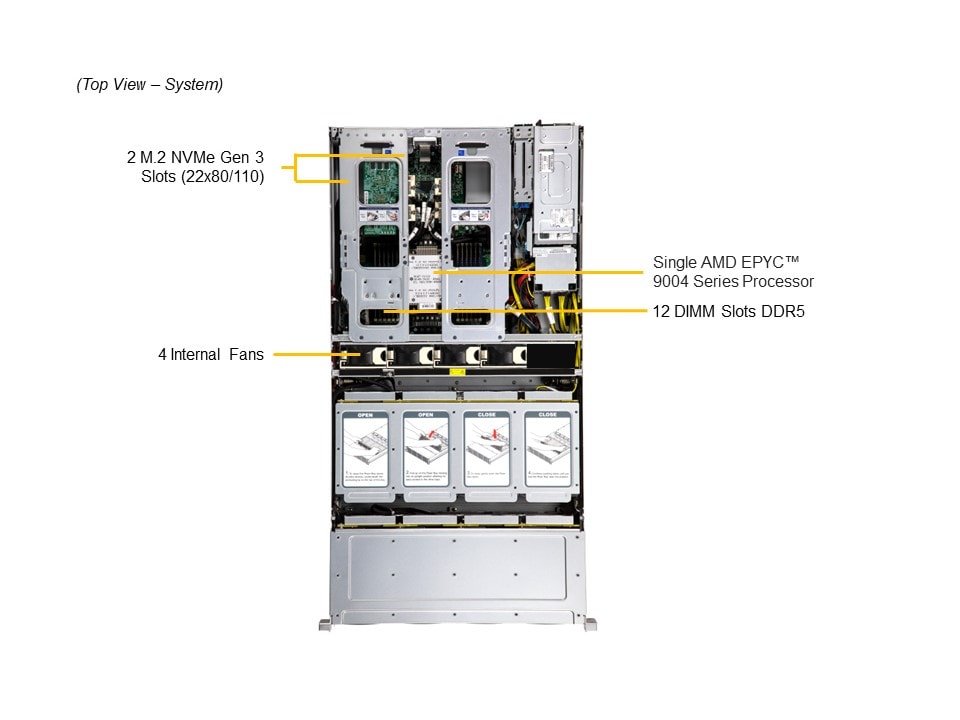

M.2:
2x M.2 NVMe slots (M-key 2280/22110)
Fans:
Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Rohs:
RoHS Compliant
Description:
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Options:
2x 1600W
Details
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 2.1A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Titanium Level
94%+
Test Report
94%+
Test Report
Height:
0.14 in
Width:
0.68 in
Depth:
1.34 in
Package Height:
12 in
Package Width:
29 in
Package Depth:
52 in
Available Color:
Silver
Form Factor:
2U Rackmount
Model:
CSE-826S3TS-R1K62P1
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
