SupermicroSSG-121E-NES24R-G1
Out of stock

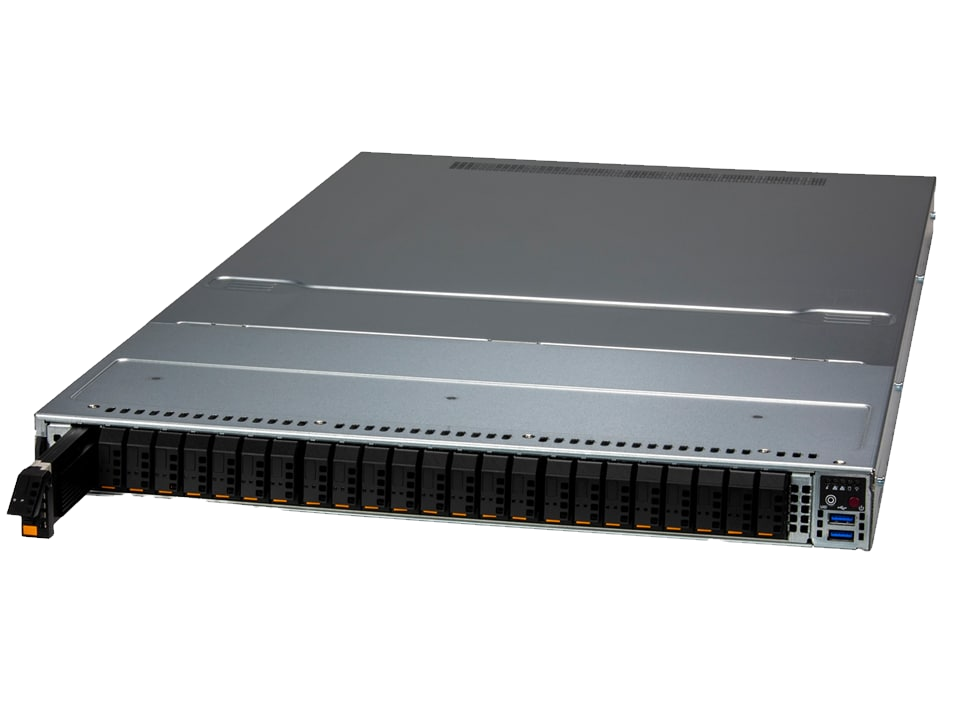

Experience lightning-fast processing and unparalleled performance with our latest 1U rack server, designed to tackle the most demanding workloads. This powerhouse features dual Intel® Xeon® Gold 6548Y+ processors with 32 cores each, 256GB of DDR5-5600 RDIMM memory, and a blazing-fast storage configuration that includes a 480GB M.2 NVMe drive and a 3.84TB E1.S EDSFF NVMe drive. Engineered for software-defined storage, data-intensive HPC, NVMe over Fabrics solutions, in-memory computing, and private & hybrid cloud environments, this server delivers exceptional speed and reliability. Connect seamlessly with dual 25GbE SFP28 ports and enjoy rapid deployment with our 24-hour shipping guarantee.
SKU: SSG-121E-NES24R-G1
Features
Key Features
- CPU - Dual Intel® Xeon® Gold 6548Y+ Processors (32-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 480GB M.2 NVMe + 1x 3.84TB E1.S EDSFF NVMe
- RAM - 4x 64GB DDR5-5600 RDIMM Memory
- Network Ports - 2x 25GbE SFP28 Ports
Use Cases
Software-defined Storage
In-Memory Computing
Data Intensive HPC
Private & Hybrid Cloud
NVMe Over Fabrics Solution
Motherboard
Super X13DSF-A
System BIOS
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
BIOS Type:
AMI 32MB SPI Flash EEPROM
Memory:
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage:
1.1V
Chipset:
Intel® C741
Network Connectivity:
Via AIOM
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
2x USB 3.0 ports(front)
2x USB 3.0 ports(front)
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
7x Phase-switching voltage regulator
7x Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note:
Supports 145W - 270W TDP CPUs (Air Cooled)
Chassis
CSE-126ES2-R2K08P

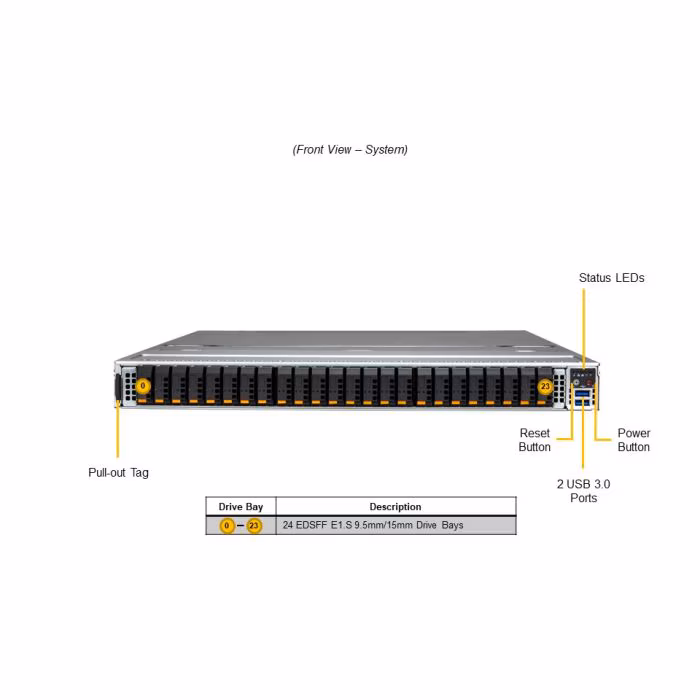

Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off
LED:
Network activity
Power status
SSD activity
System information (overheat/UID)
Power status
SSD activity
System information (overheat/UID)

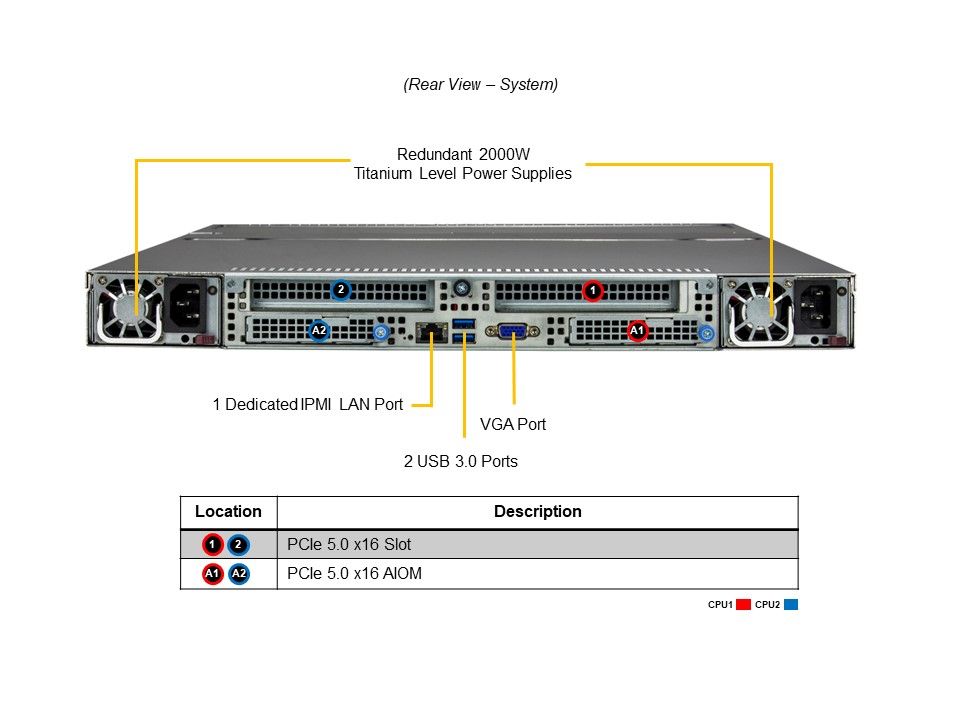

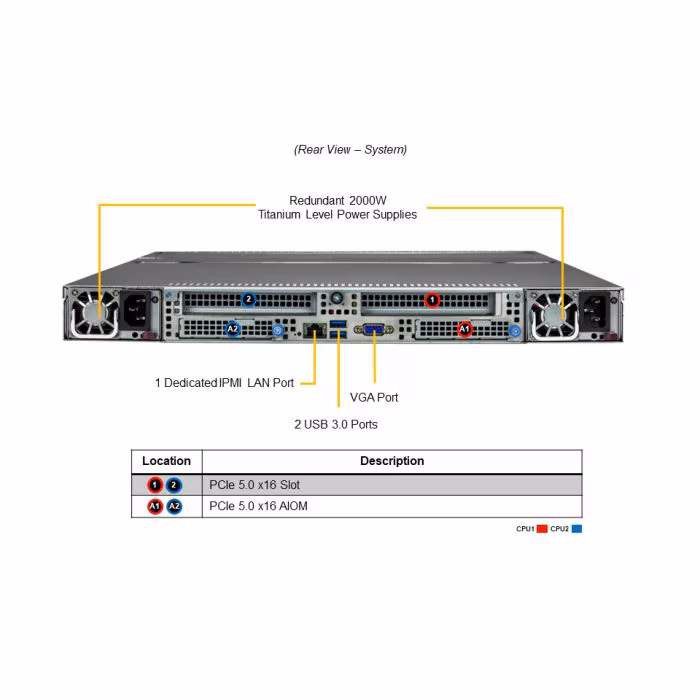

PCI-Express (PCIe) Configuration:
Default
2x PCIe 5.0 x16 FHFL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
2x PCIe 5.0 x16 FHFL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays Configuration:
Default: Total 24 bays

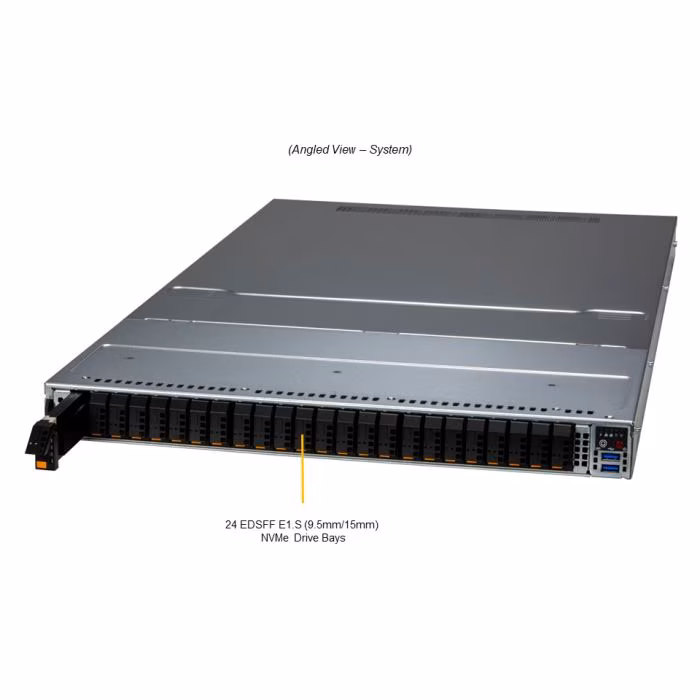

24x front hot-swap E1.S NVMe drive bays
24x front hot-swap E1.S NVMe drive bays
M.2:
2x M.2 NVMe/SATA slots (M-key 2280/22110)
Fans:
8x Heavy Duty 4cm Fan(s)
Air Shroud:
2x Air Shrouds
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% ()
Non-operating Relative Humidity: 5% to 95% ()
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% ()
Non-operating Relative Humidity: 5% to 95% ()
Rohs:
RoHS Compliant
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Max: 3.5A
Output Type:
Backplanes (gold finger)
Power Supplies:
2x 2000W Redundant Titanium Level (96%) power supplies
Height:
1.7 in
Width:
17.2 in
Depth:
30.4 in
Package Height:
7.87 in
Package Width:
23.81 in
Package Depth:
40.55 in
Gross Weight:
68.78 lb
Net Weight:
48.06 lb
Available Color:
Silver
Form Factor:
1U Rackmount
Model:
CSE-126ES2-R2K08P
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Network Cards
AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q
--Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 •
--Standard LP 2-port GbE, Intel 82575
More
--AOC Compatibility Matrix (Select Storage & X12)
Power Cord
CBL-PWCD-0579-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS
--PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579-1
--Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
