SupermicroSSG-221E-NE324R-G1
Out of stock

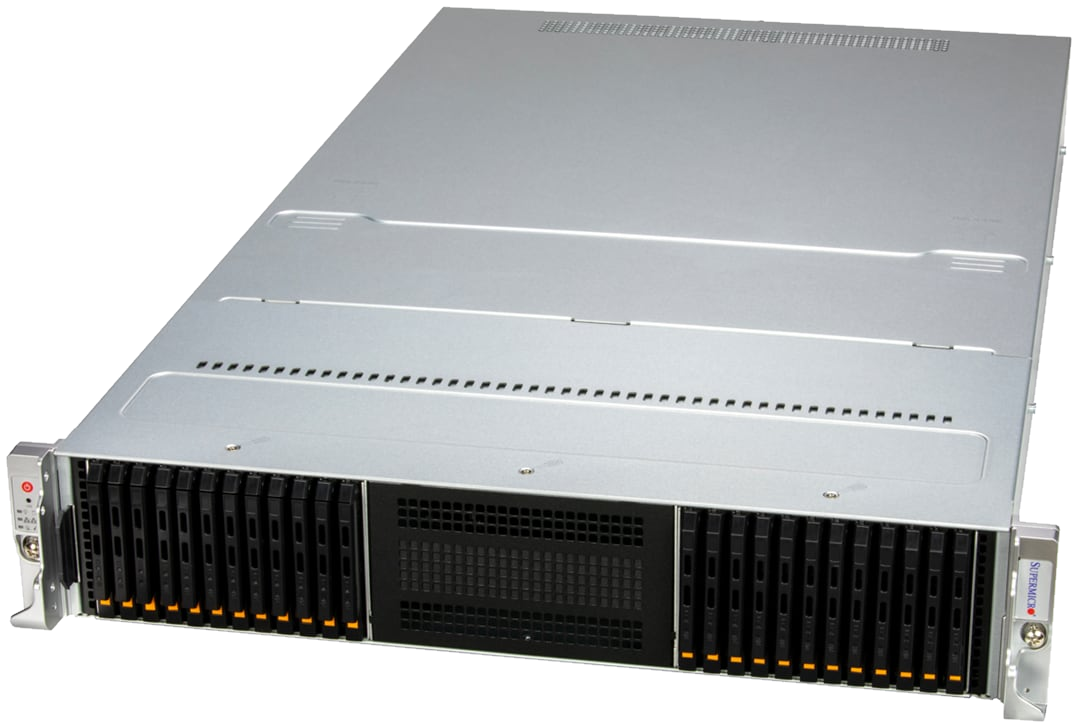

This powerful 2U rack server is purpose-built for demanding workloads like software-defined storage, data-intensive HPC, NVMe over Fabrics solutions, in-memory computing, and private & hybrid cloud deployments. Harness the raw power of dual Intel® Xeon® Gold 6548Y+ processors, each boasting 32 cores, and 256GB of DDR5-5600 RDIMM memory for lightning-fast processing. A 960GB M.2 NVMe drive coupled with a 1.92TB E3.S NVMe drive ensures rapid data access and storage. Connect seamlessly with four 1GbE RJ45 LAN ports and enjoy the convenience of 24-hour shipping, allowing you to deploy this high-performance server quickly and efficiently.
SKU: SSG-221E-NE324R-G1
Features
Key Features
- CPU - Dual Intel® Xeon® Gold 6548Y+ Processors (32-Cores)
- Chassis - 2U / 1 Node
- Drive - 1x 960GB M.2 NVMe + 1x 1.92TB E3.S NVMe
- RAM - 4x 64GB DDR5-5600 RDIMM Memory
- Network Ports - 4x 1GbE RJ45 LAN Ports
Use Cases
Software-defined Storage
In-Memory Computing
Data Intensive HPC
Private & Hybrid Cloud
NVMe Over Fabrics Solution
Motherboard
Super X13DSF-A
System Memory
On-Board Devices
Management
Security
PC Health Monitoring
Processor
Memory:
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage:
1.1V
Chipset:
Intel® C741
Network Connectivity:
Via AIOM
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
7x Phase-switching voltage regulator
7x Phase-switching voltage regulator
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note:
Supports 145W - 350W TDP CPUs (Air Cooled)
Chassis
CSE-236E3-R2K08P
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling

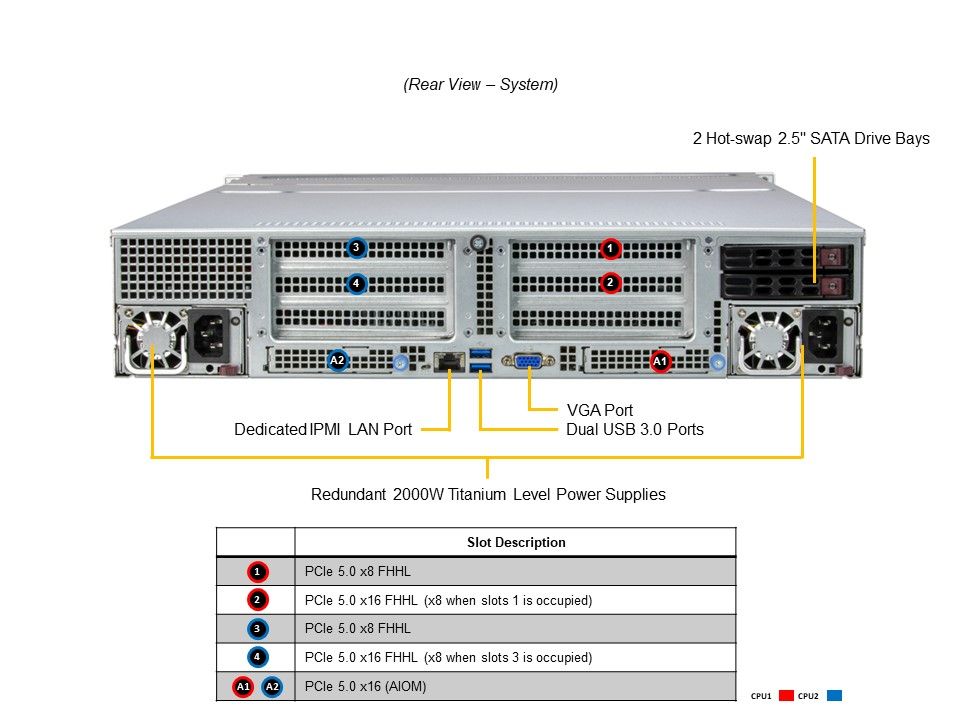

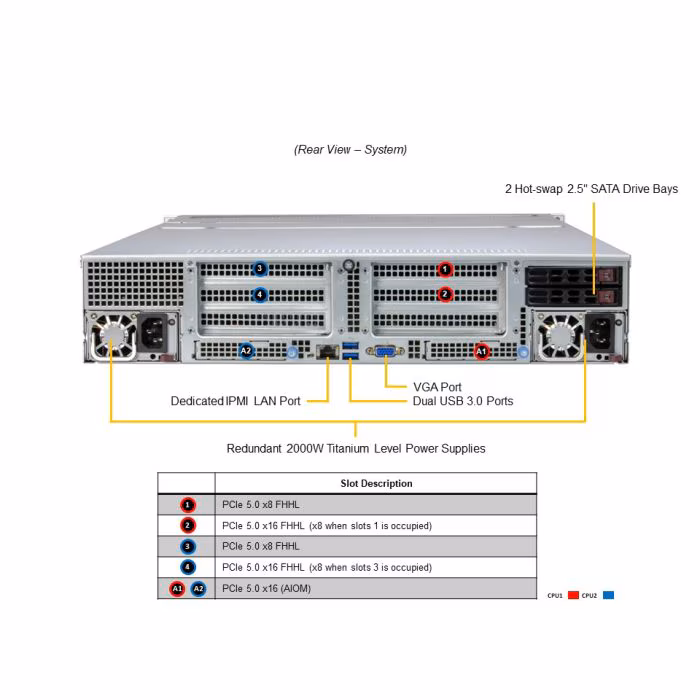

PCI-Express (PCIe) Configuration:
Default
4x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A
2x PCIe 5.0 x8 FHHL slots
1x PCIe 5.0 x16 FHHL slot
Option B
2x PCIe 5.0 x16 FHHL slots
4x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A
2x PCIe 5.0 x8 FHHL slots
1x PCIe 5.0 x16 FHHL slot
Option B
2x PCIe 5.0 x16 FHHL slots
Drive Bays Configuration:
Default: Total 24 bays

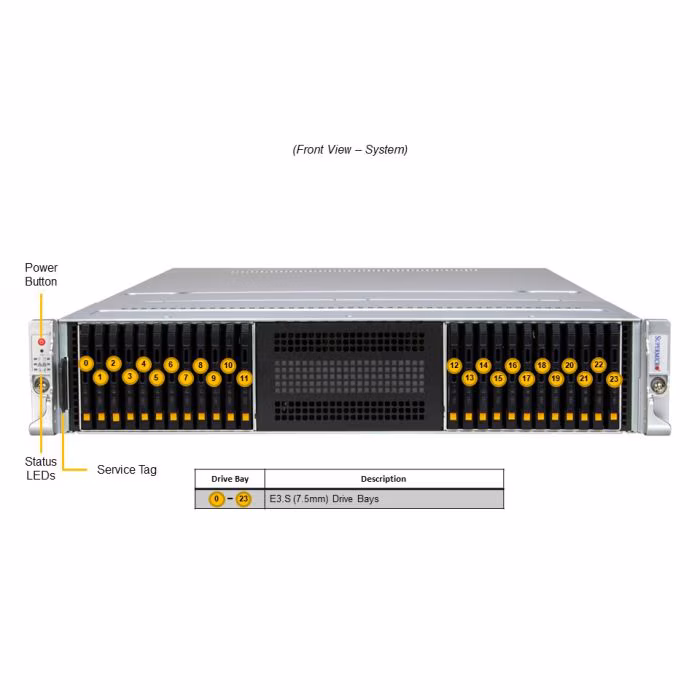

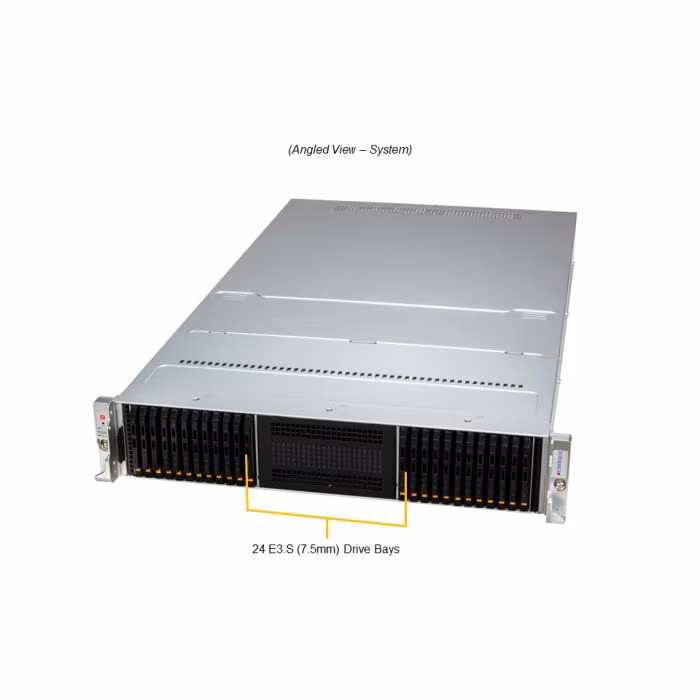

24x front hot-swap E3.S 1T NVMe drive bays
24x front hot-swap E3.S 1T NVMe drive bays
M.2:
2x M.2 NVMe/SATA slots (M-key 2280/22110)
Fans:
4x Heavy Duty 8cm Fan(s)
Air Shroud:
2x Air Shrouds
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Rohs:
RoHS Compliant
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A
Max: 3.5A
Output Type:
Backplanes (gold finger)
Power Supplies:
1x 2000W Redundant Titanium Level (96%) power supply
Height:
3.5 in
Width:
17.2 in
Depth:
30.8 in
Package Height:
10 in
Package Width:
26.5 in
Package Depth:
43.25 in
Gross Weight:
76.94 lb
Net Weight:
54.9 lb
Available Color:
Silver
Form Factor:
2U Rackmount
Model:
CSE-236E3-R2K08P
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Network Cards
AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX ENAOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710AOC-SGP-I2 -Standard LP 2-port GbE, Intel 82575More-AOC Compatibility Matrix (Select Storage & Generation)
Power Cord
CBL-PWCD-0579-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250VCBL-PWCD-0300-IS-PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACHCBL-PWCD-0579-1-Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
TPM
AOM-TPM-9670V-O 1TPM 2.0, vertical form factor, provisioned for serverAOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
