Supermicro
SSG-521E-E1CR24H-G1
RFQ Only

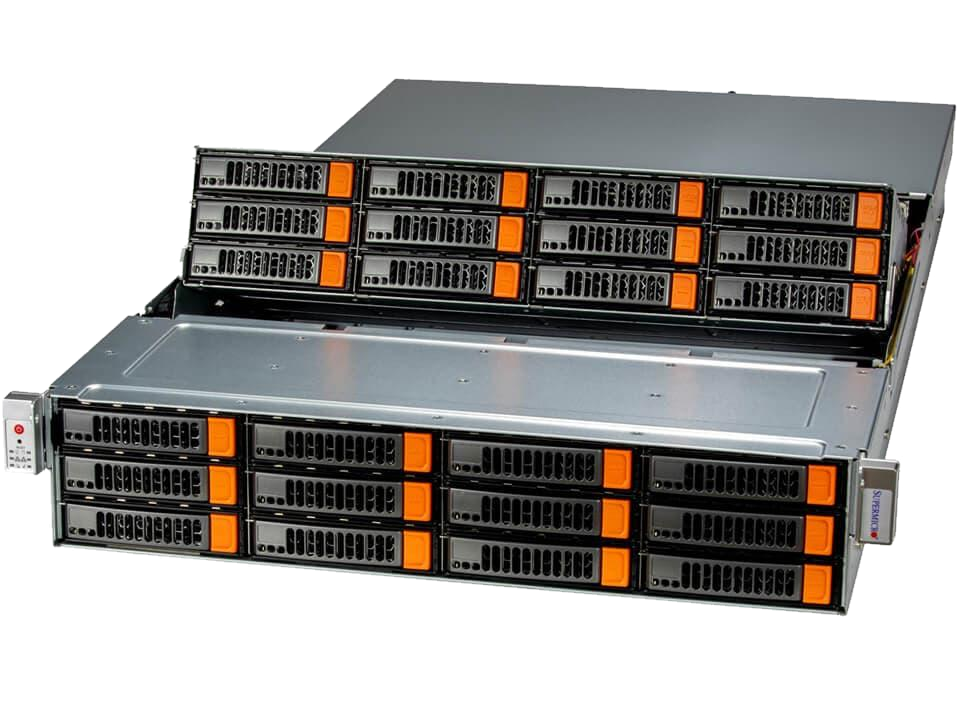

This robust 2U rack server is engineered for demanding workloads such as software-defined storage, data-intensive HPC, NVMe over Fabrics solutions, in-memory computing, and private & hybrid cloud environments. Powered by single Intel® Xeon® Silver 4510 processors with 12 cores each and 256GB of DDR5-5600 RDIMM memory, it delivers exceptional performance for complex tasks. A 960GB M.2 NVMe drive ensures rapid boot and application loading, while two 20TB SATA hard drives provide ample storage capacity. Connect seamlessly with four 10GbE RJ45 LAN ports via AIOM and take advantage of our 24-hour shipping for rapid deployment.
SKU: SSG-521E-E1CR24H-G1
Features
Key Features
- CPU - Single Intel® Xeon® Silver 4510 Processors (12-Cores)
- Chassis - 2U / 1 Node
- Drive - 1x 960GB M.2 NVMe + 2x 20TB 3.5" SATA Hard Drive (Includes SAS Hardware RAID)
- RAM - 4x 64GB DDR5-5600 RDIMM Memory
- Network Ports - 4x 10GbE RJ45 LAN Ports via AIOM
Use Cases
Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks
Motherboard
Super X13SEDW-F
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
DOM:
2x SuperDOM (Disk on Module) ports
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
Intel® C741
Network Connectivity:
Via AIOM
CPU:
7x Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Cache:
Up to 180MB Cache
Cores:
Up to 36C/72T
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note:
Supports 120W - 300W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 32MB SPI Flash EEPROM
Memory:
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chassis
CSE-826S3TS-R1K62P1
Dimensions
Expansion Slots
Form Factor
Front Panel
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Silver
Depth:
34 in
Gross Weight:
74.52 lb
Height:
3.5 in
Net Weight:
52.03 lb
Package Depth:
52 in
Package Height:
12 in
Package Width:
29 in
Width:
17.2 in

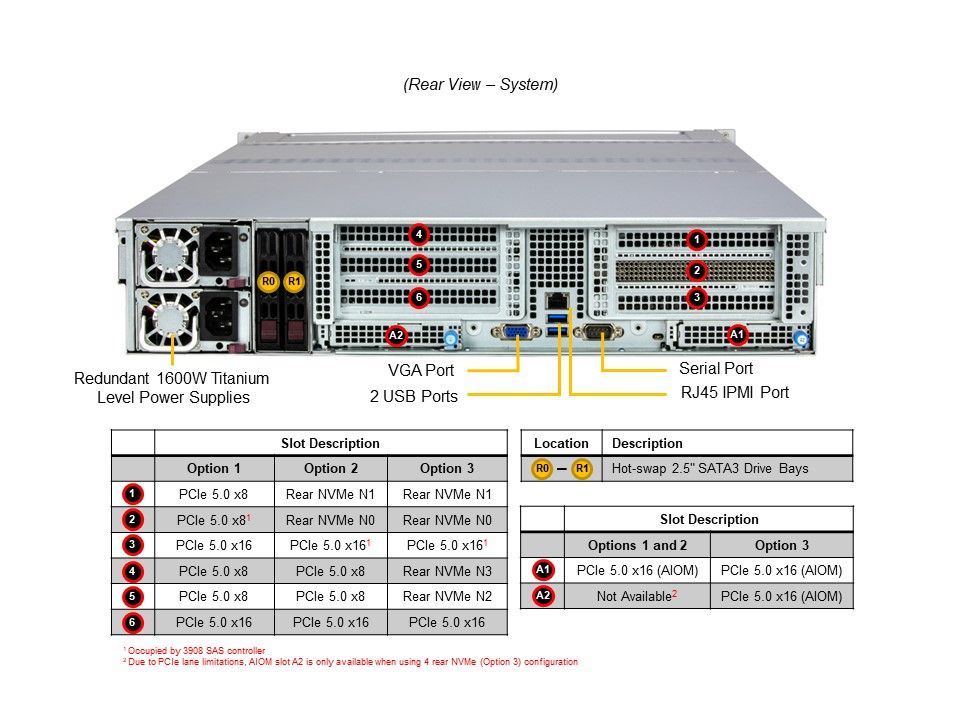

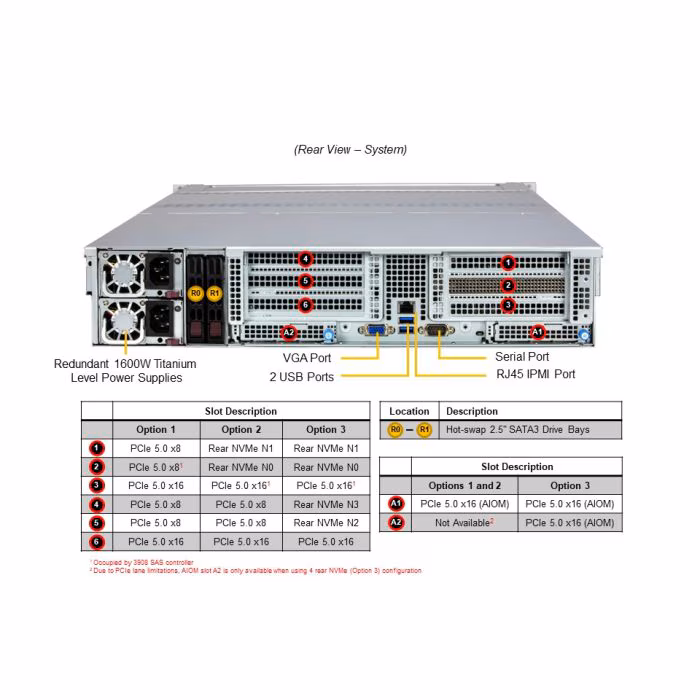

PCI-Express (PCIe) Configuration:
Default
4x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
2x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
4x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
2x PCIe 5.0 x8 FHHL slots
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B
2x PCIe 5.0 x16 FHHL slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Form Factor:
Rackmount
Buttons:
Power On/Off
LED:
Network activity
Power status
SSD activity
System information (overheat/UID)
Power status
SSD activity
System information (overheat/UID)
Model:
CSE-826S3TS-R1K62P1
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Rohs:
RoHS Compliant
2x 1600W Titanium
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 2.1A / Min: 0A
Certification:
Titanium Level
Description:
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
Output Type:
Backplanes (gold finger)
Test Report:
https://www.supermicro.com/products/powersupply/80PLUS/80PLUS_PWS-1K62A-1R.pdf

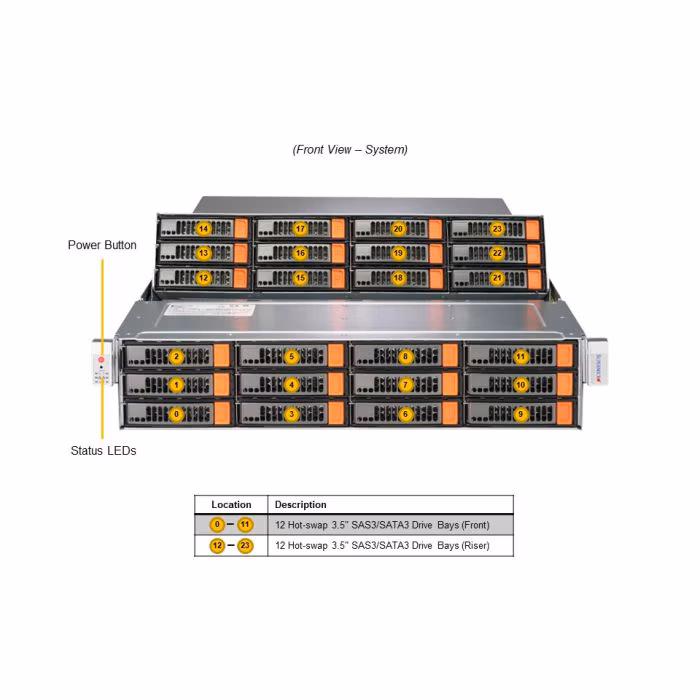

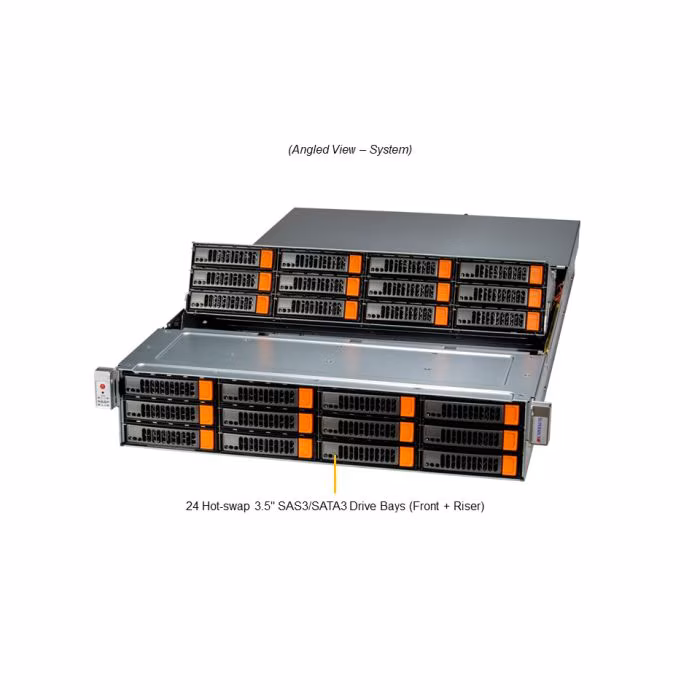

Drive Bays
Configuration 1
Count:
12
Form Factor:
3.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 2
Count:
12
Form Factor:
3.5"
Location:
top-loading
Option:
default
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 3
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 4
Count:
12
Form Factor:
3.5"
Location:
front
Option:
option_a
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 5
Count:
12
Form Factor:
3.5"
Location:
top-loading
Option:
option_a
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 6
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
option_a
Interface
Configuration 1
Interface:
SATA
Configuration 7
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
option_a
Interface
Configuration 1
Interface:
NVMe
Configuration 8
Count:
12
Form Factor:
3.5"
Location:
front
Option:
option_b
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 9
Count:
12
Form Factor:
3.5"
Location:
top-loading
Option:
option_b
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 10
Count:
4
Form Factor:
2.5"
Location:
rear
Option:
option_b
Interface
Configuration 1
Interface:
NVMe
Configuration 11
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
option_b
Interface
Configuration 1
Interface:
SATA
M.2
Count:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 4 Heavy Duty 8cm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Converter Tray
MCP-220-00140-0BBlack gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
Network Cards
AOC-S25G-M2SStandard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX ENAOC-S40G-I2QStandard LP 2-port 40GbE controller, Intel Fortville XL710AOC-SGP-I2Standard LP 2-port GbE, Intel 82575MoreAOC Compatibility Matrix (Select Storage & Generation)
NVMe Kit (1-2 NVMe Drive Support)
CBL-0296L1Fan Cable (1 Per NVMe Kit)CBL-PWEX-1136-701Rear Right Power CableMCP-240-00206-0N1Rear Right NVMe KitRSC-D-6G51Riser for Rear Right NVMe Kit
NVMe Kit (3-4 NVMe Drive Support)
CBL-0296L2Fan Cable (1 Per NVMe Kit)CBL-MCIO-1225M5Y2Connect to JAIOM2_1 & JAIOM2_2CBL-PWEX-1136-401Rear Left Power CableCBL-PWEX-1136-701Rear Right Power CableMCP-240-00206-0N1Rear Right NVMe KitMCP-240-00207-0N1Rear Left NVMe KitRSC-D-6G51Riser for Rear Right NVMe KitRSC-DR-6G51Riser for Rear Left NVMe Kit
Power Cord
CBL-PWCD-0300-ISPWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACHCBL-PWCD-0579Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250VCBL-PWCD-0579-1Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Short Rail
MCP-290-11808-0NSupermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm)
SuperCap Kit
BTR-CV3908-FT11LSI 3908 CacheVault kit for Fat Twin w/ 24in extension cable
TPM
AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for serverAOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
