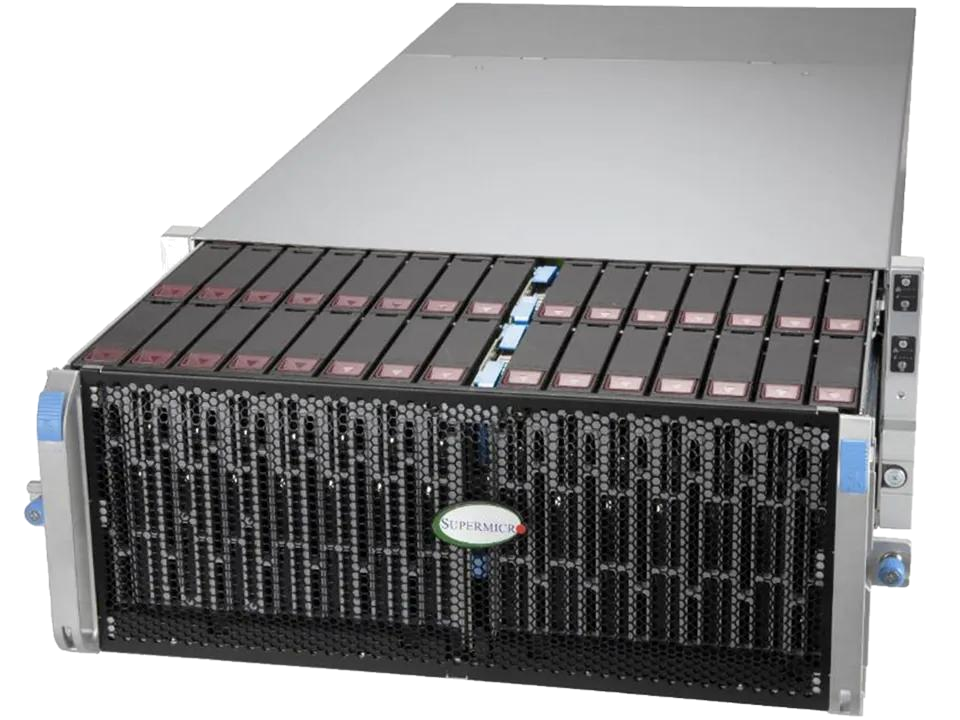

Supermicro
$181,463.70SSG-542B-DE1CR90-01-G2
Expand your data center storage confidently with the Supermicro Gold Series 4U SuperServer, designed for high-capacity, reliable data management and immediate deployment. The system features a dual Intel® Xeon® 6736P processor and 16 64GB RDIMM memory, providing strong performance and efficiency for large-scale storage needs.
This high-density 1-node chassis includes 90 24TB 3.5" SATA HDDs and 4 960GB M.2 NVMe SSDs, offering substantial capacity and tiered storage performance for database applications, backup, cold storage, data warehousing, and archiving.
Dual 1GbE RJ45 network ports support fast, low-latency data transfers for reliable access to critical datasets. Ready for rapid deployment, this enterprise-grade solution ships within 24 hours, making it a practical choice for organizations seeking to expand storage infrastructure quickly and cost-effectively while maintaining performance and data integrity.
SKU: SSG-542B-DE1CR90-01-G2
Features
Key Features
- CPU - Single Intel® Xeon® 6736P Processor 36-Cores 2.0GHz 144MB Cache (205W) (Per Node)
- Chassis - 4U / 2 Node
- Drive - 2x 960GB M.2 NVMe + 45x 24TB 3.5" SATA Hard Drive (Per Node)
- RAM - 8x 64GB DDR5 5200MHz RDIMM Memory (Per Node)
- Network Ports - Dual 1GbE RJ45 Ports + 1x NVIDIA® ConnectX®-6 VPI Dual 200GbE QSFP56 (Per Node)
Use Cases
Big Data & Analytics, Data Lake
HPC and AI/ML Workloads
Telco & Cloud Service Providers
Financial Services & Healthcare Image Archives
Content Repositories
Government Data Protection

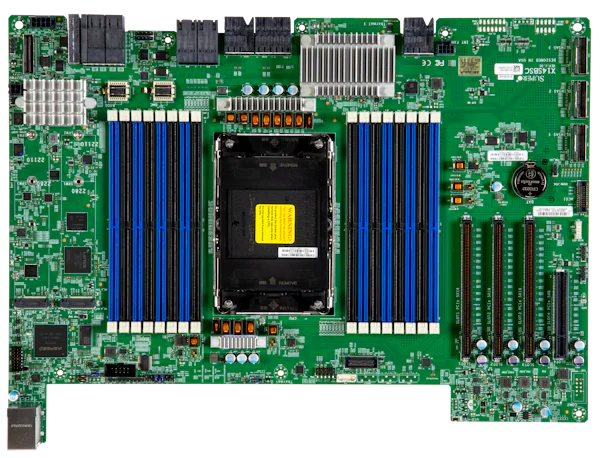

Motherboard
Super X14SBSC
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
Input / Output (Per Node)
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
On-Board Devices (Per Node)
Chipset:
System on Chip
Network Connectivity:
No NIC option supported
NVMe:
NVMe; RAID 0/1 support
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Processor (Per Node)
Core Count:
P-cores: Up to 86C/144T; Up to 108MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
CPU:
Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Note:
Supports up to 350W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 64MB SPI Flash
System Memory (Per Node)
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage:
1.1V
Chassis
CSE-947HTS-R2K63P
Dimensions
Expansion Slots
Form Factor
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
N/A
Depth:
43.3 in
Gross Weight:
225.09 lb
Height:
6.96 in
Net Weight:
130.07 lb
Package Depth:
52.95 in
Package Height:
29.72 in
Package Width:
35.83 in
Width:
17.6 in

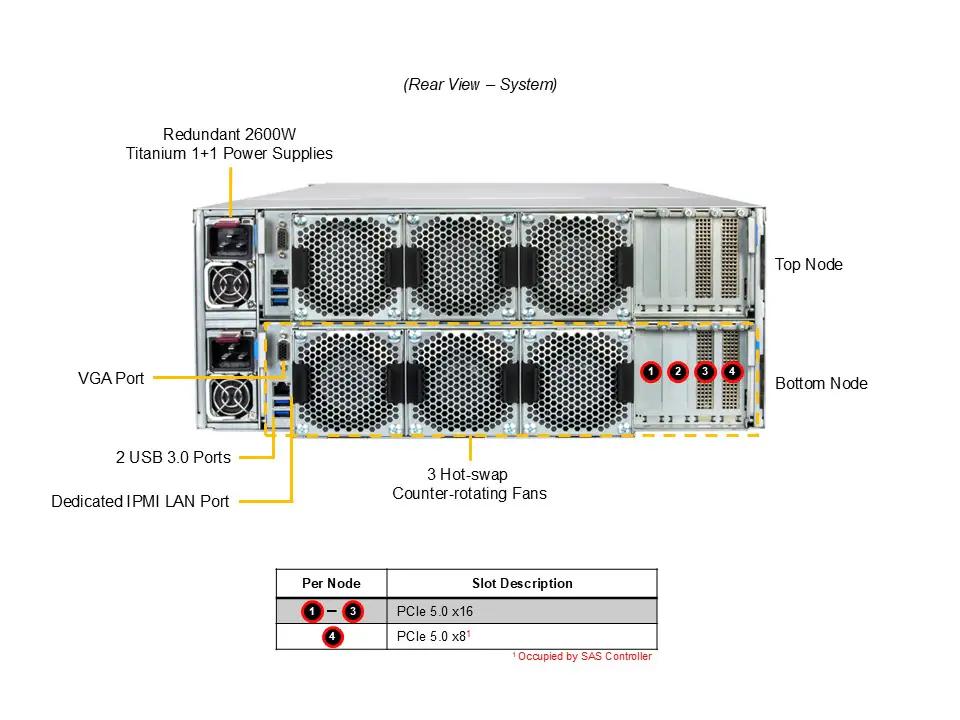

Expansion Slots (Per Node)
M.2:
2x M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x8 (in x8) HHHL slot
3x PCIe 5.0 x16 (in x16) HHHL slots
1x PCIe 5.0 x8 (in x8) HHHL slot
3x PCIe 5.0 x16 (in x16) HHHL slots
Form Factor:
Rackmount
Model:
CSE-947HTS-R2K63P
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 2600W Titanium
+12V:
Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A
Description:
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
Output Type:
Backplanes (gold finger)

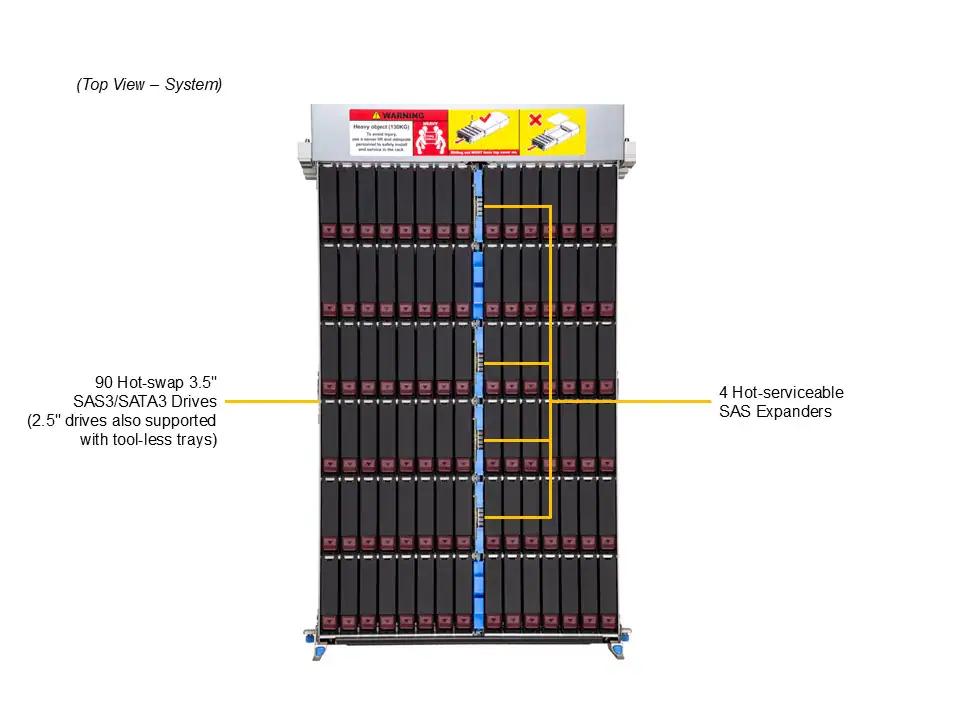

Drive Bays
Configuration 1
Count:
90
Form Factor:
3.5"/2.5"
Location:
top-loading
Option:
default
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
Configuration 2
Count:
2
Form Factor:
2.5"
Location:
internal
Option:
option_a
Interface
Configuration 1
Interface:
PCIe 5.0 x4 NVMe
M.2
Count:
2
Generation:
PCIe 4.0
Lanes:
2
Keys
Configuration 1
Keys:
M
Fans:
Up to 1 Counter Rotating 6cm Fan(s)
Up to 6 Heavy Duty 8cm Fan(s)
Up to 6 Heavy Duty 8cm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
