Supermicro
SSG-640SP-E1CR60-G1
RFQ Only
This robust 4U server is engineered for data-intensive applications, providing a reliable and scalable platform for Big Data & Analytics, Telco & Cloud Service Providers, Content Repositories, HPC and AI/ML workloads, Financial Services & Healthcare Image Archives, and Government Data Protection. Powered by dual Intel Xeon Silver 4310 processors with 12 cores each and 4 64GB DDR4-3200 RDIMM memory modules, this server delivers the performance needed to handle demanding workloads. It offers a balanced storage solution with a 960GB M.2 NVMe drive for rapid access and 4 20TB SATA hard drives for mass storage. Equipped with dual 10GbE RJ45 LAN ports for network connectivity and ready to ship within 24 hours, this server provides a solid foundation for your data-centric operations.
SKU: SSG-640SP-E1CR60-G1
Features
Key Features
- CPU - Dual Intel® Xeon® Silver 4310 Processors (12-Cores)
- Chassis - 4U / 1 Node
- Drive - 1x 960GB M.2 NVMe + 4x 20TB SATA Hard Drives (Includes RAID Controller)
- RAM - 4x 64GB DDR4-3200 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 LAN Ports
Use Cases
Big Data & Analytics, Data Lake
HPC and AI/ML Workloads
Telco & Cloud Service Providers
Financial Services & Healthcare Image Archives
Content Repositories
Government Data Protection
Motherboard
Super X12DSC-6
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System BIOS
System Memory
DOM:
2x SuperDOM (Disk on Module) ports
LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
2x RJ45 10 GBASE-T LAN ports
2x RJ45 10 GBASE-T LAN ports
USB:
2x USB 3.0 ports(rear)
Video:
1x VGA port
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
Intel® C621A
Network Connectivity:
2x RJ45 10GBASE-T
CPU:
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Thermal Control for fan connectors
Core Count:
Up to 36C/72T; Up to 54MB Cache per CPU
CPU:
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
3rd Gen Intel® Xeon® Scalable processors
Note:
Supports 120W - 205W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
BIOS Type:
AMI 128MB SPI Flash EEPROM
Memory:
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage:
1.2V
Chassis
CSE-947STS-R2K05P
Dimensions
Expansion Slots
Form Factor
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
N/A
Depth:
32 in
Gross Weight:
169.98 lb
Height:
6.96 in
Net Weight:
106.92 lb
Package Depth:
44.69 in
Package Height:
29.72 in
Package Width:
31.69 in
Width:
17.6 in
PCI-Express (PCIe) Configuration:
Default
3x PCIe 4.0 x16 LP slots
3x PCIe 4.0 x16 LP slots
Form Factor:
Rackmount
Model:
CSE-947STS-R2K05P
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% ()
Non-operating Relative Humidity: 5% to 95% ()
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% ()
Non-operating Relative Humidity: 5% to 95% ()
Rohs:
RoHS Compliant
Tab-200 Titanium
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-120Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 166.7A / Min: 0A (200Vac-240Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac)
Max: 83.3A / Min: 0A (100Vac-120Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 166.7A / Min: 0A (200Vac-240Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB:
Max: 2.1A / Min: 0A
Description:
2x 2000W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-127Vac
200-240Vac
1000W: 100-120Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vdc
2000W: 230-240Vac / 50-60Hz
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
200-240Vac
1000W: 100-120Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vdc
2000W: 230-240Vac / 50-60Hz
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
Output Type:
Backplanes (gold finger)
Drive Bays
Configuration 1
Count:
2
Form Factor:
2.5"
Location:
rear
Option:
default
Interface
Configuration 1
Interface:
SATA
Configuration 2
Count:
4
Form Factor:
2.5"
Location:
rear
Option:
default
Interface
Configuration 1
Interface:
NVMe

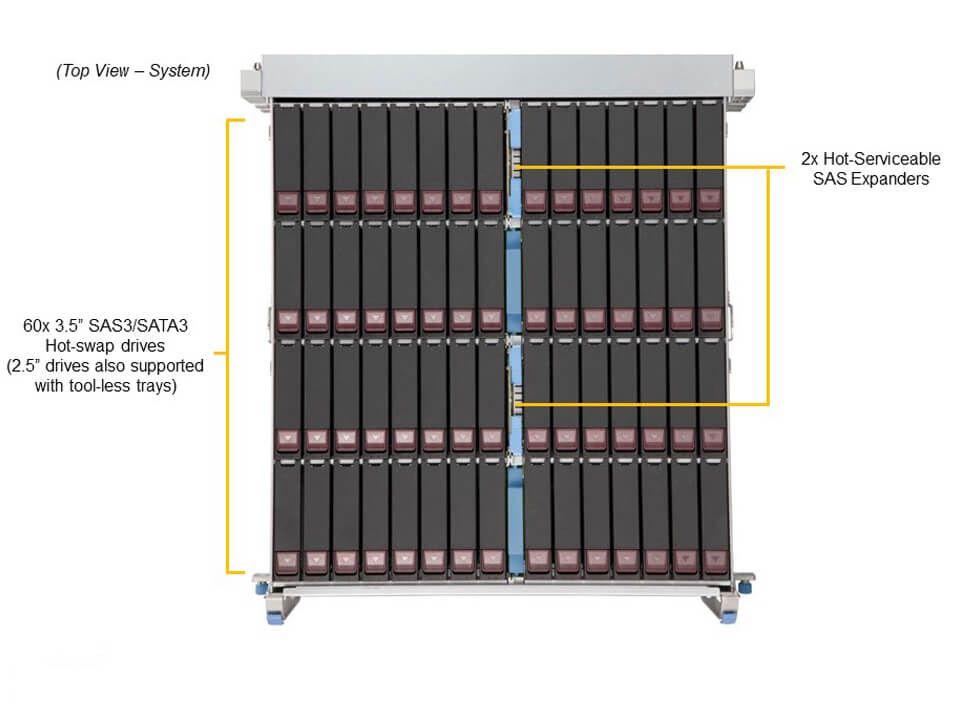

Configuration 3
Count:
60
Form Factor:
3.5"/2.5"
Location:
top-loading
Option:
default
Interface
Configuration 1
Interface:
SAS
Configuration 2
Interface:
SATA
M.2
Count:
2
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 6 Heavy Duty 8cm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
HBA option
AOM-S3816-S-O1SAS3816 mezzanine controller for serviceable 60/90 bay systems
HW RAID option
AOC-S3916L-H16IR1AOC with SAS3916 controller (U3) and 240PD RAID Key (U39)AOM-SADPT-S1Bypass card for 60/90 bay systemsCBL-SAST-1213-1002Slimline x8 (STR) to Slimline x8 (STR),14CM,100 OHM,RoHS (One per Node)
Network Cards
AOC-S25G-M2SStandard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX ENAOC-S40G-I2QStandard LP 2-port 40GbE controller, Intel Fortville XL710AOC-SGP-I2Standard LP 2-port GbE, Intel 82575MoreAOC Compatibility Matrix (Select Storage & Generation)
NVME kit (only 1 is needed)
BPN-NVMe4-228N-S412U 4-Slot SFF BPN supports 4x NVMe Storage DevicesCBL-PWEX-1093-261[NR]MicroFit,2x2, PH3.0,F to MicroFit,2x2,PH3.0,F,26CM,10A/pCBL-SAST-10492[NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,RMCP-220-00178-0B42.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
SuperCap Kit (Need Both items)
BTR-CVPM051Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)MCP-240-94711-0N1SC947 MB Node Supercap holder module,RoHS (Optional)
TPM
AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for serverAOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
