SupermicroSYS-110P-FRN2T-02-G1
Out of stock

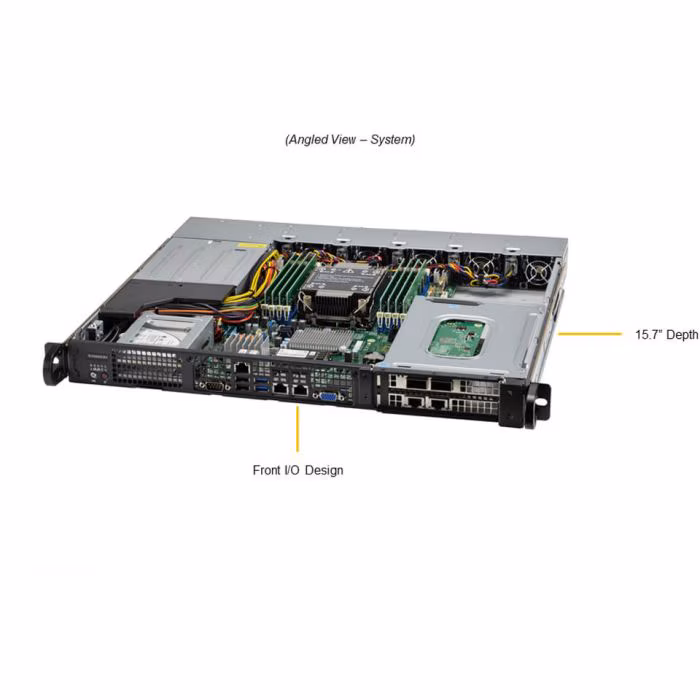

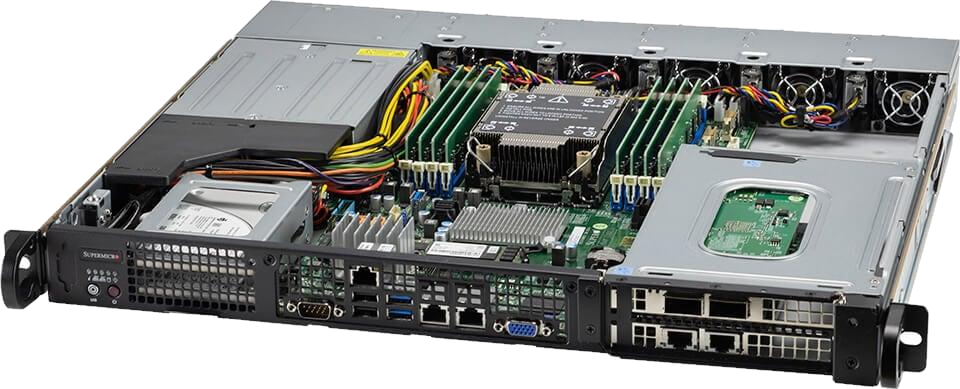

This compact 1U server, driven by a 12-core Intel® Xeon® 4310 processor and 64GB of DDR5-3200 RDIMM memory, is optimized for edge-centric workloads. It's well-suited for Multi-Access Edge Computing (MEC), Artificial Intelligence (AI) and Machine Learning (ML) at the edge, as well as Flex-RAN and Open-RAN vBBU deployments. Storage is handled efficiently with a 480GB M.2 NVMe drive for rapid OS and application access, complemented by a 480GB 2.5" SATA SSD for data storage. Network connectivity is provided by dual 10GbE RJ45 LAN ports, ensuring robust and high-speed data transfer. Crucially, this server offers rapid deployment, shipping within 24 hours to accelerate your edge infrastructure rollout.
SKU: SYS-110P-FRN2T-02-G1
Features
Key Features
- CPU - Single Intel® Xeon® 4310 Processor (12-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 480GB M.2 NVMe + 1x 480GB 2.5" SATA SSD
- RAM - 4x 16GB DDR5-3200 RDIMM Memory
- Network Ports - 2x 10GbE RJ45 LAN Ports
Use Cases
Multi-Access Edge Computing
Flex-RAN, Open-RAN vBBU
Artificial Intelligence (AI) on Edge, Machine Learning (ML)
Motherboard
Super X12SPW-TF
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
Memory:
Slot Count: 8 DIMM slots
Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage:
1.2V
Chipset:
Intel® C621A
Network Connectivity:
2x RJ45 10GBASE-T with Intel® X550
SATA:
SATA (6Gbps) ; RAID 0/1 support
LAN:
2x RJ45 10 GbE LAN ports
USB:
2x USB 3.0 Type-A ports
2x USB 2.0 Type-A ports
2x USB 2.0 Type-A ports
Video:
1x VGA port
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
Fan:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support, PEPI
CPU thermal trip support, PEPI
CPU:
Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
3rd Gen Intel® Xeon® Scalable processors
Cores:
Up to 32C/64T; Up to 48MB Cache
Note:
Supports 85W - 205W TDP CPUs (Air Cooled)
Chassis
CSE-515M-R804

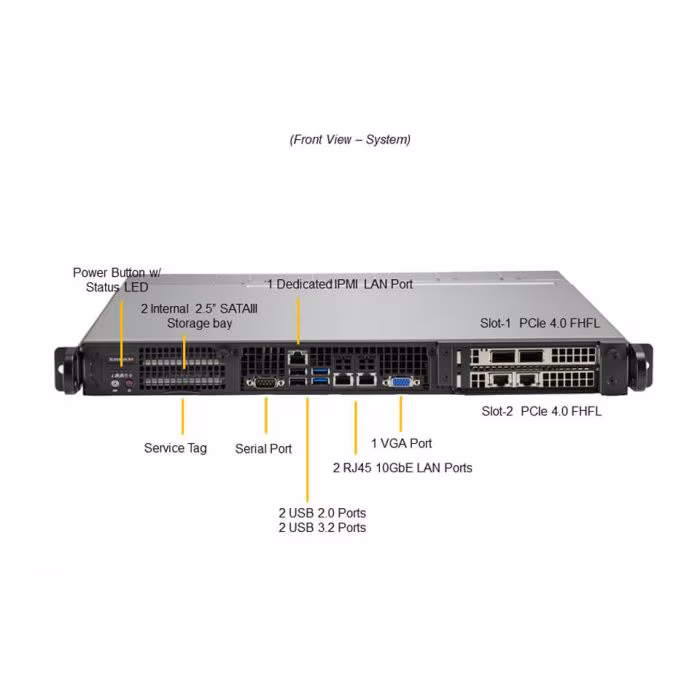

Front Panel
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
Buttons:
Power On/Off button
System Reset button
System Reset button
LED:
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
HDD activity LED
Network Activity LEDs
Power status LED
PCI-Express (PCIe) Configuration:
Default
2x PCIe 4.0 x16 FHFL slots
2x PCIe 4.0 x16 FHFL slots
Drive Bays Configuration:
Default: Total 2 bays
2x internal fixed 2.5" SATA drive bays
2x internal fixed 2.5" SATA drive bays
M.2:
1x M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)

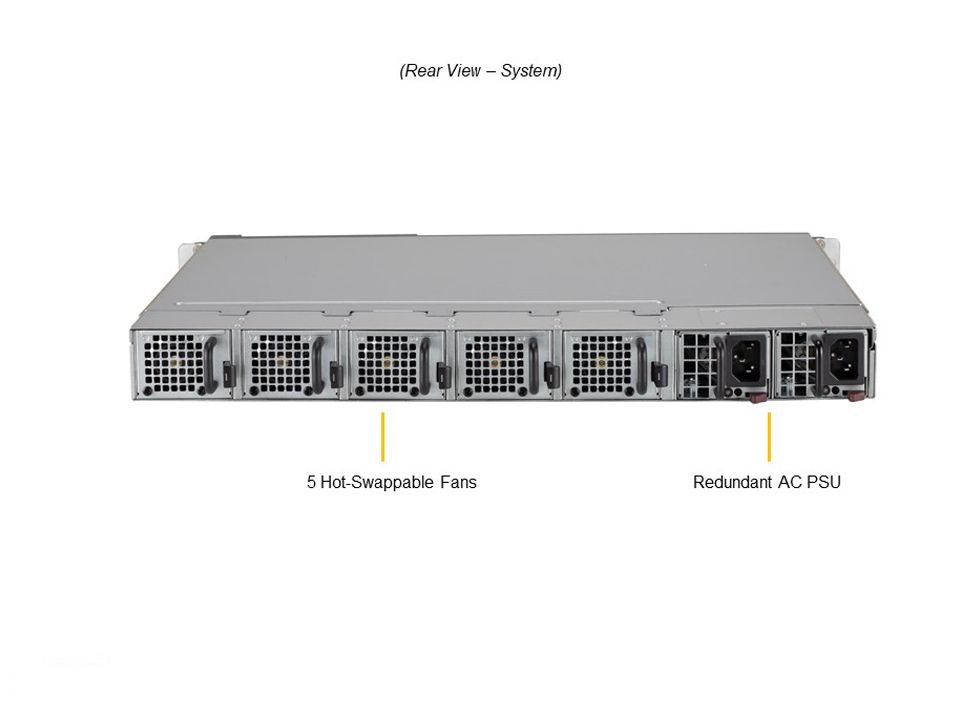

Fans:
5x heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
54.5 x 40.25 x 220 mm
Input:
100-127Vac 750W: 100-127Vac / 50-60Hz 200-240Vac 800W: 200-240Vac / 50-60Hz 230-240Vdc 800W: 230-240Vdc / 50-60Hz
+12V:
Max: 62.5A / Min: 0.5A (100Vac-127Vac) Max: 62.5A / Min: 0A (100Vac-127Vac) Max: 66.6A / Min: 0.5A (200Vac-240Vac) Max: 66.6A / Min: 0A (200Vac-240Vac) Max: 66.6A / Min: 0.5A (230Vdc-240Vdc) Max: 66.6A / Min: 0A (230Vdc-240Vdc)
Output Type:
Backplanes (gold finger)
Power Supply:
1x 800W Redundant Platinum Level (94%) power supply
5V SB:
Max: 4A / Min: 0A
Height:
1.7 in
Width:
17.2 in
Depth:
15.7 in
Package Height:
8 in
Package Width:
27 in
Package Depth:
24 in
Gross Weight:
18.08 lb
Available Color:
Black
Form Factor:
1U
Model:
CSE-515M-R804
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
Motherboard / Chassis
MBD-X12SPW-TF1Super X12SPW-TF MotherboardCSE-515M-R80411U Chassis
Cable
CBL-0483L27pin SATA (STR to STR), 29cm, PBFCBL-OTHR-1214-242FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
Fan
FAN-0207L4240x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
Air Shroud
MCP-310-51507-0B1Mylar Air Shroud for SC515M + X11SPW/X12SPW
Riser Card
RSC-W-66G411U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
Software
SFT-OOB-LIC1License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0077V1X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
Power Supply
PWS-804P-1R21U 800W 100-240VAC/50-60Hz, and DC240V input
Power Distributor
PDB-PT515M-242411U support redundancy up to 800W for SC515M chassis with ATX
TPM security module
AOM-TPM-9671V-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factorAOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
