Supermicro
$8,939.61SYS-111AD-HN2-01-G2

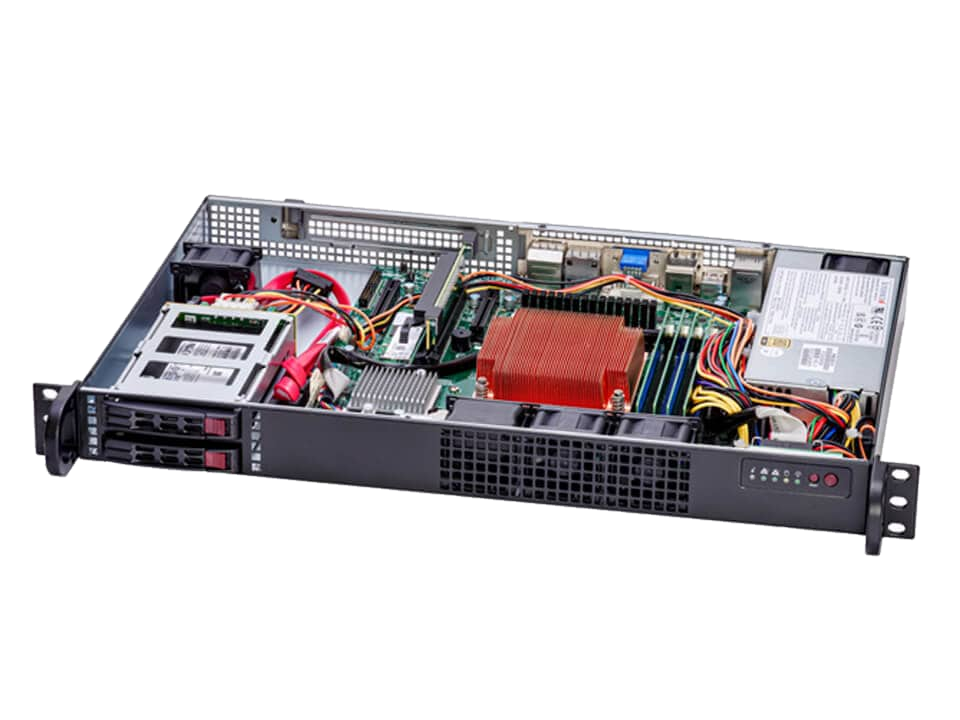

Upgrade your infrastructure with the Supermicro SYS-111AD-HN2, a versatile 1U server designed for reliability in demanding environments. Whether you are running video surveillance, an office server, or an embedded IoT system, this configuration delivers the reliability Supermicro is known for. By utilizing the Intel i7-12700E and 64GB of DDR5 memory, this system handles complex workloads with ease. The compact footprint allows for deployment in shallow racks or remote edge locations without sacrificing connectivity, thanks to integrated dual 2.5GbE ports and a wide array of video outputs including HDMI, DP, and DVI-D.
SKU: SYS-111AD-HN2-01-G2
Features
Key Features
- CPU - Single Intel® Core™ i7-12700E Processor (12-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 1.92TB 2.5" SSD
- RAM - 2x 32GB DDR5-5600 UDIMM Memory
- Network Ports - 2x 2.5GbE RJ45 LAN Ports
Use Cases
Video Surveillance
Office Server, DVR/NVR
Embedded System
Digital Signage / PoS

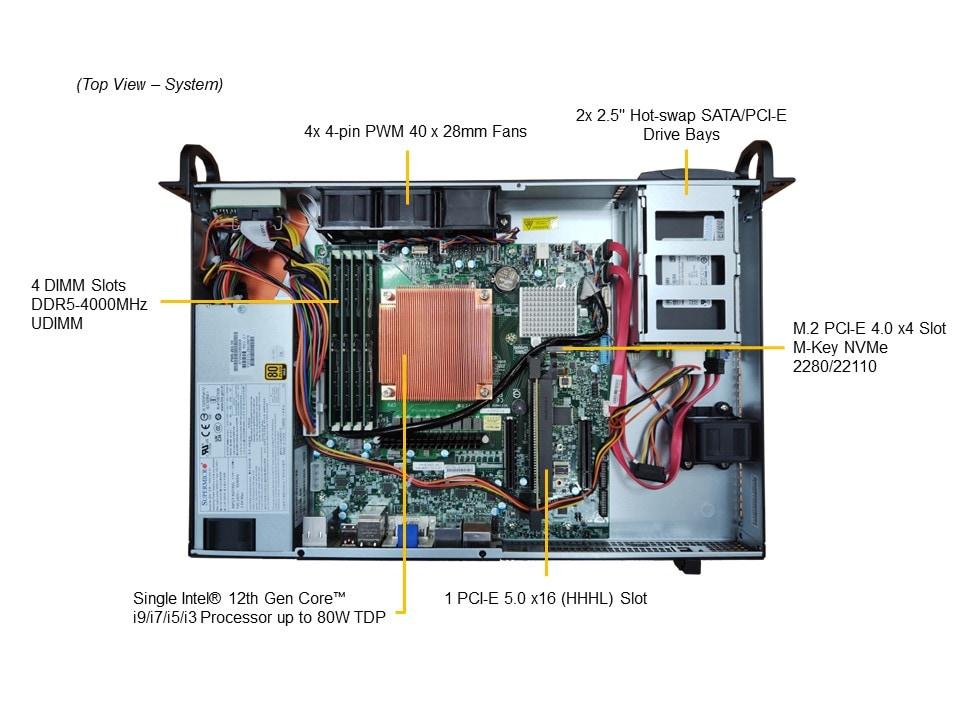

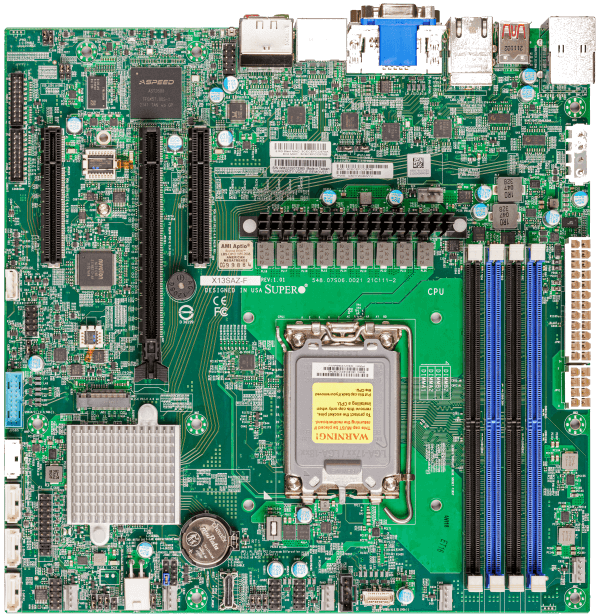

Motherboard
Super X13SAZ-F
Input / Output
Management
On-Board Devices
PC Health Monitoring
Processor
Security
System Memory
Audio:
Line Out
Mic in
Mic in

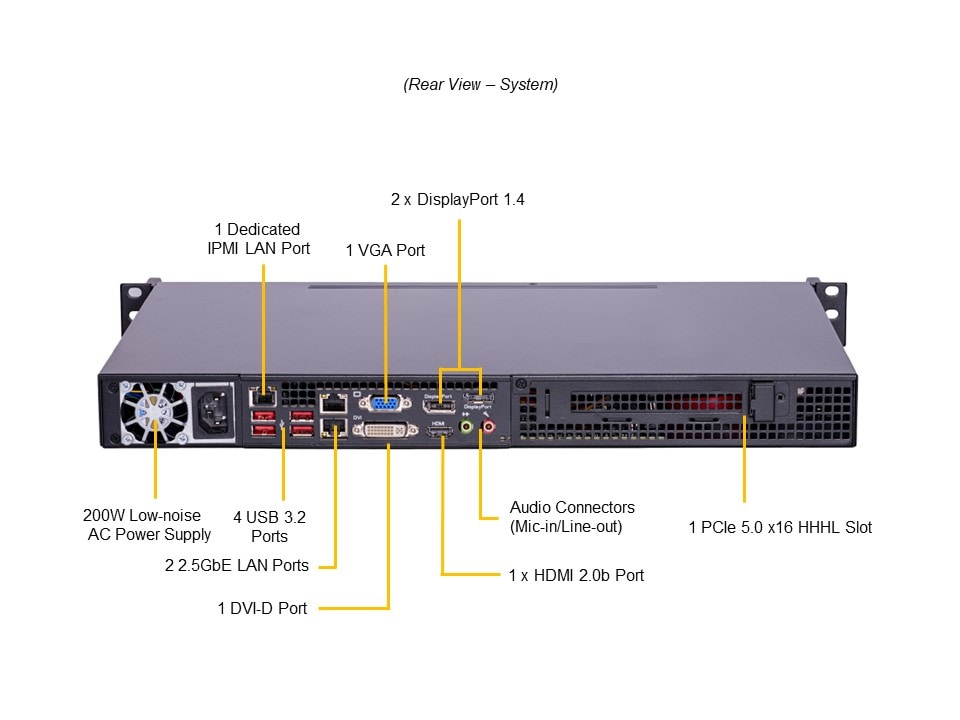

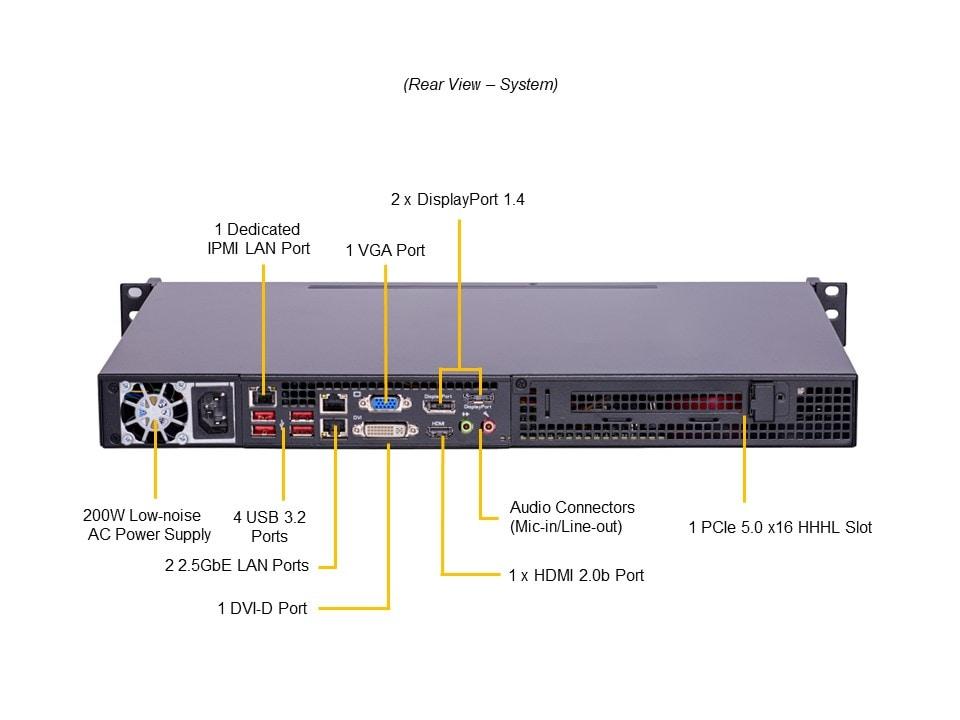

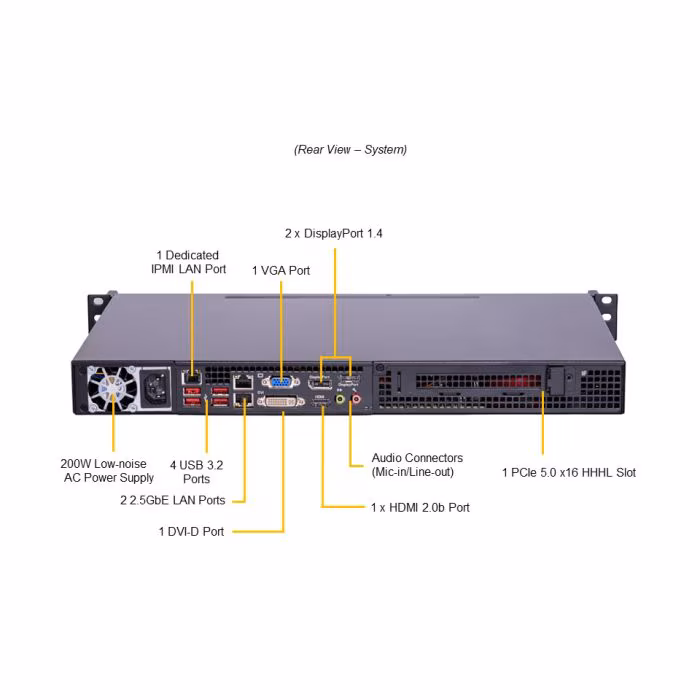

LAN:
2x RJ45 2.5 GbE LAN ports
USB:
4x ports
Video:
1x VGA port
1x HDMI 2.0b port
1x DVI-D port
2x DisplayPort 1.4 ports
1x HDMI 2.0b port
1x DVI-D port
2x DisplayPort 1.4 ports
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Chipset:
Intel® R680E
Network Connectivity:
2x RJ45 2.5GbE with Intel® I225-LM
SATA:
SATA (6Gbps)
Temperature:
Platform Environment Control Interface (PECI) 3.0 support
SuperDoctor® 5
System resource alert via SuperDoctor®5
SuperDoctor® 5
System resource alert via SuperDoctor®5
CPU:
Single Socket V0 (LGA-1700)
14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors
14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors
Note:
Supports up to 80W TDP CPUs (Air Cooled)
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
System Lockdown
Secure Boot
Secure Firmware Updates
System Lockdown
Hardware:
Trusted Platform Module (TPM) 2.0
Memory:
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage:
1.1V
Chassis
CSE-510FT-203B
Dimensions
Expansion Slots
Form Factor
Model
Operating Environment
Power Supply
Storage
System Cooling
Environmental / Recycling
Available Color:
Black

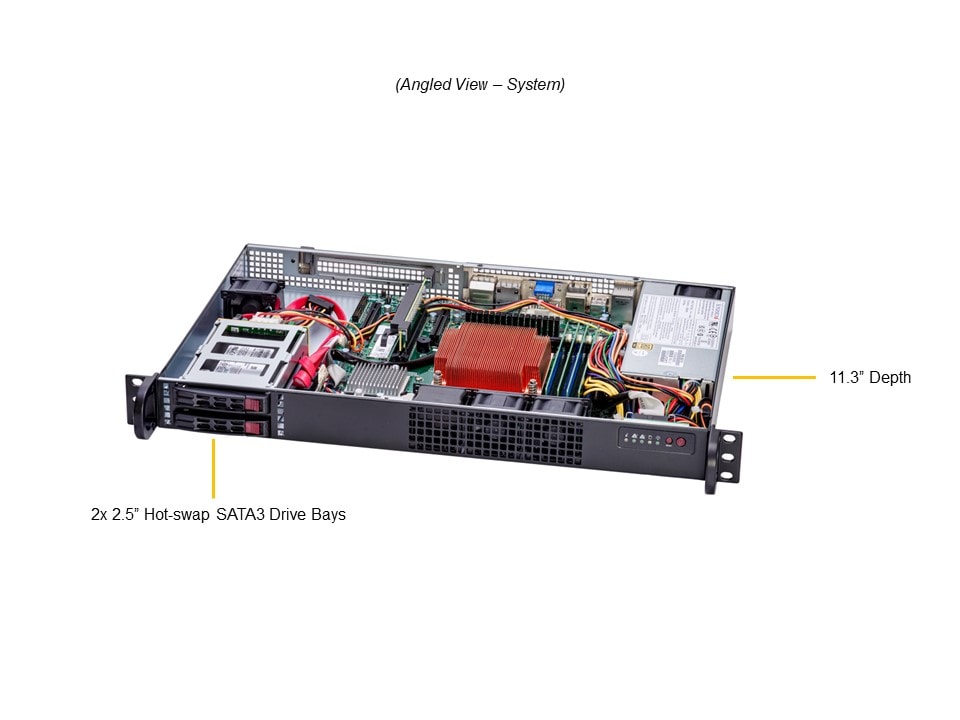

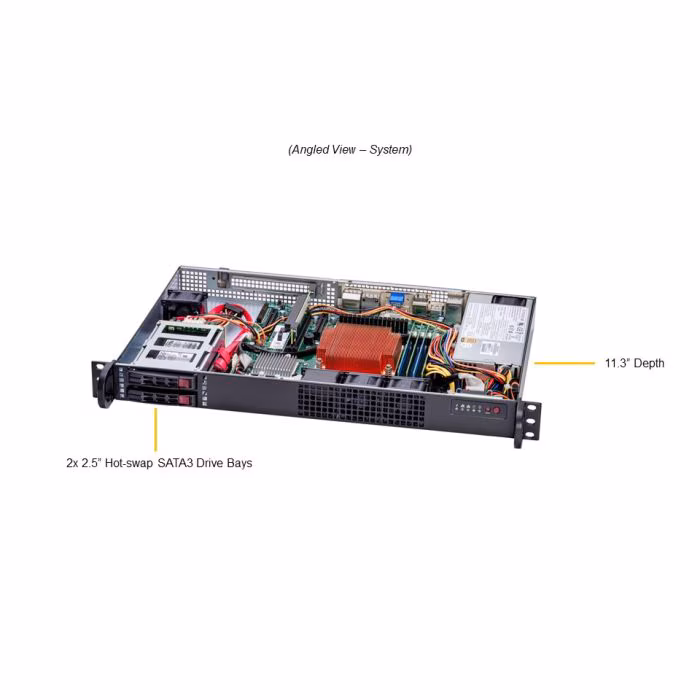

Depth:
11.3 in
Gross Weight:
14.11 lb
Height:
1.7 in
Net Weight:
9.92 lb
Package Depth:
19.8 in
Package Height:
6.1 in
Package Width:
25.4 in
Width:
17.2 in
PCI-Express (PCIe) Configuration:
Default
1x PCIe 5.0 x16 HHHL slot
1x PCIe 5.0 x16 HHHL slot
Form Factor:
Rackmount
Model:
CSE-510FT-203B
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
1x 200W Gold
+12V:
Max: 16A / Min: 0A (100Vac-240Vac)
Max: 16A / Min: 0.1A (100Vac-240Vac)
Max: 16A / Min: 0.1A (100Vac-240Vac)
5V SB:
Max: 2A / Min: 0A
Certification:
Gold Level
Description:
1x 200W Gold Level (91%) power supply
Dimension (W x H x L):
76x x 40.3 x 192 mm
Input:
200W: 100-240Vac
200W: 100-240Vac / 50-60Hz
200W: 100-240Vac / 50-60Hz
Output Type:
20pin ATX

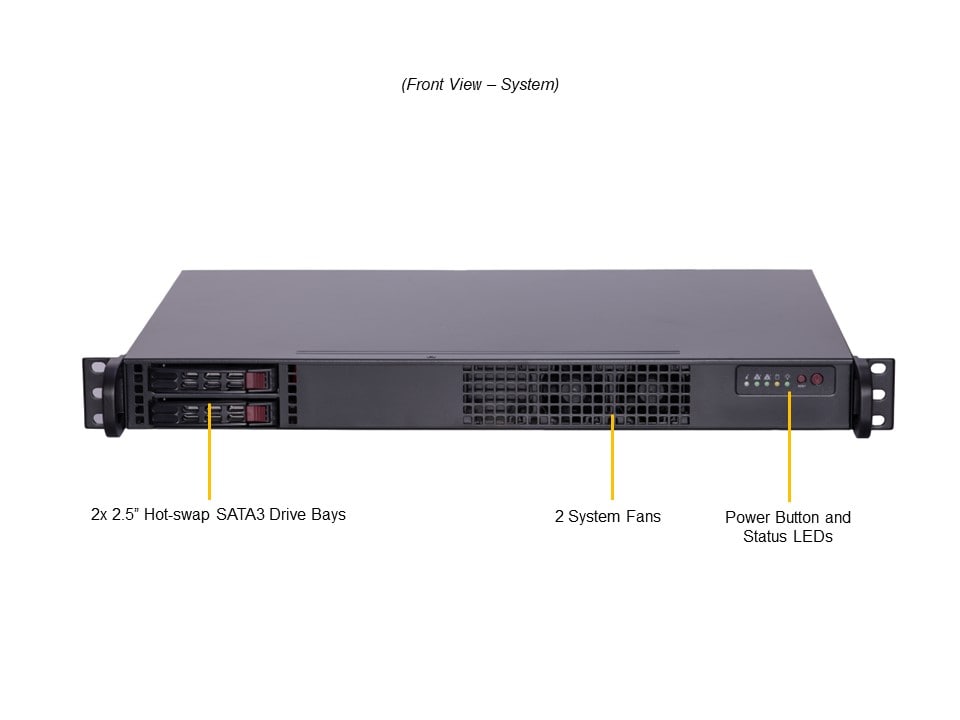

Drive Bays
Configuration 1
Count:
2
Form Factor:
2.5"
Location:
front
Option:
default
Interface
Configuration 1
Interface:
SATA
M.2
Count:
1
Keys
Configuration 1
Keys:
M
Air Shroud:
1x Air Shroud
Fans:
Up to 4x 4-PIN PWM 40x28mm Fan(s)
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
TPM security module
AOM-TPM-9671H-O1SPI capable TPM 1.2 with Infineon 9671 controller with horizontal form factor
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
