SupermicroSYS-111AD-HN2-02-G1
Out of stock

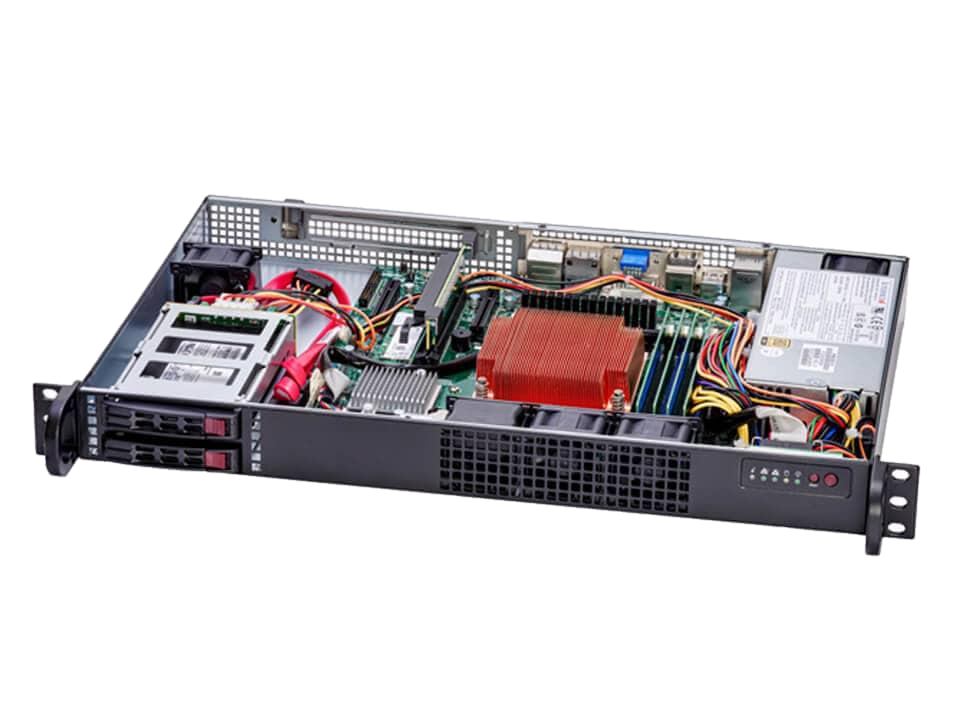

This versatile 1U embedded system, powered by a 12-core Intel® Core™ i7-12700E processor and 32GB of DDR5-4800 UDIMM memory, is engineered for a range of applications, including video surveillance, digital signage POS, office server functions, and DVR/NVR systems. Storage is handled by a spacious 1.92TB 2.5" SATA SSD, providing ample capacity for data and media. Network connectivity is delivered through dual 2.5GbE RJ45 LAN ports, ensuring reliable and high-speed data transfer. Its compact 1U form factor makes it ideal for space-constrained environments, and with 24-hour shipping, it's ready for immediate deployment.
SKU: SYS-111AD-HN2-02-G1
Features
Key Features
- CPU - Single Intel® Core™ i7-12700E Processor (12-Cores)
- Chassis - 1U / 1 Node
- Drive - 1x 1.92TB 2.5" SATA SSD
- RAM - 1x 32GB DDR5-4800 UDIMM Memory
- Network Ports - 2x 2.5GbE RJ45 LAN Ports
Use Cases
Video Surveillance
Office Server, DVR/NVR
Embedded System
Digital Signage / PoS
Motherboard
Super X13SAZ-F
System Memory
On-Board Devices
Input / Output
Management
Security
PC Health Monitoring
Processor
Memory:
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage:
1.1V
Chipset:
Intel® R680E
Network Connectivity:
2x RJ45 2.5GbE with Intel® I225-LM
SATA:
SATA (6Gbps)

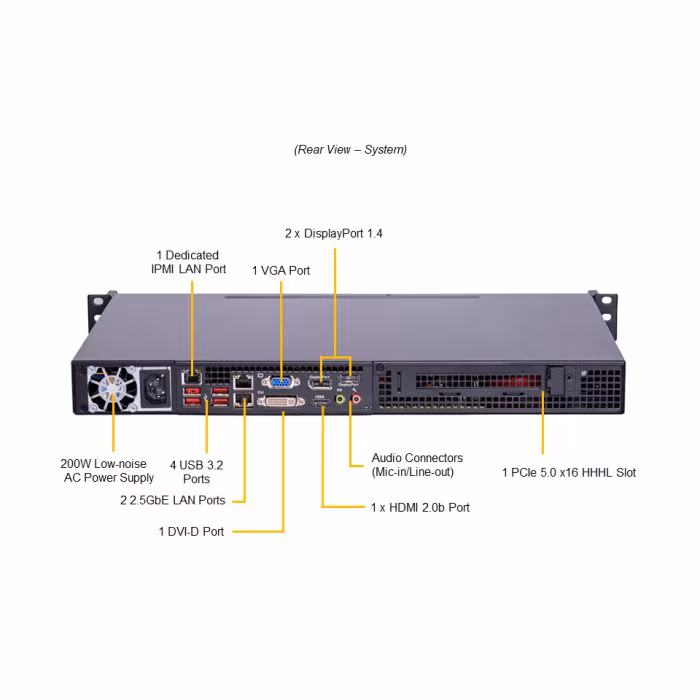

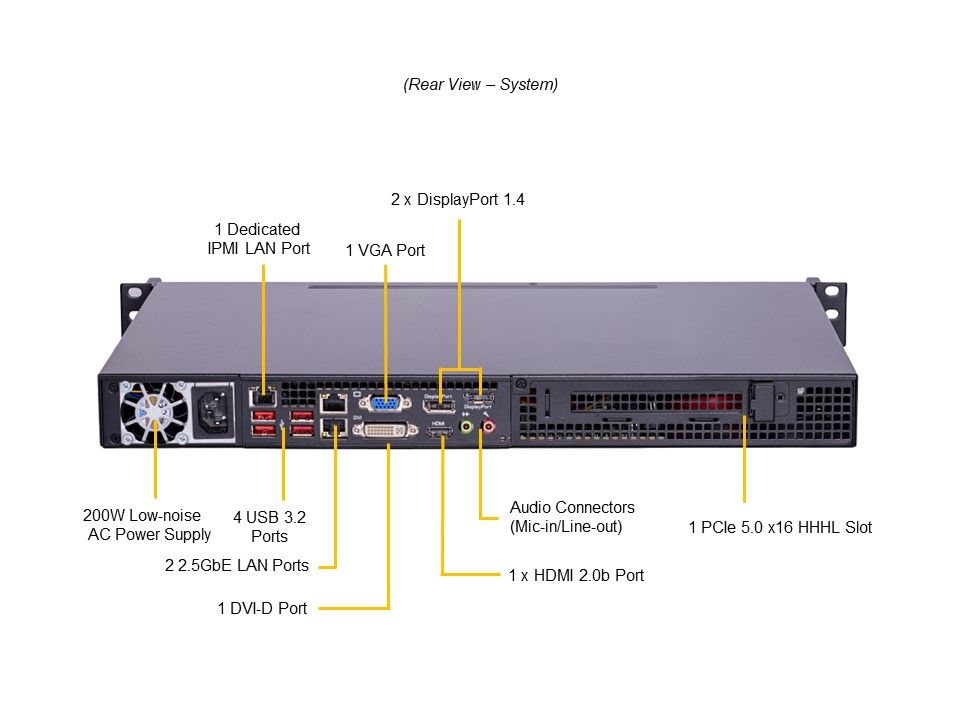

LAN:
2x RJ45 2.5 GbE LAN ports
USB:
4x ports
Video:
1x VGA port
1x HDMI 2.0b port
1x DVI-D port
2x DisplayPort 1.4 ports
1x HDMI 2.0b port
1x DVI-D port
2x DisplayPort 1.4 ports
Audio:
Line Out
Mic in
Mic in
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
ACPI Power Management
Hardware:
Trusted Platform Module (TPM) 2.0
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
System Lockdown
Secure Boot
Secure Firmware Updates
System Lockdown
Temperature:
Platform Environment Control Interface (PECI) 3.0 support
SuperDoctor® 5
System resource alert via SuperDoctor®5
SuperDoctor® 5
System resource alert via SuperDoctor®5
CPU:
Single Socket V0 (LGA-1700); 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors
Note:
Supports up to 80W TDP CPUs (Air Cooled)
Chassis
Expansion Slots
Drive Bays / Storage
System Cooling
Operating Environment
Power Supply
Dimensions
Environmental / Recycling
PCI-Express (PCIe) Configuration:
Default: 1 PCIe 5.0 x16 HHHL slot

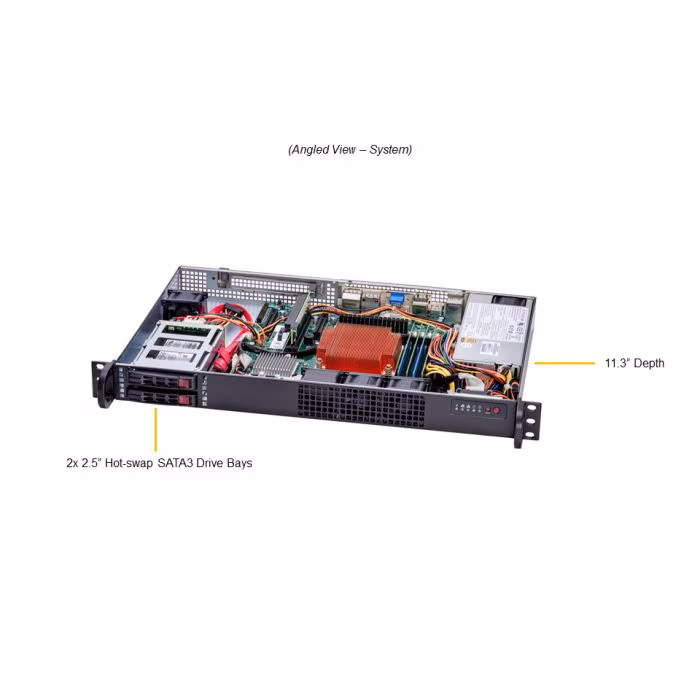

Drive Bays Configuration:
Default: Total 2 bays
2x front hot-swap 2.5" SATA drive bays
2x front hot-swap 2.5" SATA drive bays
M.2:
1x M.2 NVMe slot (M-key 2280/22110)
Fans:
Up to 4x 4-PIN PWM 40x28mm Fan(s)
Air Shroud:
1x Air Shroud
Environmental Spec.:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (W x H x L):
76x x 40.3 x 192 mm
Input:
200W: 100-240Vac
200W: 100-240Vac / 50-60Hz
200W: 100-240Vac / 50-60Hz
+12V:
Max: 16A / Min: 0A (100Vac-240Vac)
Max: 16A / Min: 0.1A (100Vac-240Vac)
Max: 16A / Min: 0.1A (100Vac-240Vac)
Output Type:
20pin ATX
Certification:
Gold Level
5V SB:
Max: 2A / Min: 0A
Description:
1x 200W Gold Level (91%) power supply
Height:
1.7 in
Width:
17.2 in
Depth:
11.3 in
Available Color:
Black
Recycle:
Contact us at lifecycle@rackables.com for recycling options.
Part NumberQtyDescription
TPM security module
AOM-TPM-9671H-O1SPI capable TPM 1.2 with Infineon 9671 controller with horizontal form factor
Warranty & Support
Please visit the link for more information about Supermicro products warranty.
